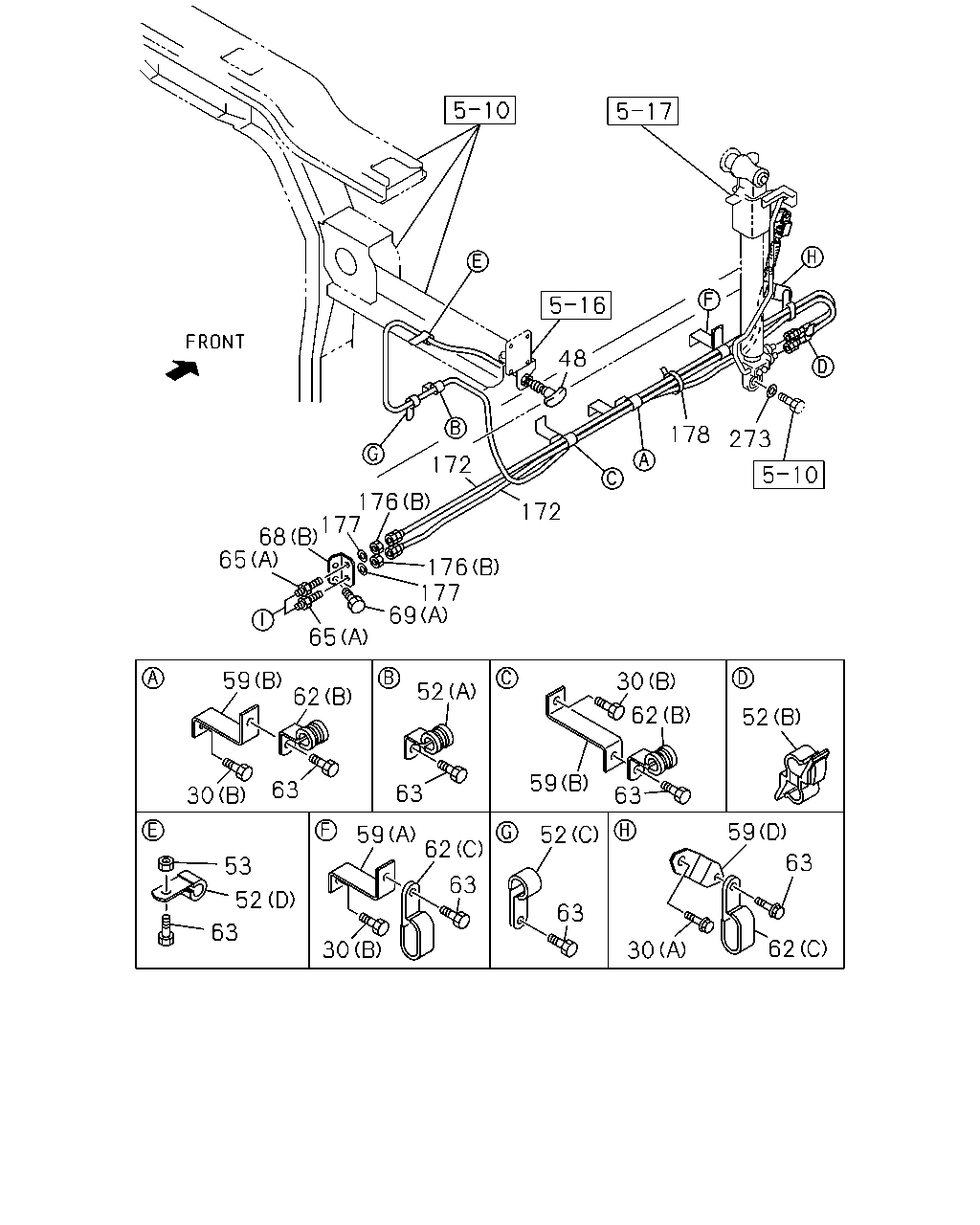

5-15 — CAB MOUNTING; CAB SIDE (#11833) — 129 parça

48 178 273 172 176 177 68 65 172 176 177 69 65 59 30 52 62 62 52 59 63 63 30 63 59 59 52 62 63 53 63 52 63 63 62 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0105-
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0105-
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0105-
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0105-
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	0105-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0105-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0105-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (E) L=140	5-09707-031-0	03	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	0105-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0105-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0105-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0105-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0105-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0105-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0105-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0105-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0105-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0105-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0105-
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0105-
178	CLIP; FLEX HOSE L=140	5-09707-031-1	02	1	0106-
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0105-

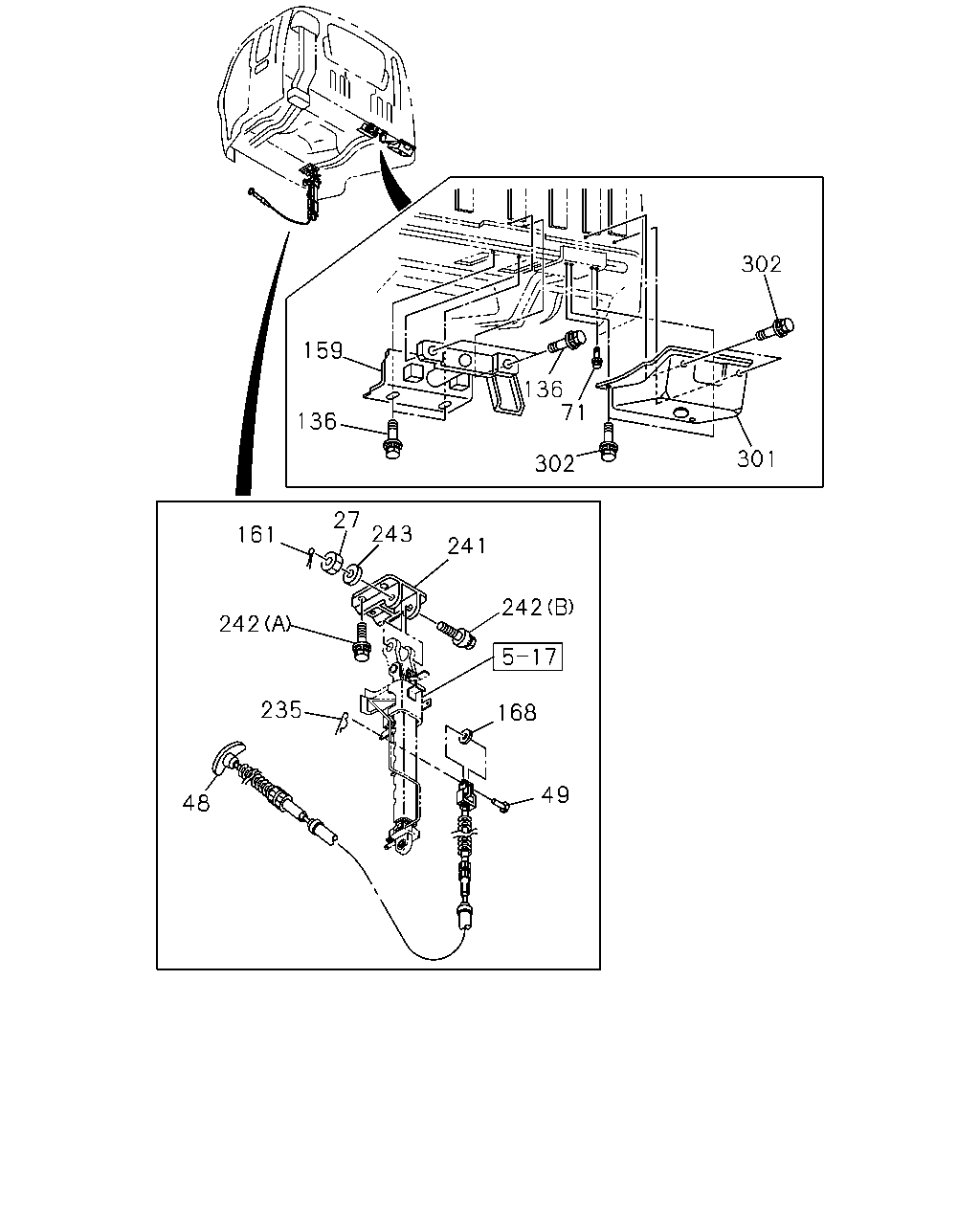

302 159 136 71 136 301 302 27 243 161 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0105-
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0105-
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0105-
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	0105-0204
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0205-
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0105-
159	PIN	1-79717-627-1	01	1	0105-
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0105-
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0105-
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0105-
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-1	01	1	0105-
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	0105-
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0105-
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0105-
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0105-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	0105-0204
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0205-

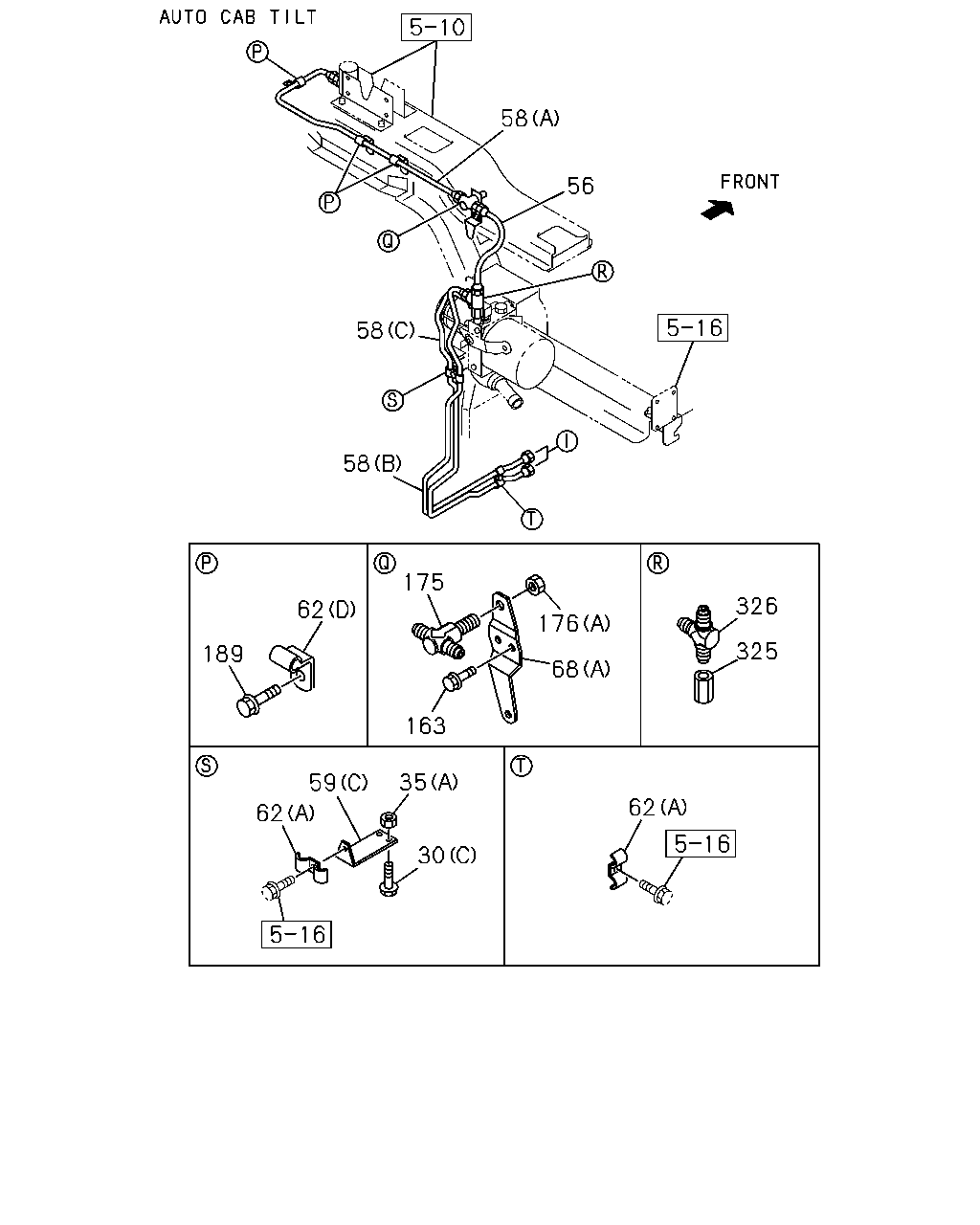

58 56 58 58 175 326 62 176 325 189 68 163 35 59 62 62 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0105-
56	HOSE; FLEX,OIL PIPE L=300	1-09365-059-0	01	1	0105-
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	0105-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B) L=1054	1-49164-150-0	01	1	0105-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (C) L=1006	1-49165-034-0	01	1	0105-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (D)	1-49165-815-0	01	1	0105-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (E)	1-49165-816-0	01	1	0105-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	0105-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0105-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0105-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (E) L=140	5-09707-031-0	03	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0105-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0105-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0105-
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	0105-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0105-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0105-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0105-
189	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0105-
325	ADAPTER; PUMP AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
326	UNION; PUMP AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0105-

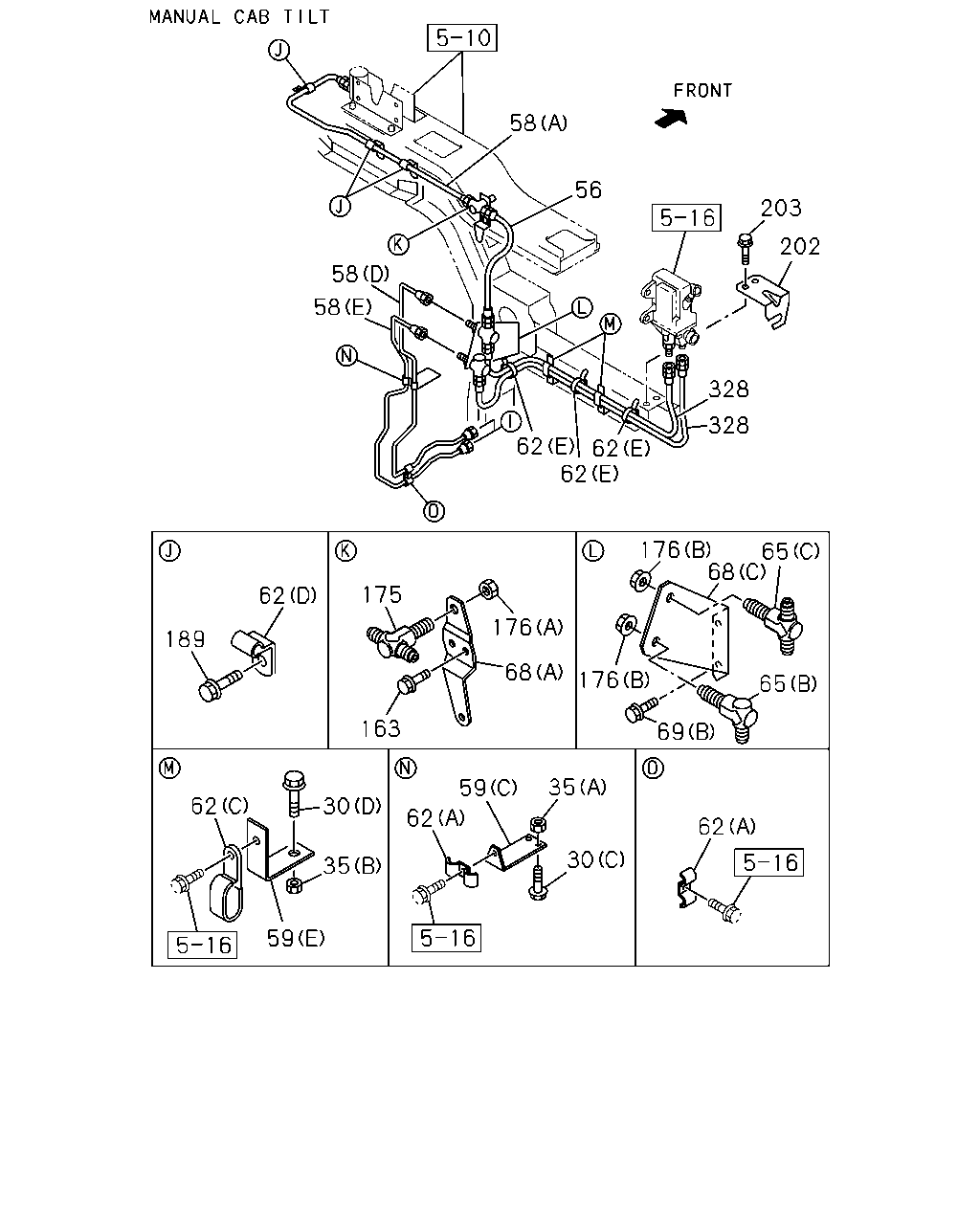

58 56 203 202 58 58 62 62 62 328 328 176 65 68 175 62 176 189 176 68 65 163 69 35 59 62 62 30 62 30 35 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0105-
56	HOSE; FLEX,OIL PIPE L=300	1-09365-059-0	01	1	0105-
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	0105-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B) L=1054	1-49164-150-0	01	1	0105-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (C) L=1006	1-49165-034-0	01	1	0105-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (D)	1-49165-815-0	01	1	0105-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (E)	1-49165-816-0	01	1	0105-
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	0105-
59	BRACKET; CLIP (B) L=90	1-82699-856-0	02	1	0105-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0105-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (E) L=140	5-09707-031-0	03	1	0105-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0105-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0105-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0105-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0105-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0105-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0105-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	0105-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0105-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0105-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0105-
189	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0105-
202	BRACKET; CABLE END MANUAL CAB TILT<SHK>	1-53458-911-0	01	1	0105-
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28680-820-0	02	1	0105-
328	HOSE; OIL MANUAL CAB TILT<SHK>	1-09365-112-0	02	1	0105-
