1-50 — EXHAUST PIPE AND SILENCER
(#118329) — 43 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

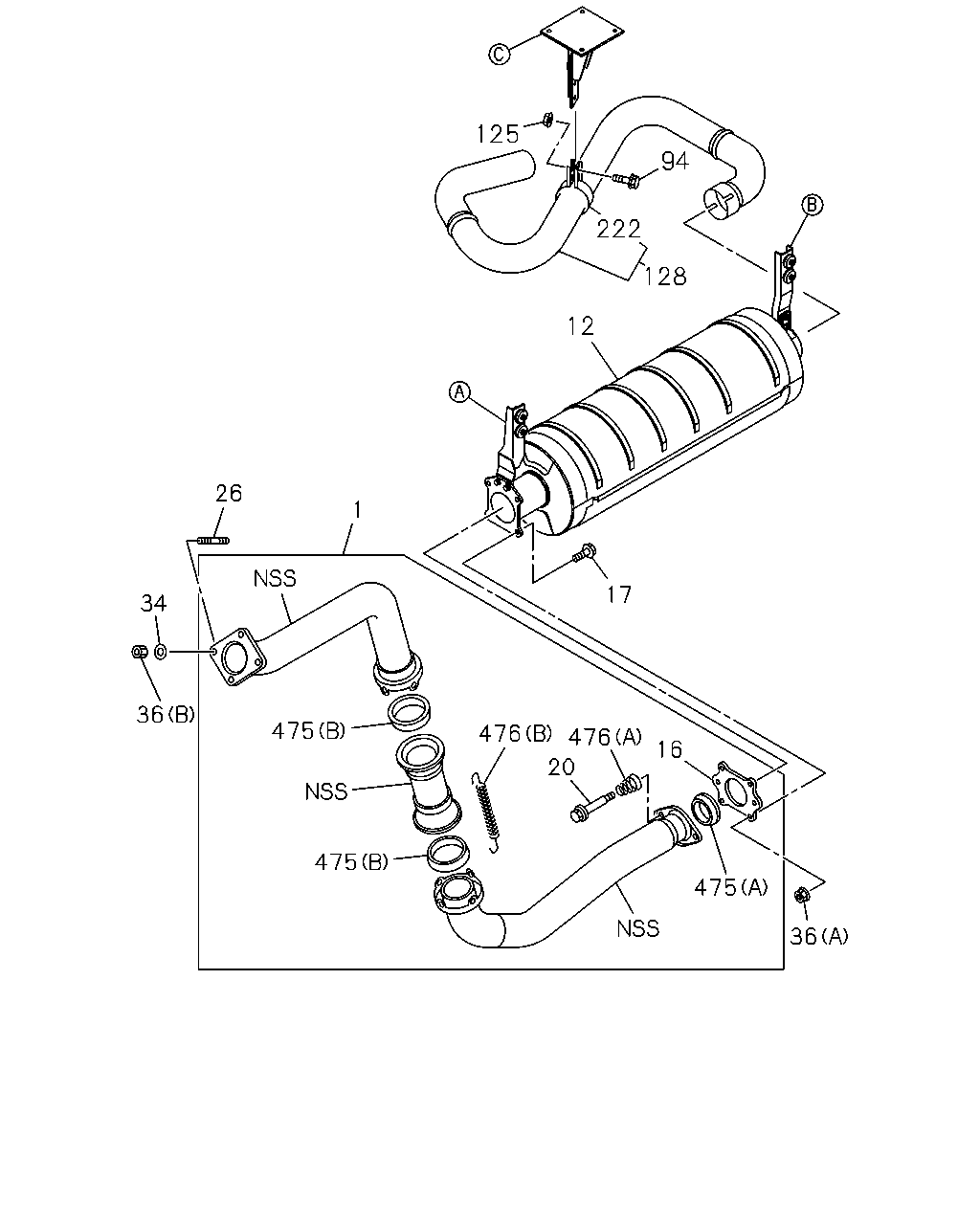

[150A] NO.1 (22 parça)
[150A] NO.2 (21 parça)
▶
36
475
16
476
476
20
475
475
36
34
26
1
17
12
128
222
125
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; EXH
WHEEL BASE 4500MM(45W)
8-97645-586-0
01
1
1304-
●
1
PIPE; EXH
WHEEL BASE 6600MM(66W)
8-98055-105-0
01
1
1304-
●
1
PIPE; EXH
8-98055-105-0
01
1
1304-
●
12
SILENCER ASM; EXH
8-97645-588-0
01
1
1304-
●
●
16
FLANGE; EXH PIPE
1-22115-148-1
01
1
1304-
●
●
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
1304-
●
●
20
BOLT; FLANGE,EXH PIPE
M10X51.4
8-94436-943-0
02
1
1304-
●
●
26
STUD; EXH MANIF
M12X125 L=145
8-97617-265-0
04
1
1304-1402
●
●
26
STUD; EXH MANIF
M12X125 L=145
8-97648-063-0
04
1
1403-
●
●
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
1304-
●
●
36
NUT; EXH PIPE
(A) M12
0-91110-512-0
04
1
1304-
●
●
36
NUT; EXH PIPE
(B) M12
1-09400-131-0
04
1
1304-
●
●
94
BOLT; CLAMP
M8X40 FLANGE
0-28650-840-0
04
1
1304-
●
●
125
NUT; CLAMP
M8 FLANGE
0-91180-108-0
02
1
1304-
●
●
128
PIPE; EXH,RR
WHEEL BASE 4500MM(45W)
8-97645-511-0
01
1
1304-
●
128
PIPE; EXH,RR
WHEEL BASE 6600MM(66W)
8-98106-278-0
01
1
1304-
●
128
PIPE; EXH,RR
8-98106-278-0
01
1
1304-
●
222
CLAMP; EXH PIPE
D=101.4
1-22133-170-1
01
1
1304-
●
●
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=112
1-22119-294-1
01
1
1304-
●
●
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=122
1-22119-297-1
02
1
1304-
●
●
476
SPRING; VIBNON,EXH PIPE
(B)
1-09583-248-0
04
1
1304-
●
●
476
SPRING; VIBNON,EXH PIPE
(A)
8-94141-851-0
02
1
1304-
●
●
70
75
72
59
24
75
59
81
116
116
56
70
75
62
81
75
8
44
89
105
94
81
75
59
24
72
75
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
BRACKET; EXH PIPE
8-98106-287-0
01
1
1304-
●
●
24
COLLAR; DIST,CLAMP
(A) L=25
1-14234-083-0
02
1
1304-
●
●
24
COLLAR; DIST,CLAMP
(B) L=22
9-22159-024-0
02
1
1304-
●
●
44
BOLT; BRKT
M8X25 FLANGE
0-28050-825-0
04
1
1304-
●
●
56
BRACKET; CLAMP,EXH PIPE
8-98106-290-0
01
1
1304-
●
●
59
BRACKET; EXH SILENCER,FRT
WHEEL BASE 4500MM(45W) (C)
8-97645-587-0
01
1
1304-
●
59
BRACKET; EXH SILENCER,FRT
WHEEL BASE 6600MM(66W) (A)
8-97642-915-1
01
1
1304-
●
59
BRACKET; EXH SILENCER,FRT
(A)
8-97642-915-1
01
1
1304-
●
59
BRACKET; EXH SILENCER,FRT
(B)
8-98055-106-0
01
1
1304-
●
●
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
1304-
●
●
70
BOLT; BRKT
(B) M10X60
0-10856-060-0
02
1
1304-
●
●
70
BOLT; BRKT
(A) M10X50 FLANGE
0-28051-050-0
01
1
1304-
●
●
72
WASHER; LK,BRKT
ID=10.2
0-91510-810-0
04
1
1304-
●
●
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
10
1
1304-
●
●
81
NUT; BRKT
(B) M10
0-91110-510-0
04
1
1304-
●
●
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
01
1
1304-
●
●
89
CLAMP; EXH SILENCER,RR
8-97621-090-0
01
1
1304-
●
●
94
BOLT; CLAMP
M8X40 FLANGE
0-28650-840-0
04
1
1304-
●
●
105
NUT; CLAMP
M8 FLANGE
0-91180-108-0
02
1
1304-
●
●
116
BOLT; BRKT
(A) M10X60
0-10856-060-0
02
1
1304-
●
●
116
BOLT; BRKT
(B) M10X35 FLANGE
0-28051-035-0
02
1
1304-
●
●
