2-30 — GEAR SHIFTER AND QUADRANT BOX (#118327) — 87 parça

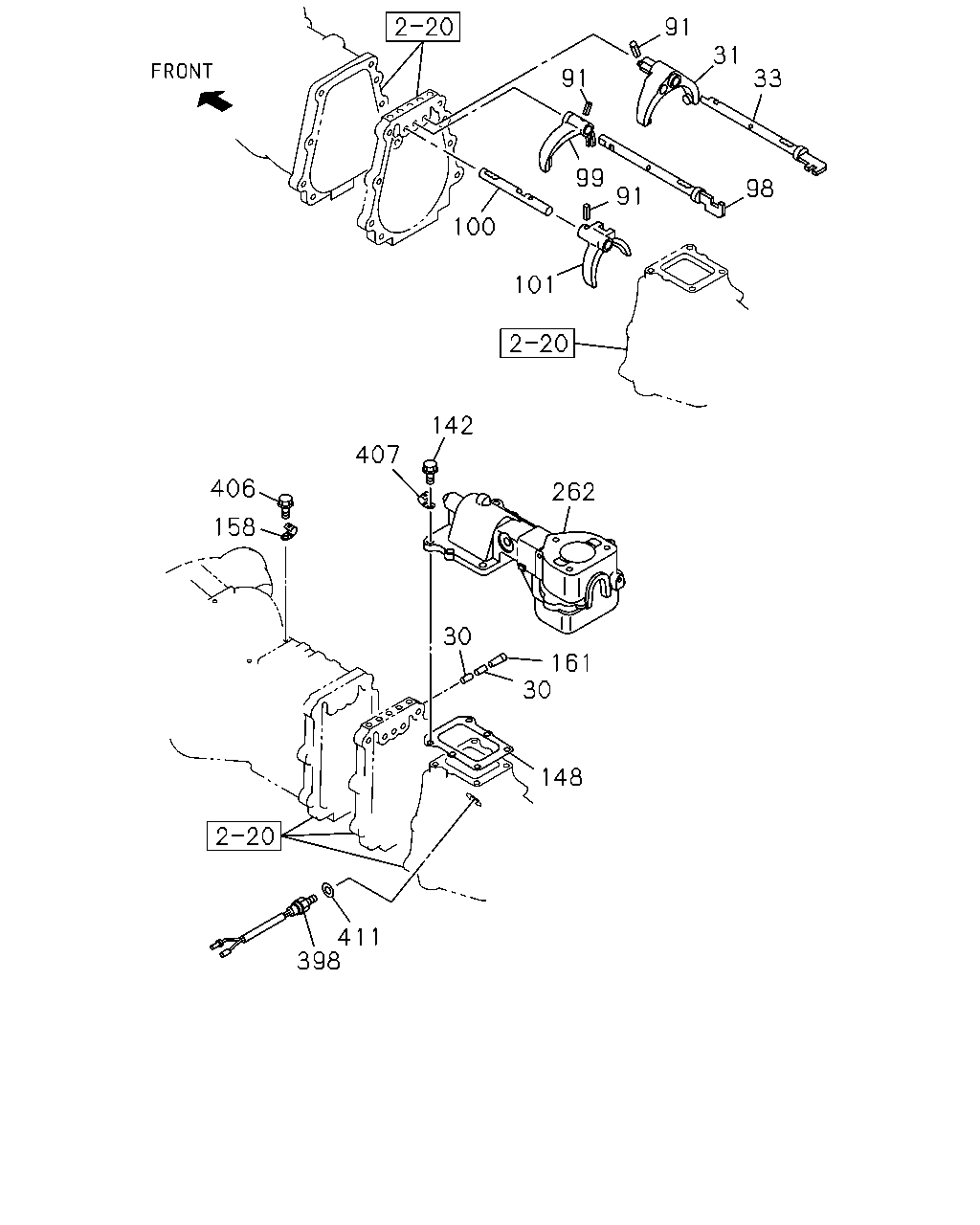

çizim 342802
91 91 99 31 98 33 91 101 100 262 142 407 406 30 161 30 148 158 411 398
BalonParca AdiParca NoAdetTipApplied Date A B C
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1304- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1304- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 1304- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1304- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1304- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1304- ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1304- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 1304- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1304- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 1304- ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97232-885-0 01 1 1304- ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1304- ● ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94448-755-2 01 1 1304- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 1304- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1304- ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1304- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 1304- ●
158 04.105 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1304- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1304- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1304- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1304- ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1304- ● ● ●
406 02.559 BOLT; HARNESS CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1304- ●
407 02.698 CLIP; SWITCH HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1304- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1304- ●

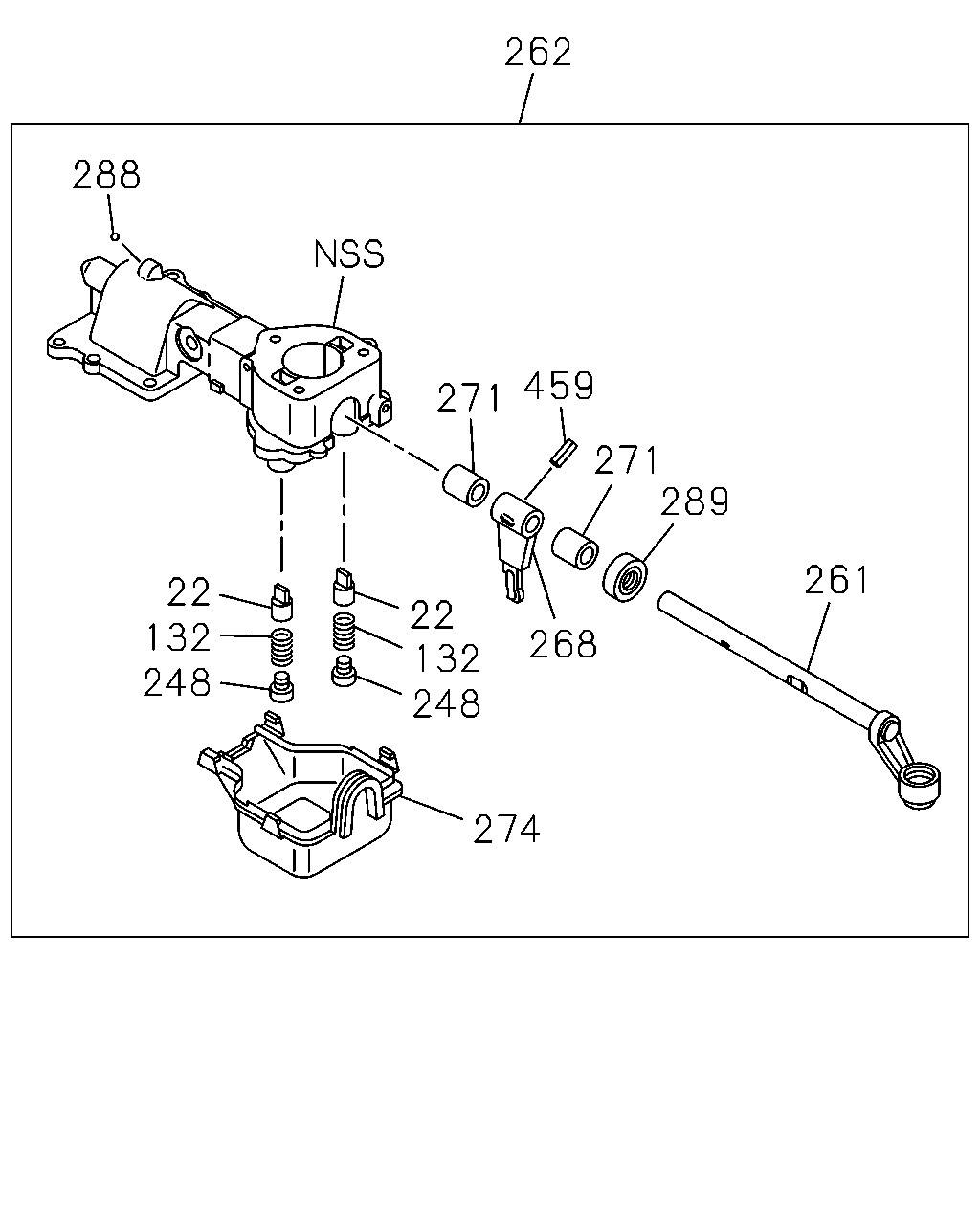

çizim 342816
262 288 271 459 289 271 261 268 22 132 248 274 22 132 248
BalonParca AdiParca NoAdetTipApplied Date A B C
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1304- ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1304- ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1304- ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1304- ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 1304- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1304- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1304- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1304- ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 1304- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1304- ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1304- ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1304- ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1304- ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1304- ● ● ●

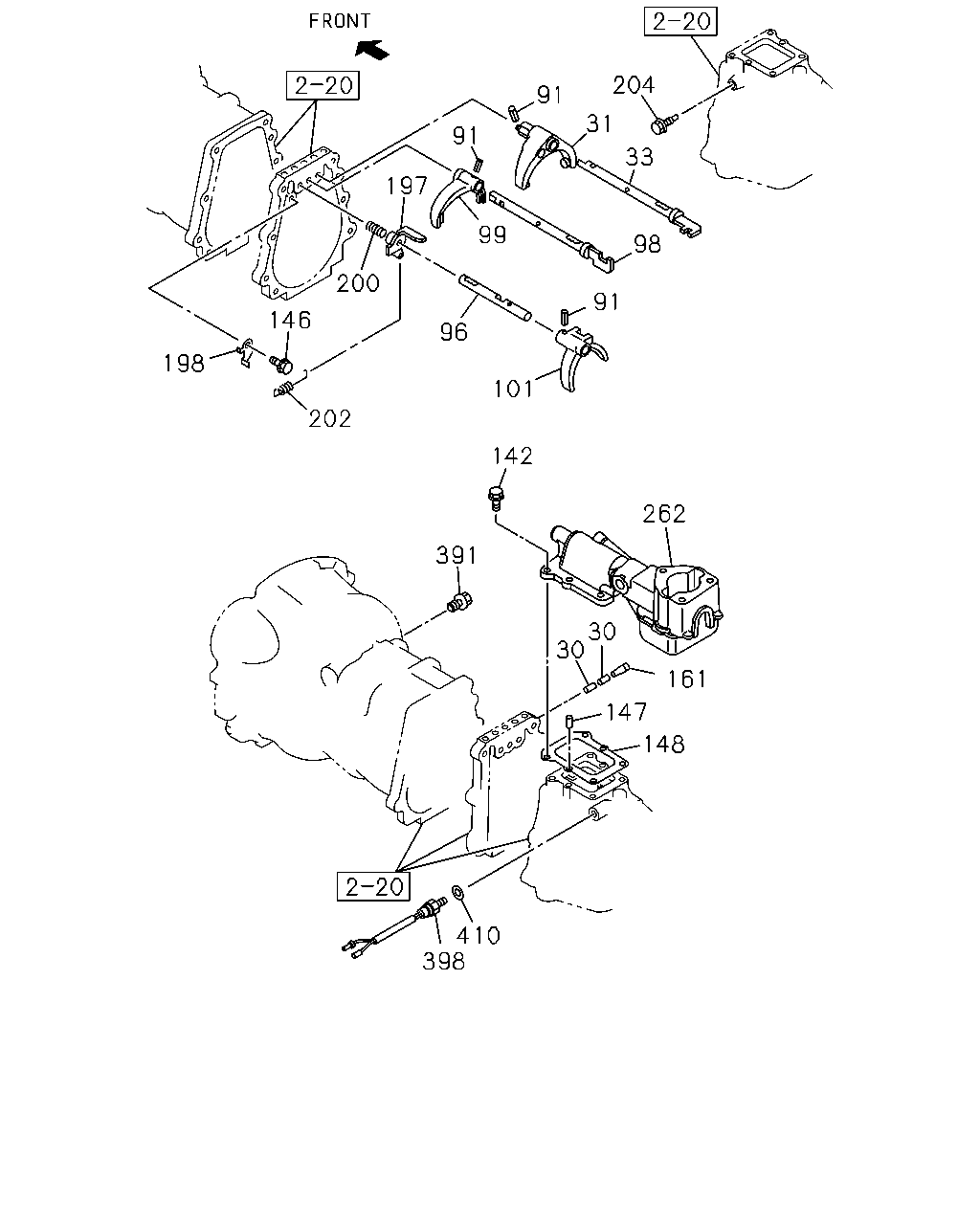

çizim 342828
398 148 161 147 30 262 30 391 142 101 91 98 33 204 31 91 91 99 96 202 198 146 200 197 410
BalonParca AdiParca NoAdetTipApplied Date A B C
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1304- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1304- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 1304- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1304- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1304- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1304- ● ● ●
96 04.309 ROD; SHIFT,5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-886-0 01 1 1304- ● ●
96 04.309 ROD; SHIFT,5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94440-079-1 01 1 1304- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1304- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 1304- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1304- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 1304- ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1304- ● ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94448-755-2 01 1 1304- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 1304- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1304- ● ● ●
146 04.032 BOLT; REV INHIBITOR
IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
146 04.032 BOLT; REV INHIBITOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1304- ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 1304- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1304- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 1304- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1304- ● ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 1304- ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 1304- ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 1304- ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 1304- ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 1304- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1304- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1304- ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-98035-674-0 01 1 1304- ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1304- ● ● ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1304- ● ●

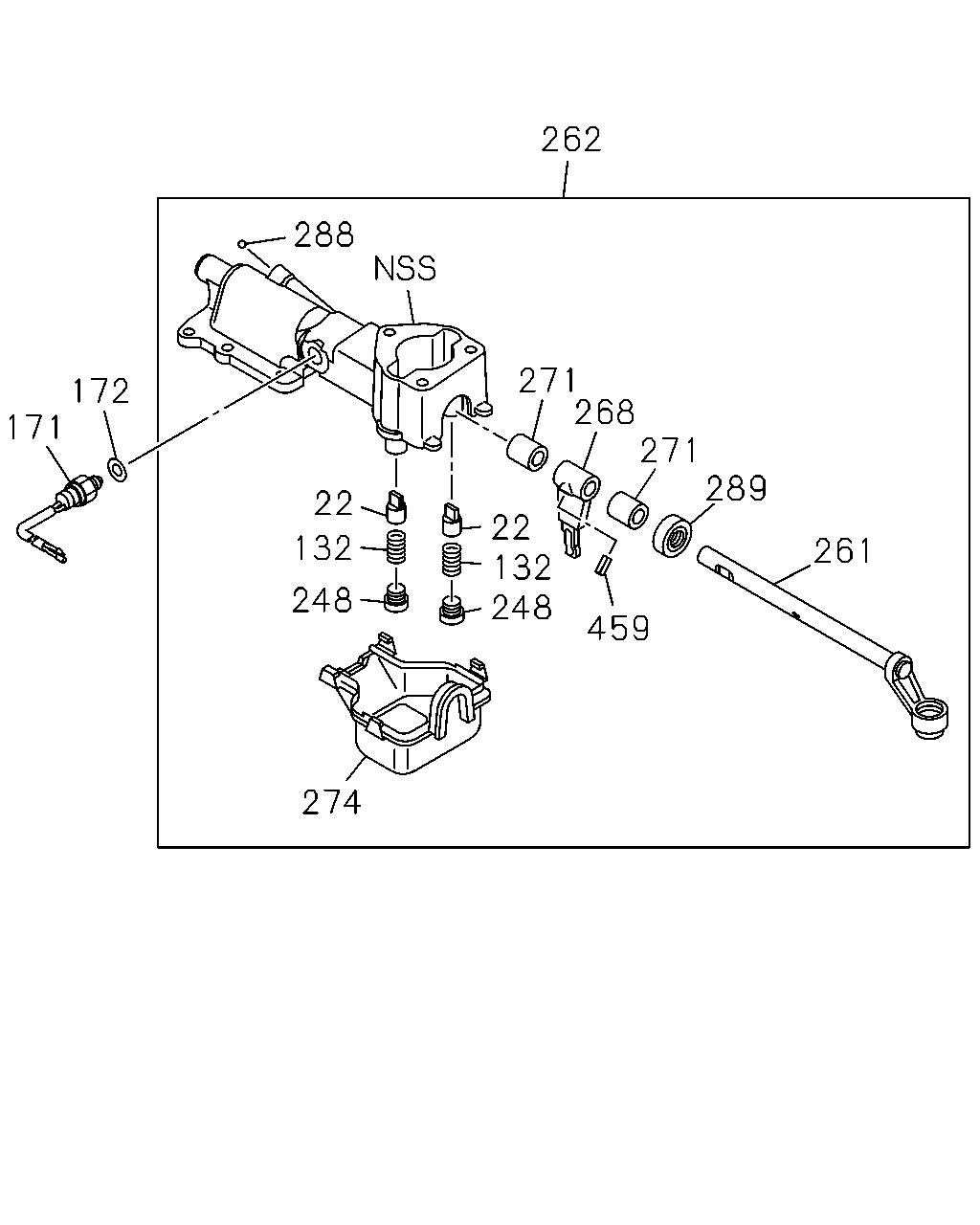

çizim 342934
262 288 271 289 271 261 459 22 132 22 248 274 248 172 171 132 268
BalonParca AdiParca NoAdetTipApplied Date A B C
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1304- ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1304- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98103-743-0 01 1 1304- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1304- ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1304- ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1304- ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 1304- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1304- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1304- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1304- ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 1304- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1304- ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1304- ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1304- ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1304- ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1304- ● ● ●
