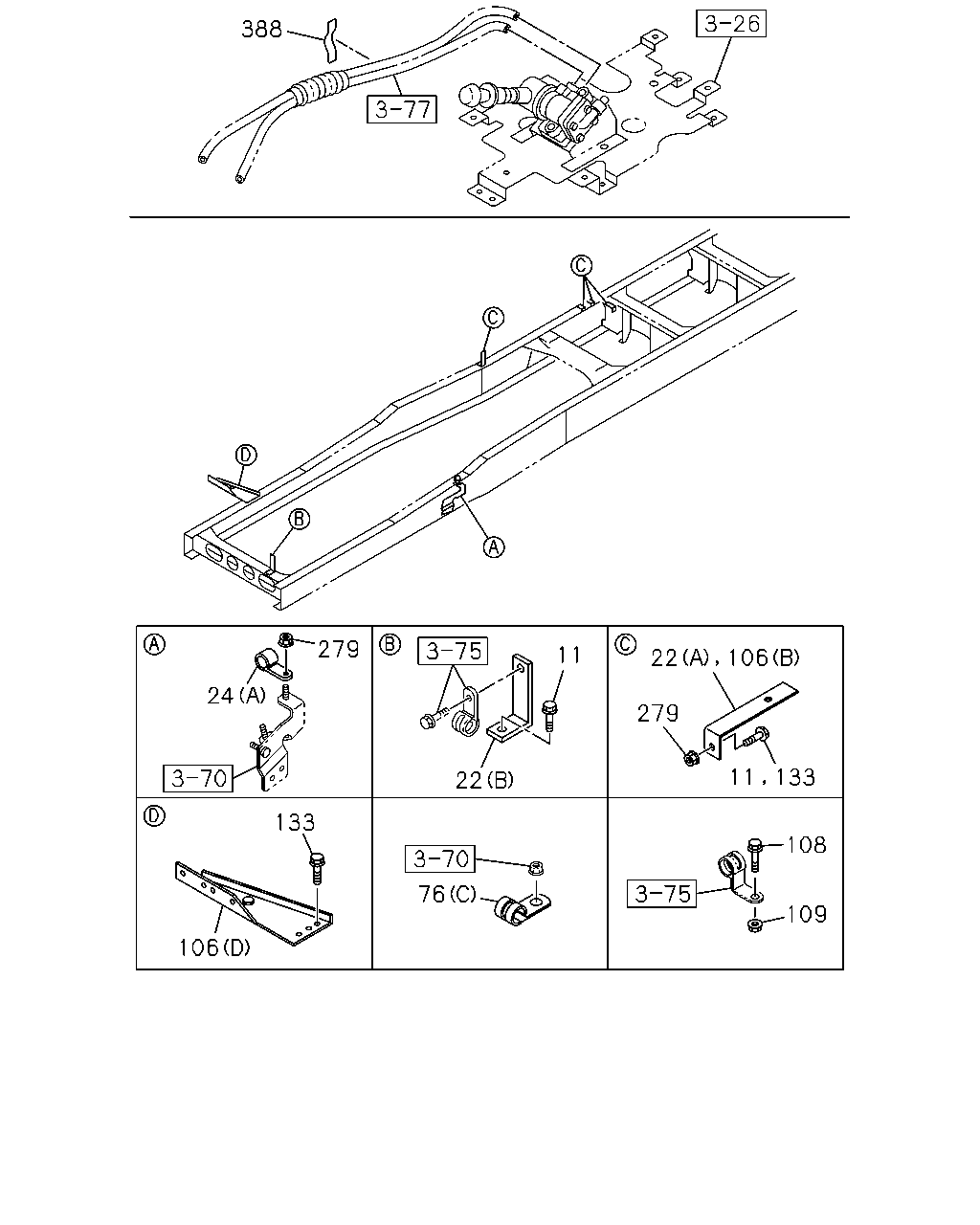

3-78 — FIXING PARTS; AIR PIPING (#118322) — 120 parça

388 24 279 11 22 22 106 11 133 279 133 106 76 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1304-
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (D) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
24	CLIP; PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-
24	CLIP; PIPE (A) ID=25 L=50	1-09701-019-0	03	1	1304-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	06	1	1304-
76	CLIP; NYLON TUBE (B) ID=24-30 L=18	1-09709-297-0	01	1	1304-
76	CLIP; NYLON TUBE (C) ID=39 L=33	8-98009-359-0	01	1	1304-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
106	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	01	1	1304-
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1304-
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	02	1	1304-
106	BRACKET; TUBE CLIP (D)	8-98100-335-0	01	1	1304-
108	BOLT; TUBE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1304-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1304-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1304-
109	NUT; TUBE CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	1304-
109	NUT; TUBE CLIP EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
388	SEAL 100X40	1-72498-022-1	03	1	1304-

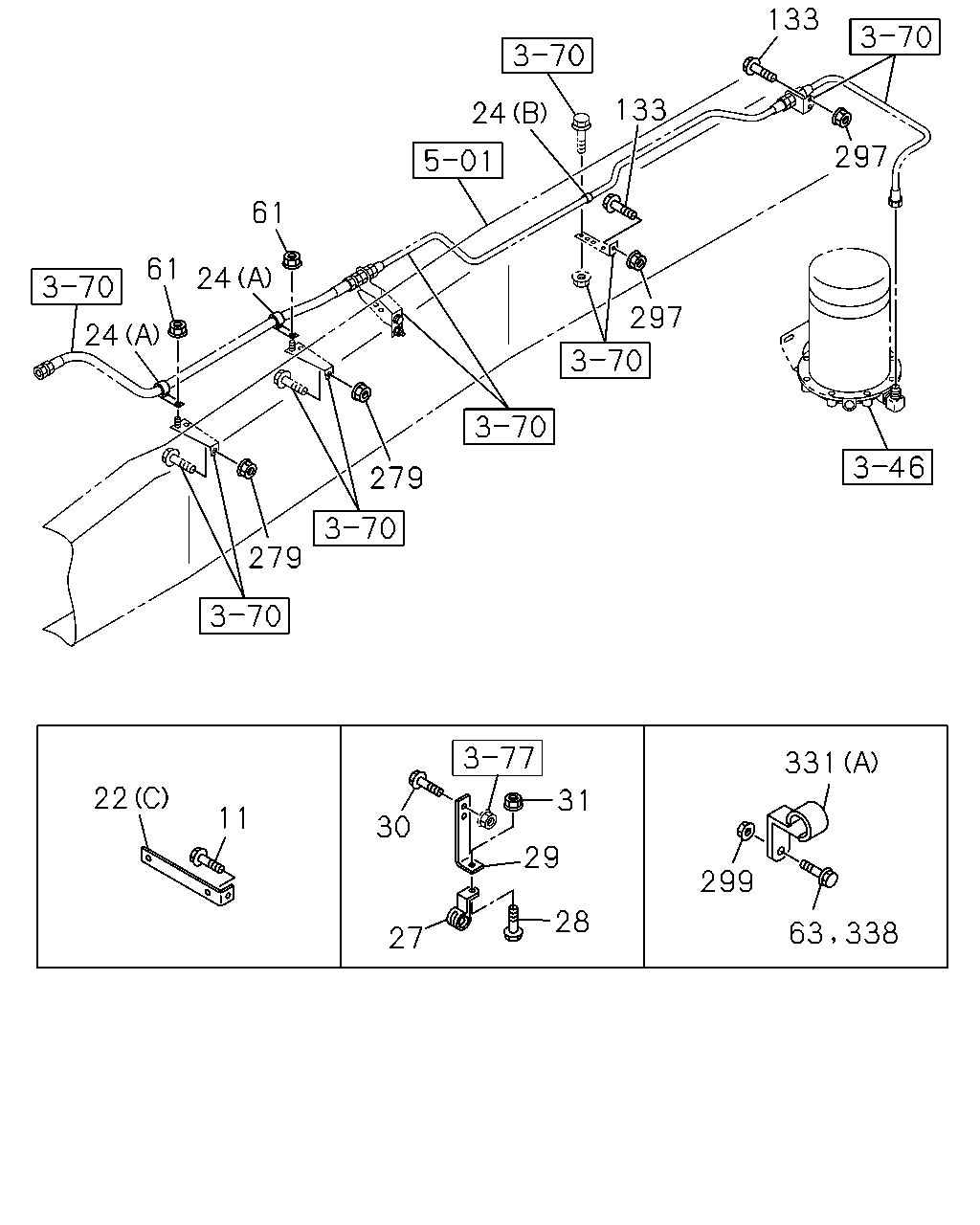

24 61 61 24 24 133 133 297 297 279 279 22 11 30 31 29 27 28 331 299 63 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1304-
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (D) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
24	CLIP; PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-
24	CLIP; PIPE (A) ID=25 L=50	1-09701-019-0	03	1	1304-
27	CLIP; FLEX HOSE ID=25 H=30 L=35	1-09700-875-0	01	1	1304-
28	BOLT; CLIP,FLEX HOSE BATTERY 80D26L<TM1> M8X20 FLANGE	0-28650-820-0	01	1	1304-
29	BRACKET; CLIP,AIR PIPE BATTERY 80D26L<TM1> L=145 B=25	1-47479-123-0	01	1	1304-
30	BOLT; CLIP BRKT BATTERY 80D26L<TM1> M8X25 FLANGE	0-28650-825-0	01	1	1304-
31	NUT; CLIP BRKT BATTERY 80D26L<TM1> M8 FLANGE	0-91180-108-0	01	1	1304-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1304-
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
331	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1304-
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	1304-
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-

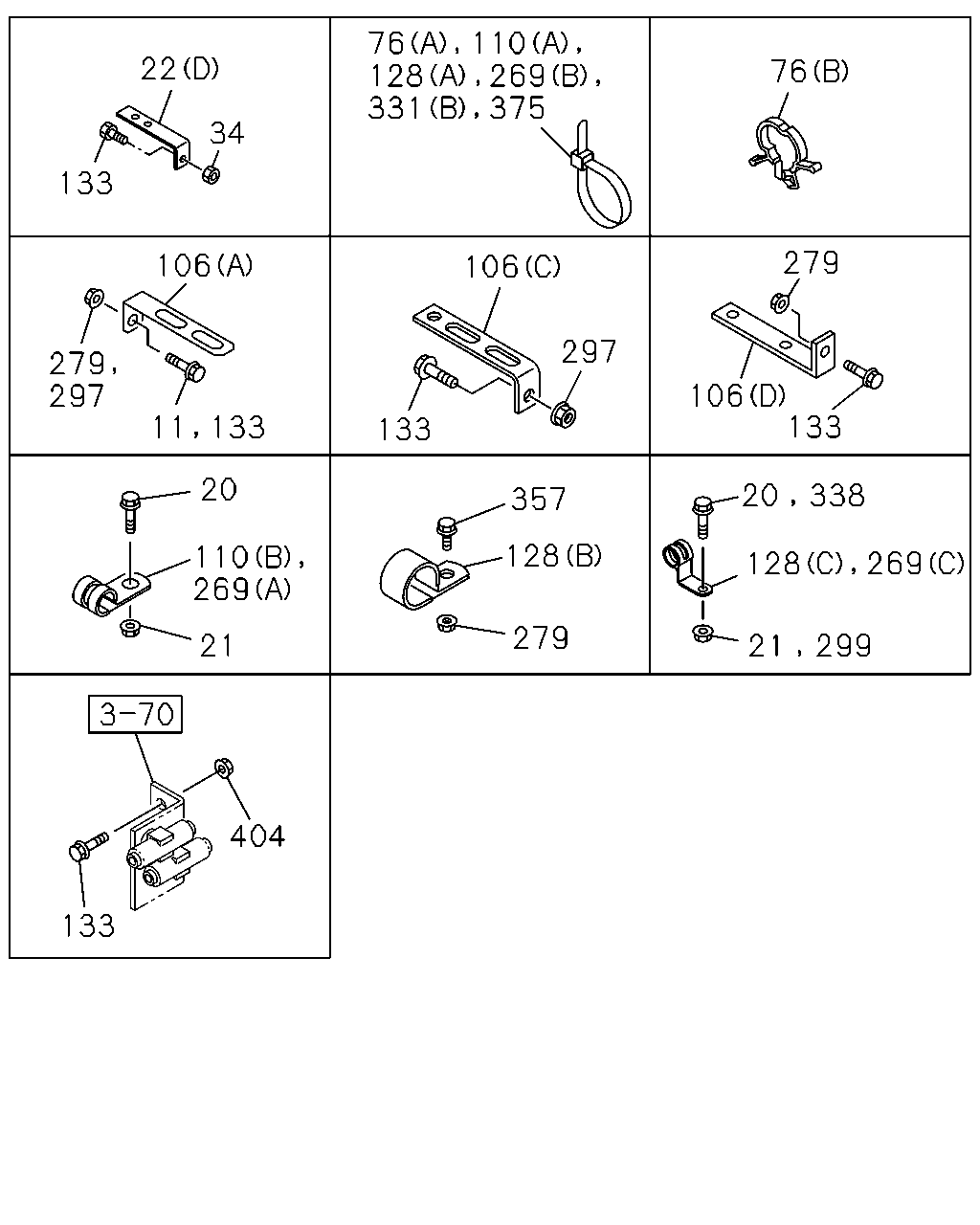

22 34 133 106 279 11 133 297 20 110 21 269 404 133 76 331 128 110 375 269 76 279 106 133 106 297 133 357 128 279 20 338 128 21 299 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1304-
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1304-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (D) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1304-
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	06	1	1304-
76	CLIP; NYLON TUBE (B) ID=24-30 L=18	1-09709-297-0	01	1	1304-
76	CLIP; NYLON TUBE (C) ID=39 L=33	8-98009-359-0	01	1	1304-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
106	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	01	1	1304-
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1304-
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	02	1	1304-
106	BRACKET; TUBE CLIP (D)	8-98100-335-0	01	1	1304-
110	CLIP; BAND,NYLON TUBE (B) ID=19 L=20	0-95235-836-0	02	1	1304-
110	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	10	1	1304-
128	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (B) ID=13 L=28	0-95235-255-0	01	1	1304-
128	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1304-
128	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	11	1	1304-
128	CLIP; NYLON TUBE (B) ID=13 L=20	0-95235-235-0	01	1	1304-
128	CLIP; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	10	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-1309
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1310-
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	01	1	1304-
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
269	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09701-261-0	02	1	1304-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	25	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
331	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1304-
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	1304-
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	01	1	1304-
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1304-
404	NUT M8 FLANGE	0-91180-108-0	02	1	1310-
