Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10877 - EXZ LHD FUEL TANK 200L+200L
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#11831) — 46 parça
◀

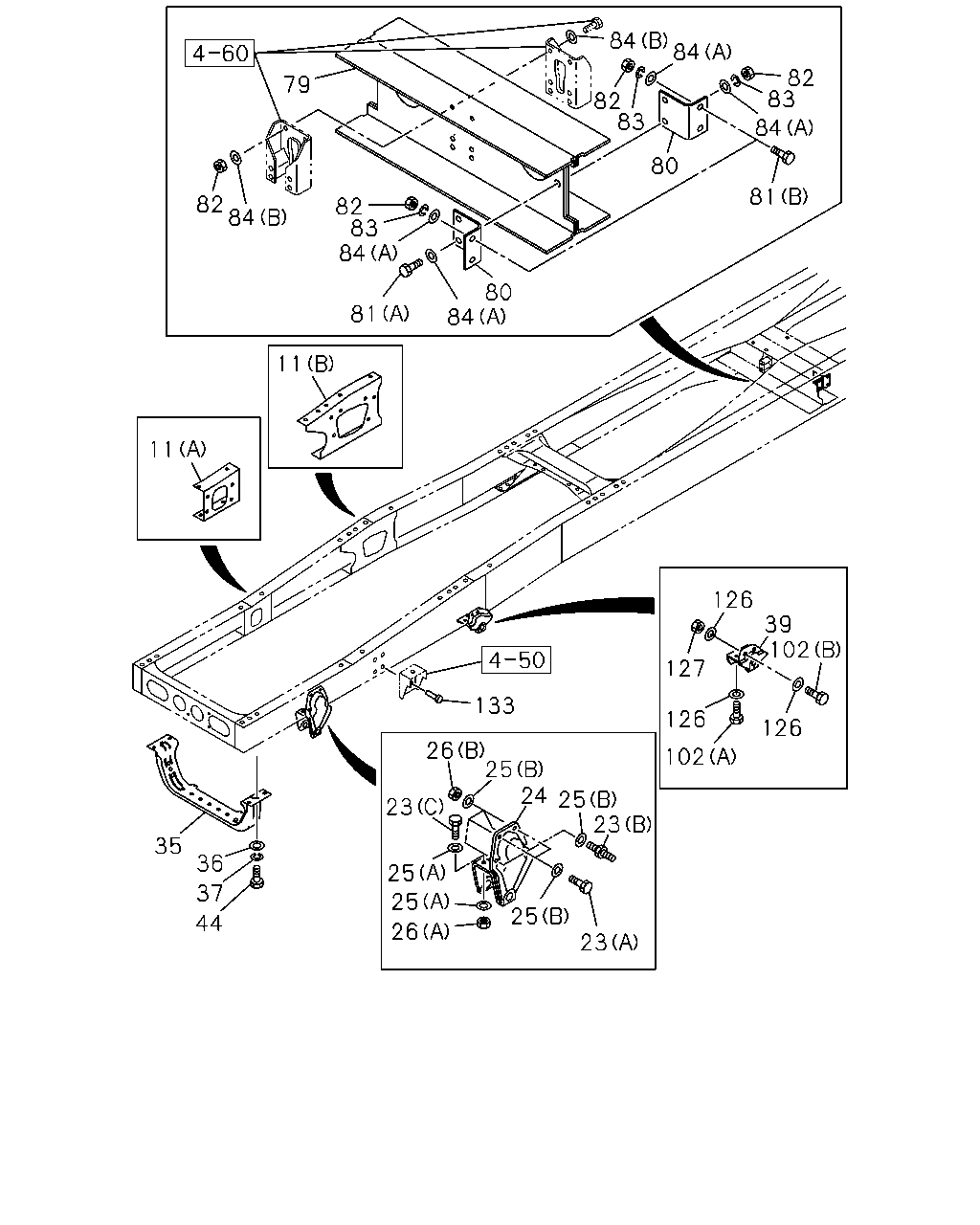

[501A] BRACKET AND UNDER MEMBER (33 parça)
[501A] CROSS MEMBER (13 parça)
▶
84
84
82
83
79
82
83
84
80
81
82
84
82
83
84
80
84
81
11
11
126
39
102
127
133
126
126
26
25
24
102
25
23
23
35
36
25
37
25
25
44
26
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-583-0
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-585-3
01
1
0105-
11
BRACKET; ENG MTG
(A)
1-53219-582-0
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-584-3
01
1
0105-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0105-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0105-
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0105-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0105-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0105-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
AR
1
0105-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0105-
26
NUT; BRKT,SPR
(B) M14
9-99110-514-0
AR
1
0105-
26
NUT; BRKT,SPR
(A) M16
9-99110-516-0
AR
1
0105-
35
MEMBER; UNDER
1-53174-214-2
01
1
0105-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0105-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
0105-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0105-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0105-
80
BRACKET; C/MBR
1-53167-610-0
04
1
0105-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
AR
1
0105-
81
BOLT; BRKT
(B) M14X38
9-92061-438-0
AR
1
0105-0312
81
BOLT; BRKT
(B) M14X40
9-92061-440-0
AR
1
0401-
82
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
AR
1
0105-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
AR
1
0105-
84
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0105-
102
BOLT; BRKT,RR SPR
(B) M14X40
9-92061-440-0
AR
1
0105-
102
BOLT; BRKT,RR SPR
(A) M14X50
9-92061-450-0
AR
1
0105-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
127
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0105-

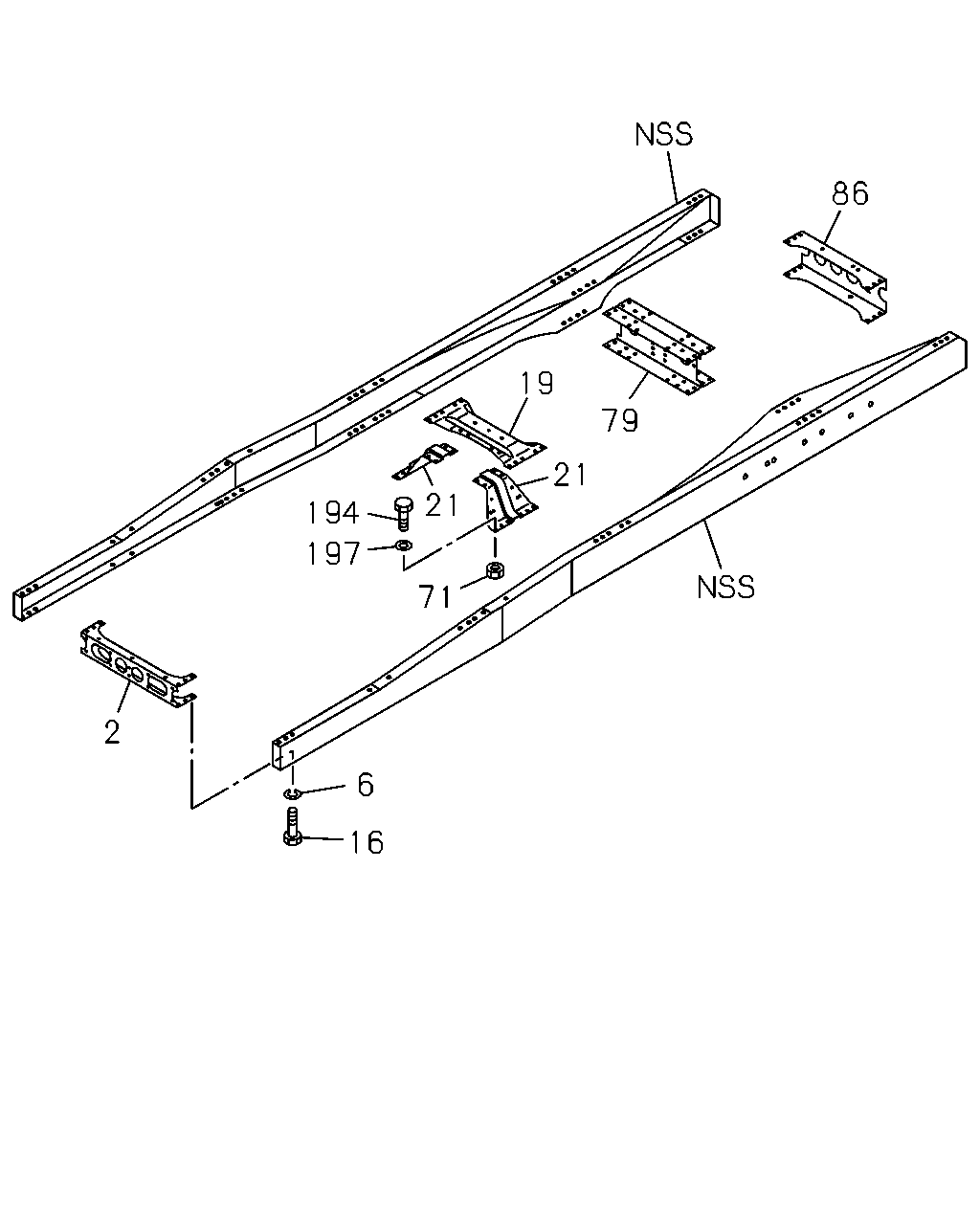

86
19
79
21
21
194
197
71
2
6
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>
1-53181-526-4
01
1
0105-
2
MEMBER; CROSS,1ST
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>
1-53181-710-1
01
1
0105-
2
MEMBER; CROSS,1ST
EXC. BUMPER W/HEADLAMPS<SLB>
1-53181-710-1
01
1
0105-
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2
9-09150-616-0
AR
1
0105-
16
BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40
0-20801-640-0
AR
1
0105-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0105-
21
GUSSET; 2ND CROSS
1-53164-227-0
01
1
0105-
21
GUSSET; 2ND CROSS
1-53164-226-0
01
1
0105-
71
NUT; 2ND C/MBR
M14
9-99110-514-0
AR
1
0105-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0105-
86
MEMBER; CROSS,RR SUSP RR
1-53171-651-5
01
1
0105-
194
BOLT; 2ND C/MBR
M14X50
9-92061-450-0
AR
1
0105-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
AR
1
0105-
