Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#118309) — 43 parça
◀
[032A] EGR COOLER (11 parça)

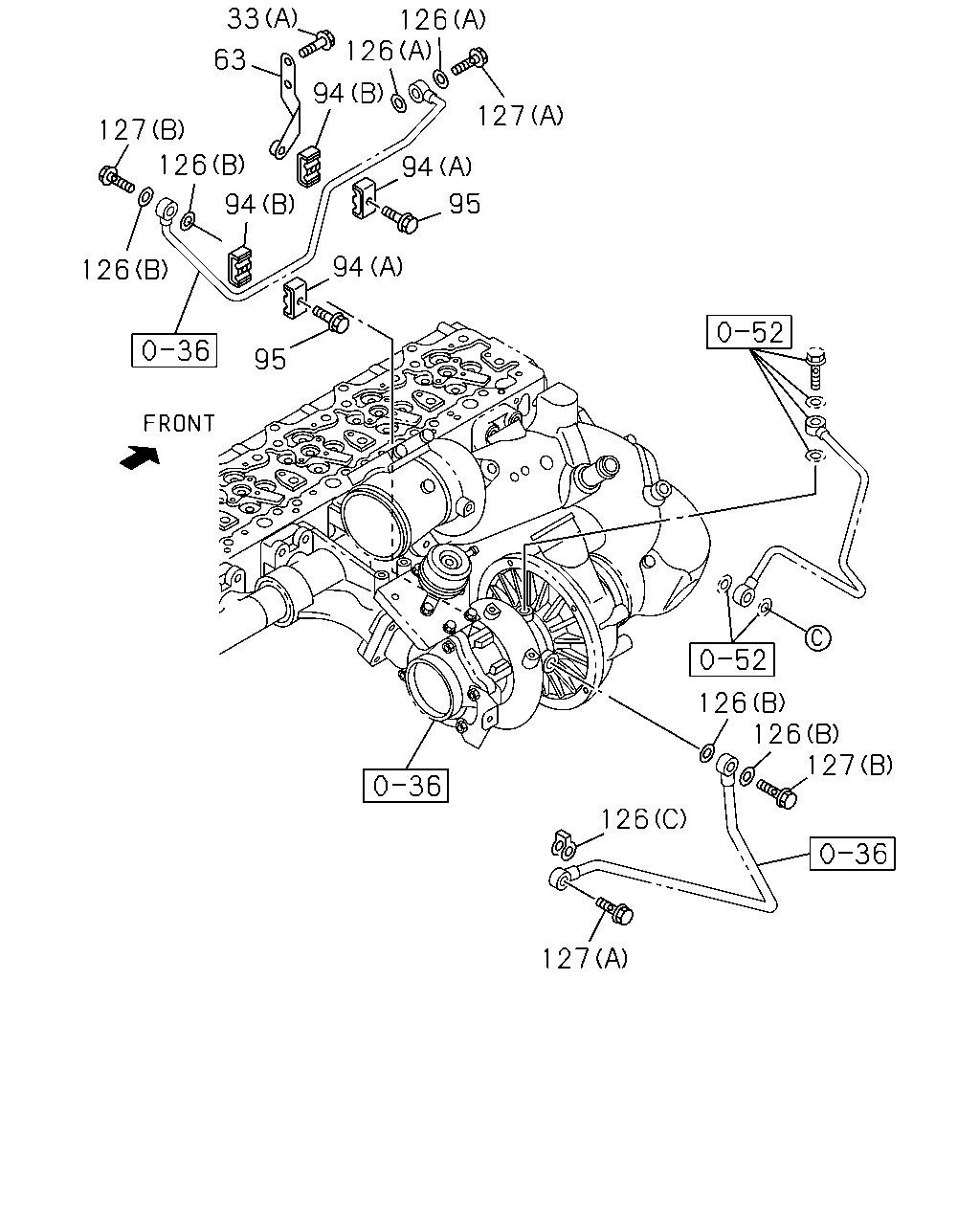

[032A] TURBOCHARGER (12 parça)

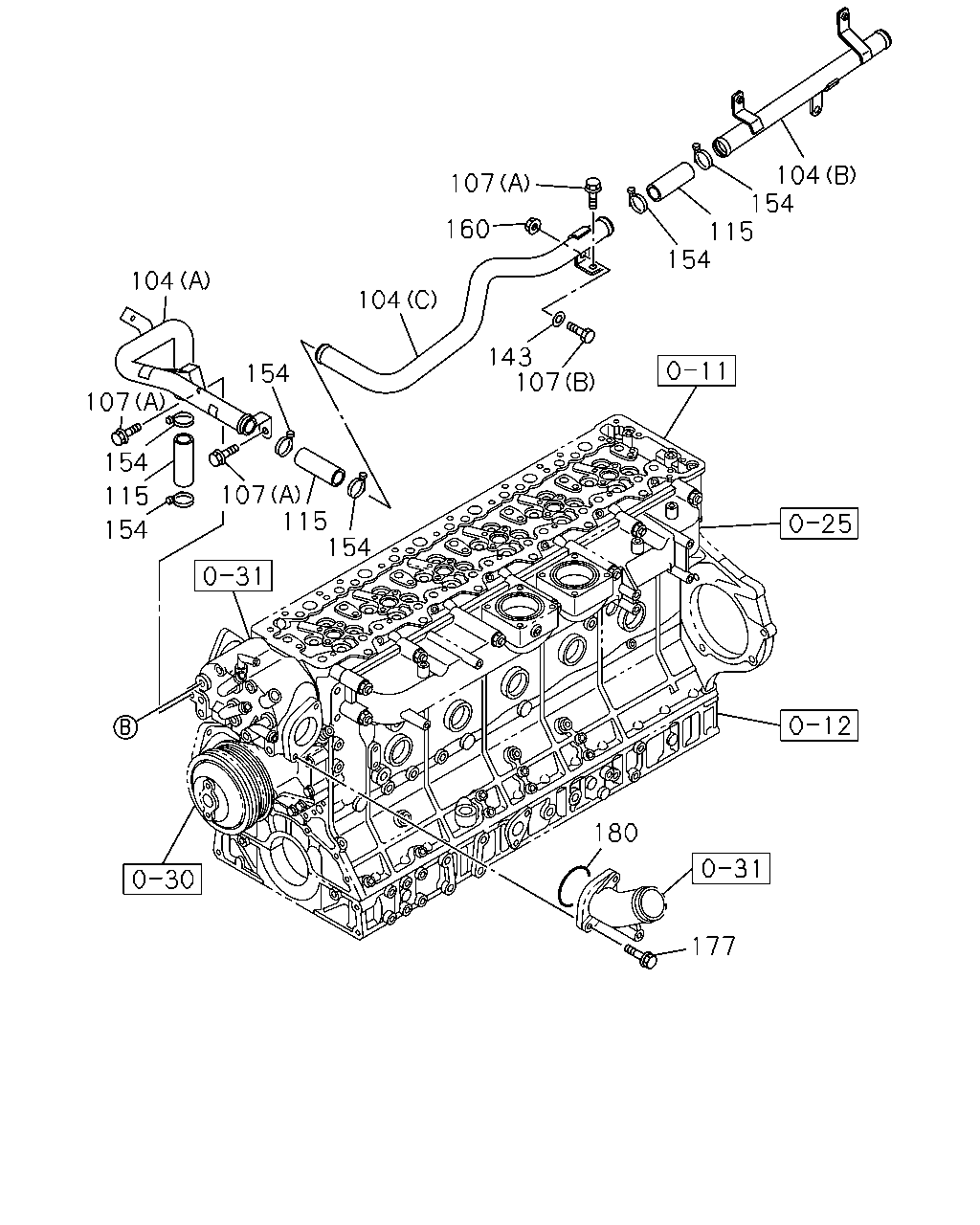

[032A] THERMOSTAT HOUSING (11 parça)

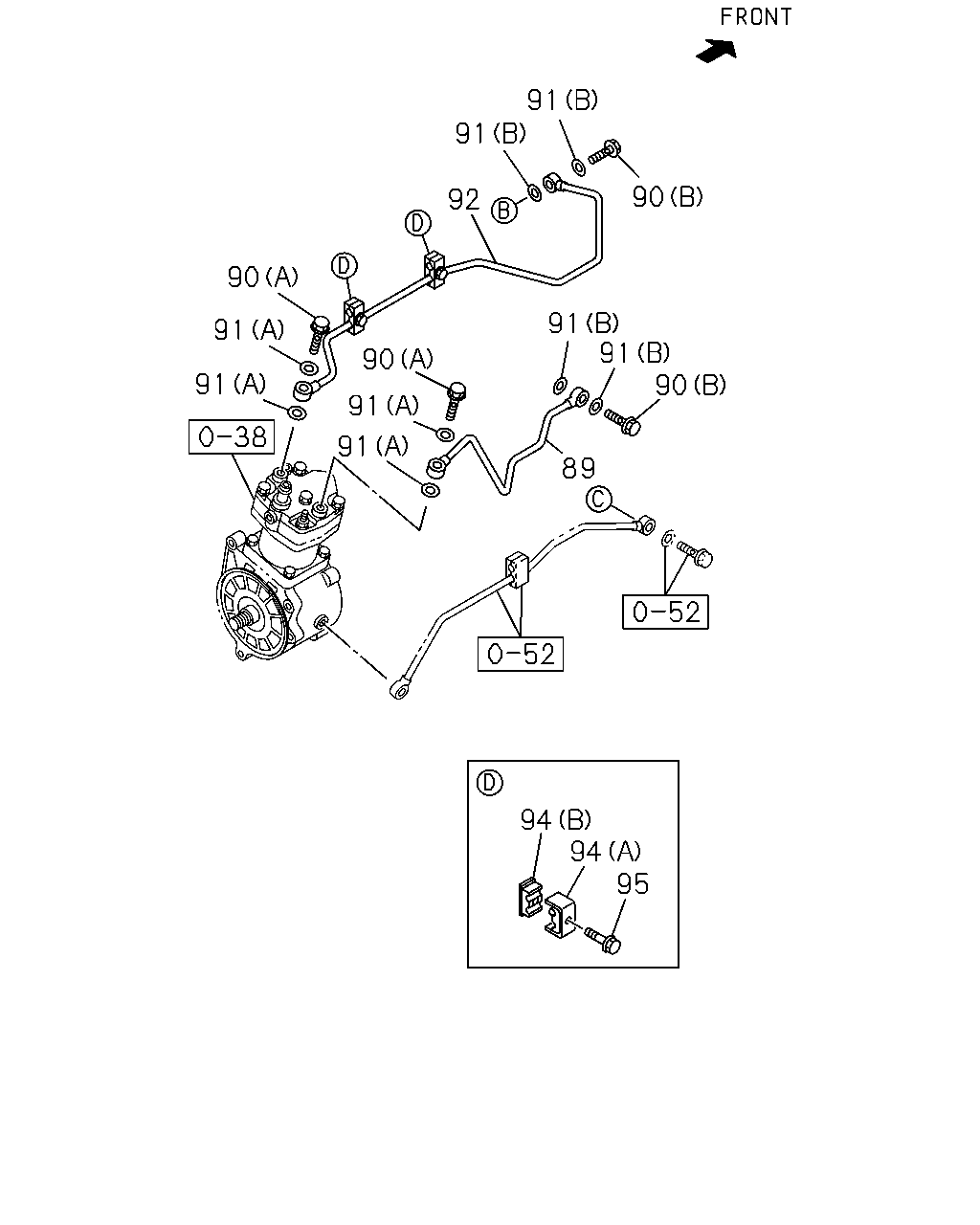

[032A] AIR COMPRESSOR (9 parça)
▶
110
95
24
110
33
109
58
109
804
113
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
8-97607-436-0
01
1
1204-
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1204-
33
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1204-
58
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1204-
95
BOLT; CLIP
M6X35 FLANGE THA
0-28650-635-0
08
1
1204-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(A)
8-97603-725-0
01
1
1204-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(B)
8-98216-502-0
01
1
1204-
110
CLIP; AIR PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
04
1
1204-
110
CLIP; AIR PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
1204-
113
HOSE; RUBBER,AIR LEAK
SERVICED BY L=3000 THA
0-03559-300-0
01
1
1204-
804
CLIP; BAND
L=250
8-98216-430-0
01
1
1204-
126
126
127
127
126
95
126
127
63
33
126
94
94
94
126
126
127
94
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1204-
33
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1204-
63
BRACKET; WATER PIPE
8-97615-267-0
01
1
1204-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
04
1
1204-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
04
1
1204-
95
BOLT; CLIP
M6X35 FLANGE THA
0-28650-635-0
08
1
1204-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
1204-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1204-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=21
8-97251-047-0
01
1
1204-
127
BOLT; EYE
(B) M16X30 FLANGE
1-09675-095-1
02
1
1204-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1204-
104
104
160
107
143
107
154
115
154
104
154
107
154
115
154
107
115
154
180
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
PIPE; WATER CHARGE
(A)
8-97604-530-0
01
1
1204-
104
PIPE; WATER CHARGE
(B)
8-98216-503-0
01
1
1204-
104
PIPE; WATER CHARGE
(C)
8-98216-505-0
01
1
1204-
107
BOLT; WATER PIPE
(A) M10X20 FLANGE THA
0-28151-020-0
04
1
1204-
107
BOLT; WATER PIPE
(B)
8-98216-479-0
01
1
1204-
115
HOSE; RUBBER
SERVICED BY L=3000
0-03580-300-0
03
1
1204-
143
WASHER; PL,WATER PIPE
8-98216-412-0
01
1
1204-
154
CLIP; WATER HOSE
ID=44
1-09704-077-0
06
1
1204-
160
NUT; WATER PIPE
8-98216-508-0
01
1
1204-
177
BOLT; WATER DUCT
M8X30 FLANGE THA
0-28650-830-0
02
1
1204-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6
9-09565-271-0
01
1
1204-
91
91
92
90
91
91
91
91
90
91
91
90
89
95
94
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
8-97611-169-0
01
1
1204-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M16X30 FLANGE
1-09675-095-1
02
1
1204-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M14X27 EYE-BOLT
1-09675-193-0
02
1
1204-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2
1-09630-086-0
04
1
1204-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=25
1-09630-141-0
04
1
1204-
92
PIPE; WATER,AIR CMPR,OUT
8-97611-171-0
01
1
1204-
94
CLIP; WATER PIPE
(A) ID=7 & 11 L=28
1-09701-230-1
04
1
1204-
94
CLIP; WATER PIPE
(B) ID=7 & 11 L=28
1-09701-231-1
04
1
1204-
95
BOLT; CLIP
M6X35 FLANGE THA
0-28650-635-0
08
1
1204-
