Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#118296) — 20 parça
◀

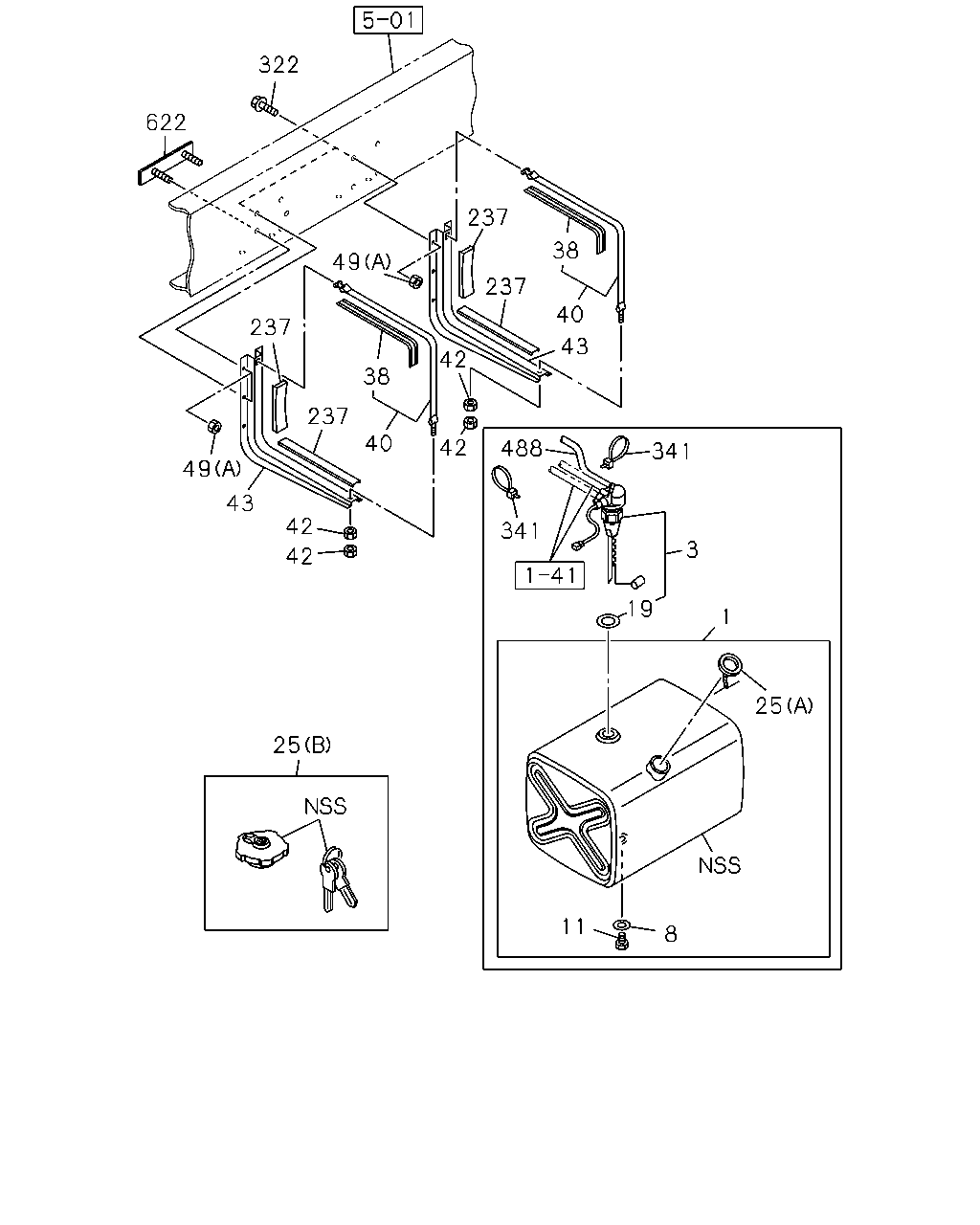

[140A] NO.1 (18 parça)

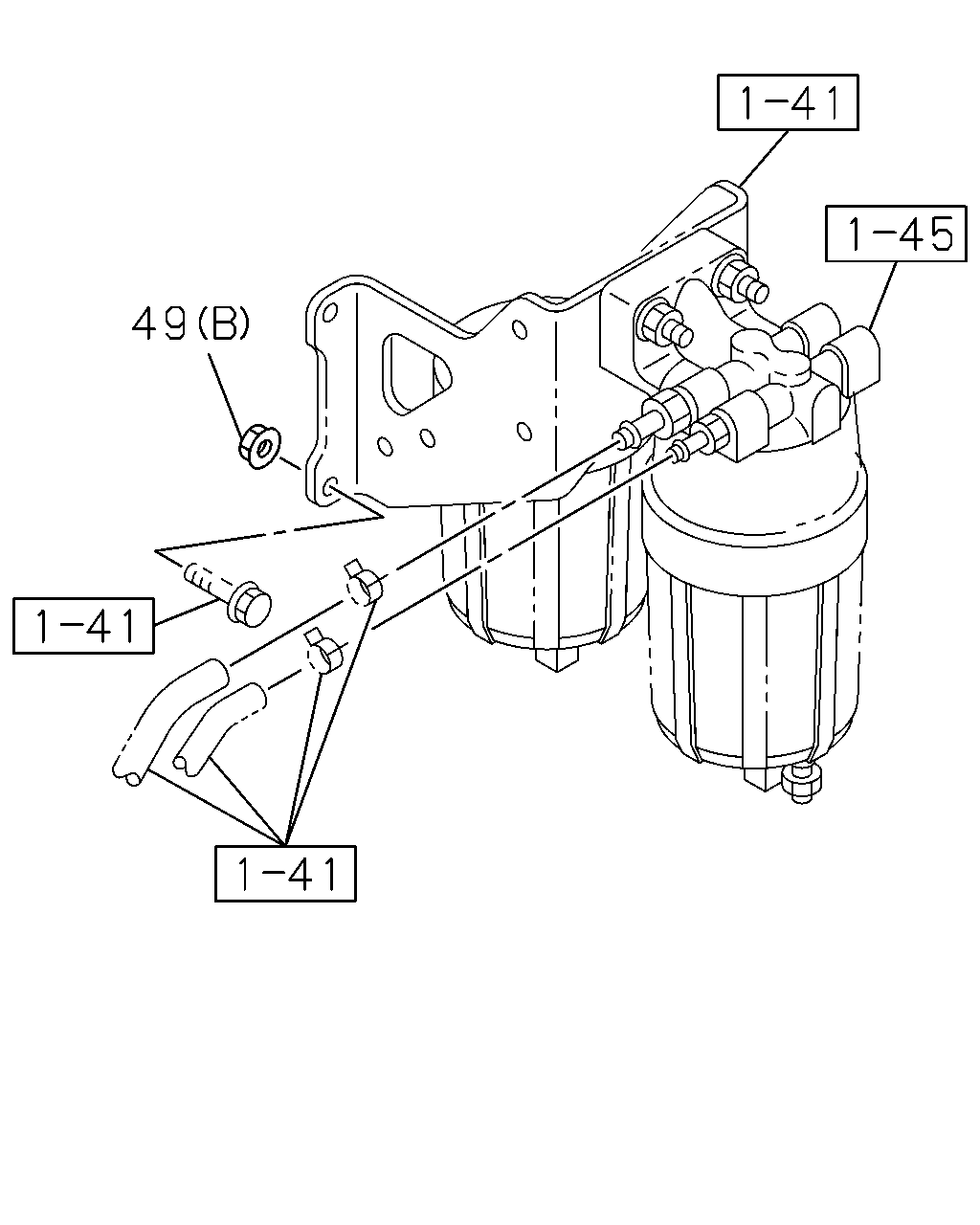

[140A] NO.2 (2 parça)
▶
322
622
49
237
38
237
40
43
42
38
237
40
49
43
42
42
341
3
341
488
42
19
1
25
11
8
25
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1304-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1304-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1304-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1304-
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1304-
25
CAP; FILLER,FUEL TANK
(B)
8-98108-595-0
01
1
1304-
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1304-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1304-
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1304-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1304-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1304-
49
NUT; BRKT
(A) M12
0-91110-512-0
08
1
1304-
49
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
1304-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1304-
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
10
1
1304-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1304-
488
HOSE; RUBBER
8-98134-936-0
01
1
1304-
622
STUD; BRACKET
1-53461-534-0
01
1
1304-
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
NUT; BRKT
(A) M12
0-91110-512-0
08
1
1304-
49
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
