◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11527 - FVR(MALAYSIA) 280PS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#118287) — 72 parça

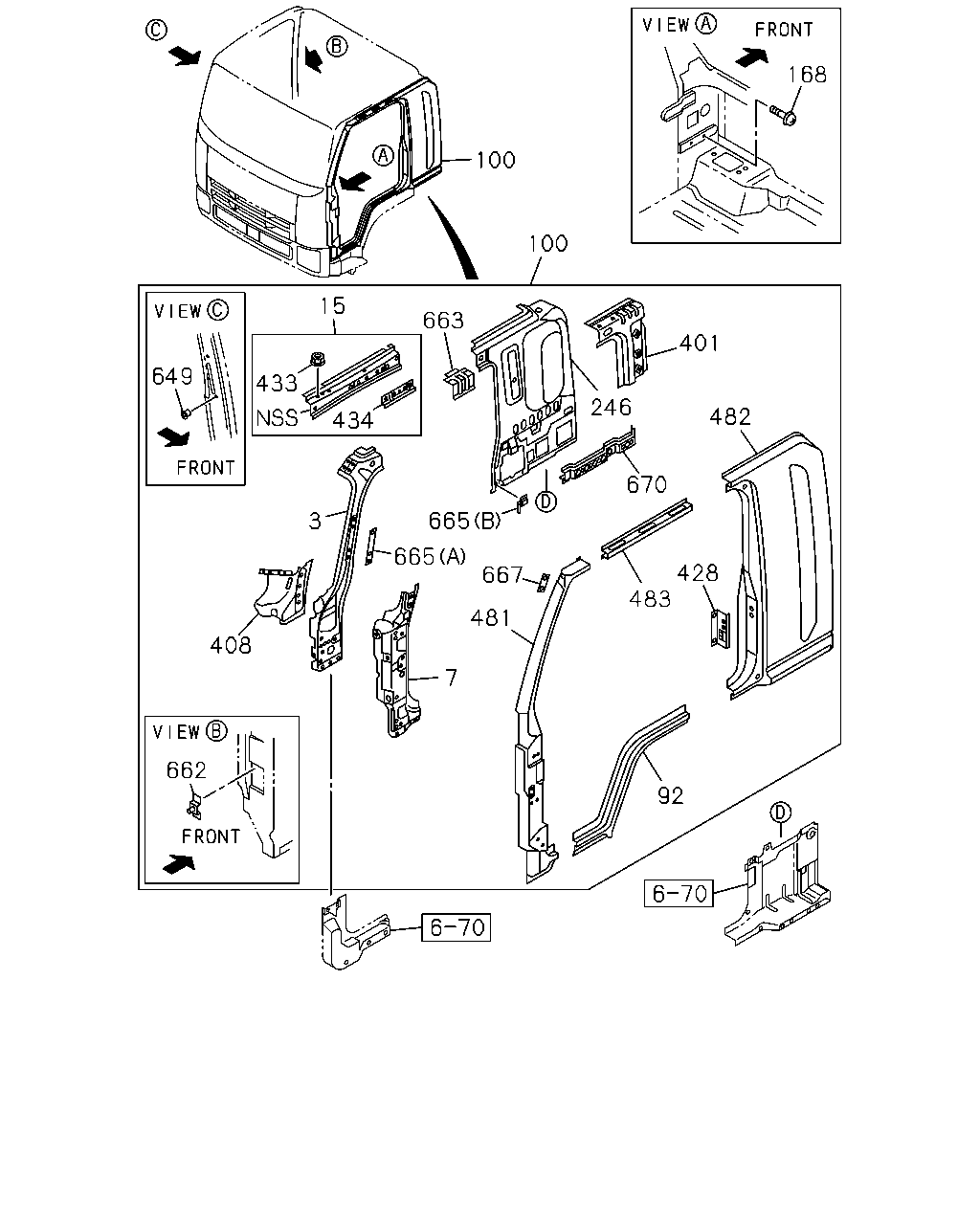

çizim 343656
100 100 15 663 401 482 670 246 665 433 649 434 408 662 481 665 3 7 667 483 428 168 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1304-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1304-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1304-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1304-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1304-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1304-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-5 01 1 1304-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 1304-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-061-6 01 1 1304-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 1304-
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 1304-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1304-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1304-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1304-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1304-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1304-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1304-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1304-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1304-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1304-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1304-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1304-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1304-
662 BRACKET; DUCT 8-97584-611-1 01 1 1304-
663 BRACKET; AIR 8-97585-208-2 01 1 1304-
663 BRACKET; AIR 8-97585-207-2 01 1 1304-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1304-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1304-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1304-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1304-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1304-

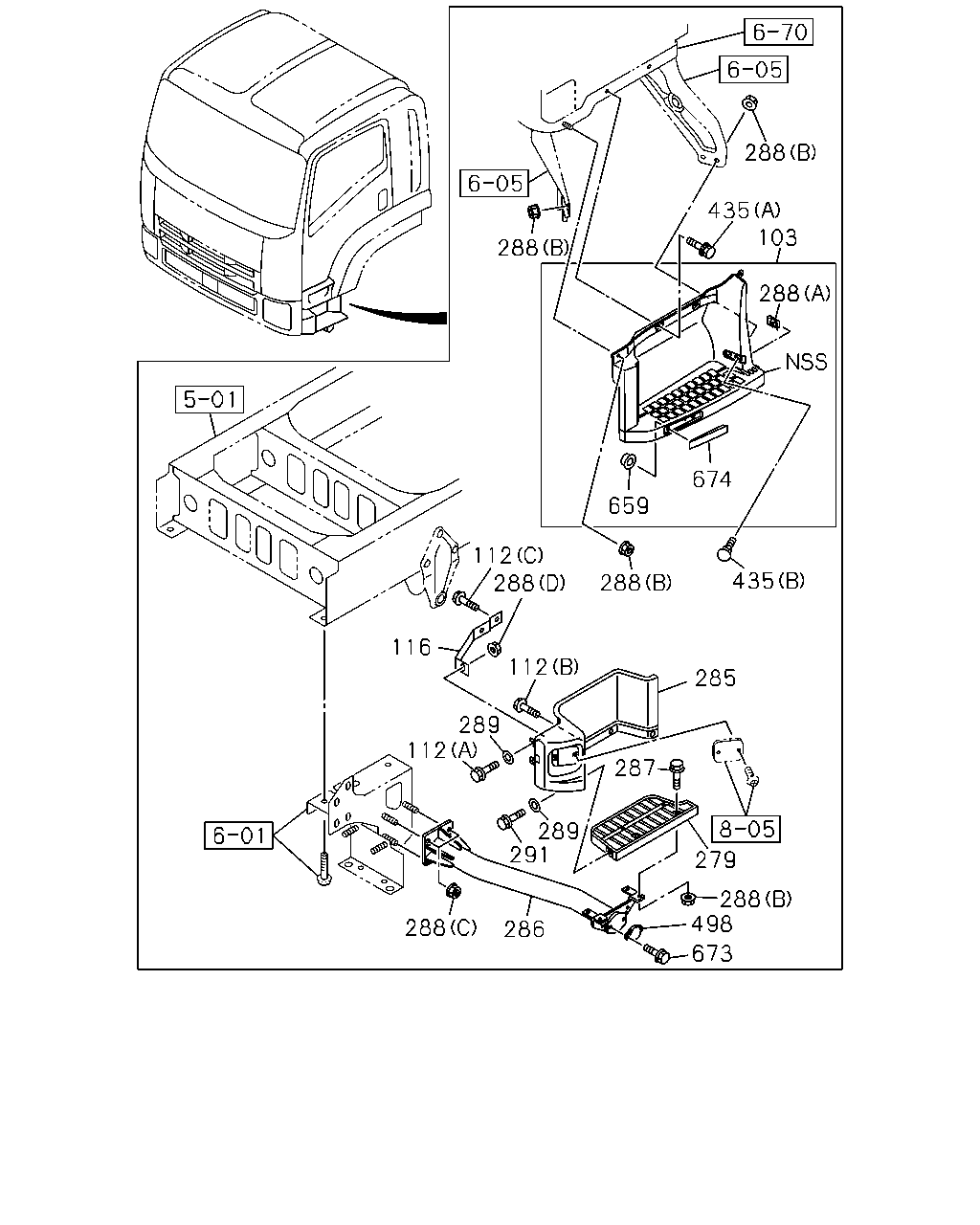

çizim 343723
288 435 288 103 288 674 659 435 288 288 112 116 112 285 279 287 288 498 673 286 288 291 289 112 289
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1304-
103 PLATE; STEP 8-98069-976-2 01 1 1304-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1304-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1304-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1304-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1304-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1304-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1304-
286 STEP ASM; 1ST 8-98082-430-2 01 1 1304-
286 STEP ASM; 1ST 8-98082-431-2 01 1 1304-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1304-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1304-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1304-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1304-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
498 REFLECTOR 1-82290-011-1 02 1 1304-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1304-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1304-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1304-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
