Isuzu WW
▶
PICKUP
▶
TFR
▶
51474 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶

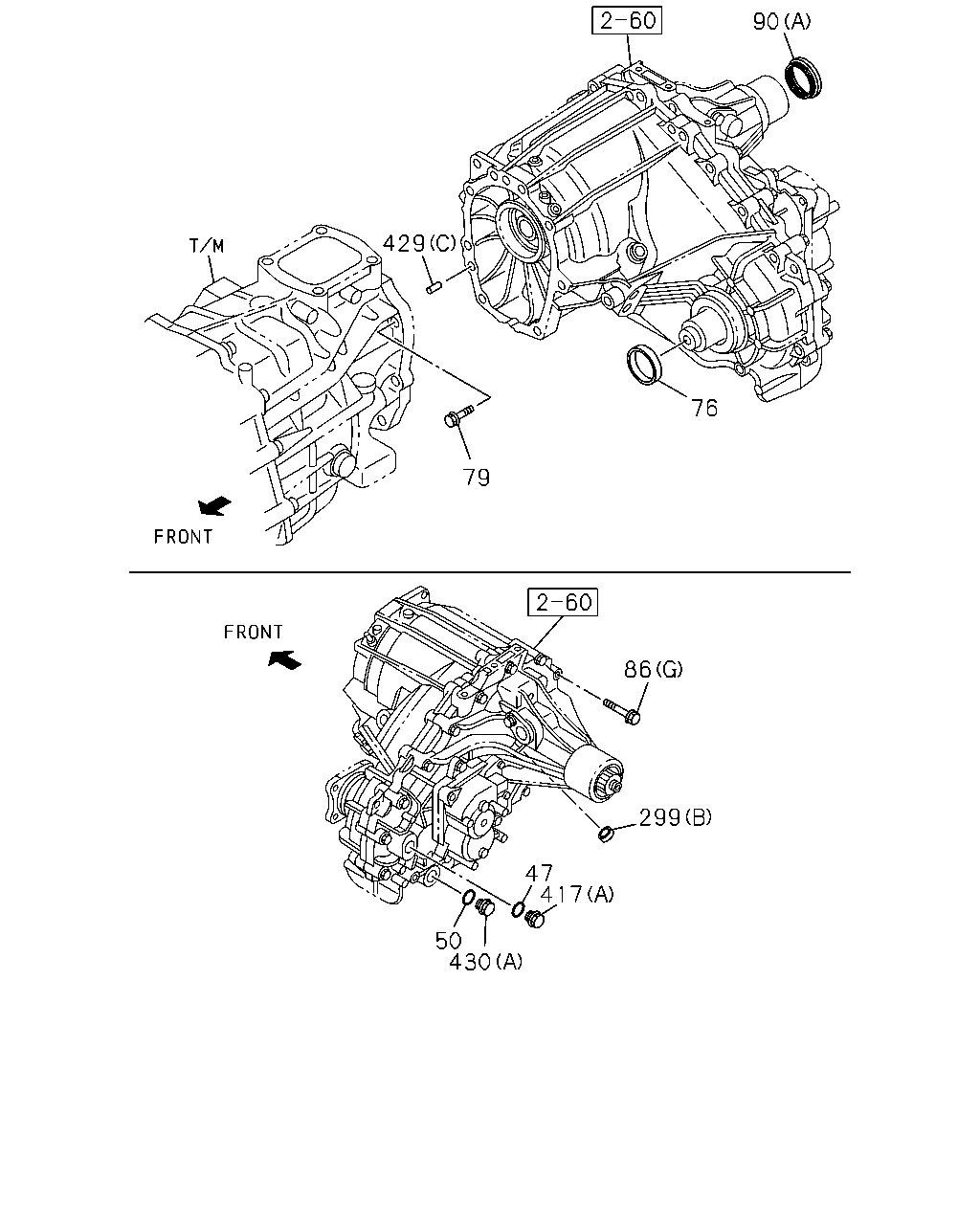

2-20B — MANUAL TRANSMISSION ASM AND CASE
(#118286) — 12 parça
90
76
79
429
86
299
417
47
50
430
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17
8-97115-712-0
01
1
1304-
50
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17
8-97115-712-0
01
1
1304-
76
04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK
8-97238-999-0
01
1
1304-
79
04.510 BOLT; TRANSFER CASE
4X4(TFS***) 00.685 M10X45 FLANGE
0-28051-045-0
07
1
1304-
86
04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (G) M8X45 FLANGE
0-28050-845-0
16
1
1304-
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK
8-97046-705-3
01
1
1304-1304
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK
8-97046-705-3
01
1
1304-1306
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK
8-97046-705-3
01
1
1307-
299
04.317 PLUG; SHIFTER ROD
4X4(TFS***) 00.034 (B) OD=15.6
8-94173-641-0
02
1
1304-
417
04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (A)
8-97365-373-0
01
1
1304-
429
04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (C) OD=10 L=20
8-97135-423-0
02
1
1304-
430
04.105 PLUG; OIL DRAIN
4X4(TFS***) (A)
8-97365-374-0
01
1
1304-
