Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#118278) — 365 parça

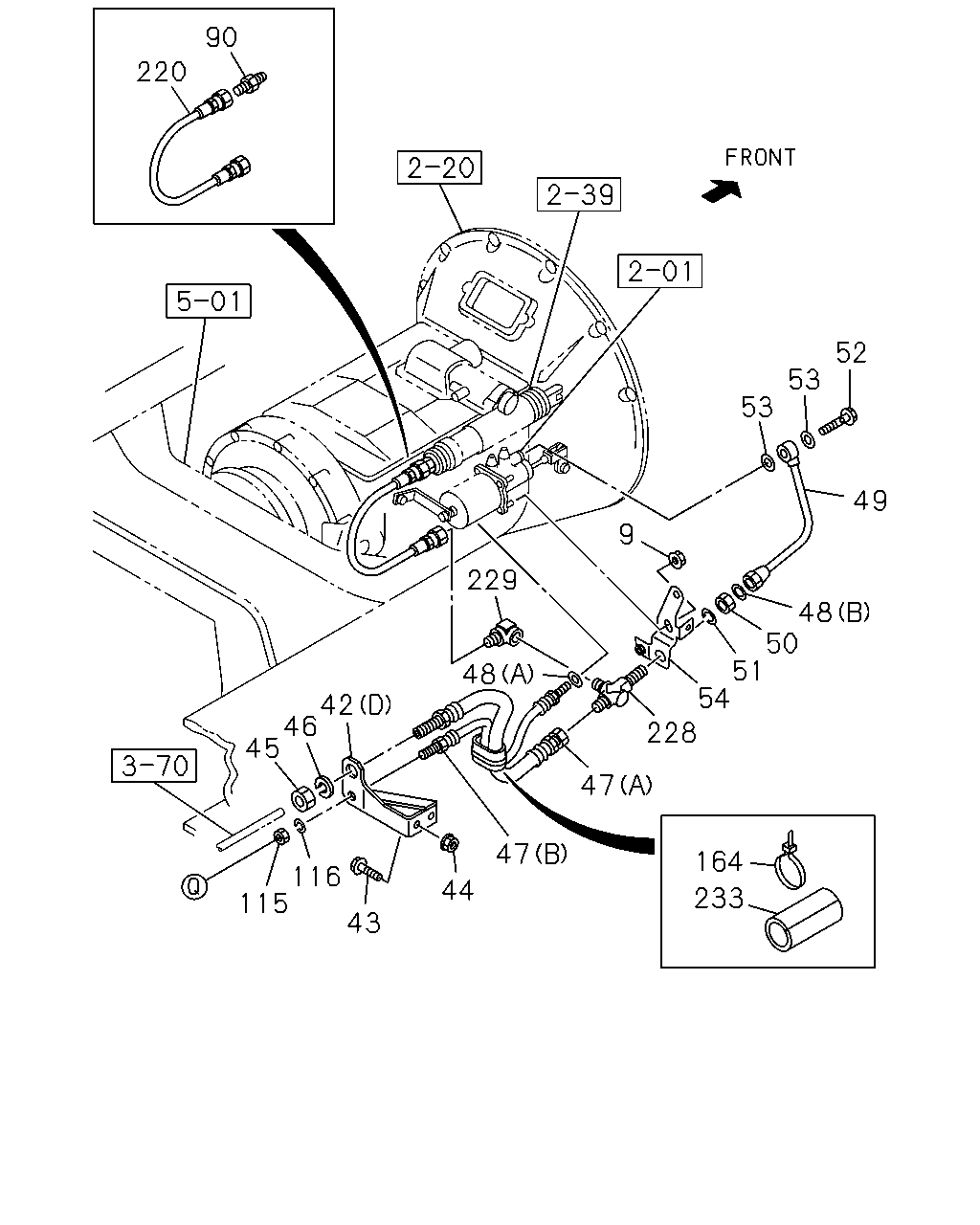

90 220 52 53 53 9 229 48 42 46 45 115 116 43 44 47 47 228 54 51 50 48 49 164 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1302-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1302-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	1302-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T<Y2J> L=245	1-49117-733-0	01	1	1302-	●
50	NUT; UNION MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1302-	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1302-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1302-	●	●
52	BOLT; EYE,AIR PIPE MAL6R M/T<Y2J> M14X27 FLANGE	1-09675-086-0	01	1	1302-	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T<Y2J>	1-47477-284-1	01	1	1302-	●
90	NIPPLE; OIL PIPE MAL6R M/T<Y2J> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1302-	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1302-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1302-		●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480	1-09363-659-0	01	1	1302-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1302-	●
228	UNION; 3 WAY MAL6R M/T<Y2J>	1-09656-640-0	01	1	1302-	●
229	CONNECTOR; ELOBOW MAL6R M/T<Y2J> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1302-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1302-		●

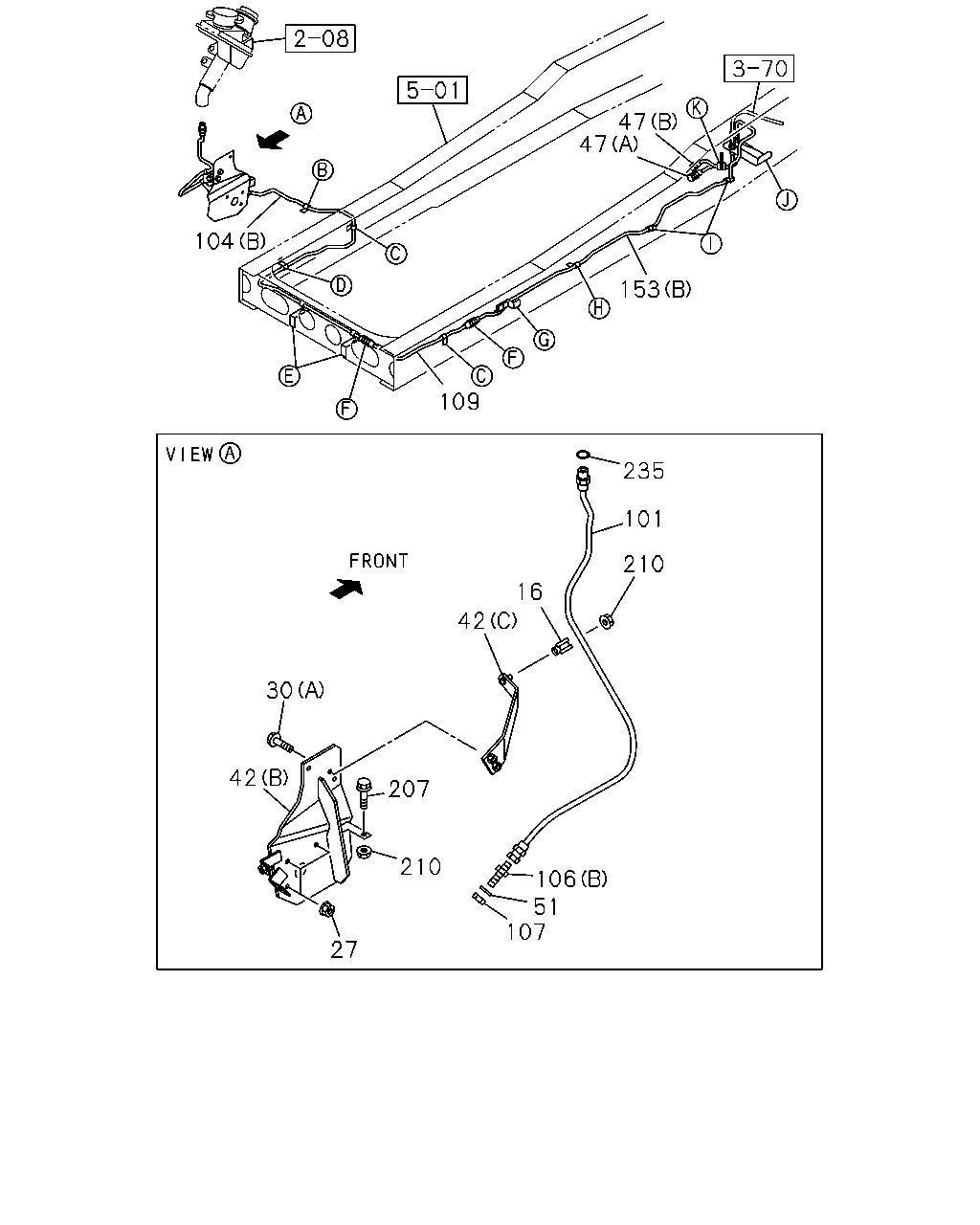

235 210 101 16 42 210 207 106 30 42 51 107 27 109 153 47 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1302-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1302-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1302-		●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1302-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1302-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1302-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1302-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1302-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T<Y5K> L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1302-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1302-	●	●

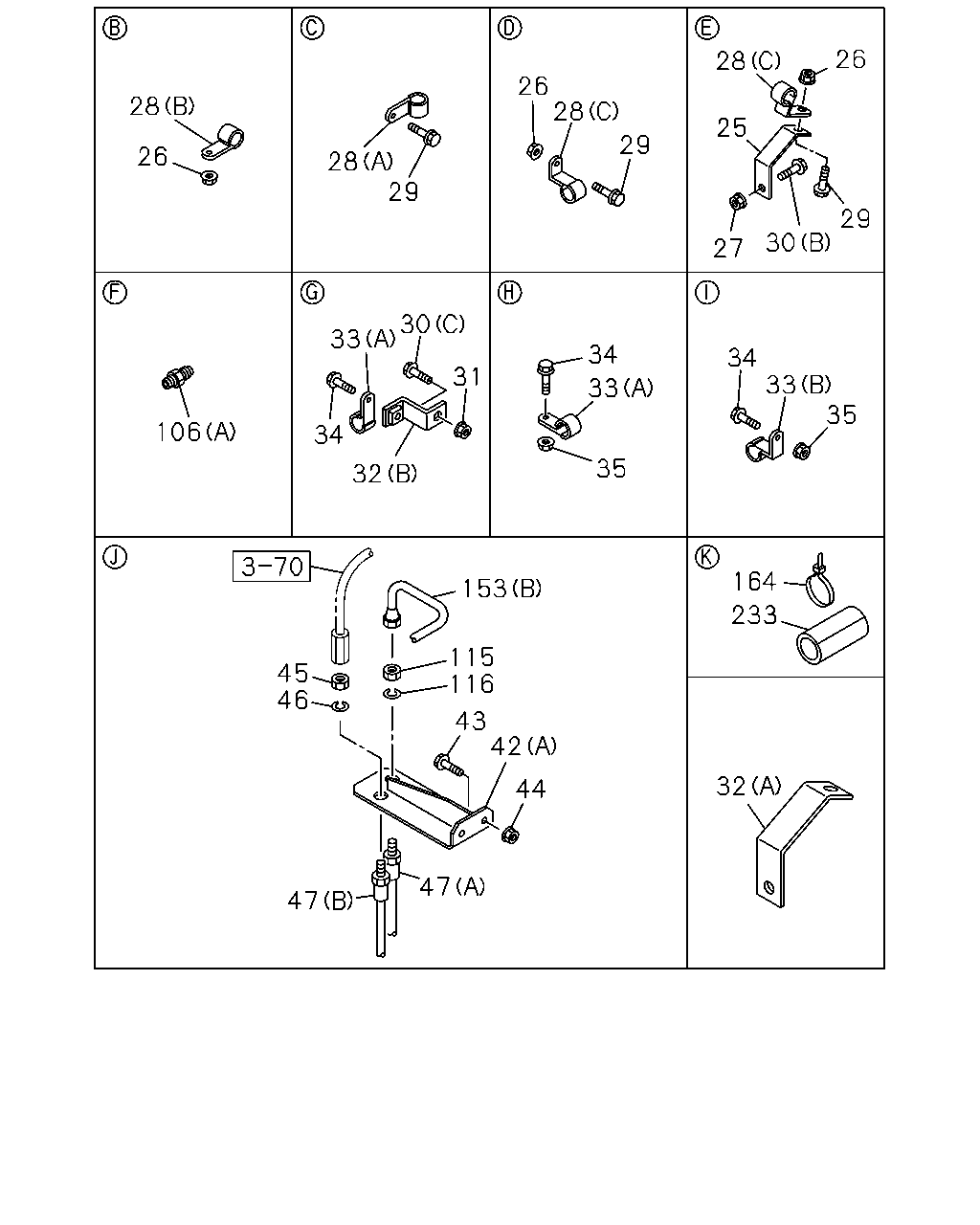

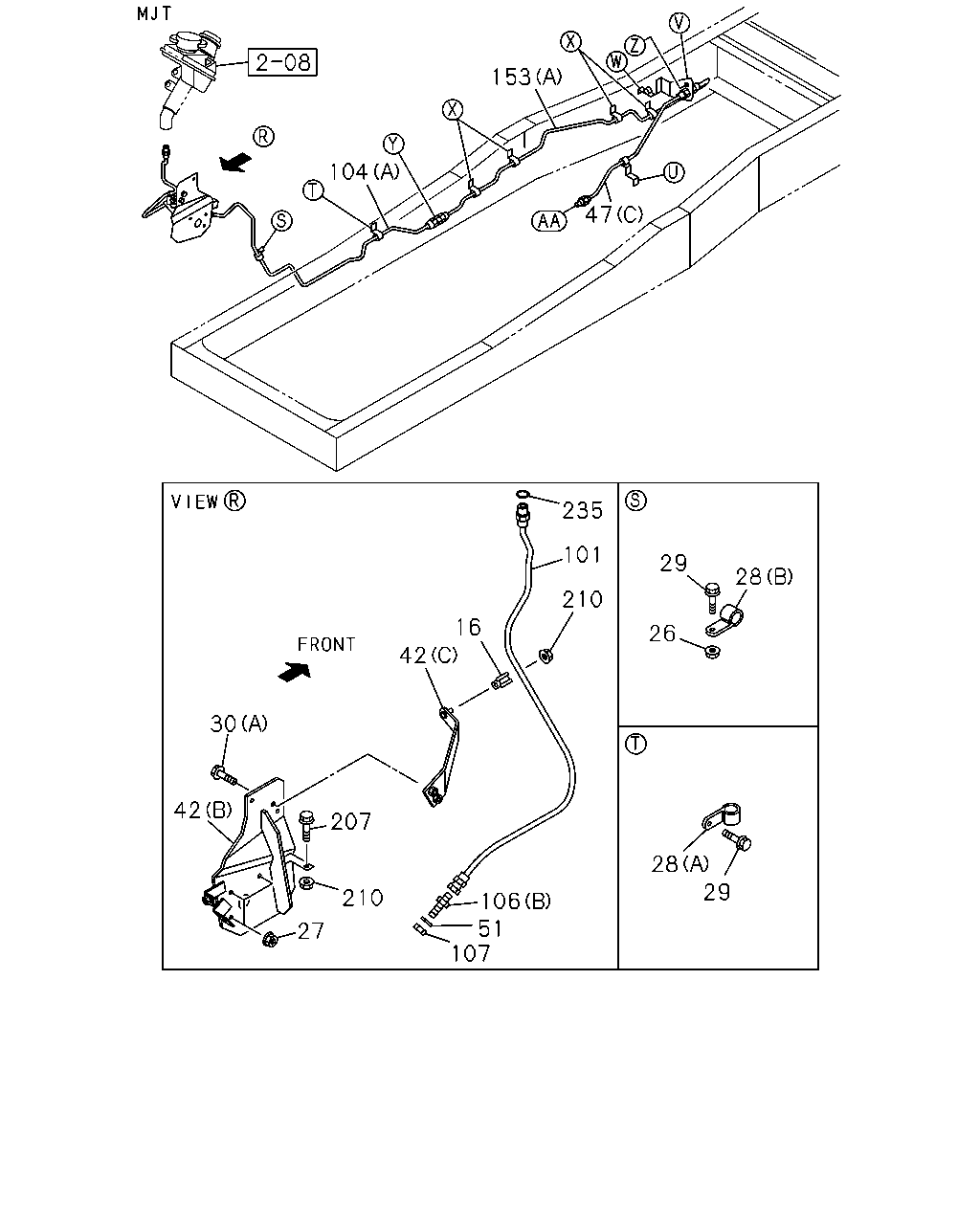

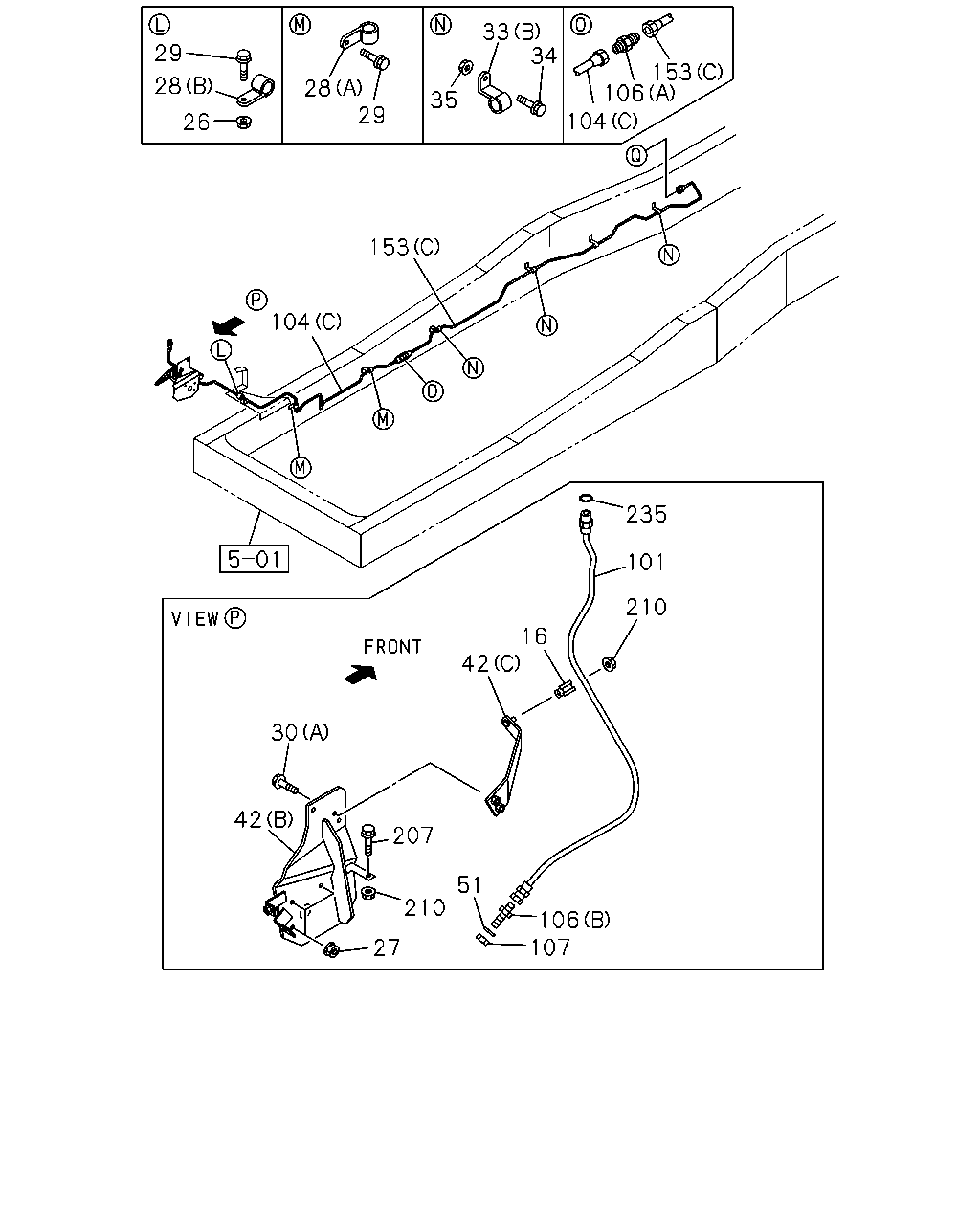

29 28 26 28 29 33 34 35 104 106 153 153 104 235 101 210 16 42 30 42 207 210 27 51 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1302-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1302-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1302-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1302-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1302-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-		●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	1302-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1302-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1302-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1302-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1302-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	1302-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1302-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1302-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1302-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1302-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1302-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1302-	●	●

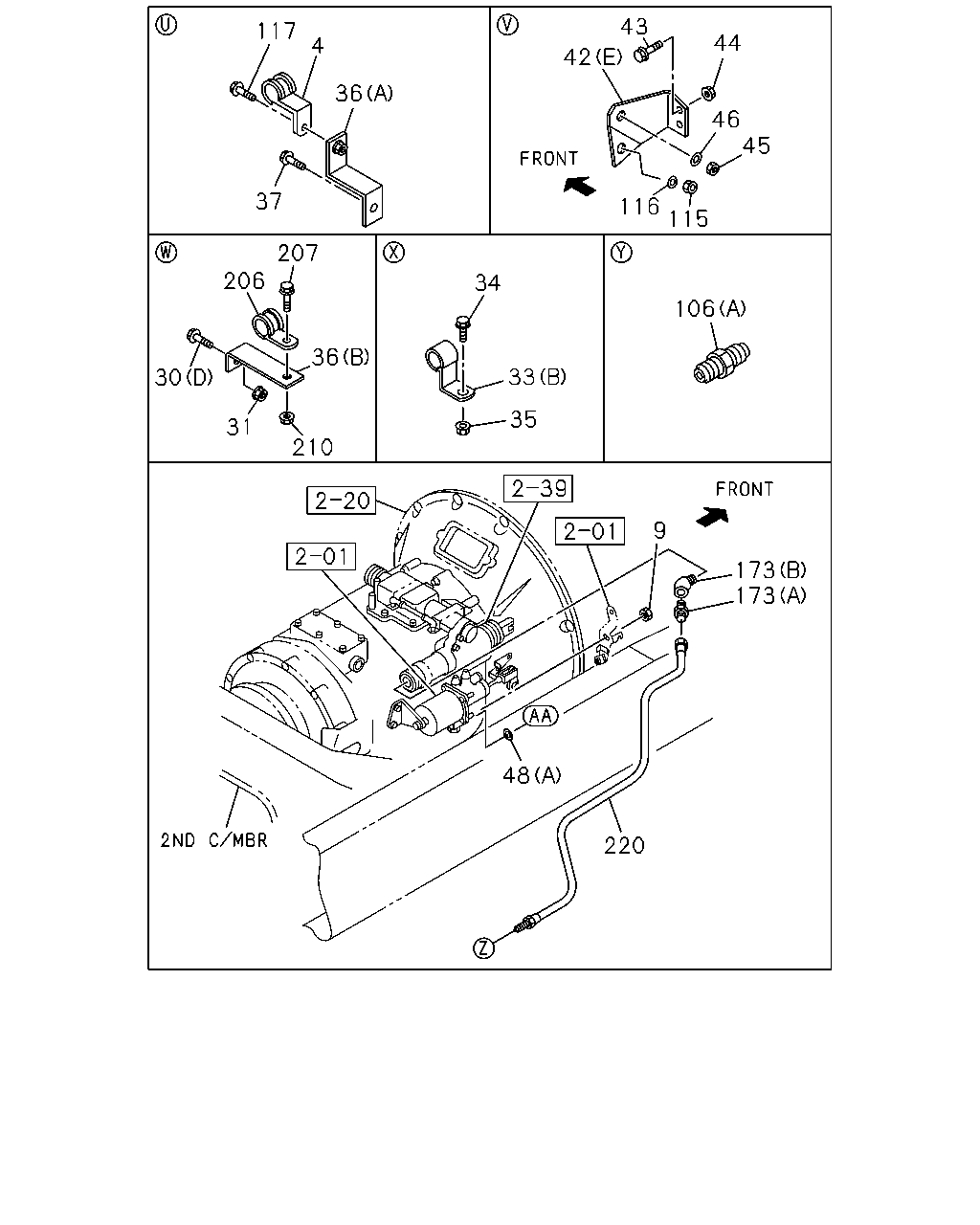

220 48 9 173 173 106 33 35 210 31 30 206 207 36 37 117 36 4 42 43 46 116 44 45 115 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> ID=16 H=25 L=25	1-09701-162-0	01	1	1302-	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1302-	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1302-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1302-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1302-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1302-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1302-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	1302-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
36	BRACKET; CLIP MJT7U M/T<Y4X> (A)	1-47475-689-0	01	1	1302-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (B) L=95	1-82699-085-0	01	1	1302-	●
37	BOLT; CLIP BRKT MJT7U M/T<Y4X> M10X16 FLANGE THA	0-28151-016-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1302-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1302-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	1302-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1302-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1302-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T<Y4X> M8X16 FLANGE THA	0-28050-816-0	01	1	1302-	●
173	CONNECTOR MJT7U M/T<Y4X> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●
173	CONNECTOR MJT7U M/T<Y4X> (B) R1/4 & RC1/4	1-09664-211-0	01	1	1302-	●
206	CLIP; TUBE MJT7U M/T<Y4X> ID=16 L=28	1-09700-872-0	01	1	1302-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1302-	●	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480	1-09363-659-0	01	1	1302-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1302-	●

29 28 107 106 51 27 207 210 42 30 42 210 16 101 235 29 26 28 47 153 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1302-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1302-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1302-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1302-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1302-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-		●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	1302-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1302-		●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1302-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1302-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1302-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1302-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1302-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1302-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1302-	●	●

28 26 29 28 26 29 28 26 29 30 27 25 28 35 33 34 34 35 33 31 32 34 33 30 106 153 115 116 43 42 44 47 47 46 164 233 32 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T<Y5K>	8-98123-059-0	01	1	1302-	●
25	BRACKET; OIL PIPE	8-98123-059-0	01	1	1302-		●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1302-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1302-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1302-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1302-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1302-		●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	1302-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1302-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1302-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1302-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1302-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (B)	1-47479-482-0	01	1	1302-	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1302-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (A)	8-98123-059-0	01	1	1302-	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-059-0	01	1	1302-		●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1302-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1302-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1302-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1302-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1302-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	1302-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1302-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1302-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1302-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1302-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1302-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1302-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1302-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1302-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1302-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1302-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1302-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1302-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1302-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1302-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1302-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1302-	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1302-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1302-		●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1302-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
