Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#118277) — 303 parça

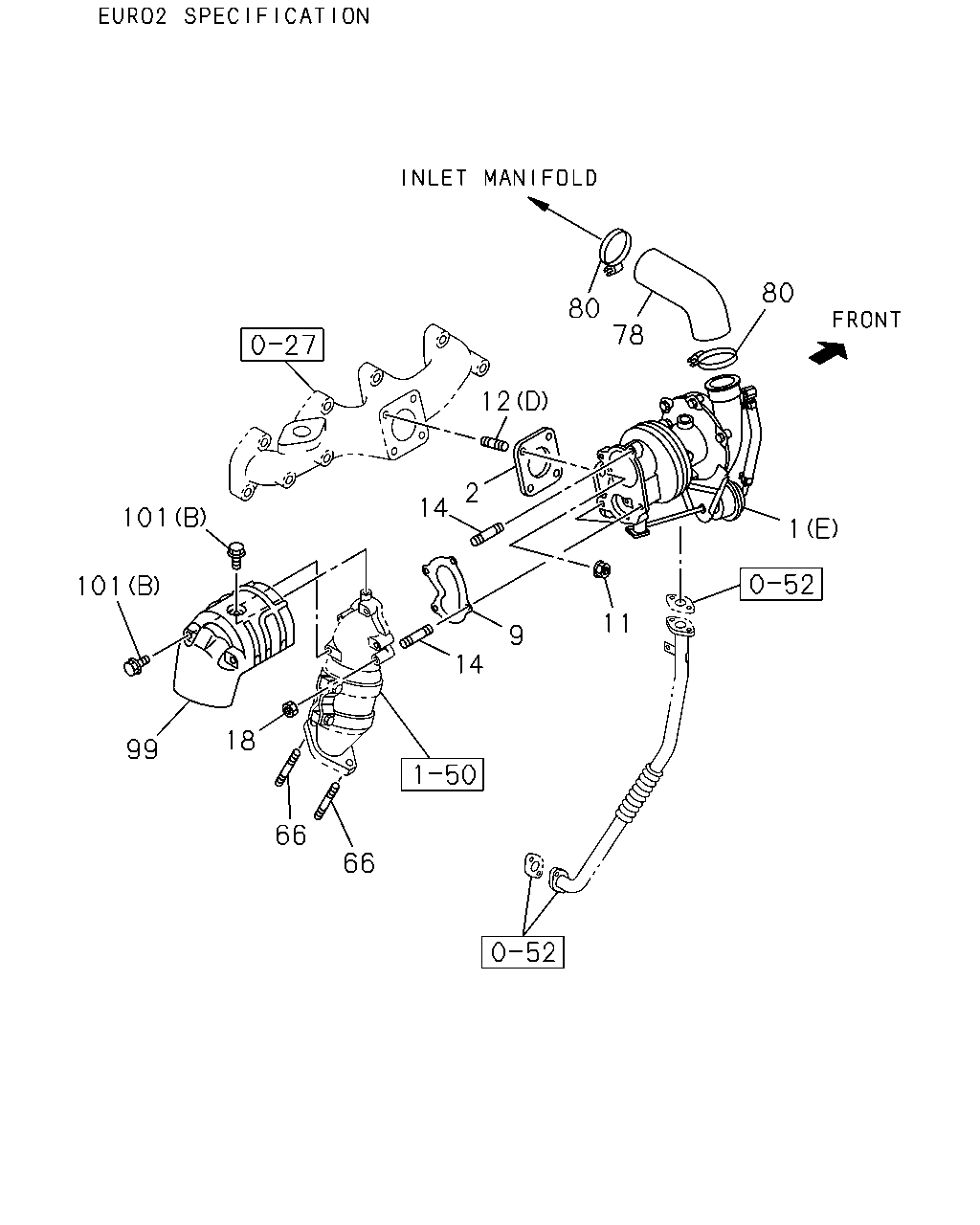

80 78 80 12 14 9 2 101 101 99 66 18 66 14 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98270-437-0	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1304-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98164-240-0	01	1	1304-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-1312	●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98150-687-2	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1304-	●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1304-					●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1304-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98151-215-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98132-073-0	01	1	1304-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	1304-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-			●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1304-			●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1304-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1304-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1304-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-		●		●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1304-			●
99	03.602 PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-97318-472-0	01	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-	●

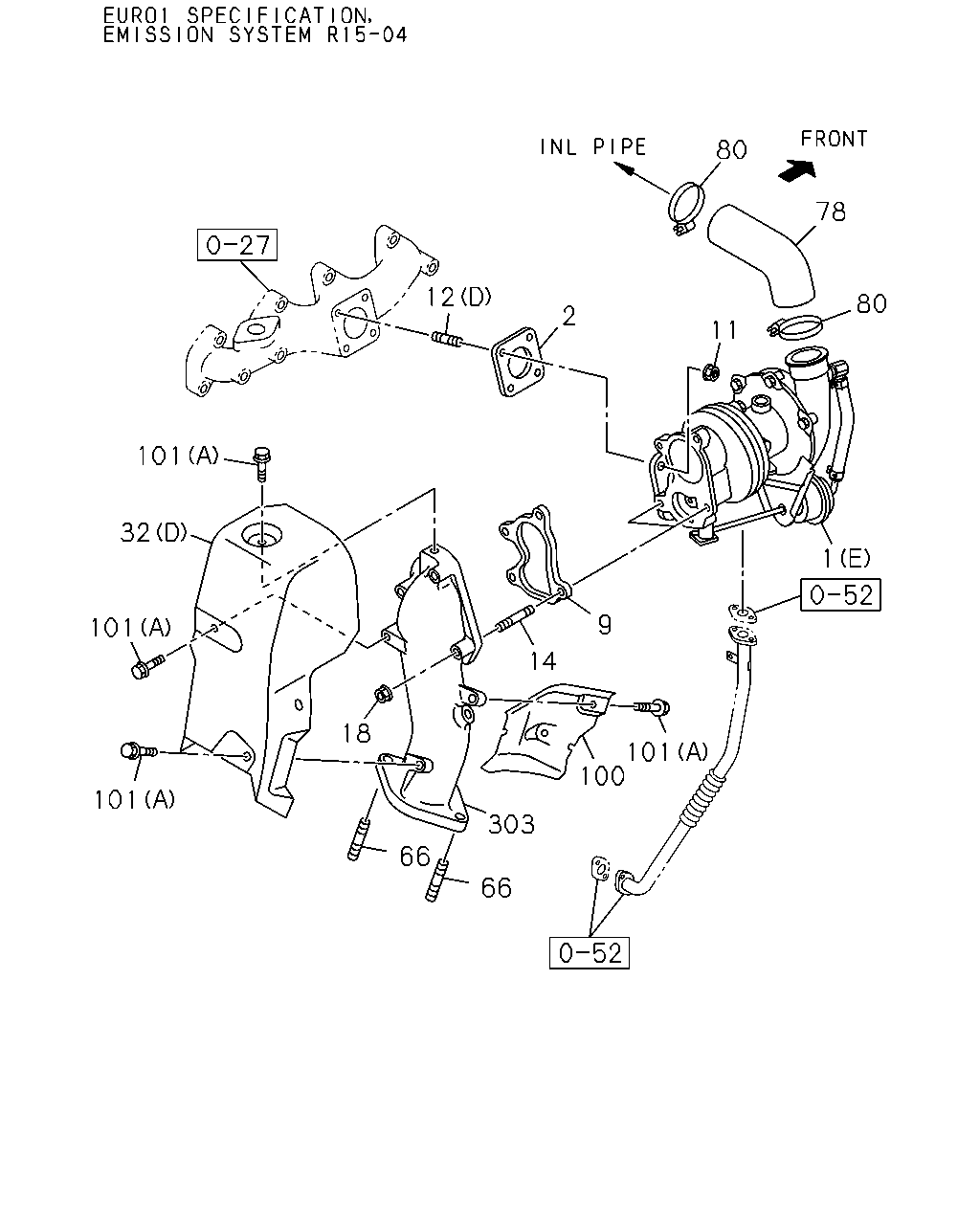

80 78 80 11 1 101 100 66 303 66 18 14 9 101 101 32 101 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98270-437-0	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1304-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98164-240-0	01	1	1304-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-1312	●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98150-687-2	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1304-	●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1304-					●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1304-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98151-215-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98132-073-0	01	1	1304-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	1304-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-			●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1304-			●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1304-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1304-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1304-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1304-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-		●		●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1304-			●
100	03.417 PROTECTOR; HEAT,EXH MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-97038-109-1	01	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-98189-770-0	01	1	1304-			●

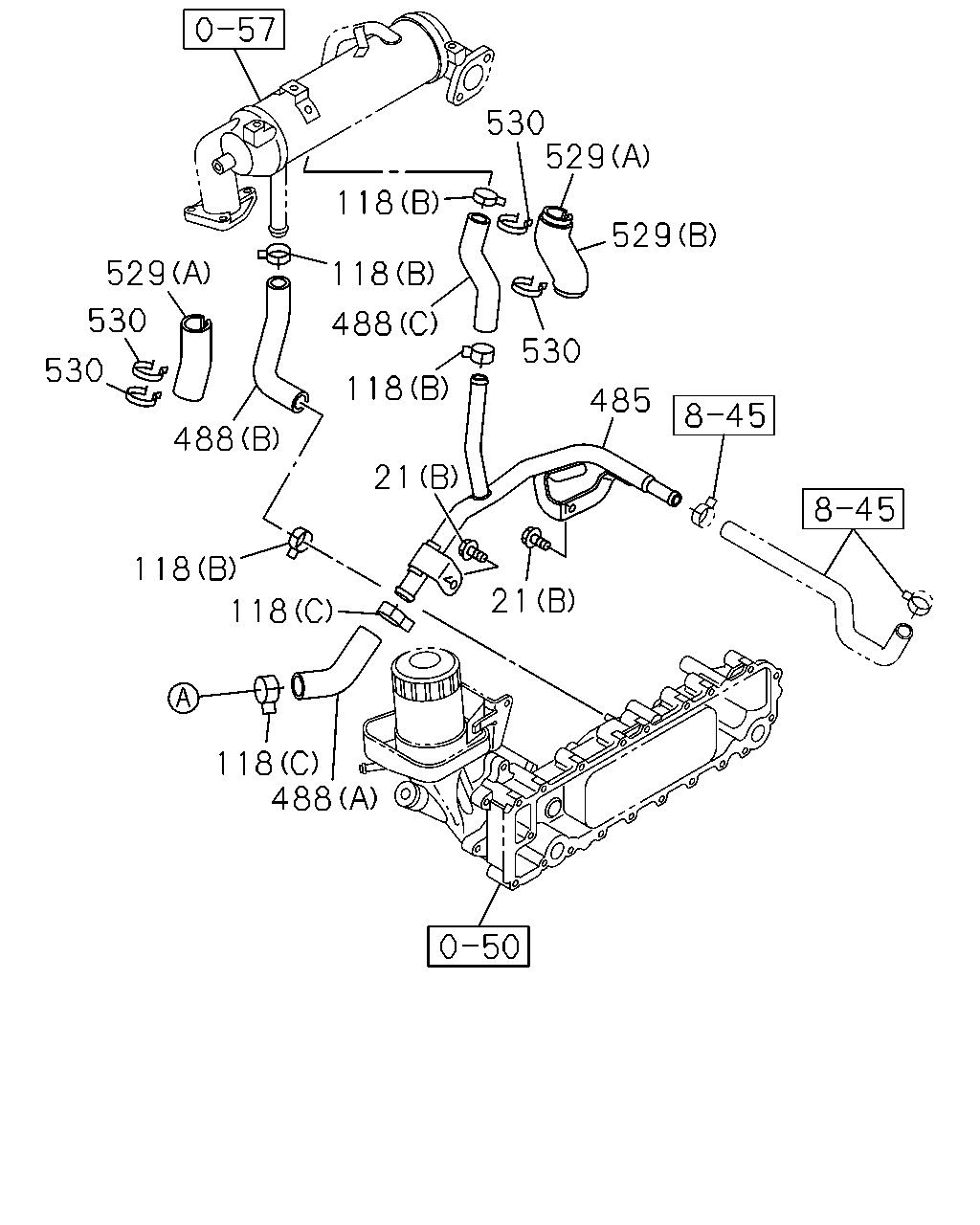

530 529 485 21 21 488 118 118 488 530 530 529 118 118 529 530 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-			●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●		●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1304-	●		●
485	01.097 PIPE; WATER EGR	8-98132-418-2	01	1	1304-			●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1304-	●
488	03.163 HOSE; RUBBER (B)	8-98132-447-0	01	1	1304-			●
488	03.163 HOSE; RUBBER (C)	8-98202-356-1	01	1	1304-			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	02	1	1304-			●
529	03.374 INSULATOR; HOSE (B)	8-98181-397-0	01	1	1304-			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1304-	●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1304-	●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1304-	●		●

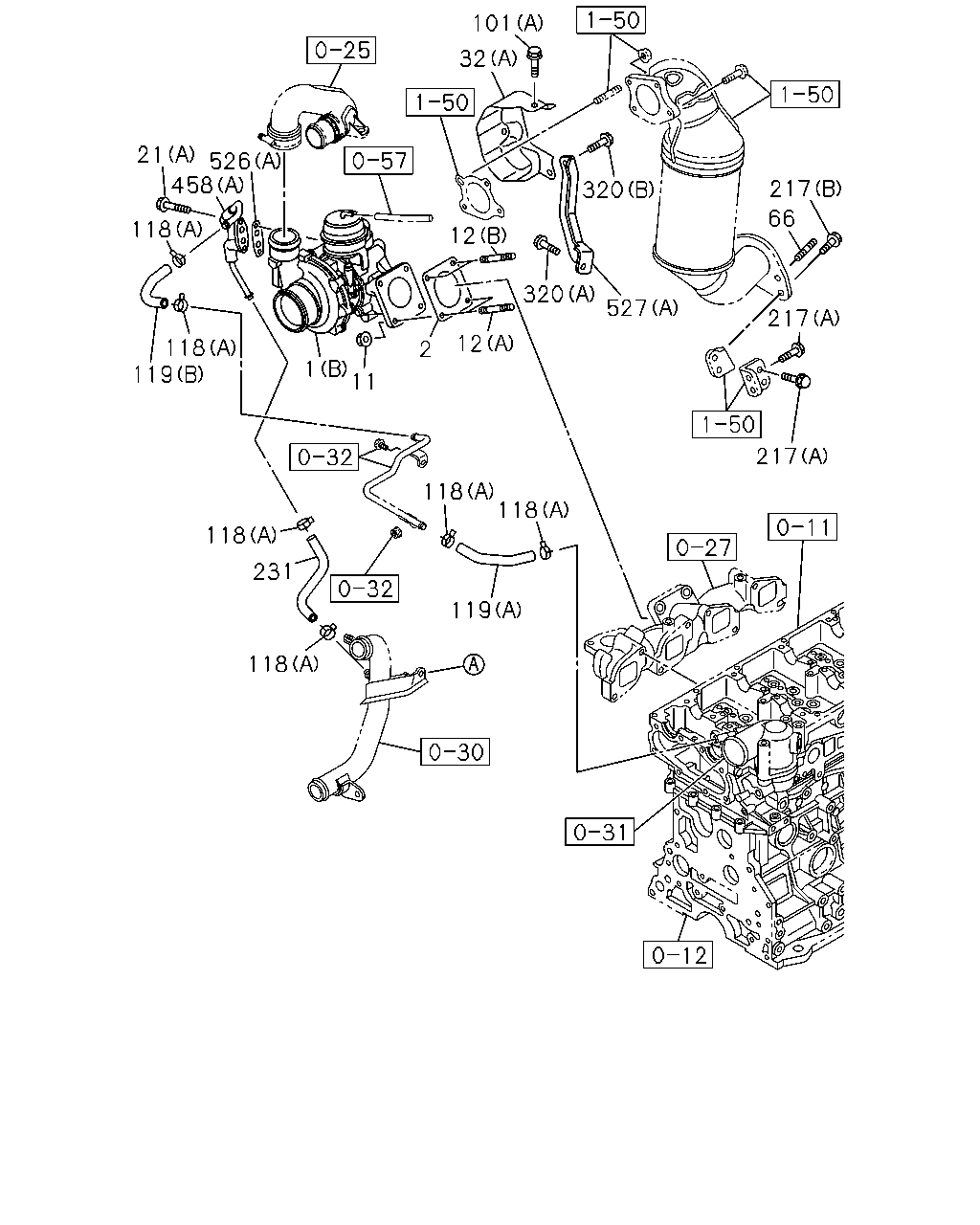

21 118 118 119 118 231 118 119 118 118 1 11 2 12 320 527 217 217 66 217 320 32 101 526 458 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98270-437-0	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1304-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98164-240-0	01	1	1304-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-1312	●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98150-687-2	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1304-	●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1304-					●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1304-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98151-215-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98132-073-0	01	1	1304-		●		●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-			●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1304-			●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-		●		●	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-				●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1304-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-		●		●	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1304-	●	●		●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1304-	●			●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-		●		●	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-	●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-	●			●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-	●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-		●			●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1304-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1304-	●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1304-				●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1304-	●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1304-	●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1304-	●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1304-	●			●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1304-				●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1304-	●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1304-	●

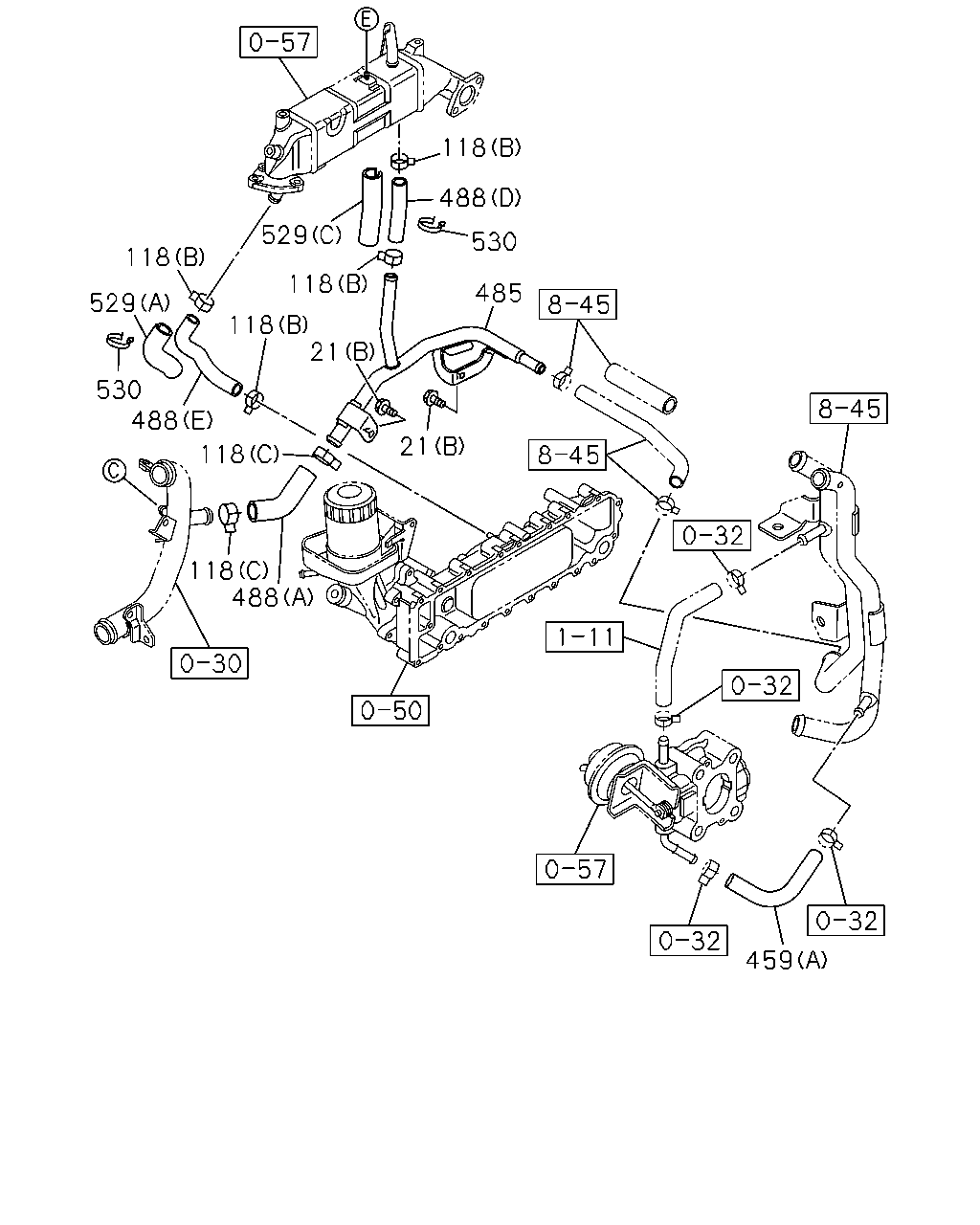

529 118 488 21 21 118 485 488 118 118 529 488 530 118 459 530 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-			●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●		●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1304-	●	●	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●		●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1304-	●		●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1304-	●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1304-	●
485	01.097 PIPE; WATER EGR	8-98132-418-2	01	1	1304-			●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1304-	●
488	03.163 HOSE; RUBBER (B)	8-98132-447-0	01	1	1304-			●
488	03.163 HOSE; RUBBER (C)	8-98202-356-1	01	1	1304-			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1304-	●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1304-	●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1304-	●		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	02	1	1304-			●
529	03.374 INSULATOR; HOSE (B)	8-98181-397-0	01	1	1304-			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1304-	●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1304-	●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1304-	●		●

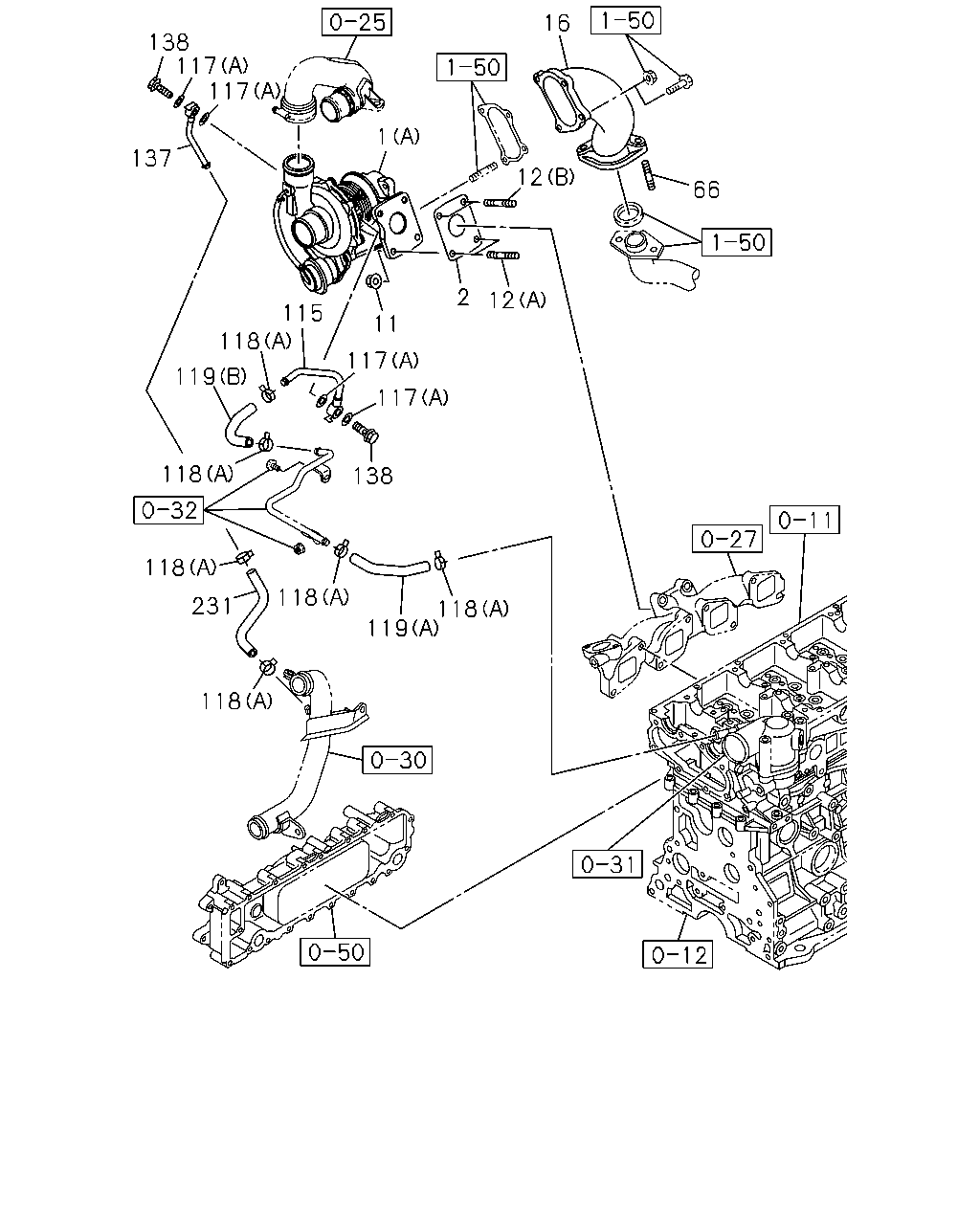

12 12 16 1 117 117 138 137 115 118 117 11 2 117 138 119 118 118 231 118 118 119 118 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98270-437-0	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1304-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98164-240-0	01	1	1304-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-1312	●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98150-687-2	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1304-	●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1304-					●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1304-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98151-215-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98132-073-0	01	1	1304-		●		●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-			●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1304-			●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-		●		●	●
16	03.609 ADAPTER; EXH PIPE	8-98132-080-0	01	1	1304-		●			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-		●		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98132-443-0	01	1	1304-		●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1304-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1304-		●			●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1304-	●	●		●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1304-	●			●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-		●		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98132-444-1	01	1	1304-		●			●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1304-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-		●			●

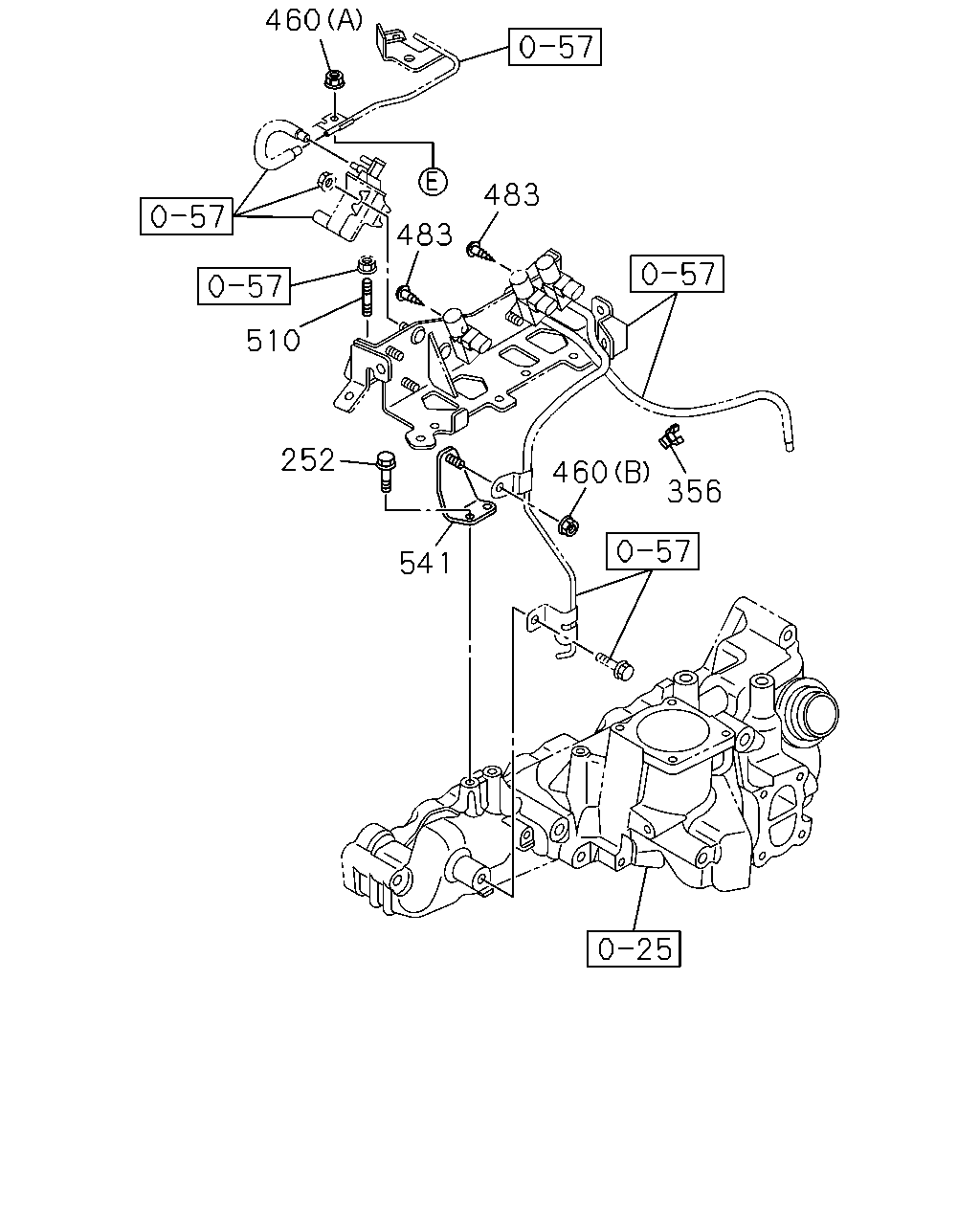

460 510 483 483 252 541 460 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
252	03.417 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
356	03.417 CLIP; HOSE,VAC	8-98202-335-0	01	1	1304-	●
460	03.374 NUT; PIPE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1304-	●
460	03.374 NUT; PIPE 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1304-	●
483	01.531 SCREW 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1304-	●
510	03.417 STUD; BRKT 02.510 M8X20 L=32	0-41010-820-0	01	1	1304-	●
541	03.616 BRACKET; HOSE	8-98164-824-0	01	1	1304-	●

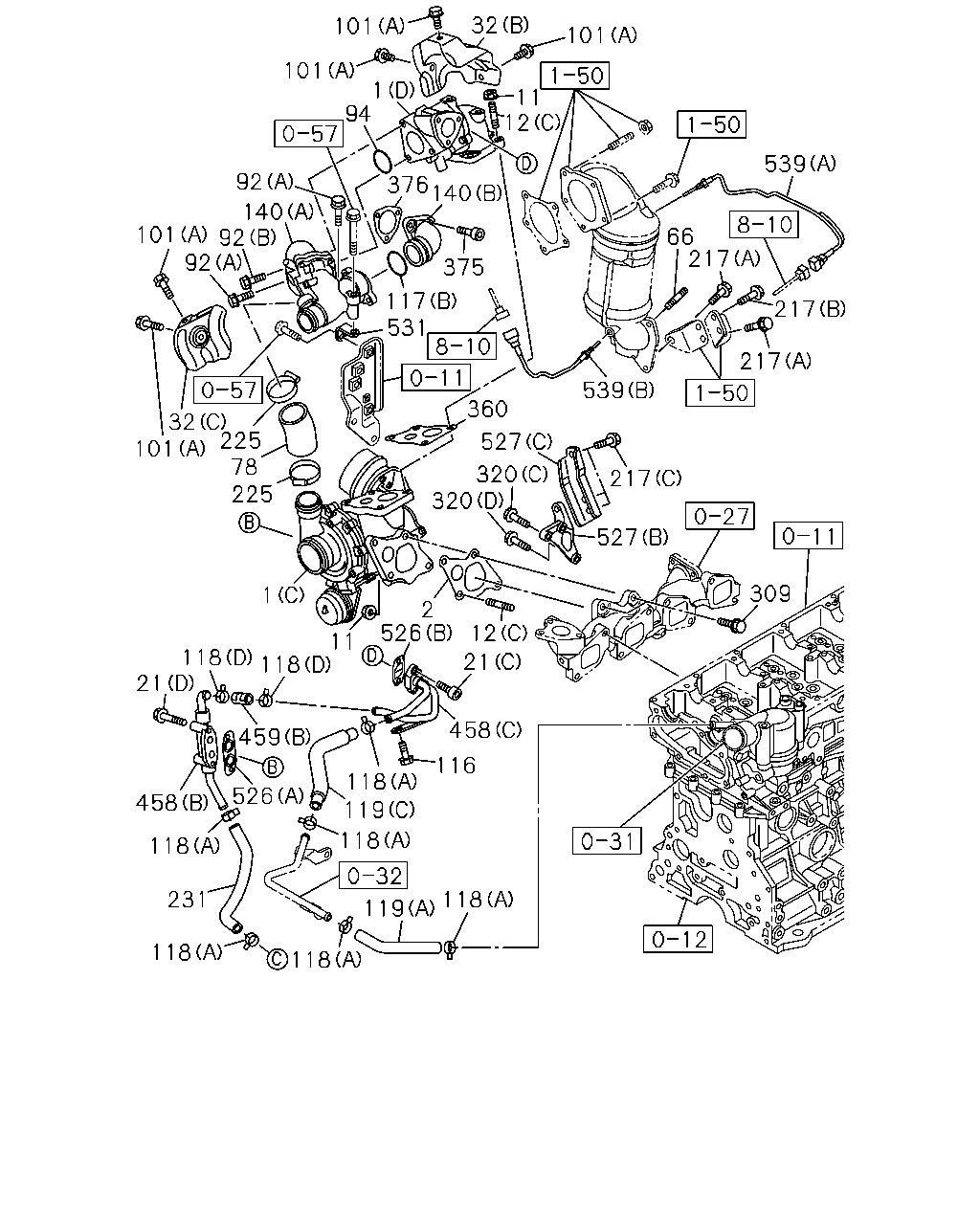

101 32 101 101 11 1 94 12 66 217 539 320 2 92 92 101 140 92 531 217 217 539 140 376 375 117 1 225 78 21 458 116 118 526 458 459 21 118 118 231 118 119 118 119 526 217 320 12 11 32 527 118 118 118 101 225 360 527 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98270-437-0	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1304-		●
1	03.342 TURBOCHARGER ASM (E)	8-97240-210-2	01	1	1304-			●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98164-240-0	01	1	1304-				●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B)	8-98132-070-3	01	1	1304-				●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1304-1312	●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98150-687-2	01	1	1401-	●
1	03.342 TURBOCHARGER ASM (C)	8-98150-688-3	01	1	1304-	●
1	03.342 TURBOCHARGER ASM HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98204-327-0	01	1	1304-					●
1	03.342 TURBOCHARGER ASM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1304-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1304-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98151-215-0	01	1	1304-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98132-073-0	01	1	1304-		●		●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1304-			●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1304-	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER (D) M8X20 L=31	8-97378-060-0	04	1	1304-			●
12	03.342 STUD; TURBOCHARGER (C) M10X28.5 L=41.5	8-97378-063-0	06	1	1304-	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1304-		●		●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1304-		●		●	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1304-				●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1304-	●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1304-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (D)	8-97087-029-0	01	1	1304-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1304-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98159-563-1	01	1	1304-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1304-	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1304-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1304-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1304-		●		●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1304-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1304-	●
92	03.417 BOLT; INL PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1304-	●
92	03.417 BOLT; INL PIPE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1304-	●
94	01.531 GASKET; INL PIPE 03.162 ID=49.7	1-09623-541-0	01	1	1304-	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1304-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1304-	●
116	03.342 BOLT; WATER PIPE 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1304-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1304-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1304-		●			●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1304-	●
118	03.342 CLIP; WATER HOSE (A) ID=15.1	8-98179-581-0	06	1	1304-	●	●		●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1304-	●			●
118	03.342 CLIP; WATER HOSE (C) ID=26.2	8-98202-540-0	02	1	1304-	●			●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1304-	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1304-	●	●		●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1304-		●		●	●
140	03.417 PIPE; AIR PIPE (A)	8-98151-283-0	01	1	1304-	●
140	03.417 PIPE; AIR PIPE (B)	8-98162-352-0	01	1	1304-	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1304-	●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1304-	●			●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1304-	●			●
225	03.616 CLIP; CONN HOSE 03.407 ID=60-65	8-98096-418-0	02	1	1304-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1304-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1304-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1304-		●			●
309	03.342 BOLT; TURBOCHARGER M10X30 FLANGE	8-98173-443-0	02	1	1304-	●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1304-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1304-	●
360	03.342 GASKET; ADAPTER TO TURBOCHARGER	8-98151-216-0	01	1	1304-	●
375	03.342 BOLT; FLANGE 01.428 M6X25 HEX SOCKET	0-58330-625-0	03	1	1304-	●
376	03.342 GASKET; FLANGE CONNECTOR	8-98089-661-0	01	1	1304-	●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1304-				●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1304-	●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1304-	●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1304-	●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1304-	●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1304-	●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1304-	●			●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1304-				●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1304-	●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1304-	●
531	03.616 BRACKET; DUCT	8-98158-725-0	01	1	1304-	●
539	03.337 SENSOR; TURBOCHARGER (A)	8-98031-605-1	01	1	1304-	●
539	03.337 SENSOR; TURBOCHARGER (B)	8-98199-353-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
