◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#118256) — 210 parça
çizim 344898
497 497 497 497 485
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
485 07.039 NUT; TRANS MTG MBR,FRAME
04.085 M10 FLANGE 		0-91180-210-0 04 1 1304- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
02.277 (C) M10X120 FLANGE 		0-28066-012-0 04 1 1304- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE 		0-28661-035-0 06 1 1304- ● ●
497 07.006 BOLT; C/MBR
03.023 (B) M10X35 FLANGE 		0-28661-035-0 06 1 1304- ● ● ●
497 07.006 BOLT; C/MBR
07.395 (D) M12X30 FLANGE 		0-28651-230-0 08 1 1304- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1304- ● ● ●
497 07.006 BOLT; C/MBR
EXC. HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE 		0-28661-035-0 04 1 1304- ● ●
497 07.006 BOLT; C/MBR
03.023 (B) M10X35 FLANGE 		0-28661-035-0 04 1 1304- ●

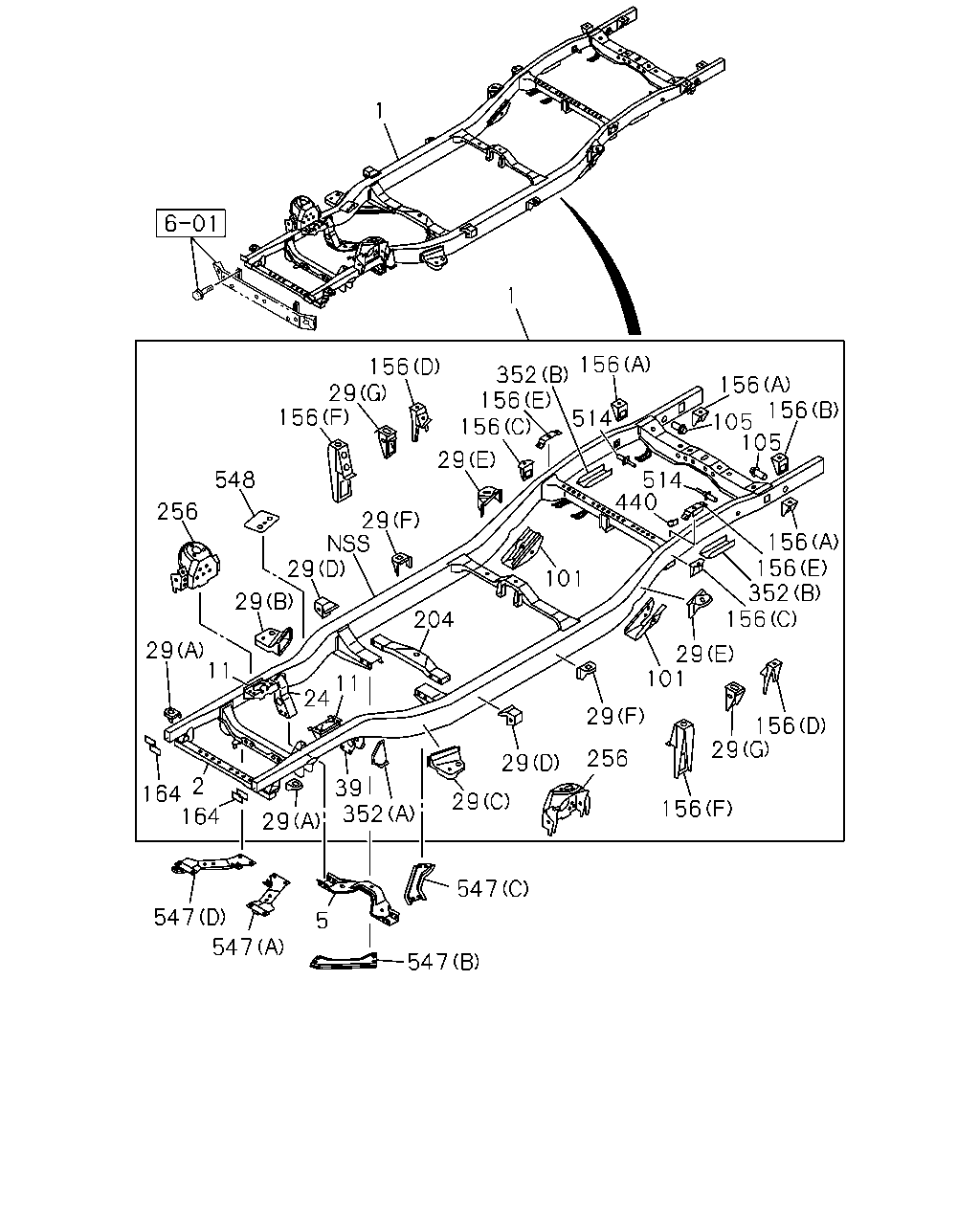

çizim 345455
1 1 156 156 156 105 105 156 156 352 156 29 156 29 156 256 29 29 547 29 101 204 29 29 548 156 29 156 352 156 156 29 29 29 11 164 164 29 2 24 11 39 352 5 547 547 514 514 440 101 547 256
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98209-064-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98209-063-3 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98155-801-3 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-806-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-807-3 01 1 1304- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-877-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-878-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-881-2 01 1 1304- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-875-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-879-2 01 1 1304- ●
2 07.010 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1304- ● ● ● ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1304- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98106-736-2 01 1 1304- ●
5 07.010 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1304- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98173-916-0 01 1 1304-1307 ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1308- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-794-2 01 1 1304- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-796-2 01 1 1304- ● ● ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-793-2 01 1 1304- ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-795-1 01 1 1304- ●
24 07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1304- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1304- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1304- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-806-3 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1304- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1304- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-842-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-843-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-784-3 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1304- ● ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (C) 		8-98106-791-3 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1304- ● ● ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98186-495-1 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(H) 		8-98186-495-1 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98186-496-1 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(I) 		8-98186-496-1 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1304- ● ● ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1304- ● ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-808-3 01 1 1304- ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1304- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1304- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-866-0 01 1 1304- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-867-0 01 1 1304- ●
105 07.112 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1304- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1304- ● ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1304- ● ●
105 07.112 BRACKET; RR SPR,RR 8-97942-294-0 02 1 1304- ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1304- ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1304- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1304- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-864-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-865-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-872-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-873-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-870-0 01 1 1304- ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-871-0 01 1 1304- ● ●
164 07.112 PLATE; FRT 8-98106-814-0 01 1 1304- ● ● ● ● ● ●
164 07.112 PLATE; FRT 8-98106-815-0 01 1 1304- ● ● ● ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98159-796-1 01 1 1304- ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1304- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T AISIN 6 SPEED(RNU) 		8-98106-761-4 01 1 1304- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98106-761-4 01 1 1304- ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-801-6 01 1 1304- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-803-4 01 1 1304- ● ● ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-800-2 01 1 1304- ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-802-1 01 1 1304- ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-835-3 01 1 1304- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(A) 		8-98106-835-3 01 1 1304- ● ● ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-836-3 01 1 1304- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(A) 		8-98106-836-3 01 1 1304- ● ● ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-871-1 02 1 1304- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(B) 		8-98106-871-1 02 1 1304- ● ● ●
440 07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1304- ● ●
440 07.039 BRACKET; HOSE 8-98106-873-1 01 1 1304- ● ● ●
440 07.039 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1304- ● ●
440 07.039 BRACKET; HOSE 8-98106-872-1 01 1 1304- ●
514 07.388 PIN; S/ABS 8-97942-395-1 02 1 1304- ● ● ● ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-910-1 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98177-568-3 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98196-640-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-907-1 01 1 1304-1307 ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-908-0 01 1 1304-1307 ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1304- ● ● ●
548 07.039 BRACKET; DPD,FRT 8-98196-759-0 01 1 1304- ● ● ● ● ● ●

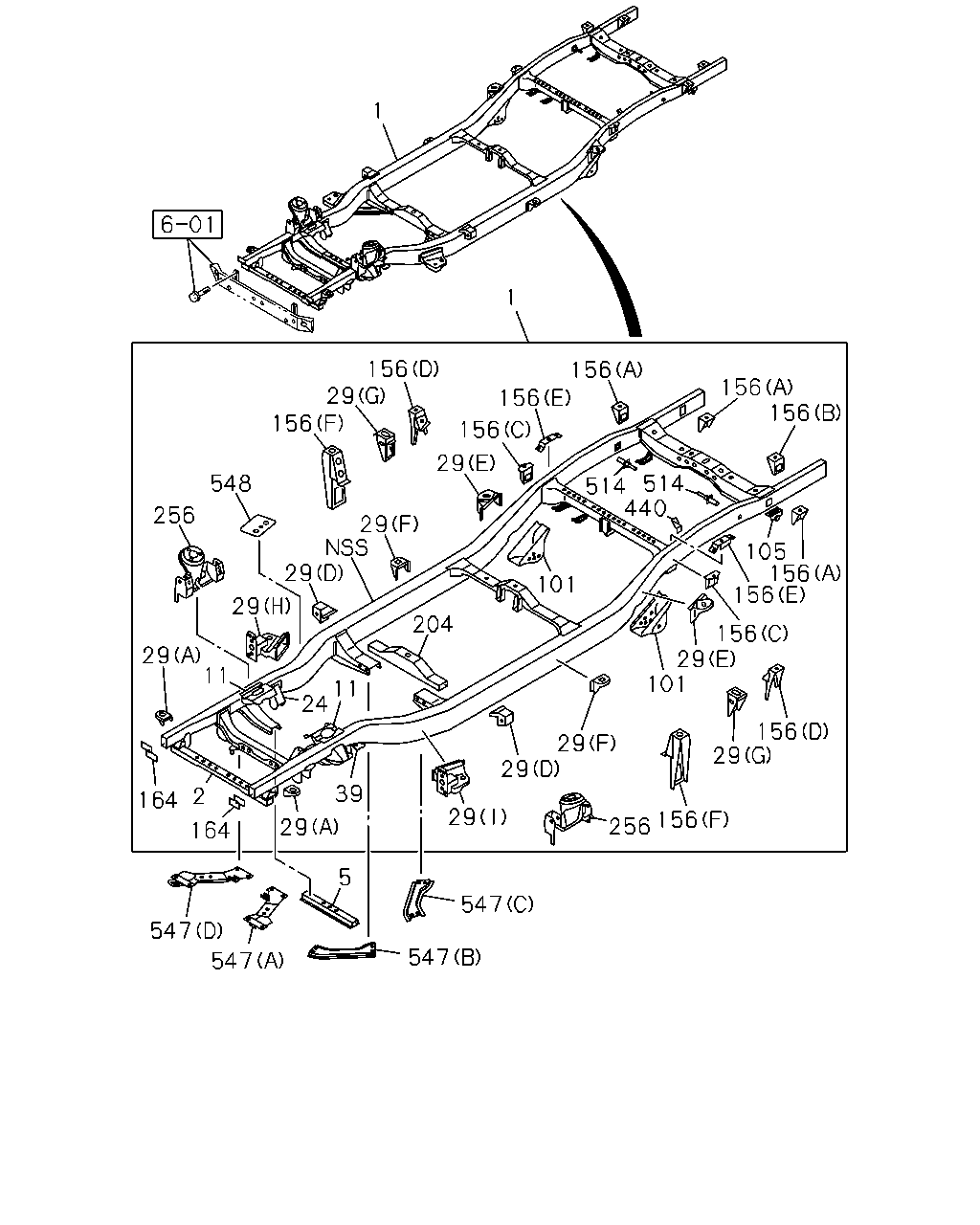

çizim 345499
156 156 105 156 156 156 29 101 156 29 156 256 29 29 29 547 547 547 547 164 29 2 11 24 11 29 156 156 29 156 156 156 514 514 1 1 101 204 29 164 39 440 548 256 29 29 5 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98209-064-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98209-063-3 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98155-801-3 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-806-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-807-3 01 1 1304- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-877-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-878-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-881-2 01 1 1304- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-875-2 01 1 1304- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-879-2 01 1 1304- ●
2 07.010 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1304- ● ● ● ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1304- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98106-736-2 01 1 1304- ●
5 07.010 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1304- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98173-916-0 01 1 1304-1307 ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1308- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-794-2 01 1 1304- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-796-2 01 1 1304- ● ● ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-793-2 01 1 1304- ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1304- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-795-1 01 1 1304- ●
24 07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1304- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1304- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1304- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-806-3 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1304- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1304- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-842-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-843-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-784-3 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1304- ● ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (C) 		8-98106-791-3 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1304- ● ● ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98186-495-1 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(H) 		8-98186-495-1 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98186-496-1 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(I) 		8-98186-496-1 01 1 1304- ●
29 07.330 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1304- ● ● ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1304- ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1304- ● ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-808-3 01 1 1304- ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1304- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1304- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-866-0 01 1 1304- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-867-0 01 1 1304- ●
105 07.112 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1304- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1304- ● ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1304- ● ●
105 07.112 BRACKET; RR SPR,RR 8-97942-294-0 02 1 1304- ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1304- ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1304- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1304- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-864-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-865-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-872-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-873-0 01 1 1304- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-870-0 01 1 1304- ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-871-0 01 1 1304- ● ●
164 07.112 PLATE; FRT 8-98106-814-0 01 1 1304- ● ● ● ● ● ●
164 07.112 PLATE; FRT 8-98106-815-0 01 1 1304- ● ● ● ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98159-796-1 01 1 1304- ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1304- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T AISIN 6 SPEED(RNU) 		8-98106-761-4 01 1 1304- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98106-761-4 01 1 1304- ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-801-6 01 1 1304- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-803-4 01 1 1304- ● ● ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-800-2 01 1 1304- ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1304- ● ●
256 07.395 BRACKET; S/ABS 8-98106-802-1 01 1 1304- ●
440 07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1304- ● ●
440 07.039 BRACKET; HOSE 8-98106-873-1 01 1 1304- ● ● ●
440 07.039 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1304- ● ●
440 07.039 BRACKET; HOSE 8-98106-872-1 01 1 1304- ●
514 07.388 PIN; S/ABS 8-97942-395-1 02 1 1304- ● ● ● ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-910-1 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98177-568-3 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98196-640-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-907-1 01 1 1304-1307 ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-908-0 01 1 1304-1307 ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1304- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1304- ● ● ●
548 07.039 BRACKET; DPD,FRT 8-98196-759-0 01 1 1304- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
