1-35 — CHARGE AIR COOLER (#118249) — 74 parça

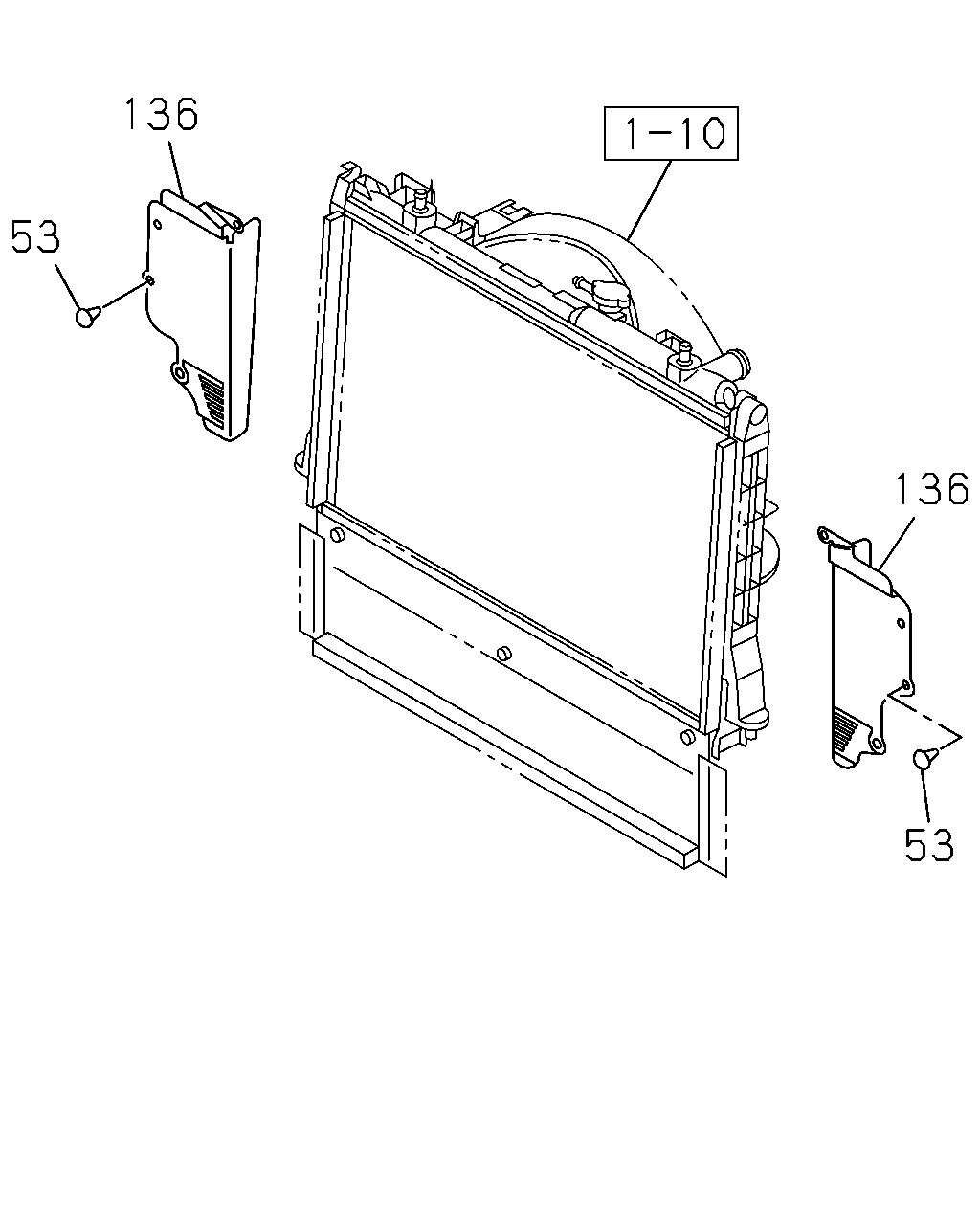

çizim 342652
53 136 136 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1304- ● ● ● ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 08 1 1304- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-153-1 01 1 1304- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-154-1 01 1 1304- ●

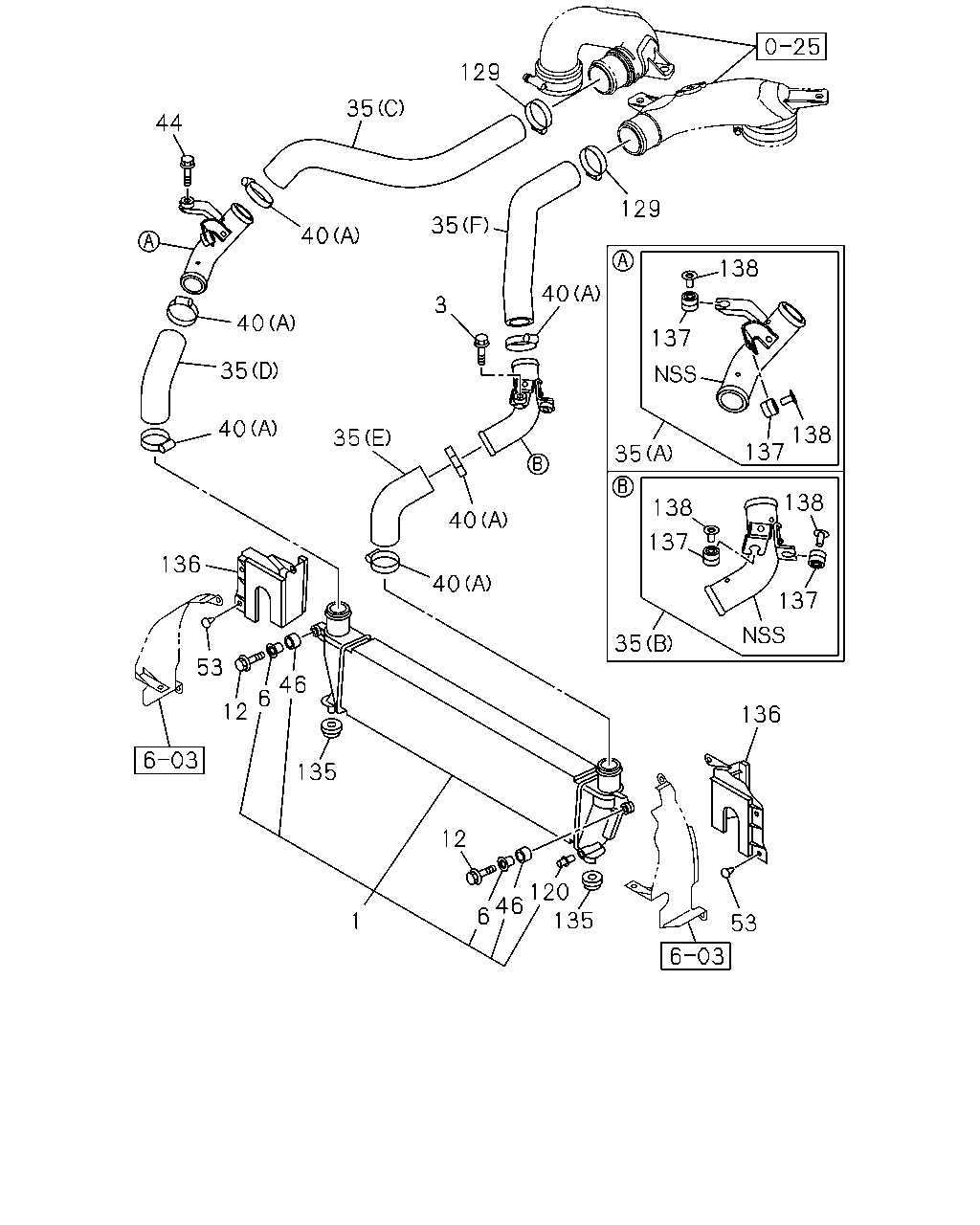

çizim 345756
129 44 35 129 35 40 40 3 40 138 137 138 137 138 137 35 35 138 137 136 53 120 12 1 6 46 135 35 40 136 53 12 6 46 135 35 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.374 COOLER; CHARGE AIR 8-98090-627-4 01 1 1304- ●
1 03.374 COOLER; CHARGE AIR 8-98093-027-4 01 1 1304- ● ● ●
1 03.374 COOLER; CHARGE AIR 8-98194-004-3 01 1 1304- ●
3 01.540 BOLT; CHARGE AIR COOLER
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1304- ● ● ● ● ●
6 01.540 COLLAR; MTG,CHARGE AIR COOLER
03.405 		8-97942-932-0 02 1 1304- ● ● ● ● ●
12 01.540 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(A) 		8-98065-553-1 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(C) 		8-98065-695-2 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(D) 		8-98065-696-2 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(B) 		8-98065-554-1 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(E) 		8-98065-697-2 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(F) 		8-98065-698-2 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(I) 		8-98194-509-1 01 1 1304- ●
35 01.540 HOSE; CONNECTING
(G) 		8-98194-510-1 01 1 1304- ●
35 01.540 HOSE; CONNECTING
(H) 		8-98203-333-1 01 1 1304- ●
40 03.162 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-396-0 02 1 1304- ● ● ● ●
40 03.162 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-396-0 04 1 1304- ● ● ● ● ●
40 03.162 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98194-605-0 02 1 1304- ●
44 01.540 BOLT; PIPE
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1304- ● ● ● ● ●
46 01.540 RUBBER; MTG,CHARGE AIR COOLER
03.406 		8-97942-930-0 02 1 1304- ● ● ● ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1304- ● ● ● ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 08 1 1304- ●
120 01.540 PIPE; WATER DRAIN 8-98189-894-0 01 1 1304- ● ● ● ● ●
129 01.159 CLAMP; HOSE
03.162 ID=45-65 		8-98133-396-0 02 1 1304- ● ● ● ●
129 01.159 CLAMP; HOSE
03.162 ID=60-65 		8-98194-605-0 02 1 1304- ●
135 01.540 RUBBER; CUSHION
01.270 		8-97249-541-1 02 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-153-1 01 1 1304- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-154-1 01 1 1304- ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1304- ● ● ● ● ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1304- ● ● ● ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1304- ● ● ● ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1304- ● ● ● ● ●

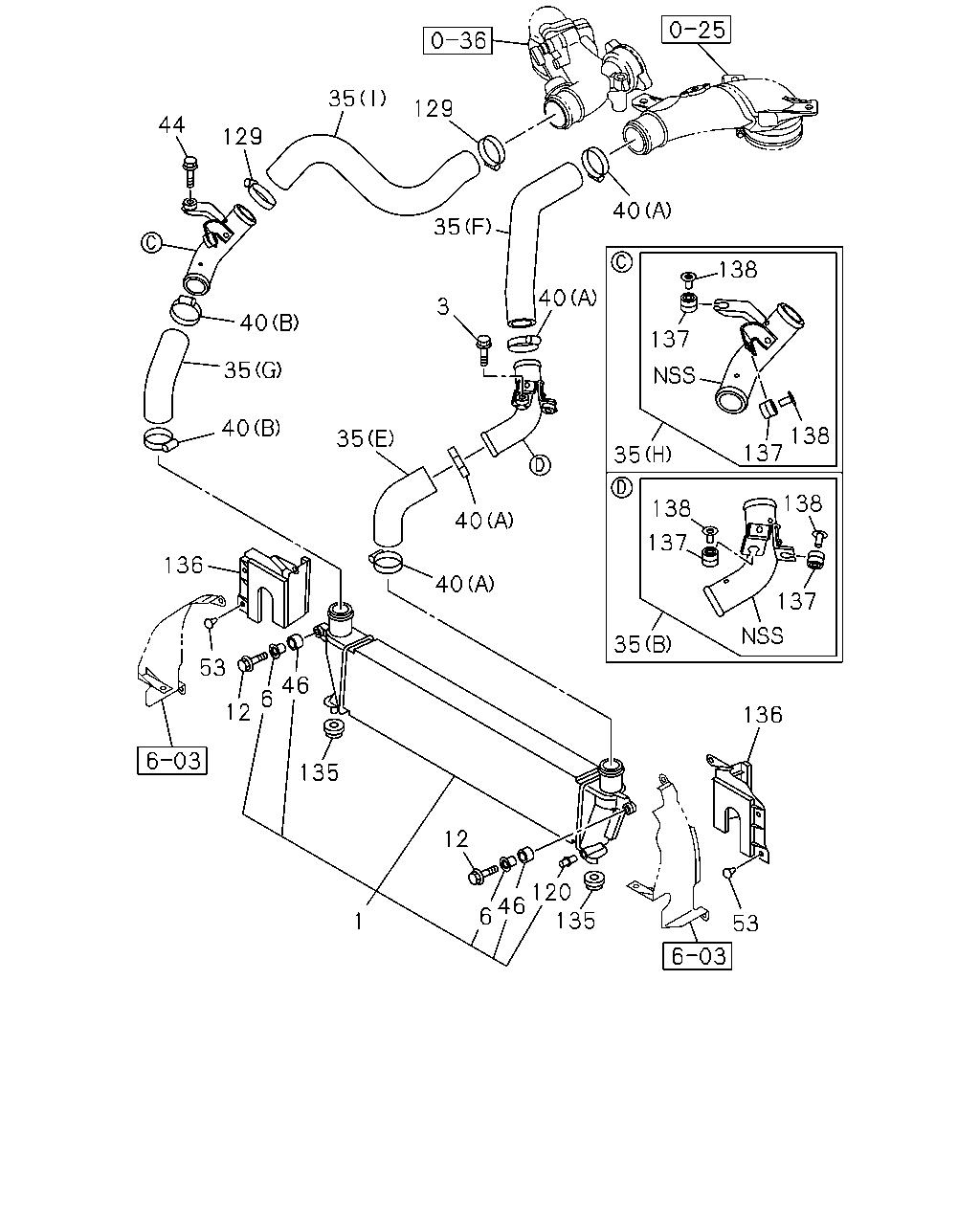

çizim 345803
44 129 40 35 40 136 53 12 6 46 135 1 12 6 46 120 135 53 136 40 40 35 3 35 129 35 40 40 138 137 137 138 138 137 35 138 137 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.374 COOLER; CHARGE AIR 8-98090-627-4 01 1 1304- ●
1 03.374 COOLER; CHARGE AIR 8-98093-027-4 01 1 1304- ● ● ●
1 03.374 COOLER; CHARGE AIR 8-98194-004-3 01 1 1304- ●
3 01.540 BOLT; CHARGE AIR COOLER
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1304- ● ● ● ● ●
6 01.540 COLLAR; MTG,CHARGE AIR COOLER
03.405 		8-97942-932-0 02 1 1304- ● ● ● ● ●
12 01.540 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(A) 		8-98065-553-1 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(C) 		8-98065-695-2 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(D) 		8-98065-696-2 01 1 1304- ● ● ● ●
35 01.540 HOSE; CONNECTING
(B) 		8-98065-554-1 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(E) 		8-98065-697-2 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(F) 		8-98065-698-2 01 1 1304- ● ● ● ● ●
35 01.540 HOSE; CONNECTING
(I) 		8-98194-509-1 01 1 1304- ●
35 01.540 HOSE; CONNECTING
(G) 		8-98194-510-1 01 1 1304- ●
35 01.540 HOSE; CONNECTING
(H) 		8-98203-333-1 01 1 1304- ●
40 03.162 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-396-0 02 1 1304- ● ● ● ●
40 03.162 CLIP; RUBBER HOSE
(A) ID=45-65 		8-98133-396-0 04 1 1304- ● ● ● ● ●
40 03.162 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98194-605-0 02 1 1304- ●
44 01.540 BOLT; PIPE
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1304- ● ● ● ● ●
46 01.540 RUBBER; MTG,CHARGE AIR COOLER
03.406 		8-97942-930-0 02 1 1304- ● ● ● ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1304- ● ● ● ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 08 1 1304- ●
120 01.540 PIPE; WATER DRAIN 8-98189-894-0 01 1 1304- ● ● ● ● ●
129 01.159 CLAMP; HOSE
03.162 ID=45-65 		8-98133-396-0 02 1 1304- ● ● ● ●
129 01.159 CLAMP; HOSE
03.162 ID=60-65 		8-98194-605-0 02 1 1304- ●
135 01.540 RUBBER; CUSHION
01.270 		8-97249-541-1 02 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1304- ● ● ● ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-153-1 01 1 1304- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-154-1 01 1 1304- ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1304- ● ● ● ● ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1304- ● ● ● ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1304- ● ● ● ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1304- ● ● ● ● ●
