Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

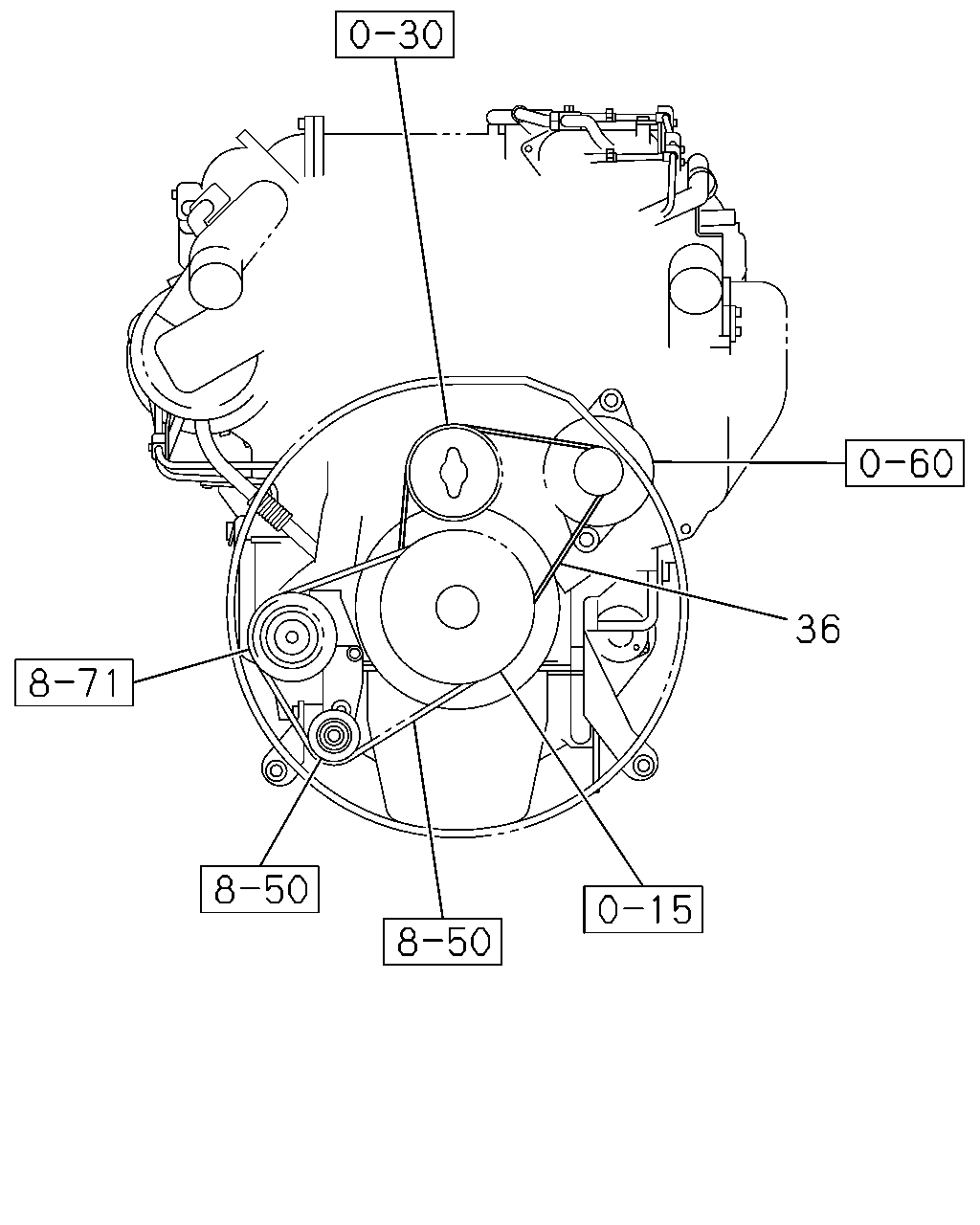

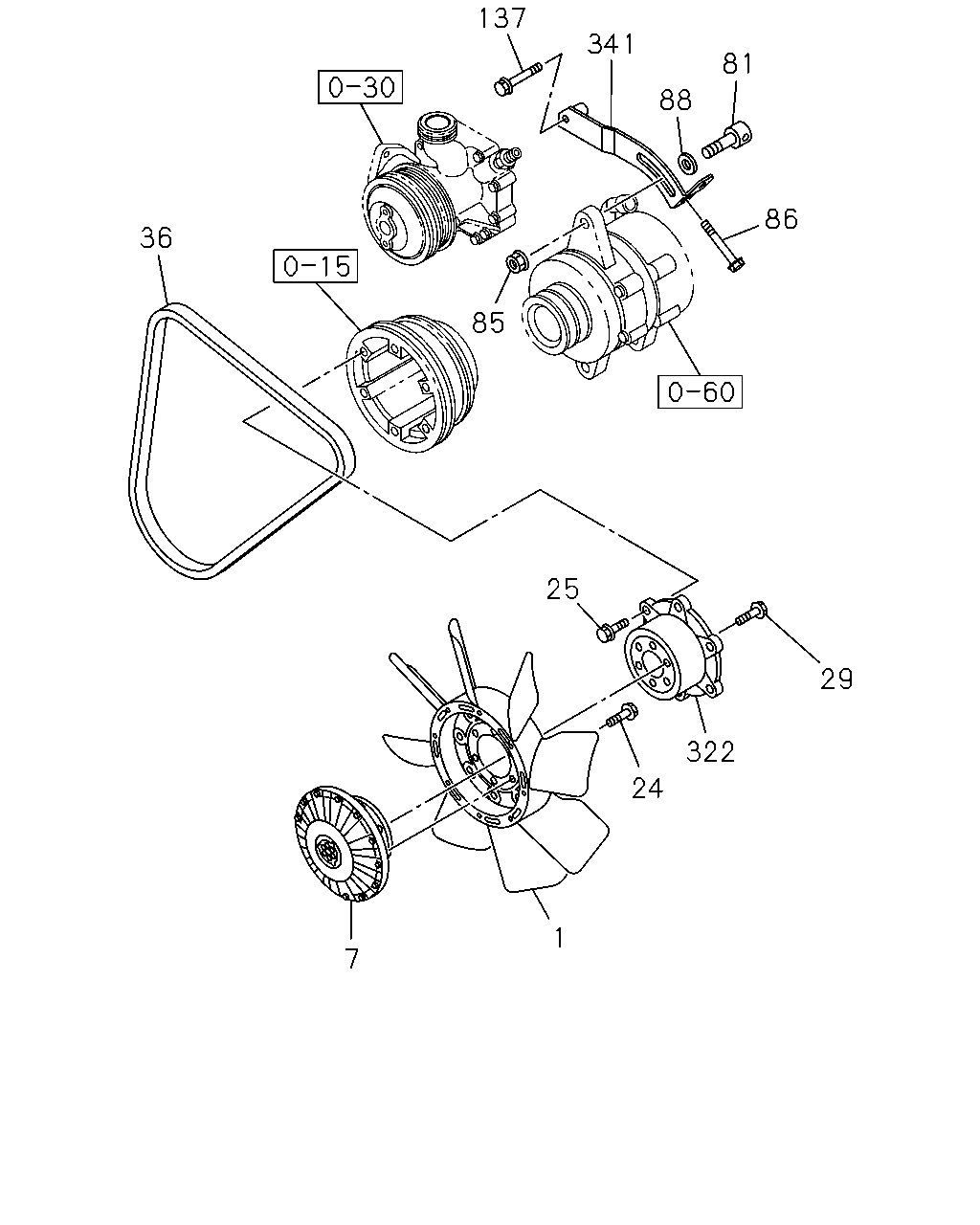

0-33 — FAN AND FAN BELT
(#118245) — 20 parça
◀
[033A] COOLING FAN AND COUPLING (17 parça)
[033A] FAN BELT (3 parça)
▶
137
341
81
86
88
85
36
29
322
24
7
1
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-286-1
01
1
1304-
7
COUPLING; FAN
8-98071-042-0
01
1
1304-
24
BOLT; FAN
M10X16 FLANGE
0-28161-016-0
06
1
1304-
25
BOLT; ADAPTER
M10X30 FLANGE
0-28161-030-0
06
1
1304-
29
BOLT; COUPLING TO WATER PUMP
M10X75 FLANGE
8-94399-669-1
06
1
1304-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2) L=1206
8-97603-283-0
01
1
1304-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1241
8-97603-284-0
01
1
1304-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2) BEST VALUE PARTS
1-87610-101-0
01
1
1304-
81
PIECE; SLIDING
GENERATOR 24V60A(KG2) M12X45
1-13674-160-0
01
1
1304-
81
PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59
1-13674-161-0
01
1
1304-
85
NUT; AC GEN
M12 FLANGE
0-91180-112-0
01
1
1304-
86
BOLT; ADJ
M10X135
1-09009-113-1
01
1
1304-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
1304-
137
BOLT; TENSION
M12X60 FLANGE
0-28151-260-0
01
1
1304-
322
ADAPTER; COUPLING
8-97607-150-0
01
1
1304-
341
PLATE ASM; ADJUST
GENERATOR 24V60A(KG2)
8-97603-824-1
01
1
1304-
341
PLATE ASM; ADJUST
GENERATOR 24V90A(K44)
8-97603-825-1
01
1
1304-
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2) L=1206
8-97603-283-0
01
1
1304-
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1241
8-97603-284-0
01
1
1304-
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2) BEST VALUE PARTS
1-87610-101-0
01
1
1304-
