◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11529 - GXR(RHD)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#118236) — 21 parça

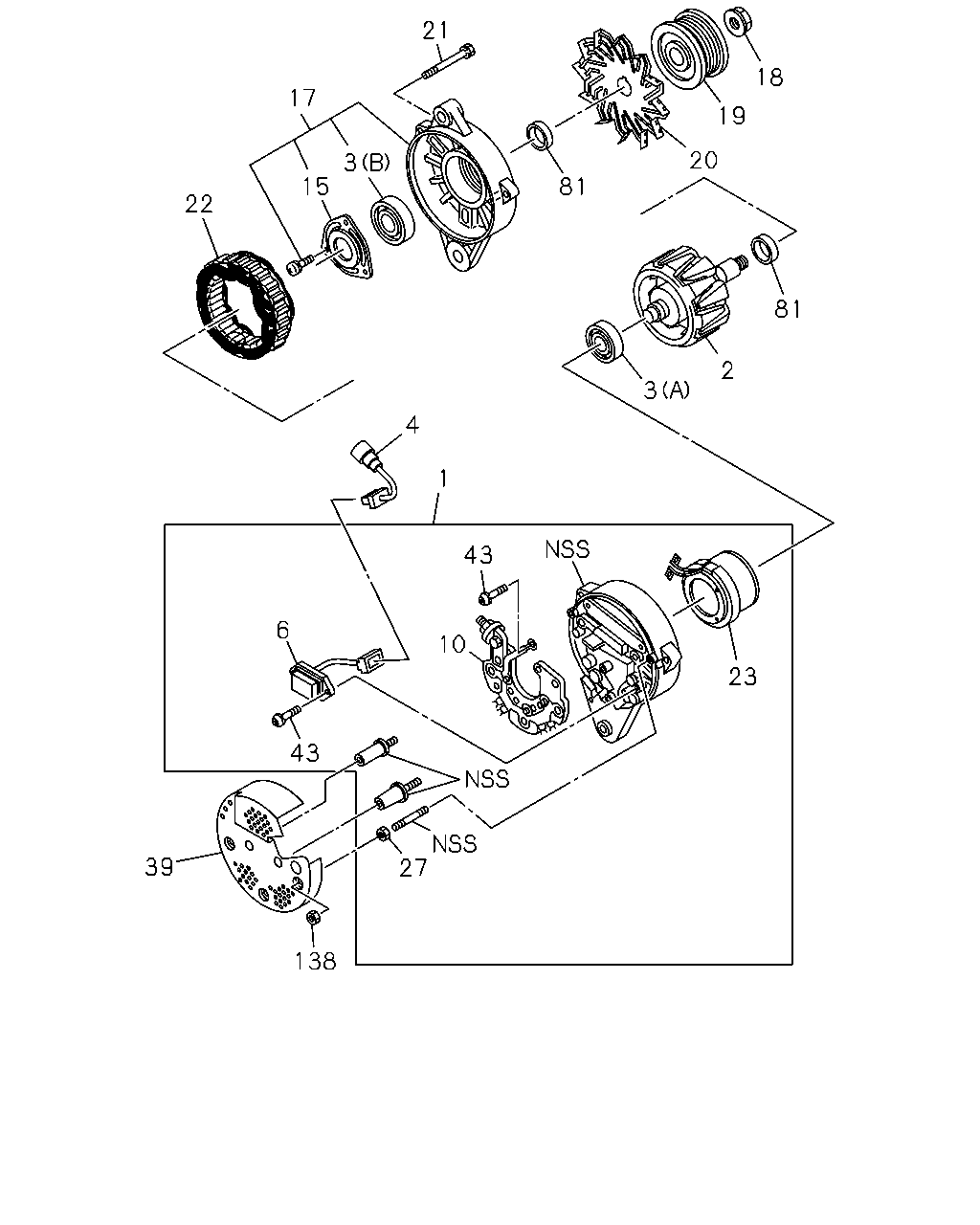

çizim 342562
21 17 22 15 3 81 18 19 20 81 2 3 4 1 43 6 10 23 43 39 27 138
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98169-360-2 		8-98181-100-1 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98169-360-2 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98169-360-2 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98169-360-2 		1-81229-758-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: A = 8-98169-360-2 		8-98181-104-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98169-360-2 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98169-360-2 		8-98181-102-0 01 1 -1511
10 RECTIFIER; GEN
ASM PART: A = 8-98169-360-2 		8-98335-685-0 01 1 1512-
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-98169-360-2 		1-81229-760-1 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98169-360-2 		8-97382-872-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98169-360-2 		8-98040-643-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98169-360-2 		8-98181-099-0 01 1 -
20 FAN; GEN
ASM PART: A = 8-98169-360-2 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-98169-360-2 		1-81229-382-0 03 1 -
22 STATOR; GEN
ASM PART: A = 8-98169-360-2 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-98169-360-2 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98169-360-2 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-98169-360-2 		8-98181-103-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 8-98169-360-2 		1-81229-476-0 03 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 8-98169-360-2 		8-97382-870-0 02 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98169-360-2 		8-98040-690-0 03 1 -
