4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#11822) — 98 parça

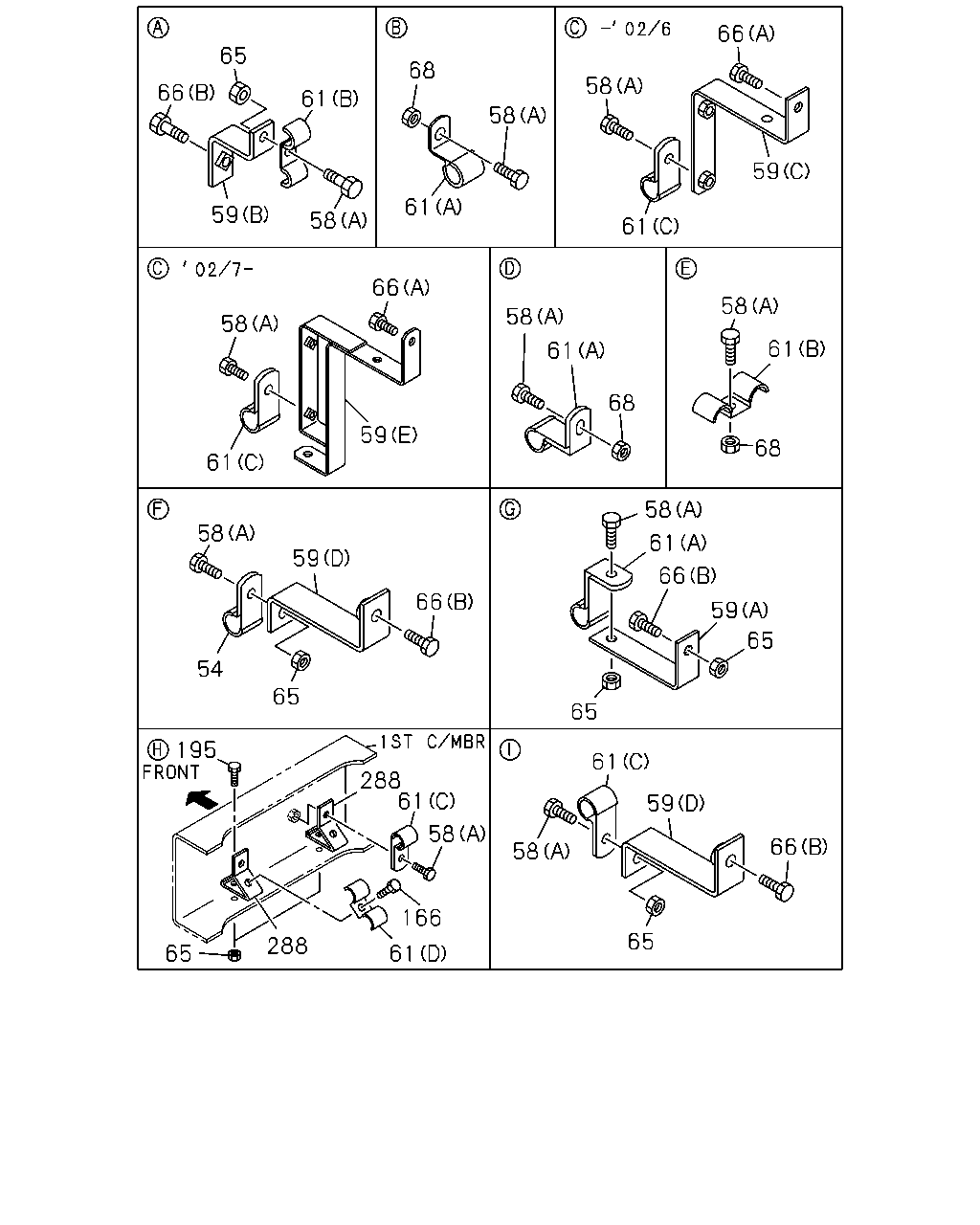

66 65 68 58 66 61 58 59 61 59 58 61 66 58 58 58 61 61 68 59 68 61 58 58 61 59 66 66 59 65 54 65 65 195 61 288 61 59 58 66 58 166 65 65 288 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE ID=16 L=20	9-09525-535-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-34656-009-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-881-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47477-434-0	01	1	0105-0206
59	BRACKET; CLIP,OIL PIPE (E)	1-47477-180-1	01	1	0207-
59	BRACKET; CLIP,OIL PIPE (D) L=90	1-82699-856-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (D) L=90	1-82699-856-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 L=20	9-09525-535-0	02	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-
66	BOLT; BRKT,OIL PIPE (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-0305
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-

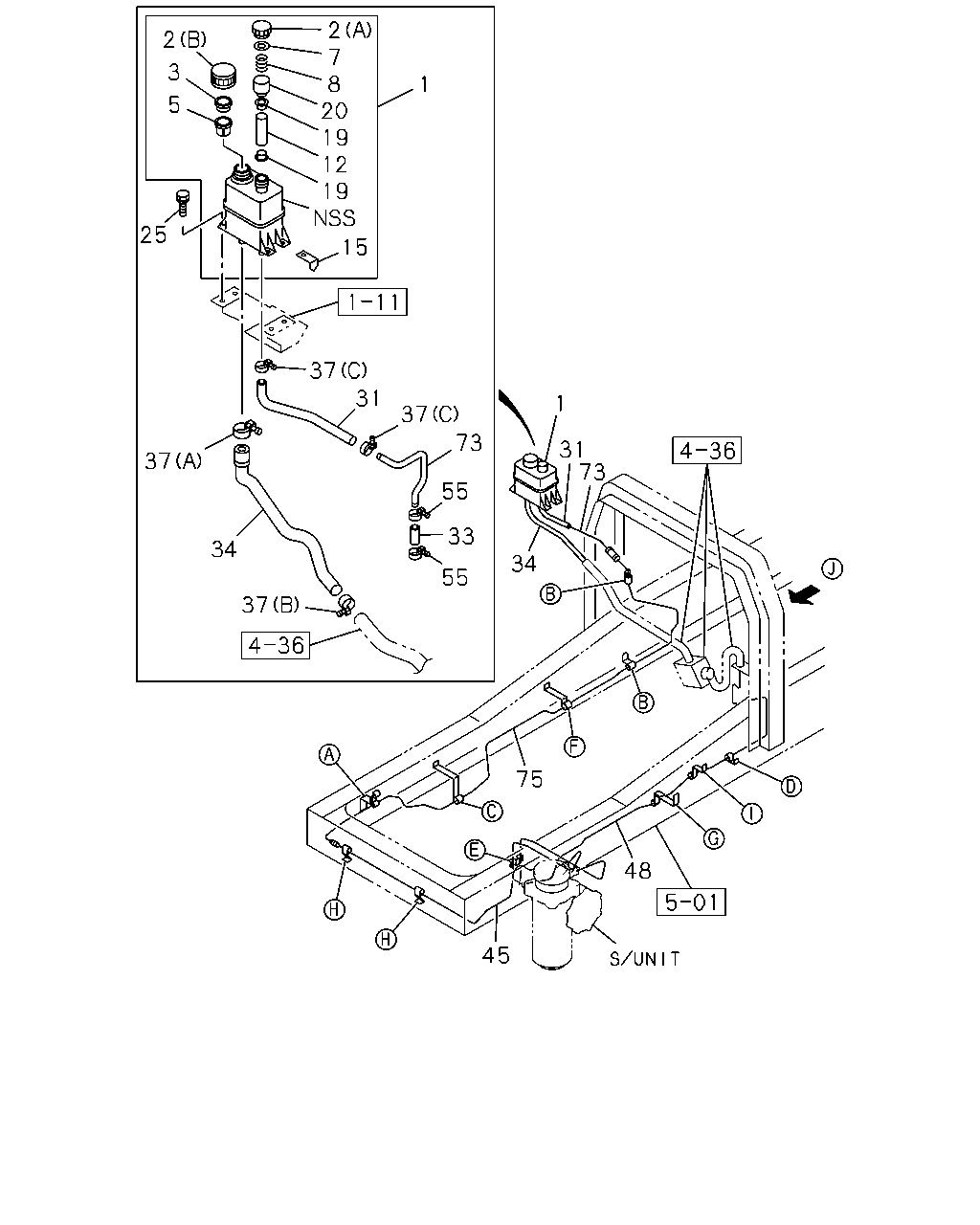

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 1 37 73 31 73 37 55 33 34 34 55 37 75 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	0105-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-847-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E>	1-21116-350-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. ZF M/T<X9E>	1-21116-349-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	0105-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A>	1-21115-531-0	01	1	0105-0109
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A>	1-21117-151-0	01	1	0110-
75	PIPE; OIL,P/S,UNION TO UNION ZF M/T<X9E>	1-21115-532-0	01	1	0105-

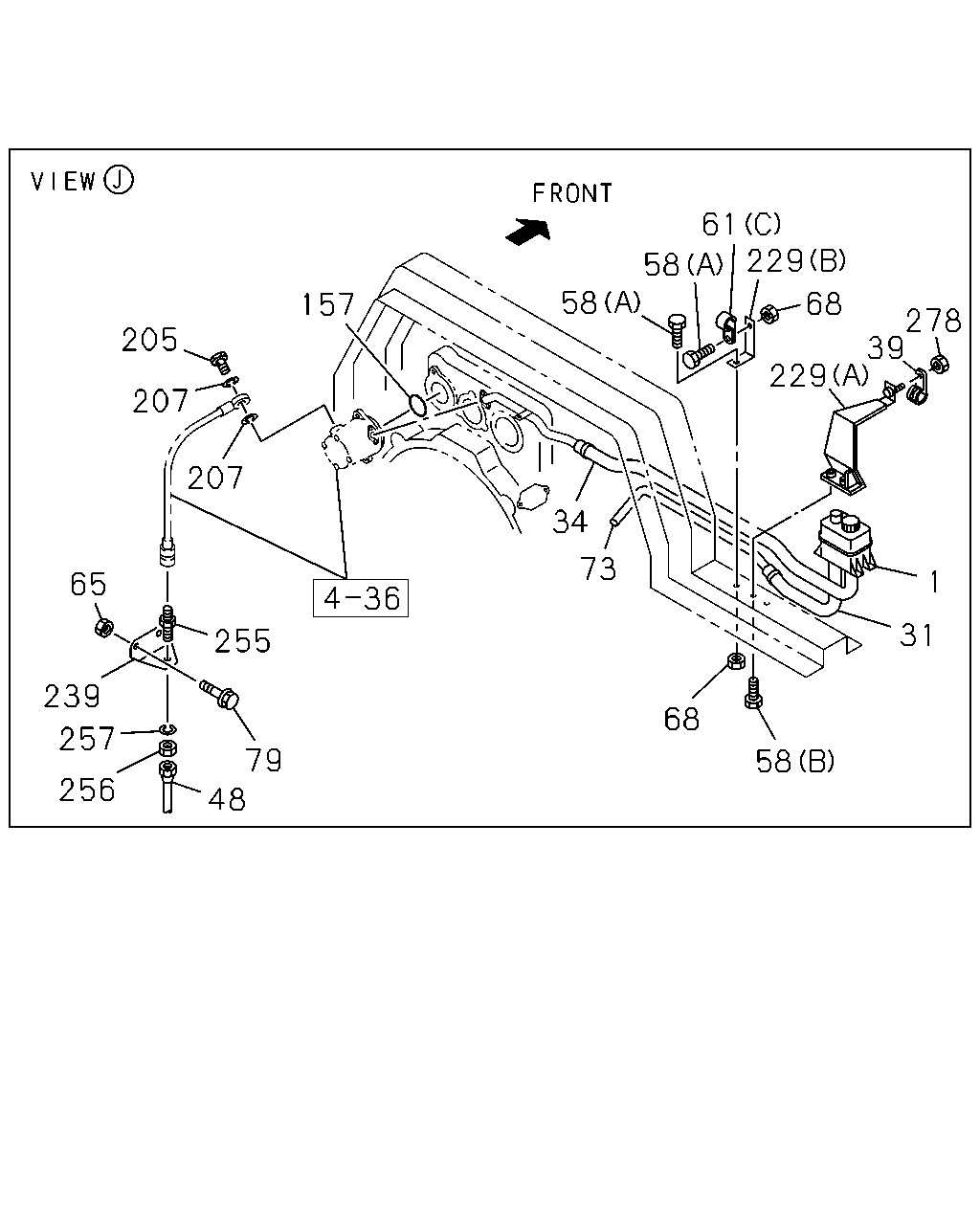

229 58 58 68 157 278 39 205 229 207 207 34 73 1 65 31 255 239 68 257 79 58 256 48 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E>	1-21116-350-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. ZF M/T<X9E>	1-21116-349-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 L=20	9-09525-535-0	02	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-0305
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	0105-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-480-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-481-0	01	1	0105-
239	BRACKET; FLEX HOSE	1-47478-471-0	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-
256	NUT; UNION M22	9-09111-422-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
