Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#118219) — 152 parça

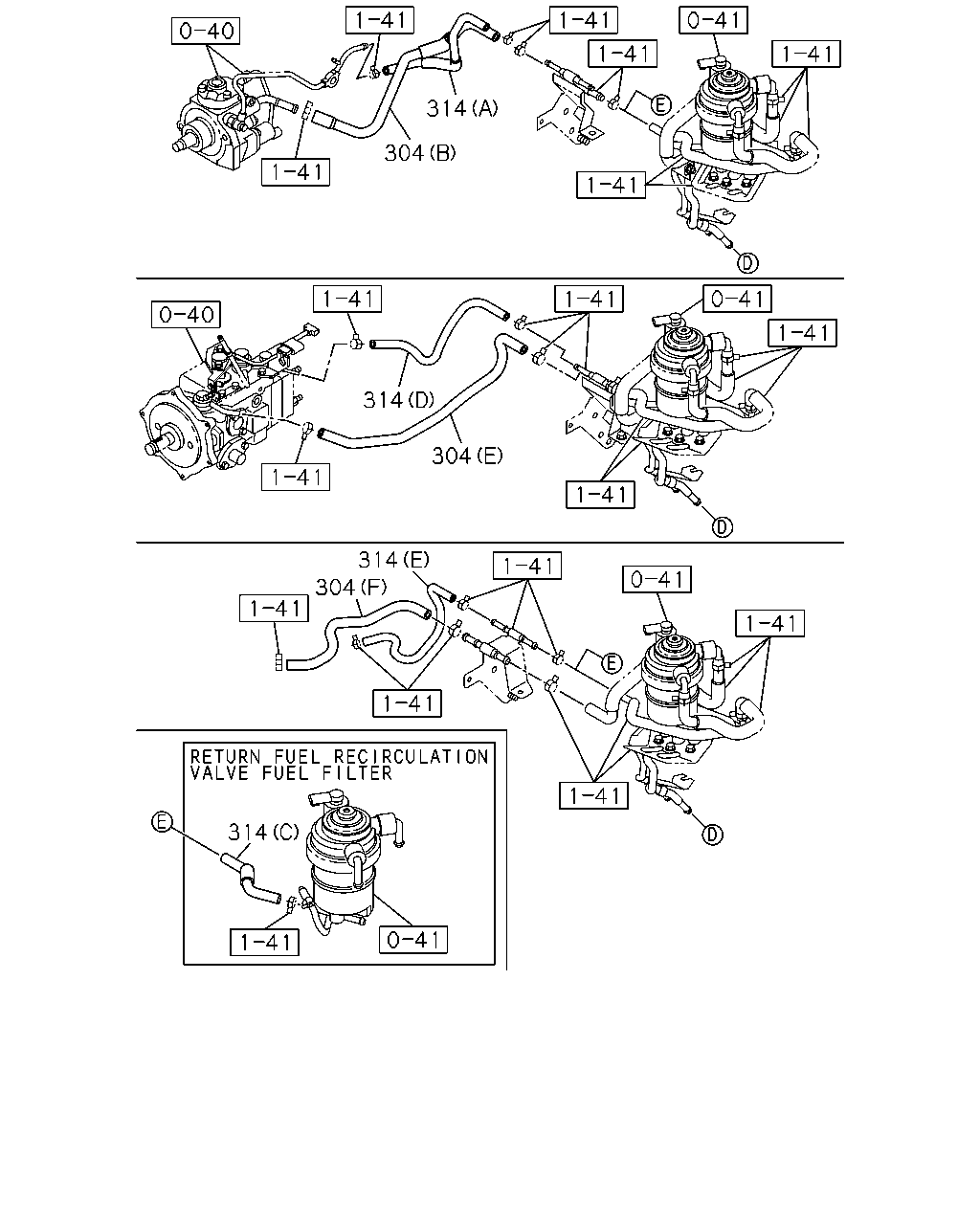

314 304 314 304 314 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-275-1	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1304-1306	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1307-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1307-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98196-949-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98100-728-6	01	1	1304-1404	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13),RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1405-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98100-728-6	01	1	1405-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98194-772-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (E)	8-98100-730-1	01	1	1304-						●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) (F)	8-98206-274-0	01	1	1304-1306					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98206-274-0	01	1	1307-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. AUSTRALIA EQUIPMENT(B13) (F)	8-98155-795-3	01	1	1304-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97351-313-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1304-1404					●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1304-1404	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1405-					●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1405-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-271-1	01	1	1304-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1304-1306	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1307-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1307-					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-273-0	01	1	1304-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98113-329-4	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13),RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98113-329-4	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1304-						●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-272-0	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) (E)	8-98206-270-0	01	1	1304-1306					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (E)	8-98206-270-0	01	1	1307-					●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (C)	8-98155-793-1	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98155-791-2	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1304-1404					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98113-323-1	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-1405					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98258-246-0	01	1	1405-1405	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98258-246-0	01	1	1405-	●	●	●	●

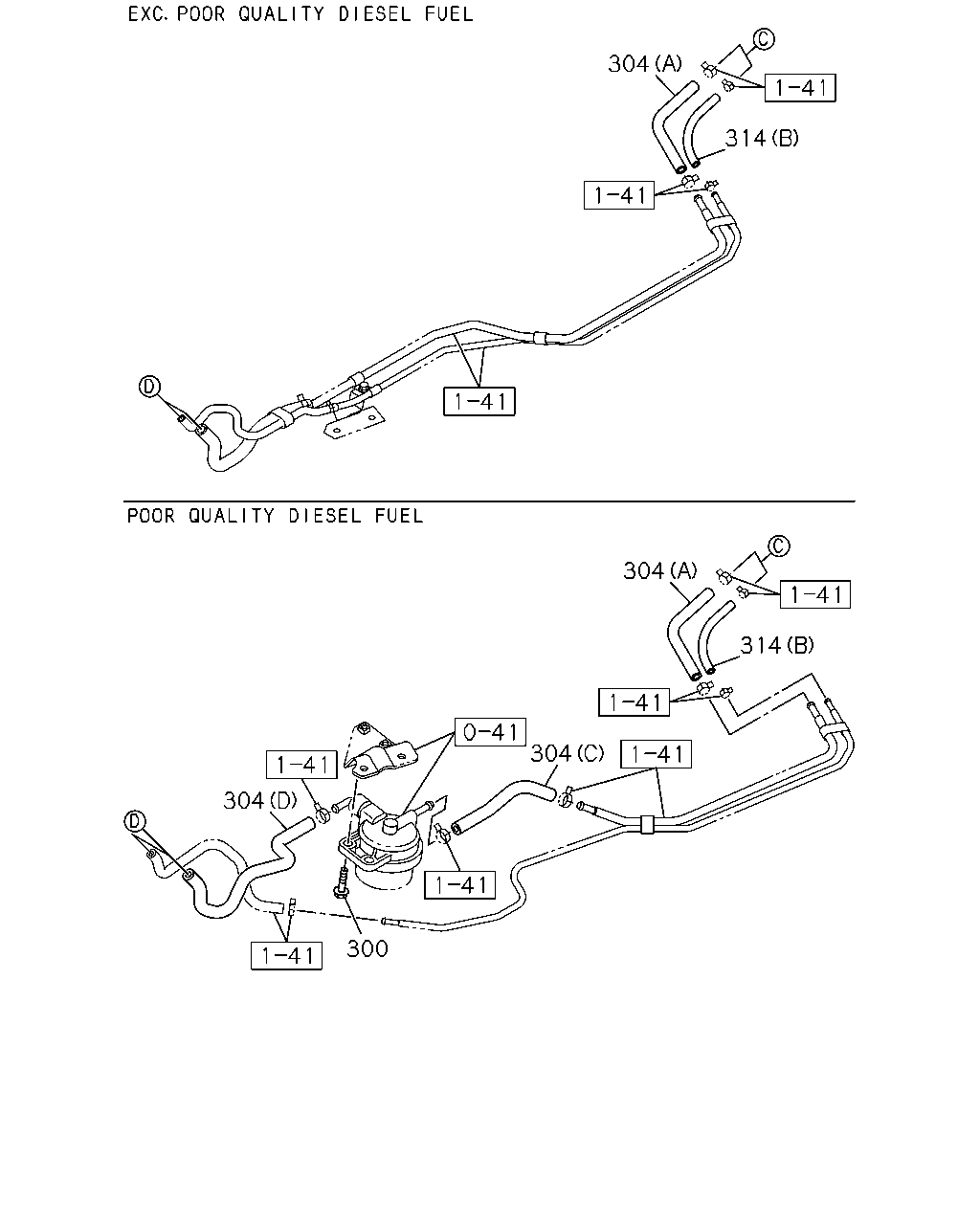

300 304 304 304 314 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL<KF0> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-275-1	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1304-1306	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1307-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1307-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98196-949-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98100-728-6	01	1	1304-1404	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13),RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-728-6	01	1	1405-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98100-728-6	01	1	1405-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98194-772-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (E)	8-98100-730-1	01	1	1304-						●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) (F)	8-98206-274-0	01	1	1304-1306					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98206-274-0	01	1	1307-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. AUSTRALIA EQUIPMENT(B13) (F)	8-98155-795-3	01	1	1304-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-97351-313-0	01	1	1304-	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1304-1404					●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1304-1404	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1405-					●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (A)	8-98164-019-0	01	1	1405-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-271-1	01	1	1304-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1304-1306	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1307-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98206-450-0	01	1	1307-					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-273-0	01	1	1304-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98113-329-4	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13),RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98113-329-4	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98113-329-4	01	1	1405-	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1304-						●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-272-0	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) (E)	8-98206-270-0	01	1	1304-1306					●
314	03.163 HOSE; RUBBER,FUEL RETURN AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (E)	8-98206-270-0	01	1	1307-					●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (C)	8-98155-793-1	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98155-791-2	01	1	1304-					●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1304-1404					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98113-323-1	01	1	1304-1404	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-1405					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98258-246-0	01	1	1405-1405	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-					●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. AUSTRALIA EQUIPMENT(B13),POOR QUALITY DIESEL FUEL<KF0> (B)	8-98258-246-0	01	1	1405-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98258-246-0	01	1	1405-	●	●	●	●

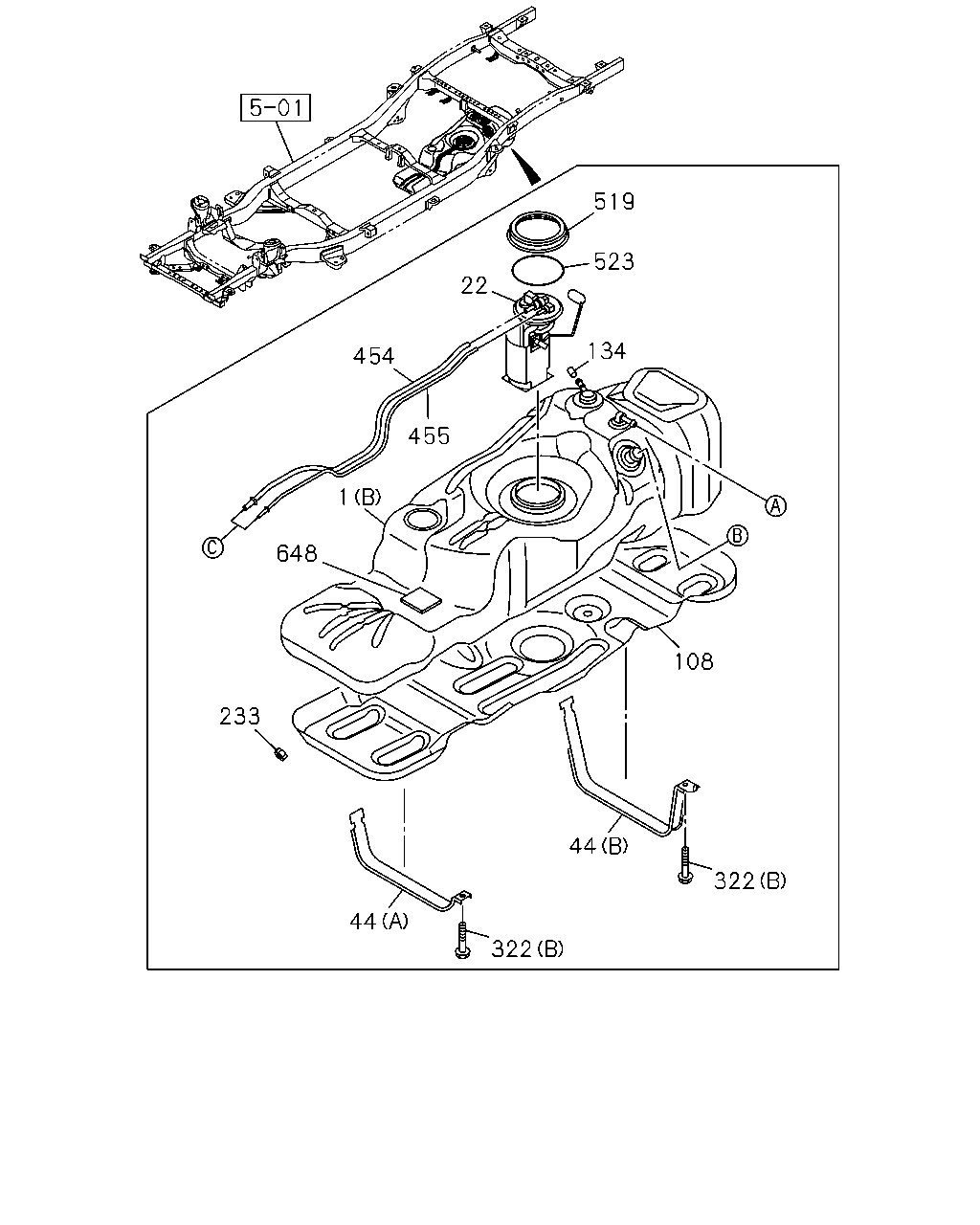

519 22 523 454 134 455 1 648 44 44 22 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 4X2(TFB***) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 69L	8-98152-318-1	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X2(TFB***) CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1304-	●	●	●	●	●	●
22	03.107 UNIT; FUEL TANK EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97947-151-3	01	1	1304-	●	●	●	●	●	●
22	03.107 UNIT; FUEL TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98152-317-1	01	1	1304-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1304-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1304-	●	●	●	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1304-	●	●	●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1304-	●	●	●	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1304-	●	●	●	●	●	●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1304-	●	●	●	●	●	●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1304-	●	●	●	●	●	●
648	03.001 RUBBER	8-98191-468-0	01	1	1304-	●	●	●	●	●	●

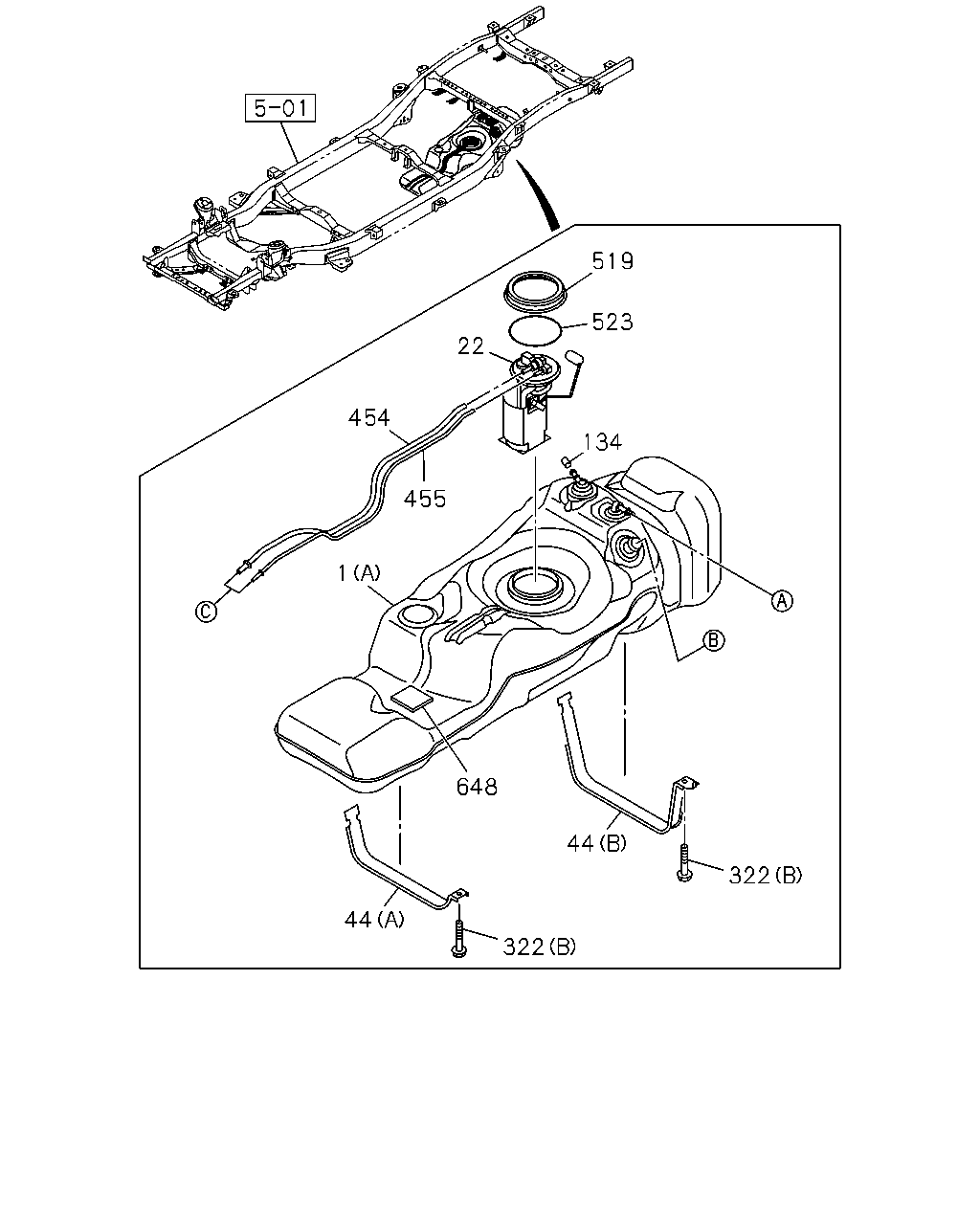

22 519 523 134 108 455 454 1 648 233 44 44 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 4X2(TFB***) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 69L	8-98152-318-1	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X2(TFB***) CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1304-	●	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1304-	●	●	●	●	●	●
22	03.107 UNIT; FUEL TANK EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97947-151-3	01	1	1304-	●	●	●	●	●	●
22	03.107 UNIT; FUEL TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98152-317-1	01	1	1304-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1304-	●	●	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1304-	●	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X2(TFB***) CONGO EQUIPMENT(CDF)	8-97947-155-2	01	1	1304-	●	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF)	8-97947-155-2	01	1	1304-	●	●	●	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1304-	●	●	●	●	●	●
233	03.023 NUT; UNDER COVER 4X2(TFB***) CONGO EQUIPMENT(CDF)	8-97947-757-0	02	1	1304-	●	●	●	●	●	●
233	03.023 NUT; UNDER COVER 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF)	8-97947-757-0	02	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1304-	●	●	●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1304-	●	●	●	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1304-	●	●	●	●	●	●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1304-	●	●	●	●	●	●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1304-	●	●	●	●	●	●
648	03.001 RUBBER	8-98191-468-0	01	1	1304-	●	●	●	●	●	●

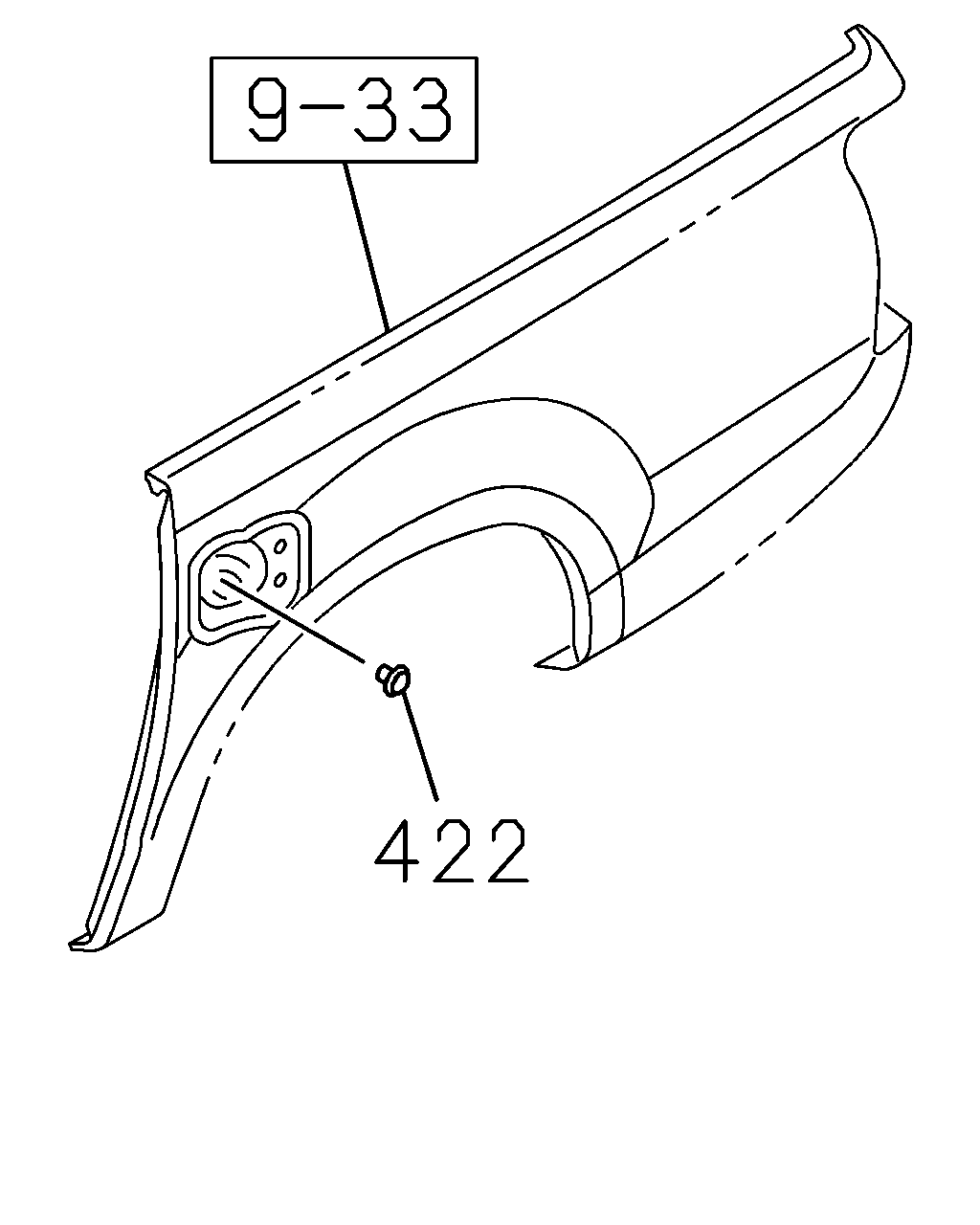

422

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1304-	●	●	●	●	●	●

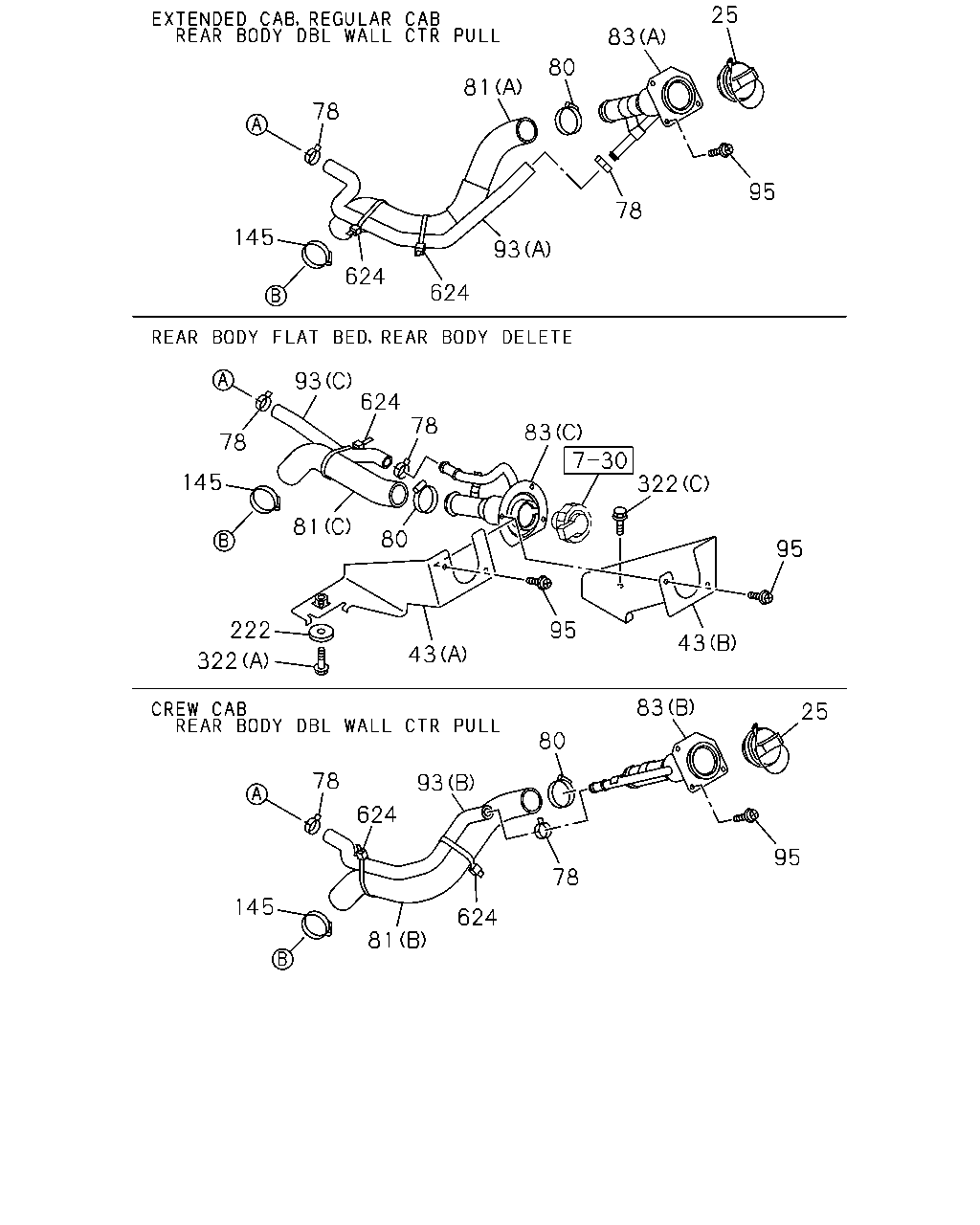

78 145 624 624 93 81 80 83 25 95 78 93 83 78 624 81 78 145 80 95 322 95 43 43 322 222 25 95 83 80 78 93 624 81 624 78 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1304-1510	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1304-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1304-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1304-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1304-	●	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1304-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1304-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1304-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1304-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1304-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1304-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1304-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1304-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1304-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1304-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1304-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63)	8-98139-595-0	03	1	1304-	●	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1304-	●	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1304-	●	●	●	●	●	●
222	03.023 WASHER; BRKT,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1304-	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1304-	●	●	●	●	●	●
624	03.162 CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330	5-09709-118-0	02	1	1304-	●	●	●	●	●	●
624	03.162 CLIP; BAND REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	01	1	1304-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
