0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#1182) — 129 parça

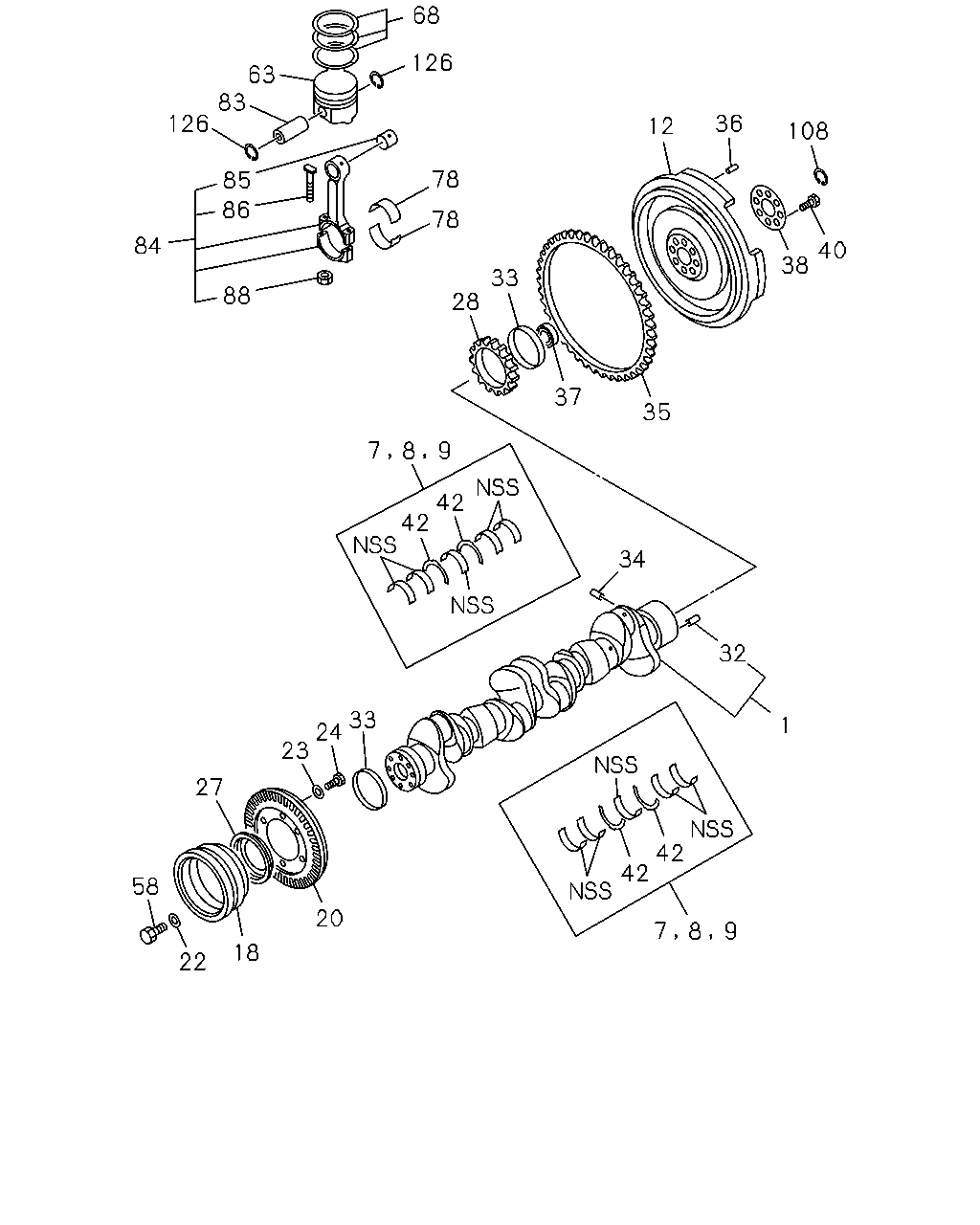

68 126 63 83 126 36 12 108 78 85 86 78 84 40 38 33 88 28 37 35 7 8 9 42 42 34 32 33 24 23 1 27 42 42 58 20 7 8 9 18 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-568-0	01	1	9202-	●
1	CRANKSHAFT	8-94396-392-3	01	1	9202-9306		●
1	CRANKSHAFT	8-94395-025-0	01	1	9307-		●
1	CRANKSHAFT	1-12310-569-0	01	1	9306-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9202-	●		●
7	METAL KIT; CRANKSHAFT,STANDARD	8-94393-327-0	01	1	9202-		●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11520-087-0	01	1	9202-	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	8-94396-987-0	01	1	9202-		●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11530-087-0	01	1	9202-	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	8-94396-988-0	01	1	9202-		●
12	FLYWHEEL	1-12331-162-4	01	1	9202-	●		●
12	FLYWHEEL	8-94399-067-1	01	1	9202-		●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-405-0	01	1	9202-	●
18	PULLEY; CR/SHF 3-GROOVE	8-94396-438-3	01	1	9202-		●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-270-5	01	1	9306-			●
20	DAMPER; CR/SHF	1-12375-116-0	01	1	9202-	●
20	DAMPER; CR/SHF	8-94397-479-2	01	1	9202-		●
20	DAMPER; CR/SHF	1-12375-118-0	01	1	9306-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9202-	●	●	●
23	WASHER; DAMPER ID=10.5	9-09851-950-0	06	1	9202-	●		●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9202-	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9202-		●
27	THROWER; DUST	1-12362-004-0	01	1	9202-	●
28	GEAR; CR/SHF	1-12521-021-1	01	1	9202-	●		●
28	GEAR; CR/SHF (A) Z=41	8-94396-954-2	01	1	9202-		●
28	GEAR; CR/SHF (B) Z=42	8-94396-962-0	01	1	9202-9405		●
28	GEAR; CR/SHF (B) Z=42	8-94394-342-4	01	1	9406-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9202-	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9202-		●
33	RING; WEAR,CR/SHF	1-12315-077-0	02	1	9202-	●		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9202-	●	●	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9202-	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9202-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9202-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9202-	●	●	●
38	WASHER; FLYWHEEL	1-12336-005-0	01	1	9202-	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9202-		●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9202-	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9202-		●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	04	1	9202-	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9202-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9202-		●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9202-9509	●	●	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9510-	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9510-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-424-1	06	1	9202-	●
63	PISTON ALSO INCLUDED IN LINER SET.	8-94396-837-0	06	1	9202-		●
63	PISTON ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL>	1-12111-493-1	06	1	9306-			●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL>	1-12111-459-2	06	1	9505-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-113-0	06	1	9202-	●		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94396-840-0	06	1	9202-		●
78	METAL; CONNROD	1-12271-050-0	06	1	9202-	●		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-008-0	06	1	9202-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	06	1	9202-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-025-0	06	1	9306-			●
84	ROD ASM; CONN	1-12230-096-0	06	1	9202-	●		●
84	ROD ASM; CONN	8-94396-394-2	06	1	9202-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-016-2	06	1	9202-	●		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9202-		●
86	BOLT; CONNROD	1-12235-023-2	12	1	9202-	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9202-		●
88	NUT; CONNROD	1-09840-003-1	12	1	9202-	●		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9202-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-050-0	12	1	9202-	●		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-1	12	1	9202-		●

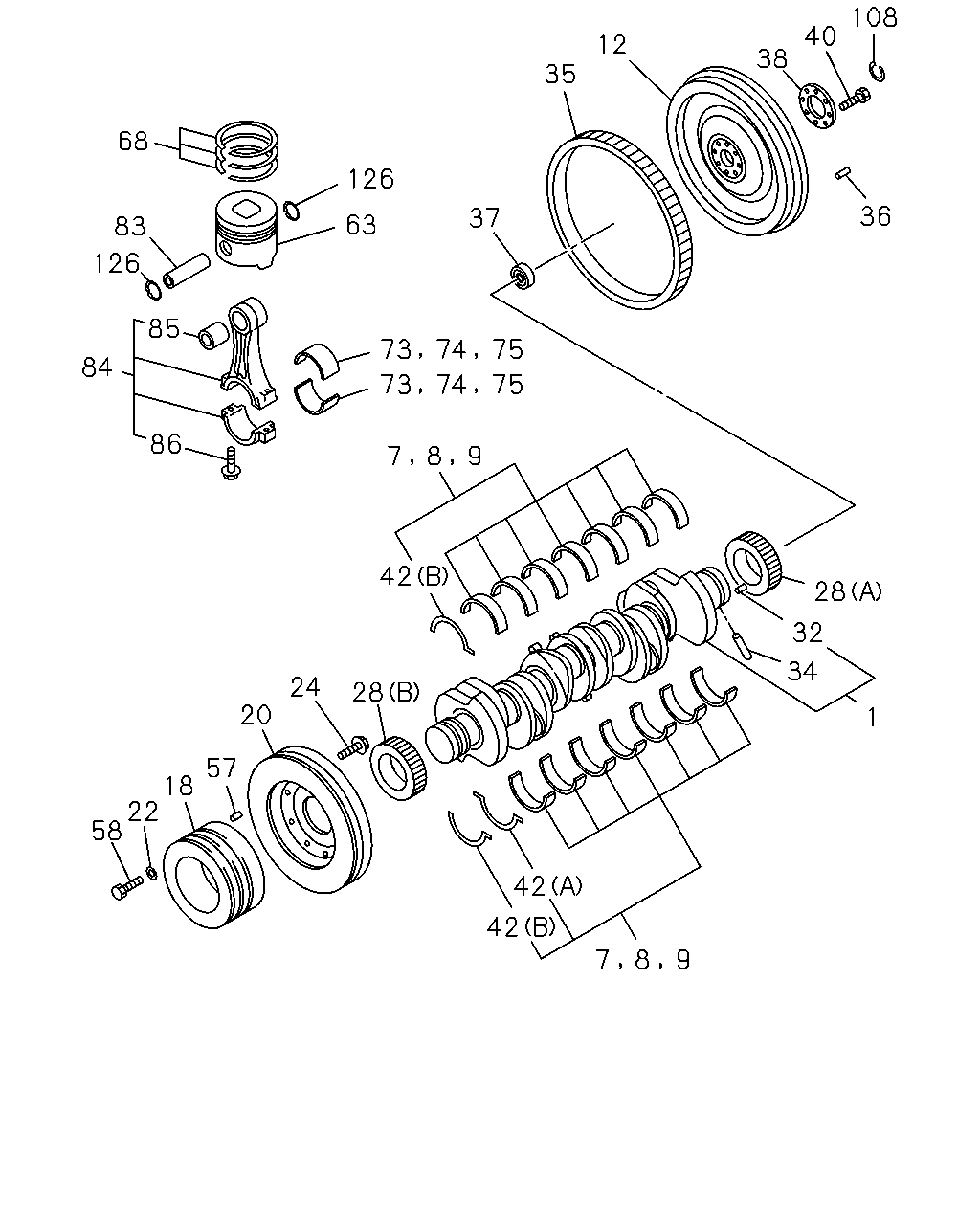

108 40 12 38 35 68 126 36 37 63 83 126 85 73 74 75 84 73 74 75 86 8 7 9 42 28 32 34 24 28 20 1 57 18 22 58 42 42 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-568-0	01	1	9202-	●
1	CRANKSHAFT	8-94396-392-3	01	1	9202-9306		●
1	CRANKSHAFT	8-94395-025-0	01	1	9307-		●
1	CRANKSHAFT	1-12310-569-0	01	1	9306-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9202-	●		●
7	METAL KIT; CRANKSHAFT,STANDARD	8-94393-327-0	01	1	9202-		●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11520-087-0	01	1	9202-	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	8-94396-987-0	01	1	9202-		●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11530-087-0	01	1	9202-	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	8-94396-988-0	01	1	9202-		●
12	FLYWHEEL	1-12331-162-4	01	1	9202-	●		●
12	FLYWHEEL	8-94399-067-1	01	1	9202-		●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-405-0	01	1	9202-	●
18	PULLEY; CR/SHF 3-GROOVE	8-94396-438-3	01	1	9202-		●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-270-5	01	1	9306-			●
20	DAMPER; CR/SHF	1-12375-116-0	01	1	9202-	●
20	DAMPER; CR/SHF	8-94397-479-2	01	1	9202-		●
20	DAMPER; CR/SHF	1-12375-118-0	01	1	9306-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9202-	●	●	●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9202-	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9202-		●
28	GEAR; CR/SHF	1-12521-021-1	01	1	9202-	●		●
28	GEAR; CR/SHF (A) Z=41	8-94396-954-2	01	1	9202-		●
28	GEAR; CR/SHF (B) Z=42	8-94396-962-0	01	1	9202-9405		●
28	GEAR; CR/SHF (B) Z=42	8-94394-342-4	01	1	9406-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9202-	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9202-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9202-	●	●	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9202-	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9202-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9202-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9202-	●	●	●
38	WASHER; FLYWHEEL	1-12336-005-0	01	1	9202-	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9202-		●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9202-	●		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9202-		●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	04	1	9202-	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9202-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9202-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9202-		●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9202-9509	●	●	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9510-	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9510-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-424-1	06	1	9202-	●
63	PISTON ALSO INCLUDED IN LINER SET.	8-94396-837-0	06	1	9202-		●
63	PISTON ALSO INCLUDED IN LINER SET. TAIWAN EMISSION REGULATION<TAL>	1-12111-493-1	06	1	9306-			●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. TAIWAN EMISSION REGULATION<TAL>	1-12111-459-2	06	1	9505-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-113-0	06	1	9202-	●		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94396-840-0	06	1	9202-		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9202-		●
74	METAL SET; CONN ROD,U/S=0.25 0.25	8-94396-981-0	01	1	9202-		●
75	METAL SET; CONN ROD,U/S=0.50 0.50	8-94396-982-0	01	1	9202-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-008-0	06	1	9202-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	06	1	9202-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-025-0	06	1	9306-			●
84	ROD ASM; CONN	1-12230-096-0	06	1	9202-	●		●
84	ROD ASM; CONN	8-94396-394-2	06	1	9202-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-016-2	06	1	9202-	●		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9202-		●
86	BOLT; CONNROD	1-12235-023-2	12	1	9202-	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9202-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9202-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-050-0	12	1	9202-	●		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-1	12	1	9202-		●
