◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#118199) — 87 parça
çizim 343313
159 159 159 15 150 98 178 98 51 149 28 31 30 29 35 32 35 122
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1302- ● ●
28 NIPPLE; AIR PIPE 1-09654-128-1 02 1 1302- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 1302- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 1302- ● ●
31 BRACKET; NIPPLE 8-98094-074-0 01 1 1302- ● ●
31 BRACKET; NIPPLE 8-98094-075-0 01 1 1302- ● ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 1302- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1302- ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1302- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1302- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1302- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1302- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1302- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 1302- ● ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 1302- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 1302- ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1302- ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> (C) L=350 		1-09707-183-0 23 1 1302- ●
159 CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 23 1 1302- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) L=350 		1-09707-183-0 25 1 1302- ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 25 1 1302- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 1302- ● ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 1302- ● ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 		5-09700-293-1 01 1 1302- ● ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1302- ● ●
178 UNION 1-09661-128-0 02 1 1302- ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-09661-128-0 02 1 1302- ●

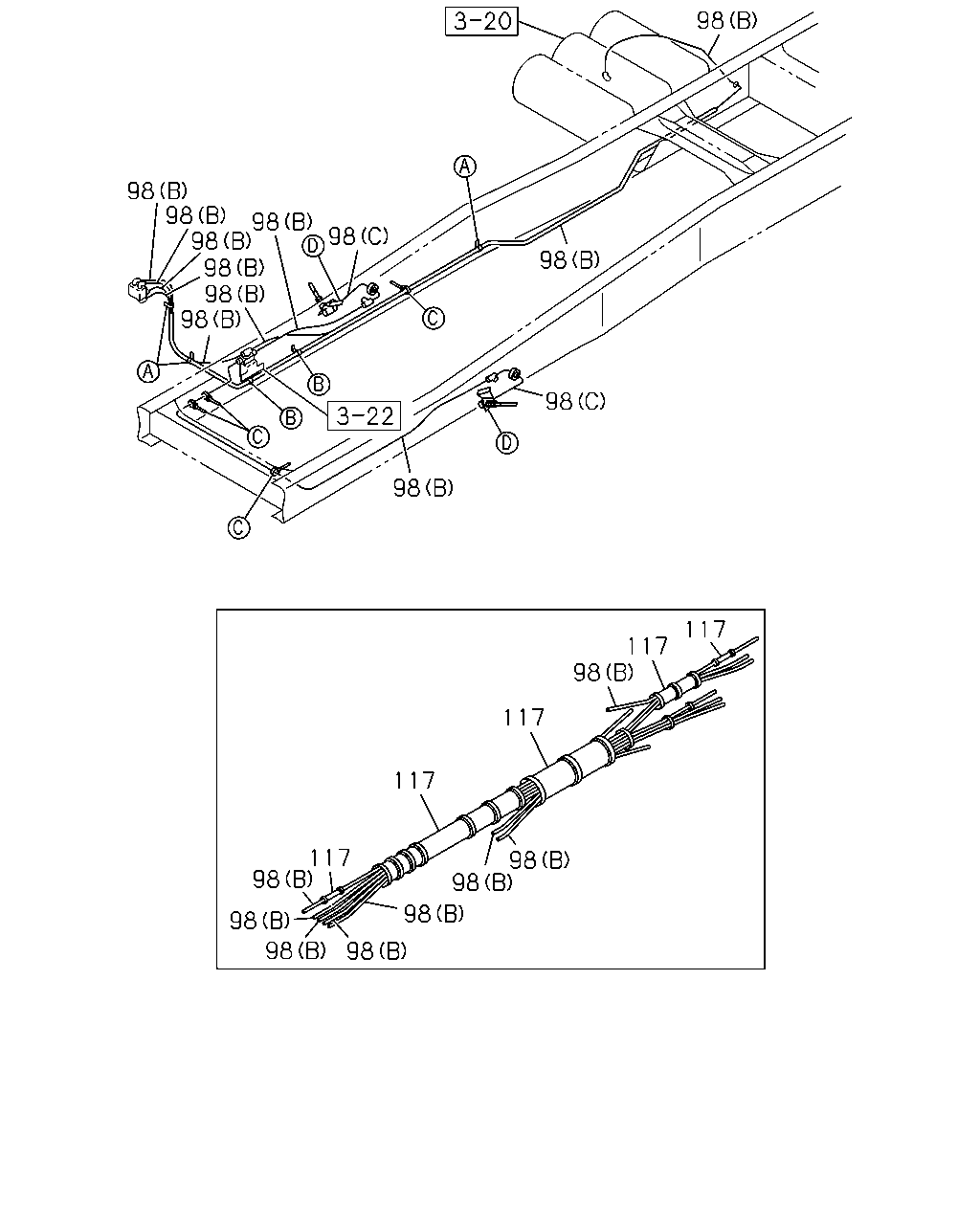

çizim 343320
98 98 98 98 98 98 98 98 98 98 98 98 117 117 98 117 117 98 117 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1302- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1302- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1302- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1302- ● ●

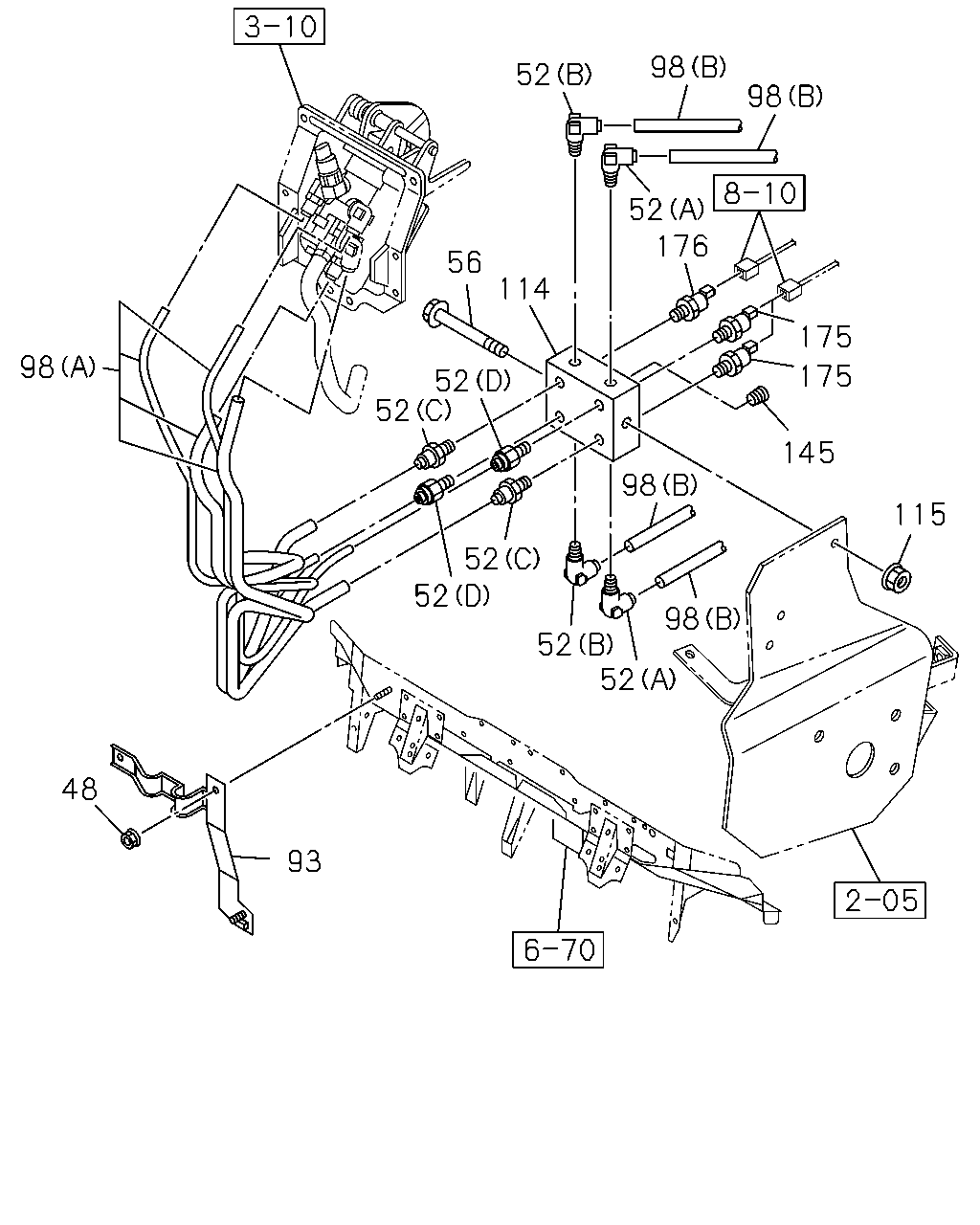

çizim 343328
52 98 98 52 176 175 175 145 115 98 98 114 56 52 52 52 52 52 52 93 48 98
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1302- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1302- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1302- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1302- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1302- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1302- ● ●
93 BRACKET; UNION,TUBE
THA 		8-98186-924-0 01 1 1302- ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1302- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1302- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1302- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1302- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1302- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1302- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1302- ● ●
115 NUT; TUBE UNION
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1302- ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1302- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1302- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1302- ● ●
