3-70 — BRAKE PIPING; AIR,AIR MASTER (#118198) — 94 parça

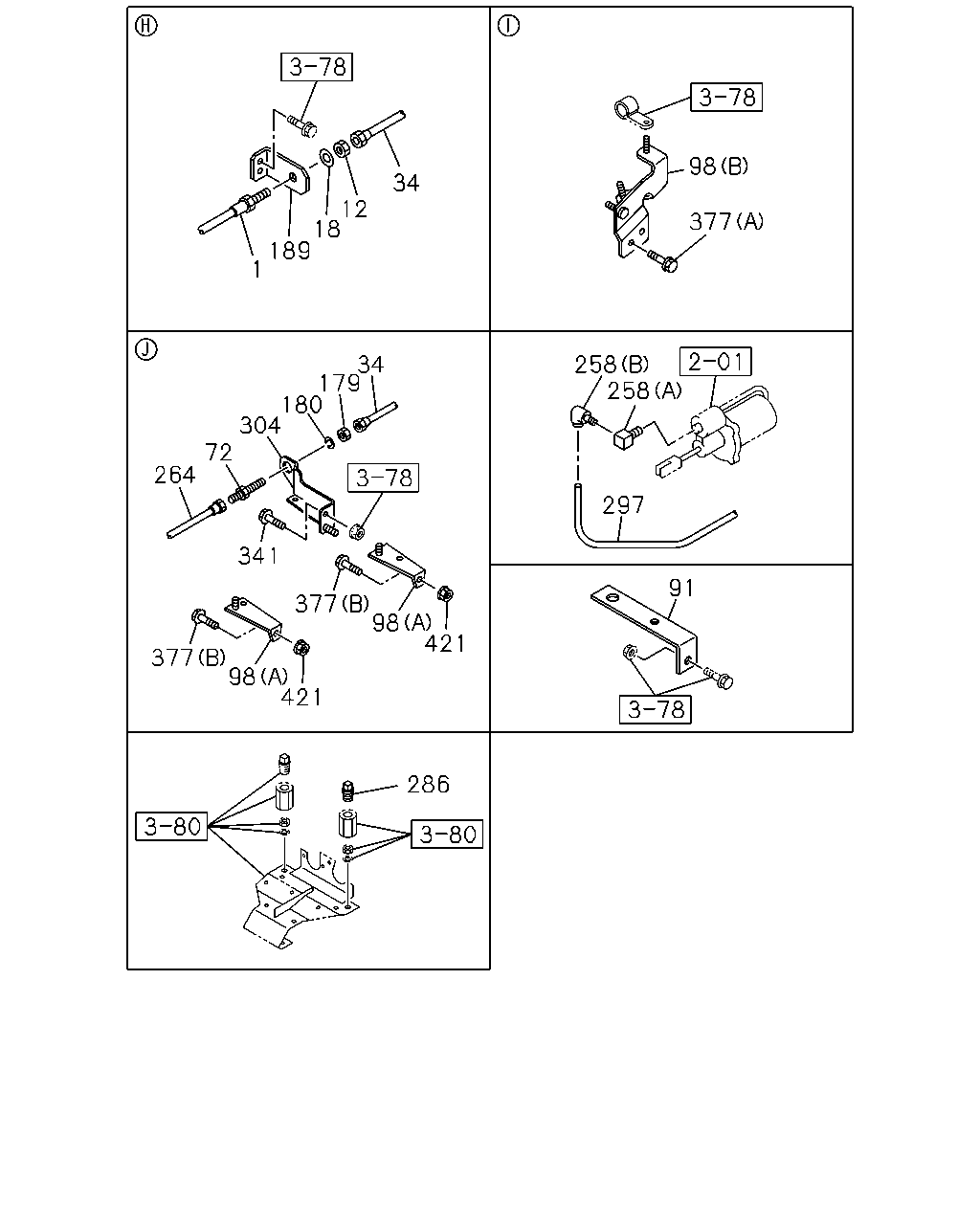

çizim 343274
34 12 18 189 1 98 377 258 297 91 34 179 180 304 72 64 341 377 98 421 377 98 421 286 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1304- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1> 		1-09363-940-0 01 1 1304- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1304- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1304- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1304- ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1304- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1304- ● ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W) L=60 H=30 		1-47477-716-1 01 1 1304- ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1304- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1304- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1304- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1304- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1304- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 6600MM(66W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) (A) PT3/8 & PT3/8 		1-09661-303-0 01 1 1304- ●
286 PLUG; AIR PIPE
PT3/8 		9-09204-517-0 01 1 1304-1306 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1304- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1304- ● ●
341 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
341 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
377 BOLT; BRKT FIX
ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 4500MM(45W) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
çizim 343297
90 435 436 444 444 296 80 296 84 80 258 296 367 367 306 258 229 296 434 444 80 297 258 297 273
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
ZF9S1310 M/T(Y5K) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1304- ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1304- ●
80 UNION; 3 WAY
WHEEL BASE 6600MM(66W) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1304- ●
84 UNION; NYLON TUBE
WHEEL BASE 6600MM(66W) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1304- ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1304- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T(Y5K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1304- ●
229 ADAPTER; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 6600MM(66W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) (A) PT3/8 & PT3/8 		1-09661-303-0 01 1 1304- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1304- ● ●
296 TUBE; NYLON
WHEEL BASE 4500MM(45W) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1310- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1310- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1304- ● ●
306 PLUG; NYLON TUBE
WHEEL BASE 6600MM(66W) OD=12 		1-09661-617-0 01 1 1304- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1304- ● ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1304- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
444 BOLT; UNION
WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
444 BOLT; UNION
WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
444 BOLT; UNION
ZF9S1310 M/T(Y5K) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●

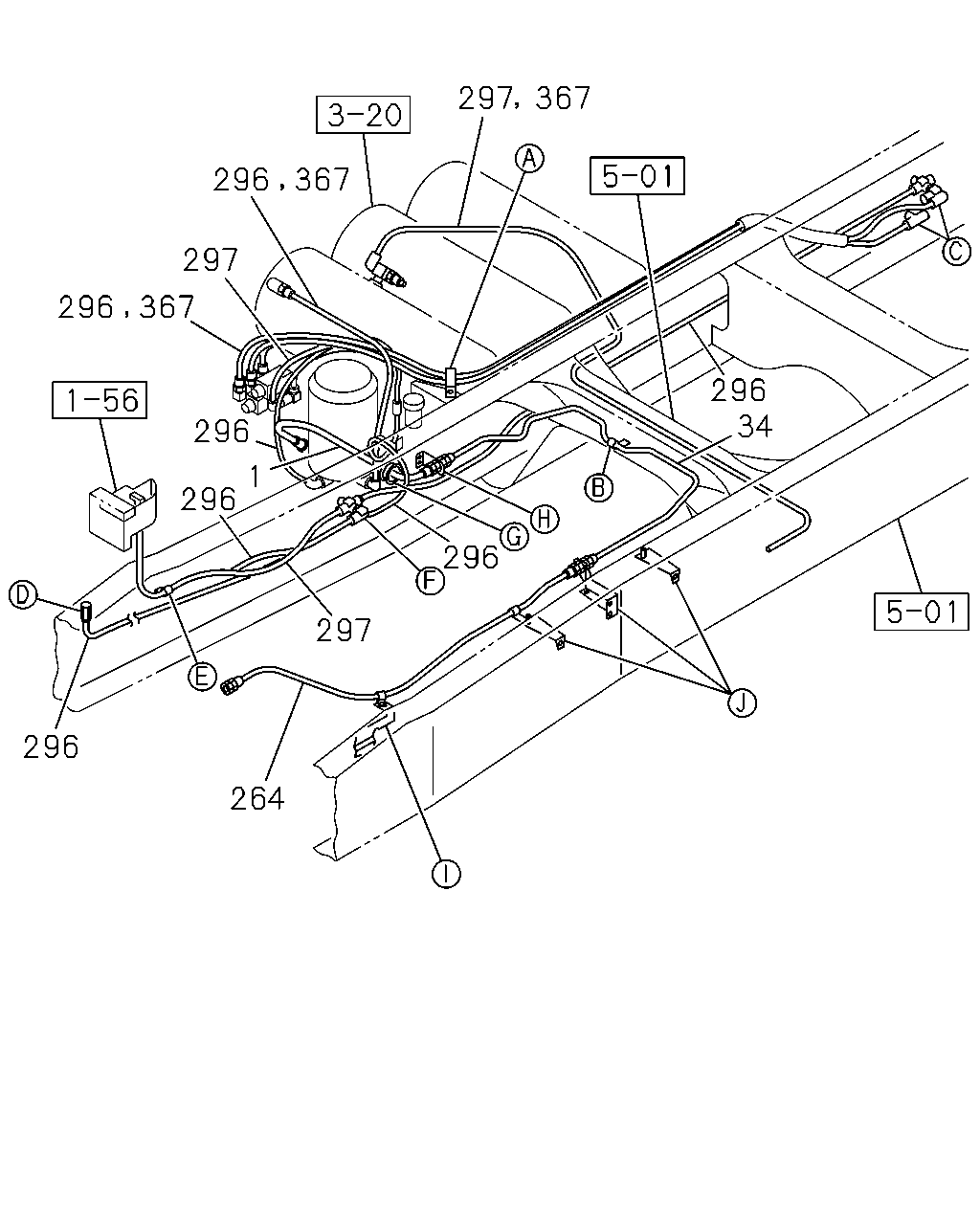

çizim 343304
296 297 367 367 297 296 367 296 1 296 296 297 264 296 296 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1304- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1> 		1-09363-940-0 01 1 1304- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1304- ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1304- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1304- ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K) L=1150 		1-09363-791-0 01 1 1304- ●
296 TUBE; NYLON
WHEEL BASE 4500MM(45W) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1310- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1310- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1304- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1304- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1304- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1304- ● ●
