Isuzu WW
▶
PICKUP
▶
TFR
▶
51477 - TFR/TFS(EUROPE)-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

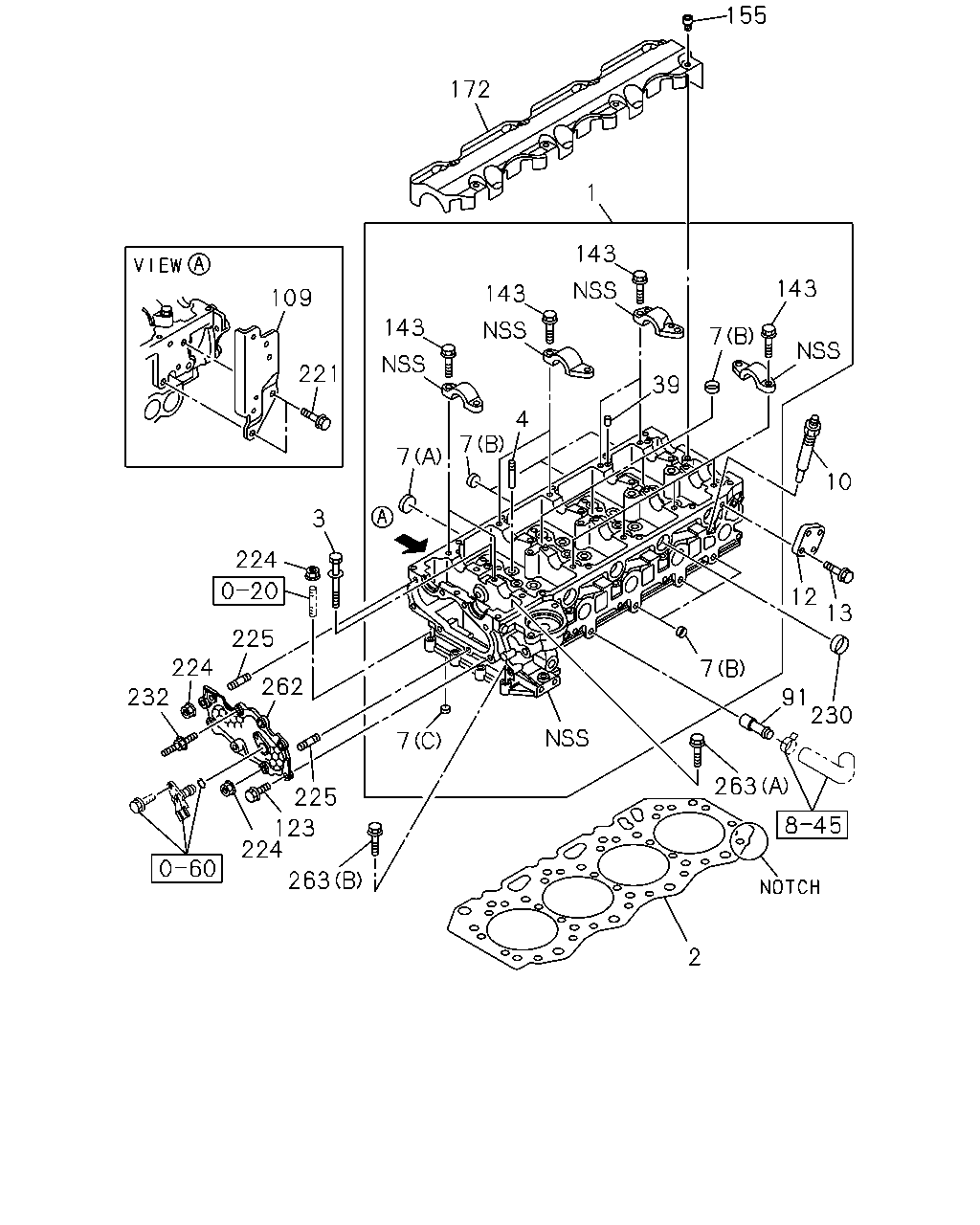

0-11 — CYLINDER HEAD
(#118182) — 31 parça
1
172
155
143
109
221
143
143
143
7
39
4
7
7
3
224
225
224
232
262
225
123
224
263
7
263
7
91
230
2
12
10
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.269 HEAD ASM; CYL
8-98217-458-0
01
1
1304-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH
8-97328-866-2
01
1
1304-1307
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH
8-98241-037-0
01
1
1308-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH
8-97328-867-2
01
1
1304-1307
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH
8-98241-038-0
01
1
1308-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH
8-97328-868-2
01
1
1304-1307
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH
8-98241-039-0
01
1
1308-
2
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OVER SIZE
8-97388-314-0
01
1
1304-
3
00.293 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER
8-98201-019-0
18
1
1304-
4
00.283 GUIDE; VLV
L=42
8-94239-423-0
16
1
1304-
7
00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32
1-09600-012-2
02
1
1304-
7
00.253 CUP; SEALING,CYL HEAD
(B) OD=18
5-11219-008-0
13
1
1304-
7
00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14
5-11219-011-0
07
1
1304-
10
02.270 PLUG; GLOW
BOSCH
8-98177-224-0
04
1
1304-
12
00.004 HANGER; ENG,RR
8-98131-998-0
01
1
1304-
13
00.004 BOLT; HANGER
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1304-
39
00.413 DOWEL; CAP,CM/SHF
8-97329-129-1
20
1
1304-
91
08.846 PIPE; HTR
01.251
8-94343-211-1
01
1
1304-
109
00.004 BRACKET; ENG HANGER
8-98151-184-3
01
1
1304-
123
00.206 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
05
1
1304-
143
02.251 BOLT; FIX
00.685 M8X40 FLANGE
0-28650-840-0
20
1
1304-
155
00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET
0-58330-610-0
08
1
1304-
172
00.207 PLATE; BAFFLE,CYL HD
8-98105-920-0
01
1
1304-
221
00.413 BOLT; BRKT
03.417 M10X20 FLANGE
0-28151-020-0
02
1
1304-
224
00.349 NUT; COVER
01.540 M8 FLANGE
0-91180-208-0
04
1
1304-
225
00.349 STUD; COVER
M8X20 L=31
8-97945-022-0
02
1
1304-
230
03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97943-955-0
04
1
1304-
232
00.413 STUD; CAM,CARRIER
M6X12 M8X17 L=37
8-97375-460-0
01
1
1304-
262
00.206 COVER; CYL HEAD
8-98131-992-1
01
1
1304-
263
00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE
0-28050-860-0
01
1
1304-
263
00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE
0-28650-835-0
03
1
1304-
