Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#118150) — 33 parça
◀

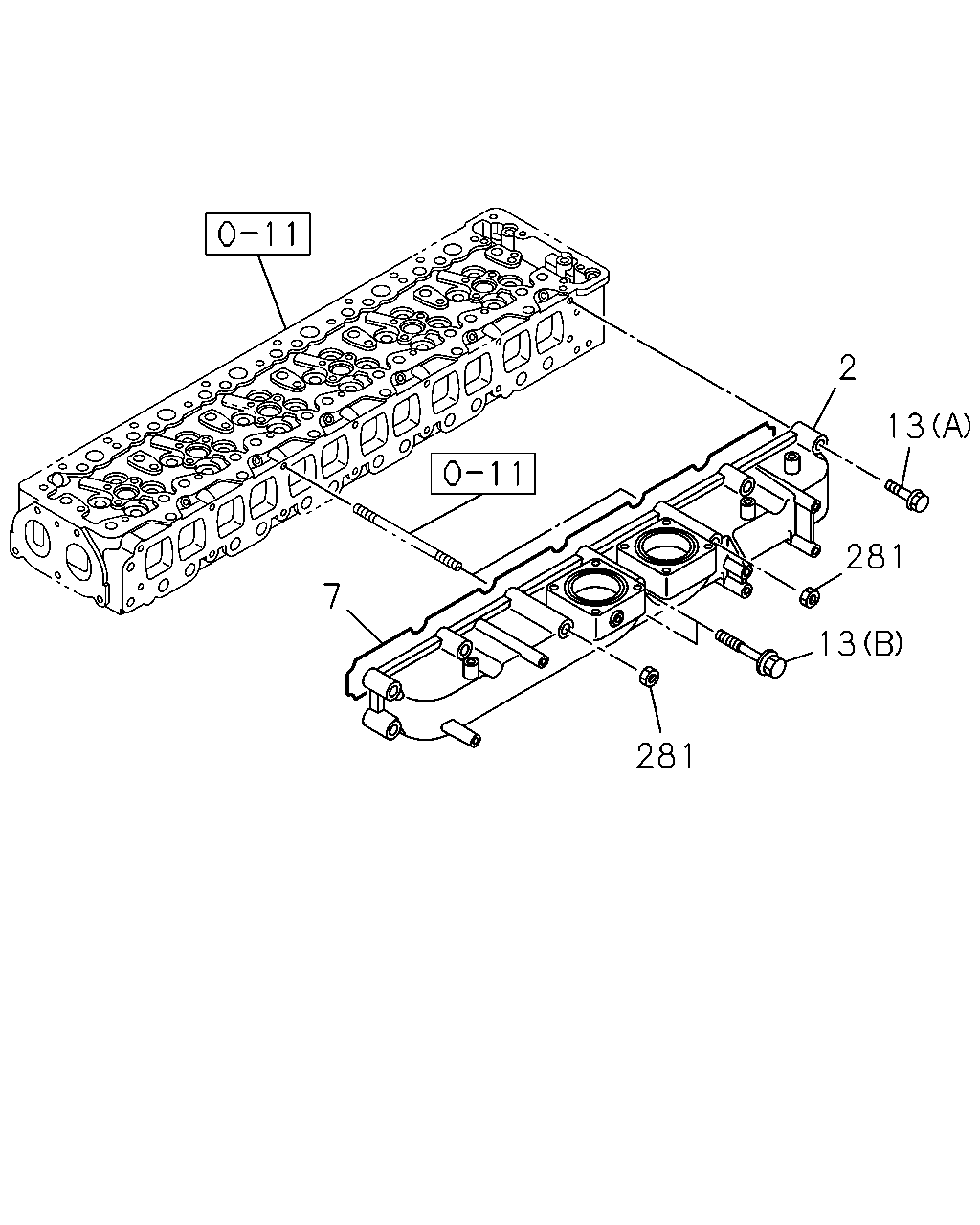

[025A] INLET COVER (5 parça)

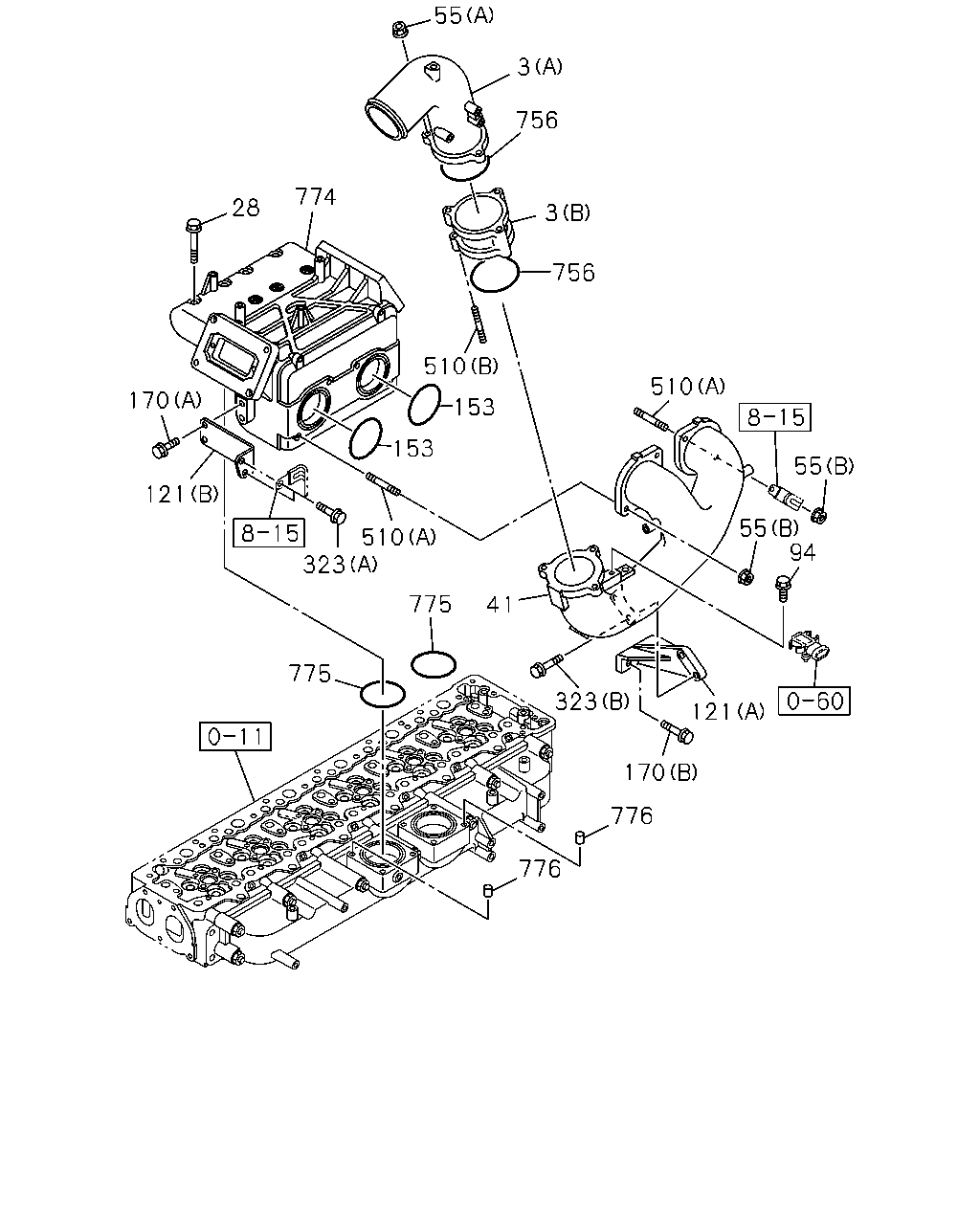

[025A] INLET DUCT (20 parça)

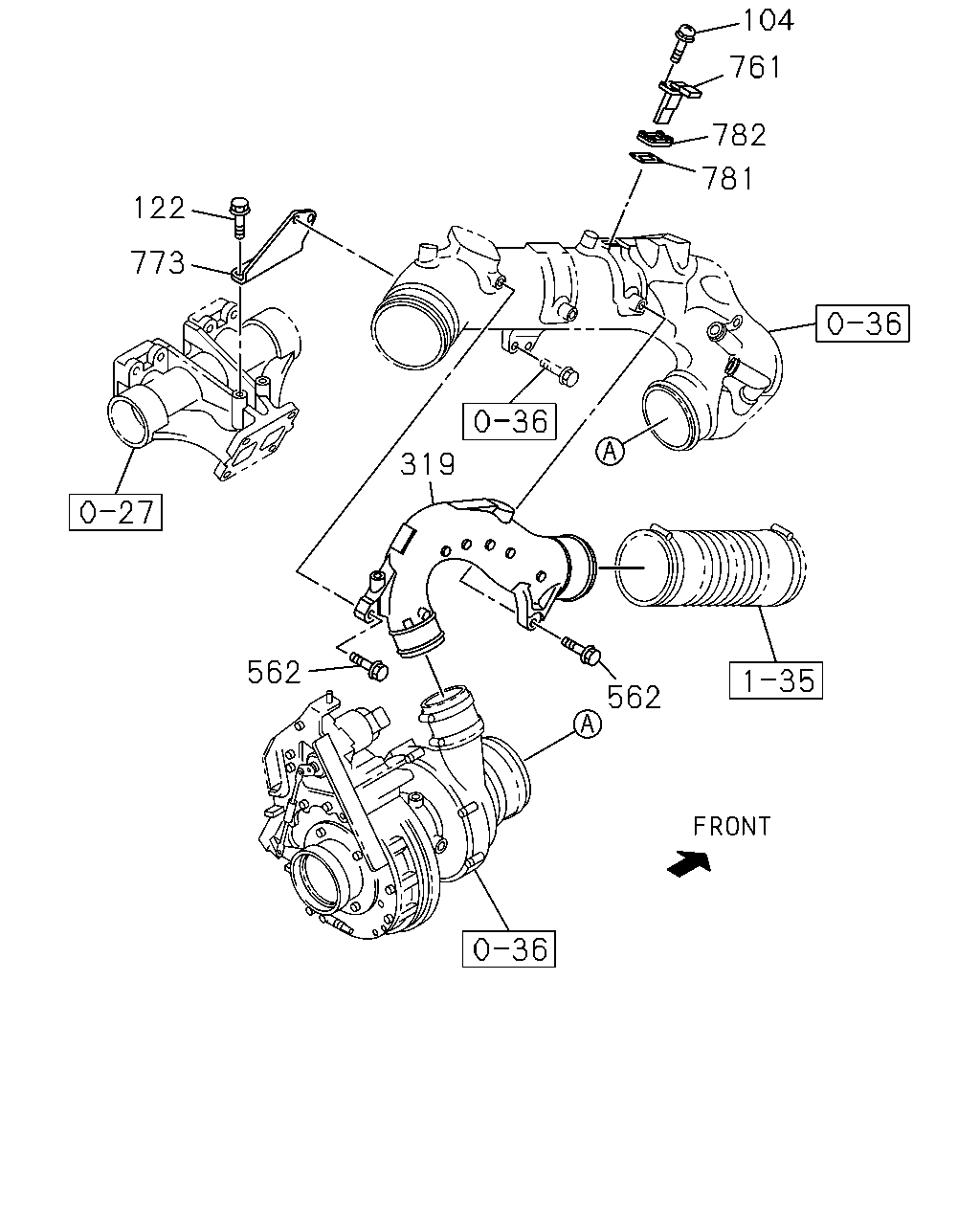

[025A] TURBOCHARGER SIDE (8 parça)
▶
2
13
281
13
281
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-97605-496-0
01
1
1304-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97603-676-0
01
1
1304-
13
BOLT; INL MANIF
(A) M10X110 FLANGE
0-28156-011-0
02
1
1304-
13
BOLT; INL MANIF
(B) M10X55 FLANGE
8-97365-449-0
10
1
1304-
281
NUT; INL COVER
M10 FLANGE
0-91180-110-0
02
1
1304-
55
3
756
3
756
510
55
55
94
121
170
776
776
323
41
775
510
323
775
153
153
510
774
28
170
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
DUCT; INT
(A)
8-97603-791-0
01
1
1304-
3
DUCT; INT
(B)
8-97606-246-0
01
1
1304-
28
BOLT; CHAMBER
M10X90 FLANGE
0-28151-090-0
08
1
1304-
41
DUCT; INT COVER
8-97611-164-4
01
1
1304-
55
NUT; INL PIPE
(A) M8 FLANGE
0-91180-108-0
03
1
1304-
55
NUT; INL PIPE
(B) M10 FLANGE
0-91180-110-0
04
1
1304-
94
BOLT
M4X10 W/PL WASHER
8-97316-615-0
02
1
1304-
121
BRACKET
(A)
8-97603-875-0
01
1
1304-
121
BRACKET
(B)
8-97604-862-0
01
1
1304-
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=94.6
1-09623-593-0
02
1
1304-
170
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1304-
170
BOLT; BRKT
(B) M10X30 FLANGE
0-28151-030-0
02
1
1304-
323
BOLT; DUCT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1304-
323
BOLT; DUCT
(B) M10X60 FLANGE
0-28151-060-0
02
1
1304-
510
STUD; INL DUCT
(A) M10X25 L=40
0-44011-025-0
04
1
1304-
510
STUD; INL DUCT
(B) M8X85 L=100
9-09830-177-0
03
1
1304-
756
GASKET; INTAKE,THROTTLE
ID=94.6
1-09623-593-0
02
1
1304-
774
CHAMBER; MIXING,EGR
8-97603-673-2
01
1
1304-
775
GASKET; MIXING CHAMBER
ID=84.6
1-09623-431-0
02
1
1304-
776
DOWEL; MIXING CHAMBER
OD=14 L=10
9-11319-065-3
02
1
1304-
104
761
782
781
122
773
319
562
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
SCREW
M4X20 W/LK&PL WASHER
9-03920-420-0
04
1
1304-
122
BOLT; BRKT
M10X20 FLANGE
0-28761-020-0
02
1
1304-
319
DUCT; INL,TURBOCHARGER
8-98121-709-0
01
1
1304-
562
BOLT; INL DUCT
M10X35 FLANGE
0-28751-035-0
02
1
1304-
761
SENSOR; MANIF
8-97601-967-0
01
1
1304-
773
BRACKET; INL DUCT
8-97616-849-0
01
1
1304-
781
GASKET; SENSOR
8-98212-728-0
01
1
1304-
782
ADAPTER; SENSOR
8-98169-371-0
01
1
1304-
