3-77 — BRAKE PIPING; AIR,REAR
(#118138) — 138 parça
◀

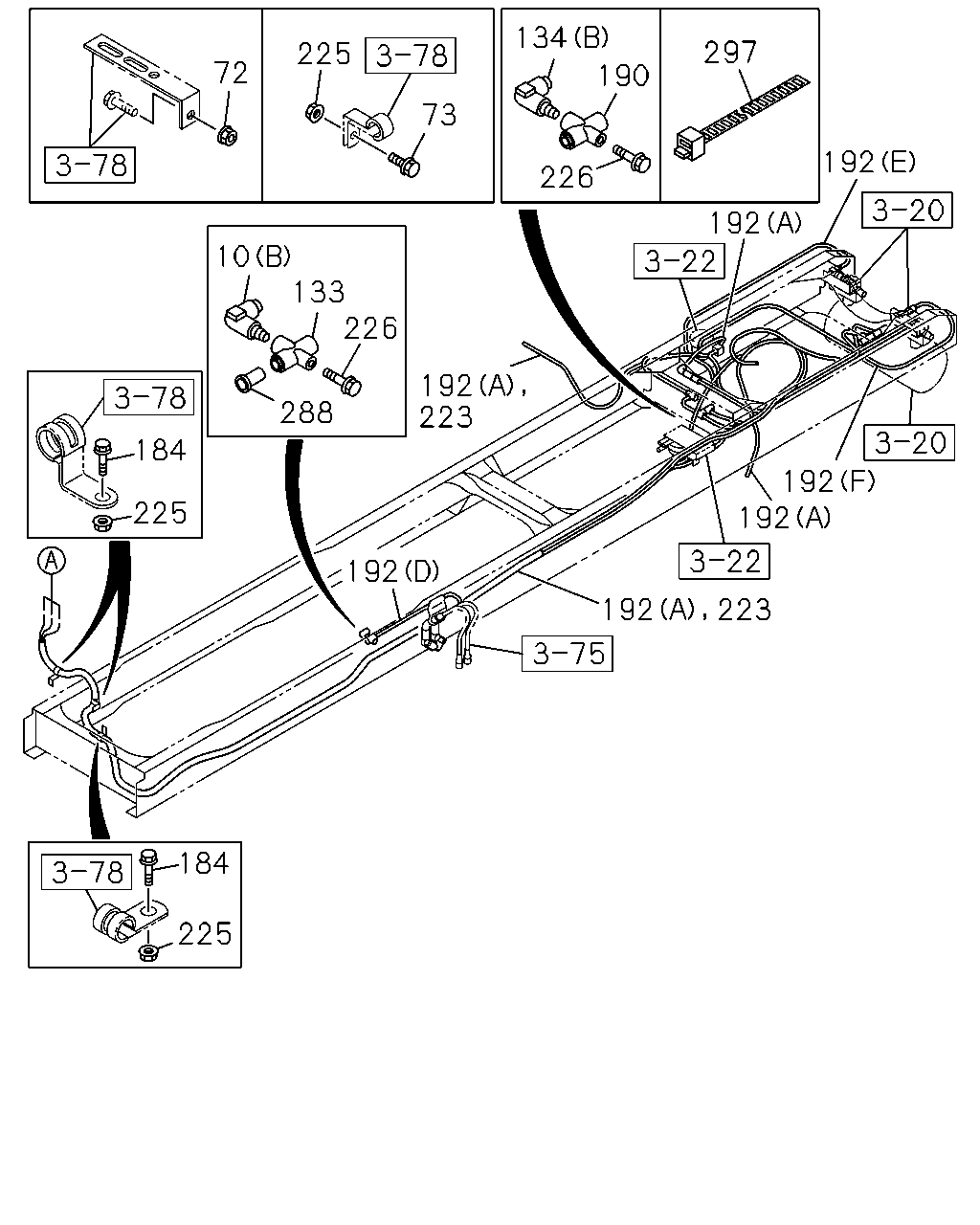

[377A] FRAME SIDE NO.1 (39 parça)

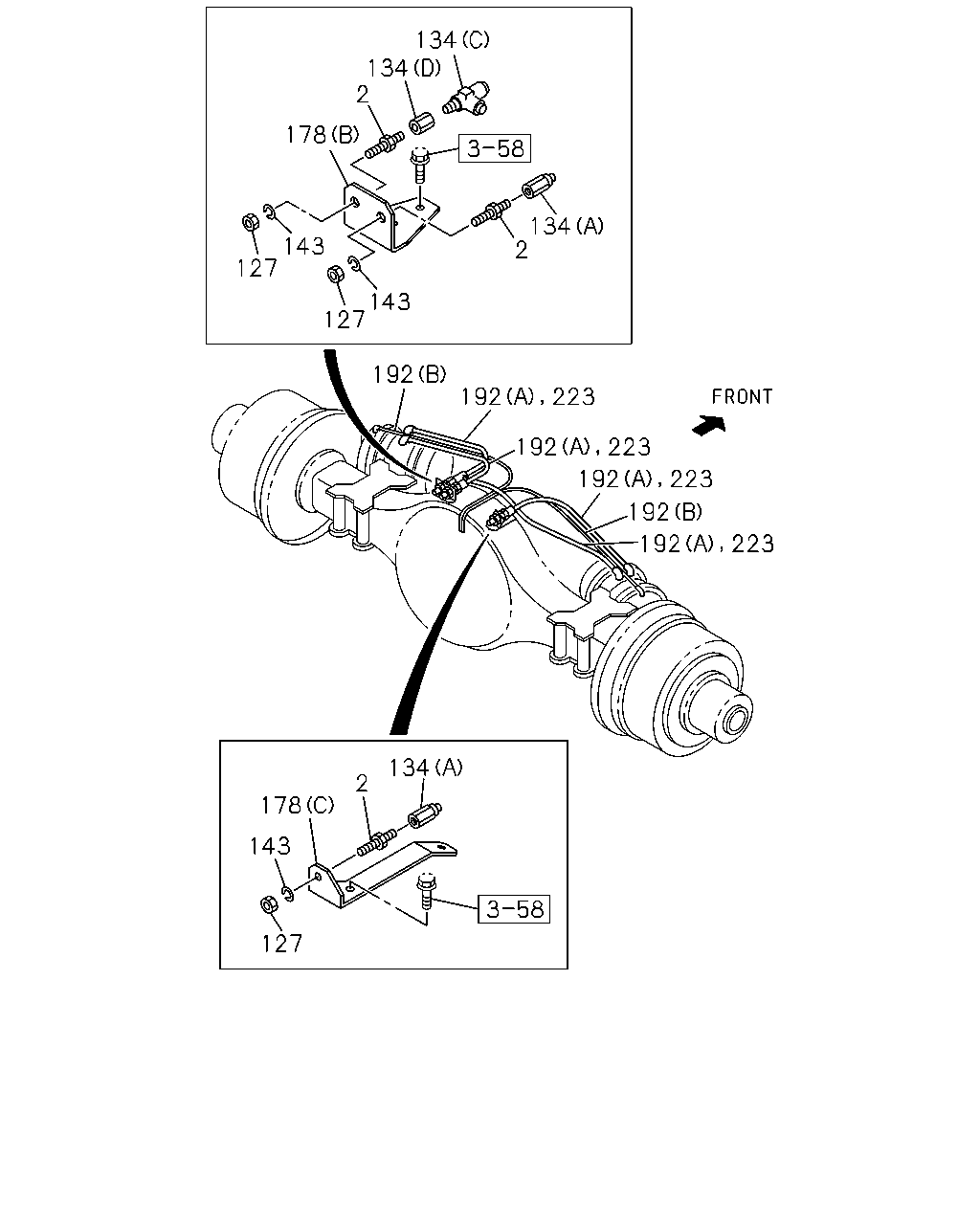

[377A] REAR AXLE SIDE (29 parça)

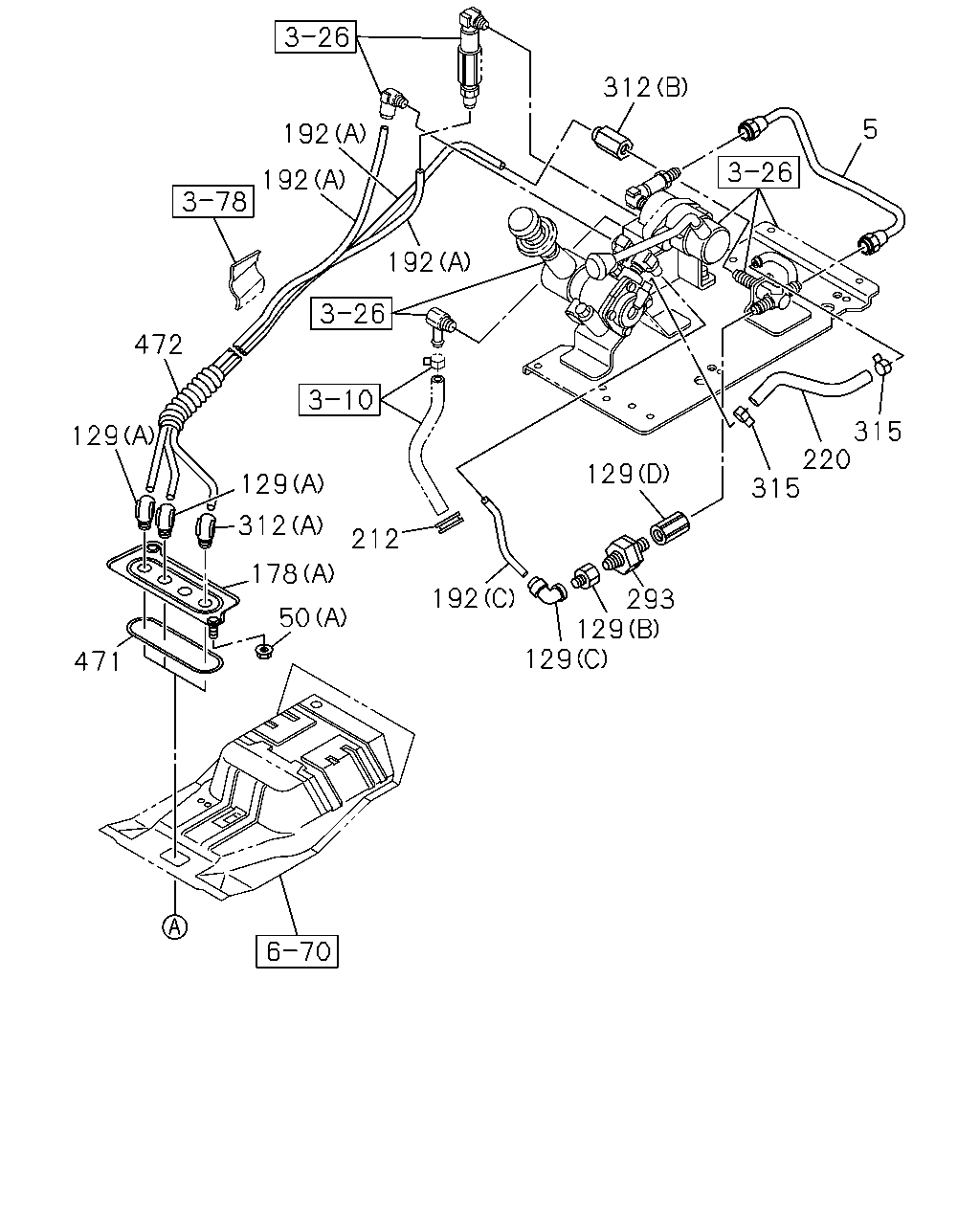

[377A] CAB SIDE (32 parça)
[377A] FRAME SIDE NO.2 (38 parça)
▶
72
225
134
226
297
190
73
10
226
288
133
192
192
192
223
192
192
192
192
225
184
223
184
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
02
1
1304-
10
CONNECTOR; FLEX HOSE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1304-
73
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE
0-28650-825-0
02
1
1304-
133
UNION; NIPPLE
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
1304-
134
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1304-
134
CONNECTOR
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-
134
CONNECTOR
(C) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
1304-
184
BOLT; TUBE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1304-
184
BOLT; TUBE CLIP
M8X35 FLANGE
0-28650-835-0
02
1
1304-
190
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98114-349-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98114-354-0
01
1
1304-
192
TUBE; NYLON
(D)
8-98115-506-0
01
1
1304-1307
192
TUBE; NYLON
(D)
8-98248-753-0
01
1
1308-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98237-075-0
01
1
1304-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98237-076-0
01
1
1304-
192
TUBE; NYLON
(B) L=930 OD=8
1-49218-617-1
02
1
1304-
192
TUBE; NYLON
(C)
8-98017-537-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1304-
225
NUT; TUBE CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
1304-
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
03
1
1304-
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
02
1
1304-1309
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1310-
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1310-
226
BOLT; UNION
M10X25 FLANGE
0-28651-025-0
02
1
1304-
288
PLUG
OD=12
1-09661-617-0
01
1
1304-
297
CLIP; BAND
L=350
1-09707-183-0
01
1
1304-
127
143
178
2
134
134
127
143
2
134
192
192
223
192
223
192
223
192
192
223
127
143
178
2
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 L=74
0-92123-310-0
03
1
1304-
127
NUT; UNION
M16
0-91111-516-0
03
1
1304-
134
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1304-
134
CONNECTOR
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-
134
CONNECTOR
(C) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
1304-
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
03
1
1304-
178
BRACKET; UNION
(A)
8-98017-056-1
01
1
1304-
178
BRACKET; UNION
(C)
8-98031-033-1
01
1
1304-
178
BRACKET; UNION
(B)
8-98031-034-1
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98114-349-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98114-354-0
01
1
1304-
192
TUBE; NYLON
(D)
8-98115-506-0
01
1
1304-1307
192
TUBE; NYLON
(D)
8-98248-753-0
01
1
1308-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98237-075-0
01
1
1304-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98237-076-0
01
1
1304-
192
TUBE; NYLON
(B) L=930 OD=8
1-49218-617-1
02
1
1304-
192
TUBE; NYLON
(C)
8-98017-537-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1304-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1304-
192
192
472
129
471
192
129
312
178
50
212
192
312
5
315
220
315
129
293
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
PIPE; AIR,UNION TO PARKING VLV
8-97610-775-1
01
1
1304-
50
NUT; UNION BRKT
(B) M12
0-91110-512-0
02
1
1304-
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1304-
129
CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-
129
CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW
8-97611-963-1
02
1
1304-
129
CONNECTOR; NYLON TUBE
(C)
8-97633-756-0
01
1
1304-
129
CONNECTOR; NYLON TUBE
(B)
8-97633-768-0
01
1
1304-
178
BRACKET; UNION
(A)
8-98017-056-1
01
1
1304-
178
BRACKET; UNION
(C)
8-98031-033-1
01
1
1304-
178
BRACKET; UNION
(B)
8-98031-034-1
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98114-349-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98114-354-0
01
1
1304-
192
TUBE; NYLON
(D)
8-98115-506-0
01
1
1304-1307
192
TUBE; NYLON
(D)
8-98248-753-0
01
1
1308-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98237-075-0
01
1
1304-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98237-076-0
01
1
1304-
192
TUBE; NYLON
(B) L=930 OD=8
1-49218-617-1
02
1
1304-
192
TUBE; NYLON
(C)
8-98017-537-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
212
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
1304-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000
9-09914-701-0
01
1
1304-
293
VALVE; CHECK
1-48410-479-1
01
1
1304-
312
CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
1304-
312
CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW
8-97611-963-1
01
1
1304-
315
CLIP
ID=14
8-94238-572-0
02
1
1304-
471
SEAL; BRKT
1-79738-832-0
01
1
1304-
472
TUBE; SPUTTER
8-98108-051-0
02
1
1304-

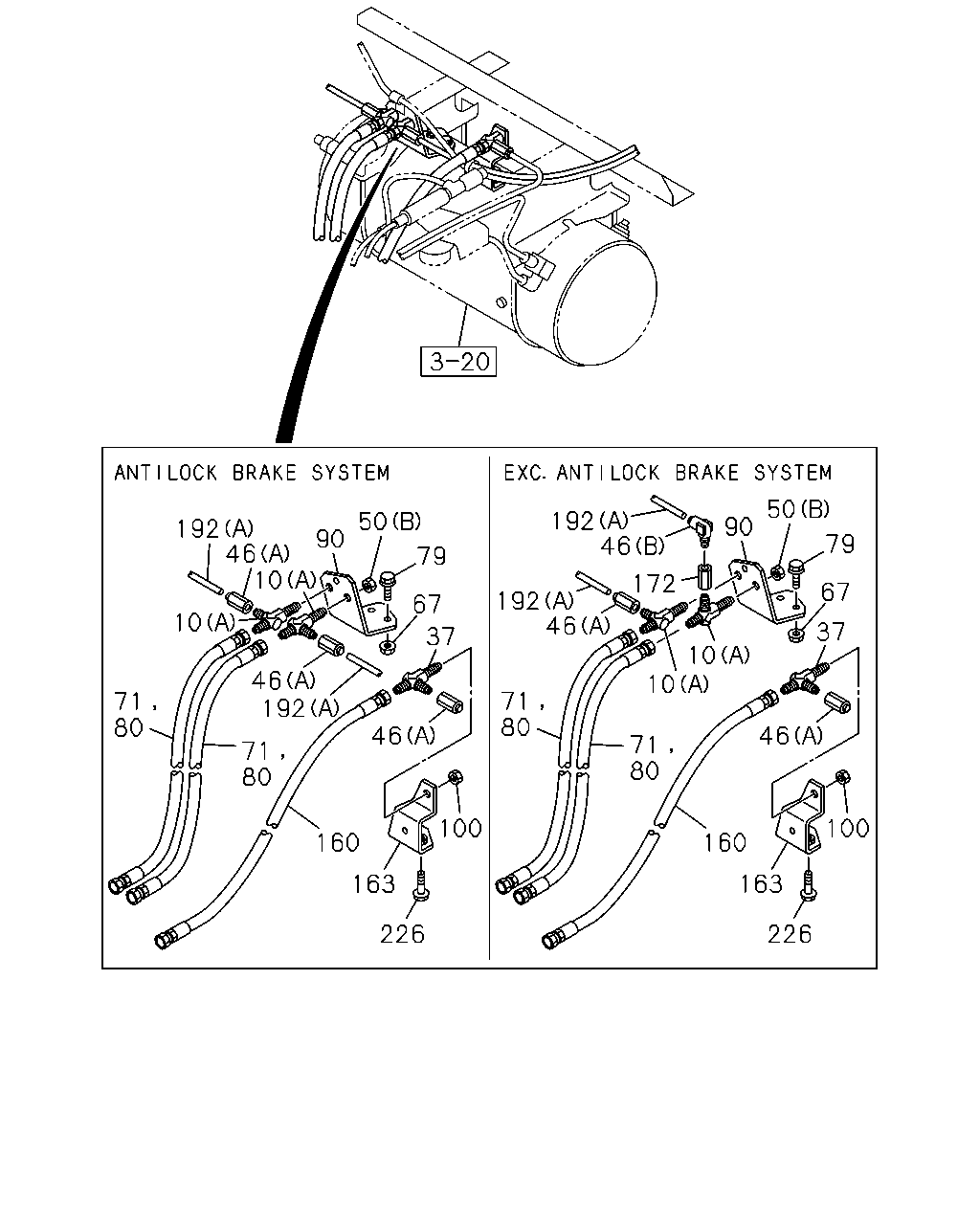

226
100
160
163
80
80
71
71
10
192
46
10
46
192
46
37
67
50
90
79
226
163
160
100
46
80
71
80
71
192
46
10
192
46
172
10
37
79
67
90
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
02
1
1304-
10
CONNECTOR; FLEX HOSE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
37
UNION; AIR PIPE
M16 2WAY
1-09650-182-1
01
1
1304-
46
NIPPLE; AIR PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1304-
46
NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1304-
46
NIPPLE; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1304-
46
NIPPLE; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
50
NUT; UNION BRKT
(B) M12
0-91110-512-0
02
1
1304-
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1304-
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
1304-
71
HOSE; FLEX,RWD RR
L=600
1-09363-746-0
01
1
1304-1306
71
HOSE; FLEX,RWD RR
L=580
1-09363-772-0
01
1
1304-1306
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1304-
80
HOSE; FLEX,POWER CHAMBER
L=600
1-09363-746-0
01
1
1307-
80
HOSE; FLEX,POWER CHAMBER
L=580
1-09363-772-0
01
1
1307-
90
BRACKET; PIPE UNION
8-98114-702-0
01
1
1304-
100
NUT; UNION
M12
0-91110-512-0
01
1
1304-
160
HOSE; FLEX,SPR CHAMBER
L=660
1-09363-814-0
01
1
1304-
163
BRACKET; FLEX HOSE
8-98114-771-0
01
1
1304-
172
ADAPTER; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98114-349-0
01
1
1304-
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98114-354-0
01
1
1304-
192
TUBE; NYLON
(D)
8-98115-506-0
01
1
1304-1307
192
TUBE; NYLON
(D)
8-98248-753-0
01
1
1308-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)
8-98237-075-0
01
1
1304-
192
TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)
8-98237-076-0
01
1
1304-
192
TUBE; NYLON
(B) L=930 OD=8
1-49218-617-1
02
1
1304-
192
TUBE; NYLON
(C)
8-98017-537-0
01
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
02
1
1304-1309
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1310-
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1310-
226
BOLT; UNION
M10X25 FLANGE
0-28651-025-0
02
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
