Isuzu WW
▶
PICKUP
▶
TFR
▶
51473 - TFR/TFS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶

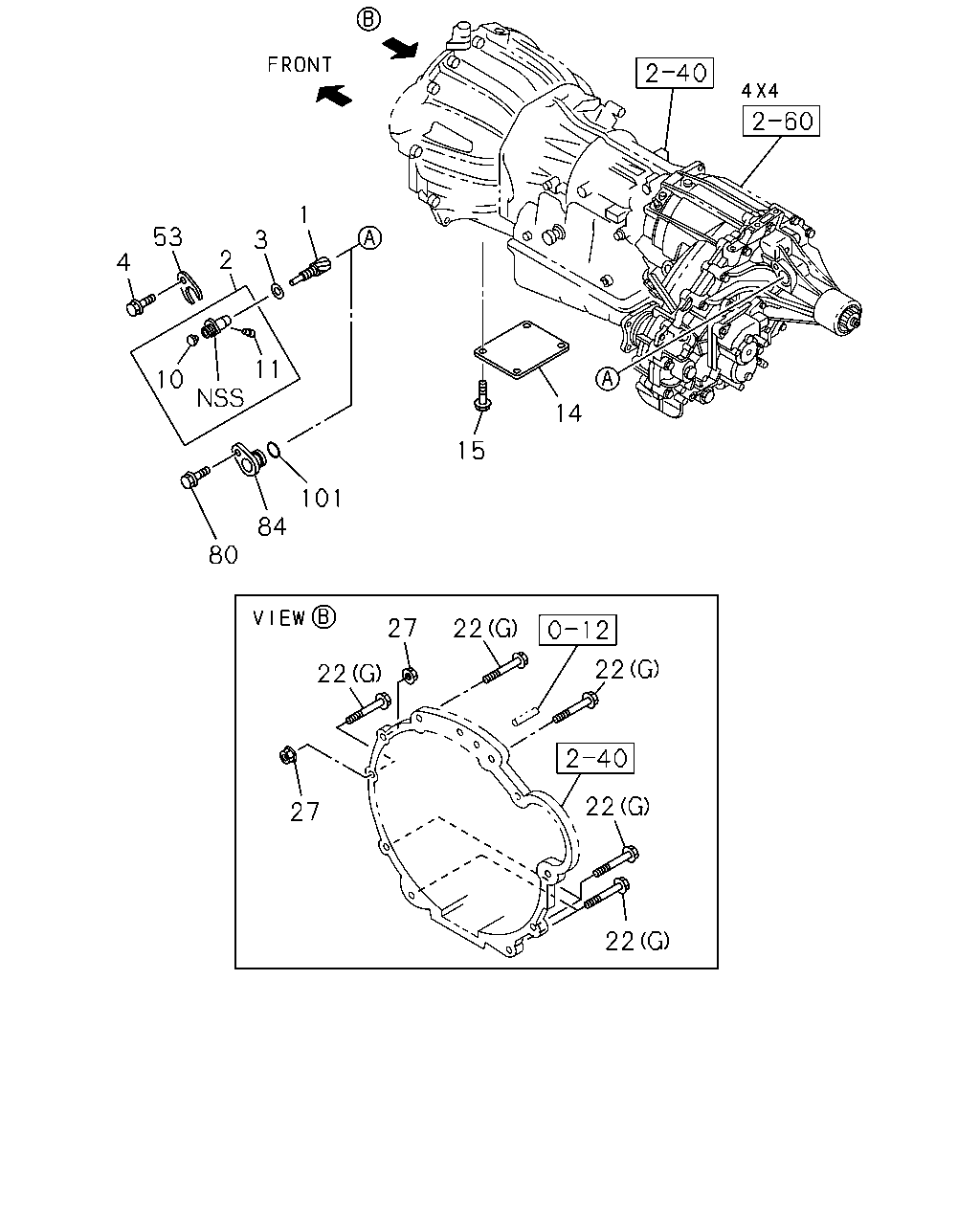

2-25B - SPEEDOMETER DRIVEN GEAR
▶
2-25B — SPEEDOMETER DRIVEN GEAR
(#118132) — 18 parça
1
3
2
53
4
10
11
101
84
80
22
27
15
14
22
22
27
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.337 GEAR; DRIVEN,SPD
4X4 EXTENDED CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17
8-97238-583-0
01
1
1304-
2
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4 EXTENDED CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97305-454-1
01
1
1304-
3
04.338 GASKET; BUSHING
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7
9-09921-100-0
01
1
1304-
4
04.338 BOLT; RET,DRIVEN GEAR
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE
0-28050-820-0
01
1
1304-
10
04.338 SEAL; OIL,DRIVE GEAR
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK
8-97131-328-1
01
1
1304-
11
04.338 FILTER; BUSHING,SPEEDOMETER DRIV
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-94446-571-1
01
1
1304-
14
00.679 COVER; UNDER,TRANS
4X2(TFB***) 4JK1-TCX ENG(LR0)
8-98049-857-0
01
1
1304-
14
00.679 COVER; UNDER,TRANS
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)
8-98049-857-0
01
1
1304-
14
00.679 COVER; UNDER,TRANS
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)
8-98049-857-0
01
1
1304-
15
00.685 BOLT; UNDER COVER TO TRANS
4X2(TFB***) 4JK1-TCX ENG(LR0) 02.343 M6X16 FLANGE
0-28650-616-0
04
1
1304-
15
00.685 BOLT; UNDER COVER TO TRANS
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE
0-28650-616-0
04
1
1304-
15
00.685 BOLT; UNDER COVER TO TRANS
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) 02.343 M6X16 FLANGE
0-28650-616-0
04
1
1304-
22
00.685 BOLT; TRANS CASE TO ENG
00.724 (G) M12X50 FLANGE
0-28051-250-0
08
1
1304-
27
00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE
0-91180-112-0
02
1
1304-
53
04.338 PLATE; LOCK,DRIVEN GEAR
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98035-572-0
01
1
1304-
80
04.329 BOLT; SPD SENSOR
4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE
0-28050-820-0
01
1
1304-
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98103-318-0
01
1
1304-
101
04.338 GASKET; CAP
4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7
9-09921-100-0
01
1
1304-
