◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶

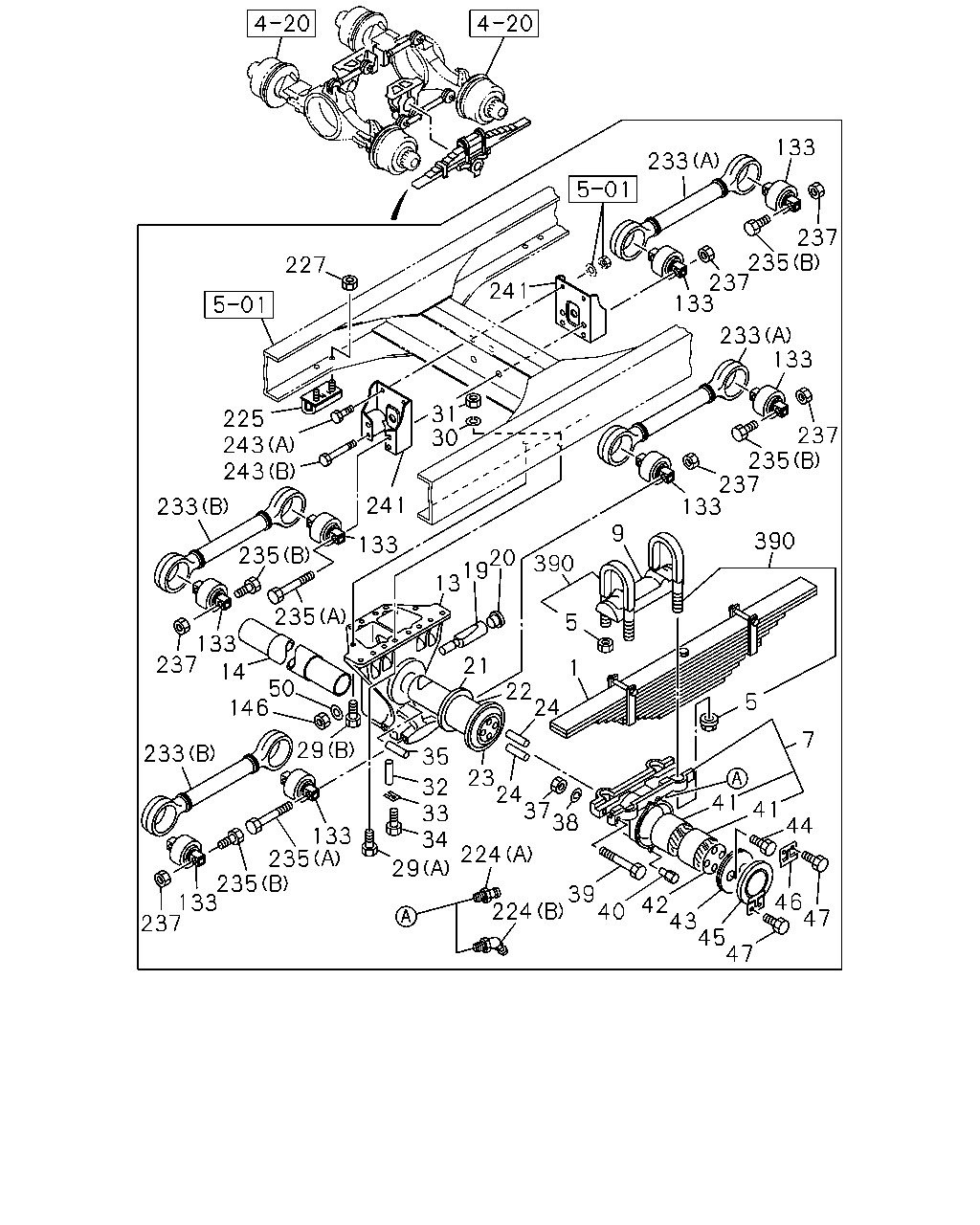

4-60 — REAR SUSPENSION (#118125) — 67 parça
çizim 345750
233 133 237 235 237 133 233 133 237 235 237 133 390 9 390 5 1 5 7 41 41 44 47 46 47 45 43 42 40 39 224 224 38 37 24 23 34 29 33 32 35 133 235 235 133 237 29 233 146 50 14 133 237 235 235 233 243 243 225 133 241 13 19 20 30 31 241 21 22 24 227
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 11-LEAF THA 		1-51410-269-1 02 1 1302- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF THA 		1-51410-269-1 02 1 1302- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5200MM<52W> 9-LEAF THA 		8-98140-159-0 02 1 1302- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE THA 		1-09440-058-0 08 1 1302-1306 ● ●
5 NUT; U-BOLT,RR SPR
THA 		8-97948-151-0 08 1 1307- ● ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 1302- ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1302- ● ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 1302- ● ●
14 PIPE; TRUNNION BRKT 1-51389-060-0 01 1 1302- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1302- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1302- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1302- ● ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 1302- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1302- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1302- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1302- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1302- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1302- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1302- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1302- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1302- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 1302- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1302- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1302- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1302- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1302- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1302- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1302- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1302- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1302-1306 ● ●
43 PLATE; SIDE,TRUNNION SHAFT
THA 		8-97948-142-0 02 1 1307- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1302- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1302- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1302- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 1302- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1302- ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		8-98218-958-0 06 1 1302- ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		8-98218-958-0 06 1 1302- ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1302- ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1302- ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W> THA 		8-98218-958-0 12 1 1302- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1302- ● ●
224 NIPPLE; GREASE,SPR SEAT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ●
224 NIPPLE; GREASE,SPR SEAT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 5200MM<52W> FORWARD RH,REARWARD LH THA 		8-97925-895-0 02 1 1302- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH THA 		8-97916-011-0 02 1 1302- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 1302- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) L=525 THA 		8-98218-994-0 03 1 1302- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1302- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		8-98218-998-0 03 1 1302- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1302- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (B) L=555 THA 		8-98218-999-0 03 1 1302- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (A) L=580 THA 		8-98219-000-0 03 1 1302- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1302- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1302- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1302- ● ●
241 BRACKET; TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-53363-031-2 02 1 1302- ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 1302- ●
243 BOLT; BRKT,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) M14X50 		0-20951-450-0 02 1 1302- ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 		0-20951-450-0 02 1 1302- ●
243 BOLT; BRKT,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M14X205 		1-09000-147-0 02 1 1302- ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 1302- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> L=370 		1-87870-217-3 04 1 1302- ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1302- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5200MM<52W> L=350 		1-87870-392-1 04 1 1302- ●
