6-20 — SIDE PANEL AND STEP (#118120) — 441 parça

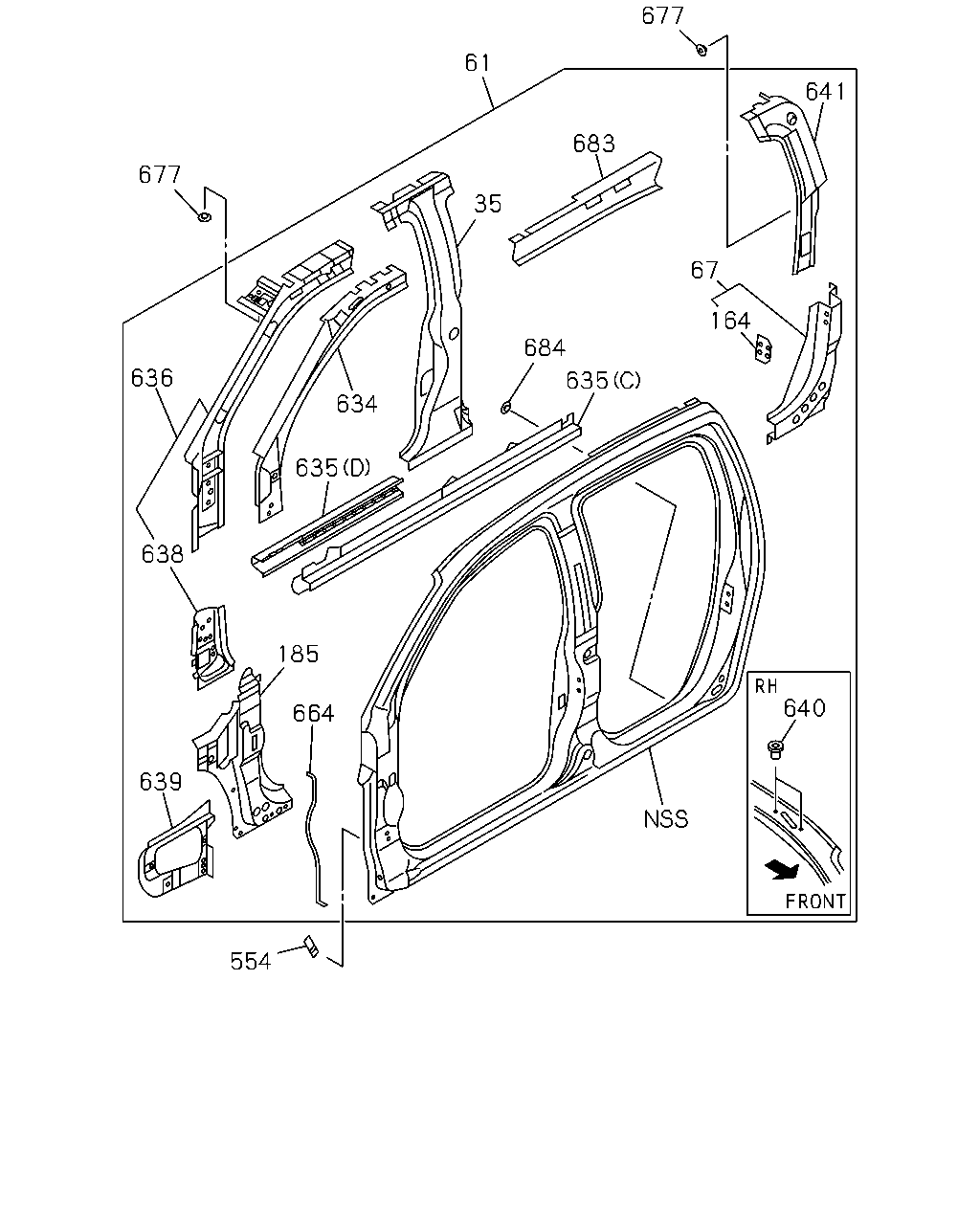

çizim 343701
677 61 677 641 683 35 636 634 635 638 185 664 639 640 67 684 635 164 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1304- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-334-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-336-2 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-335-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-245-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-242-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-115-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-817-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-830-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-758-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-769-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98103-247-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-116-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-831-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-819-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-016-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-017-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-824-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> 		8-98161-092-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-780-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-781-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1304- ● ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1304- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1304- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1304- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-680-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-681-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-094-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-094-2 01 1 1304- ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-793-4 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-050-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-614-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-615-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-306-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-307-1 01 1 1304- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-510-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-510-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-962-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-962-0 01 1 1506- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-087-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-512-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-512-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98104-512-8 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-963-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-090-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1304- ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1304- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1304- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ● ●
683 16.585 PANEL; HEADER 8-98161-107-4 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98161-107-4 01 1 1304- ●
683 16.585 PANEL; HEADER 8-98161-109-4 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98161-109-4 01 1 1304- ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-107-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98161-126-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98161-122-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-124-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-128-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-815-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-816-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98161-127-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98161-127-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98161-123-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-125-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-129-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98161-108-2 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> 		8-98161-108-2 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98161-106-2 01 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

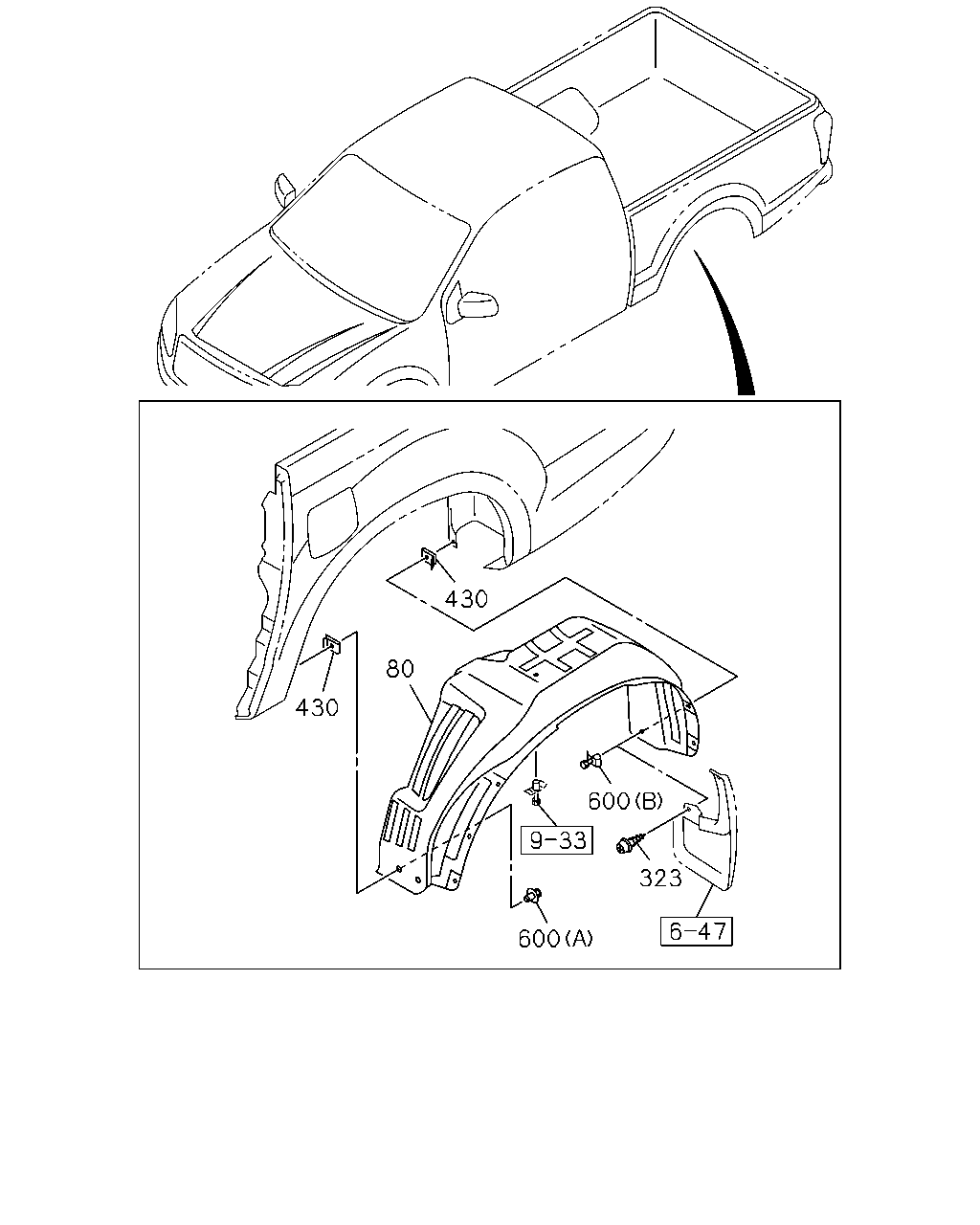

çizim 343705
430 80 430 600 600 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-943-4 01 1 1304- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-943-4 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-944-4 01 1 1304- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-944-4 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-945-5 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-945-5 01 1 1304- ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-946-5 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-946-5 01 1 1304- ● ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1304- ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1304- ● ● ● ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1304- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1304- ● ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 06 1 1304- ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 08.155 		8-97125-519-0 06 1 1304- ● ● ● ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 08.155 		8-97125-519-0 02 1 1304- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 02 1 1304- ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98186-355-0 04 1 1304- ● ● ● ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) 08.154 (B) 		8-94221-150-0 02 1 1304- ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 08.154 (B) 		8-94221-150-0 02 1 1304- ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H>, FORMED MUD FLAP EXTEND FRT & RR<Q8J> 08.154 (B) 		8-94221-150-0 06 1 1304- ● ● ● ● ●

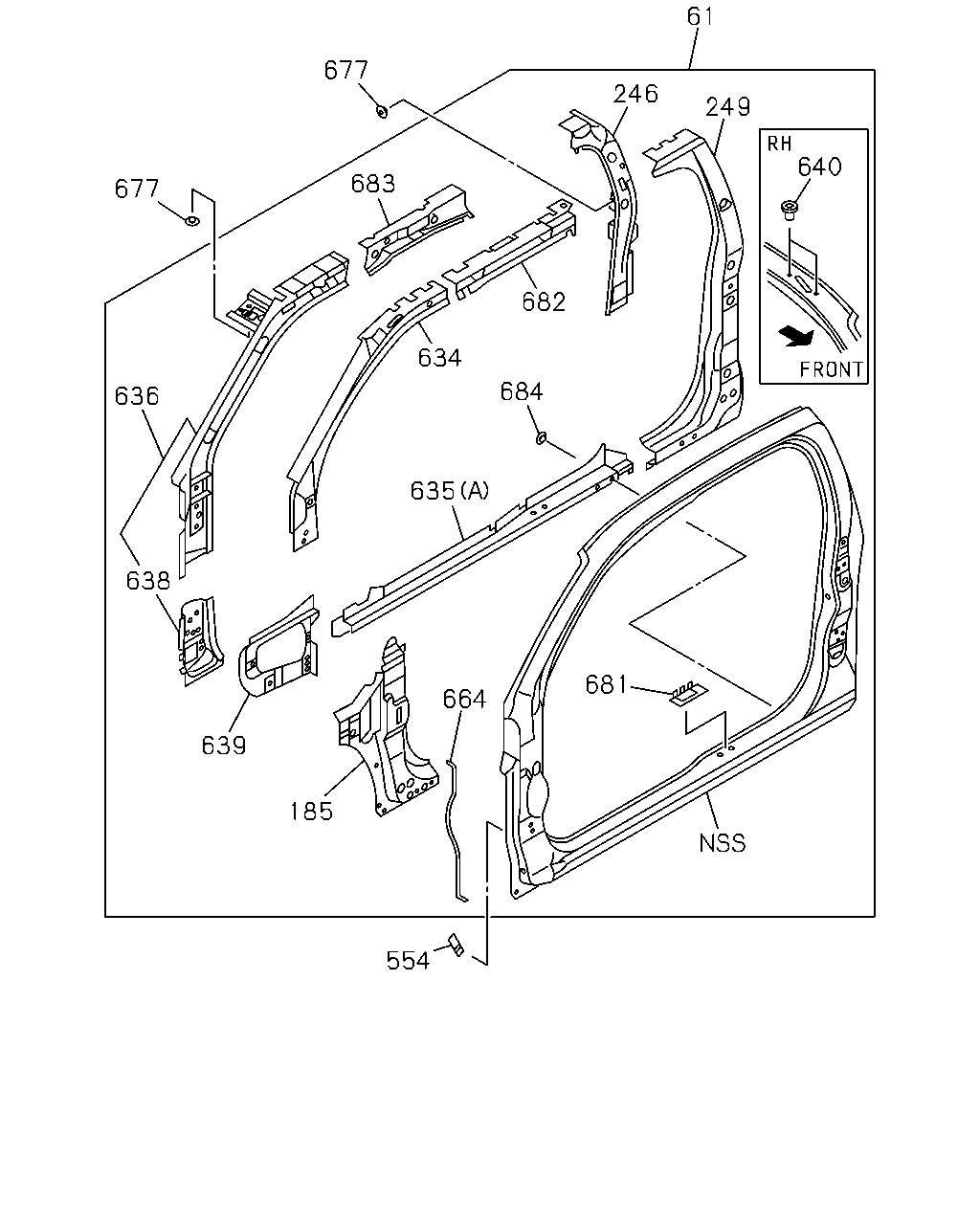

çizim 343716
677 61 246 640 249 683 682 634 636 677 639 638 635 684 681 664 554 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-334-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-336-2 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-335-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-245-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-242-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-115-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-817-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-830-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-758-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-769-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98103-247-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-116-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-831-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-819-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-016-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-017-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-824-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> 		8-98161-092-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-780-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-781-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-680-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-681-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-094-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-094-2 01 1 1304- ●
246 16.575 PANEL; RR PILLAR,INNER 8-98104-452-5 01 1 1304- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-98104-450-5 01 1 1304- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98129-584-5 01 1 1304- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98129-593-5 01 1 1304- ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-793-4 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-050-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-614-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-615-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-306-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-307-1 01 1 1304- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-510-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-510-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-962-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-962-0 01 1 1506- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-087-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-512-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-512-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98104-512-8 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-963-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-090-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1304- ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ● ●
681 16.588 REINFORCEMENT; STRIKER 8-98104-041-0 01 1 1304- ● ●
681 16.588 REINFORCEMENT; STRIKER 8-98104-040-0 01 1 1304- ● ●
682 16.575 REINFORCEMENT; ROOF SIDE 8-98104-563-2 01 1 1304- ● ●
682 16.575 REINFORCEMENT; ROOF SIDE 8-98104-559-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER 8-98161-107-4 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98161-107-4 01 1 1304- ●
683 16.585 PANEL; HEADER 8-98161-109-4 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98161-109-4 01 1 1304- ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-107-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98161-126-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98161-122-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-124-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-128-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-815-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-816-5 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98161-127-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98161-127-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98161-123-2 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-125-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98161-129-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98161-108-2 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> 		8-98161-108-2 01 1 1304- ●
683 16.585 PANEL; HEADER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98161-106-2 01 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

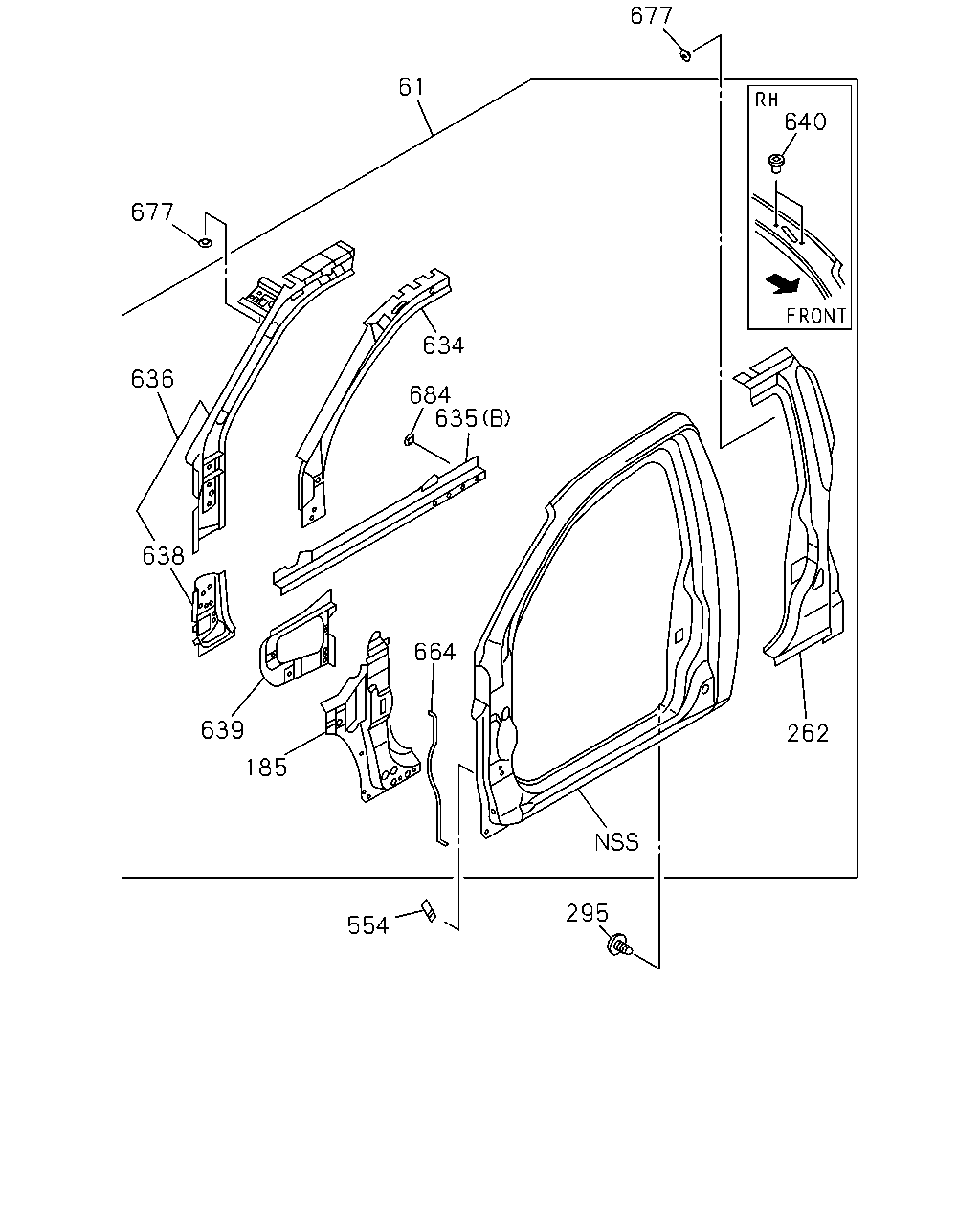

çizim 343725
677 61 677 634 684 664 262 295 554 185 639 638 636 635 640
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-334-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-336-2 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98238-335-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98238-337-4 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98156-764-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER 8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-773-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-245-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-242-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-115-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-817-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-830-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-758-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-769-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98103-247-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98181-116-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-831-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 		8-98160-819-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-759-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-770-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-016-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98116-017-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-832-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98160-824-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98156-763-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> 		8-98161-092-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-780-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98139-781-5 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-772-3 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-680-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98214-681-0 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-095-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98104-094-2 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-094-2 01 1 1304- ●
262 16.575 PANEL; PILLAR 8-98104-375-9 01 1 1304-1408 ● ●
262 16.575 PANEL; PILLAR 8-98269-897-0 01 1 1409- ● ●
262 16.575 PANEL; PILLAR 8-98192-993-1 01 1 1304- ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 06 1 1304- ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1304- ● ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1304- ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-090-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) 		8-98104-131-2 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),ROOF RADIO ANTENNA<U71> (A) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-503-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-793-4 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C) 		8-98104-793-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ROOF RADIO ANTENNA<U71> (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) (C) 		8-98104-794-4 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-050-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (C) 		8-98161-051-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-614-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (C) 		8-98200-615-0 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-306-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) (D) 		8-98206-307-1 01 1 1304- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-510-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-510-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-962-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-962-0 01 1 1506- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-087-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98104-512-9 01 1 1304-1505 ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98104-512-9 01 1 1304-1505 ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98104-512-8 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98297-963-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98297-963-0 01 1 1506- ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-090-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1304- ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

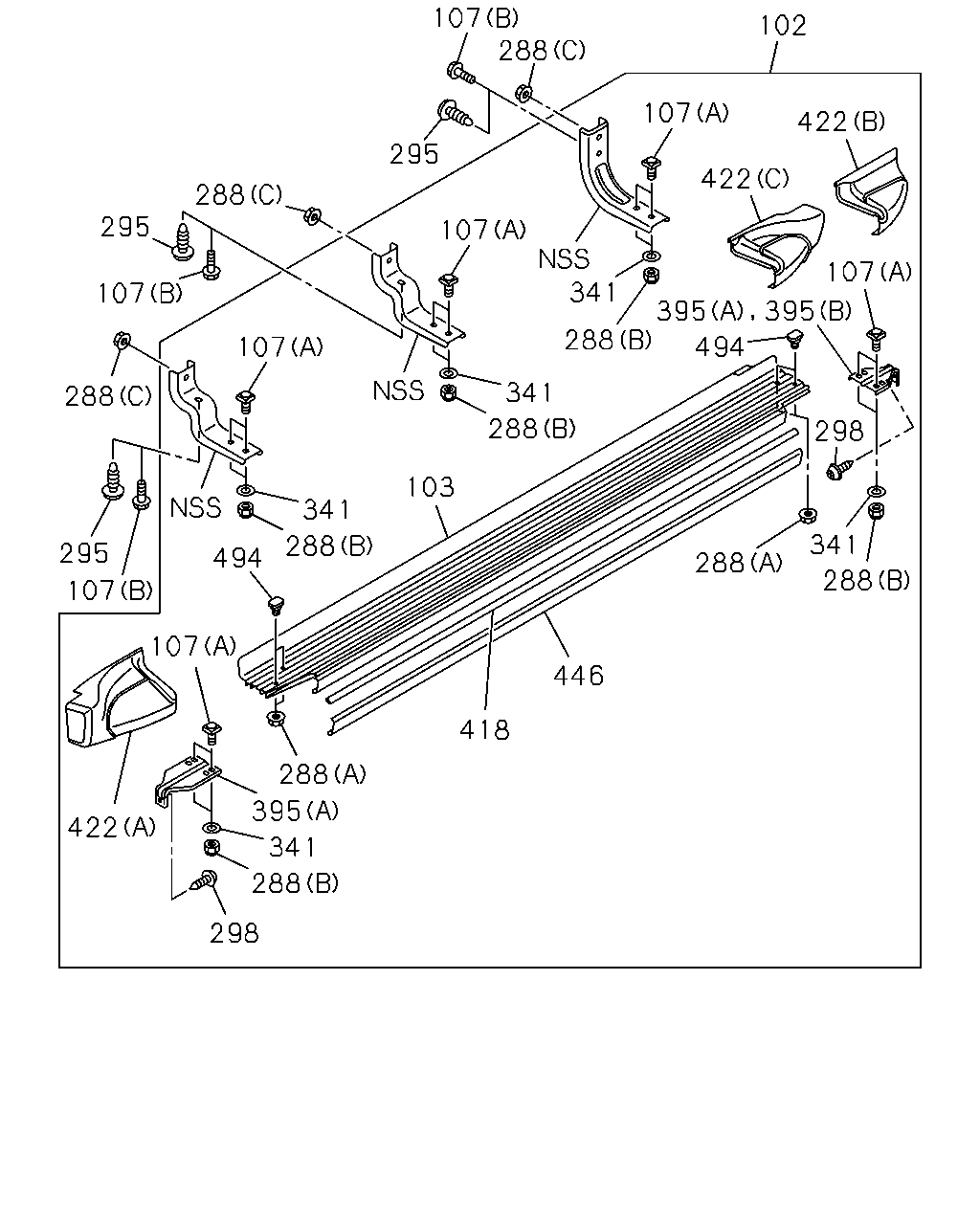

çizim 345573
295 288 107 288 295 107 107 422 288 395 341 288 298 418 446 494 288 341 103 107 288 341 288 107 341 395 494 295 288 107 107 422 422 107 395 298 341 288 288 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-5 01 1 1304- ● ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-5 01 1 1304- ● ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-301-5 01 1 1304- ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-302-5 01 1 1304- ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1409- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1409- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-970-0 01 1 1409- ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-971-0 01 1 1409- ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1409- ● ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1304- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (A) M6 FLANGE 		0-91180-106-0 08 1 1409- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1409- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.540 (C) M8 FLANGE 		0-91180-208-0 06 1 1304- ● ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 06 1 1304- ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1304- ● ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1304- ● ●
298 08.309 SCREW; SIDE STEP
SIDE STEP<6TC> 01.269 M5X16 		8-98073-081-0 04 1 1409- ● ● ●
341 08.309 WASHER; PL,STEP
SIDE STEP<6TC> 02.559 ID=8.4 OD=18 		0-91614-608-0 20 1 1409- ● ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) 		8-98292-978-0 04 1 1409- ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) 		8-98292-978-0 02 1 1409- ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) 		8-98292-980-0 02 1 1409- ●
418 08.304 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1409- ● ●
418 08.304 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-009-0 02 1 1409- ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1409- ● ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1409- ● ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (C) REAR SILVER 		8-97466-046-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (C) REAR SILVER 		8-97466-050-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-038-1 01 1 1409- ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-044-1 01 1 1409- ●
446 08.228 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1409- ● ●
446 08.228 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-040-0 02 1 1409- ●
494 08.228 STUD; BRKT
SIDE STEP<6TC> 08.077 		8-98056-035-0 08 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
