◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#11812) — 32 parça

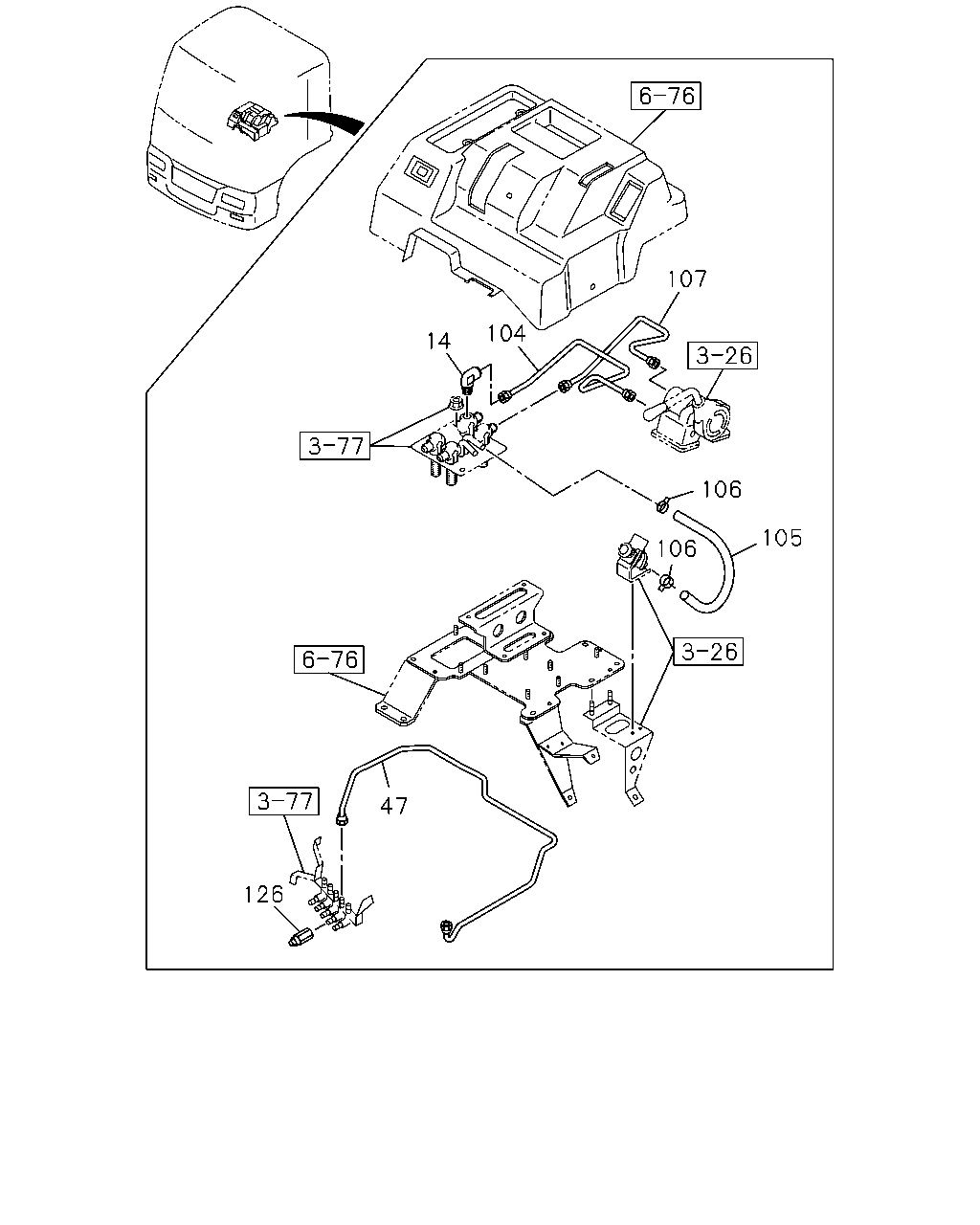

çizim 23504
107 104 14 106 105 106 47 126
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0105-
47 PIPE; AIR,UNION TO UNION
TRAILER BRAKE HAND CONTROL<NLG> L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> 		1-49114-643-1 01 1 0105-
105 PIPE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0302-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0111
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0111
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0105-0301
106 CLIP; PIPE
TRAILER BRAKE HAND CONTROL<NLG> ID=14 		8-94238-572-0 02 1 0302-
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> 		1-49114-661-1 01 1 0105-
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-

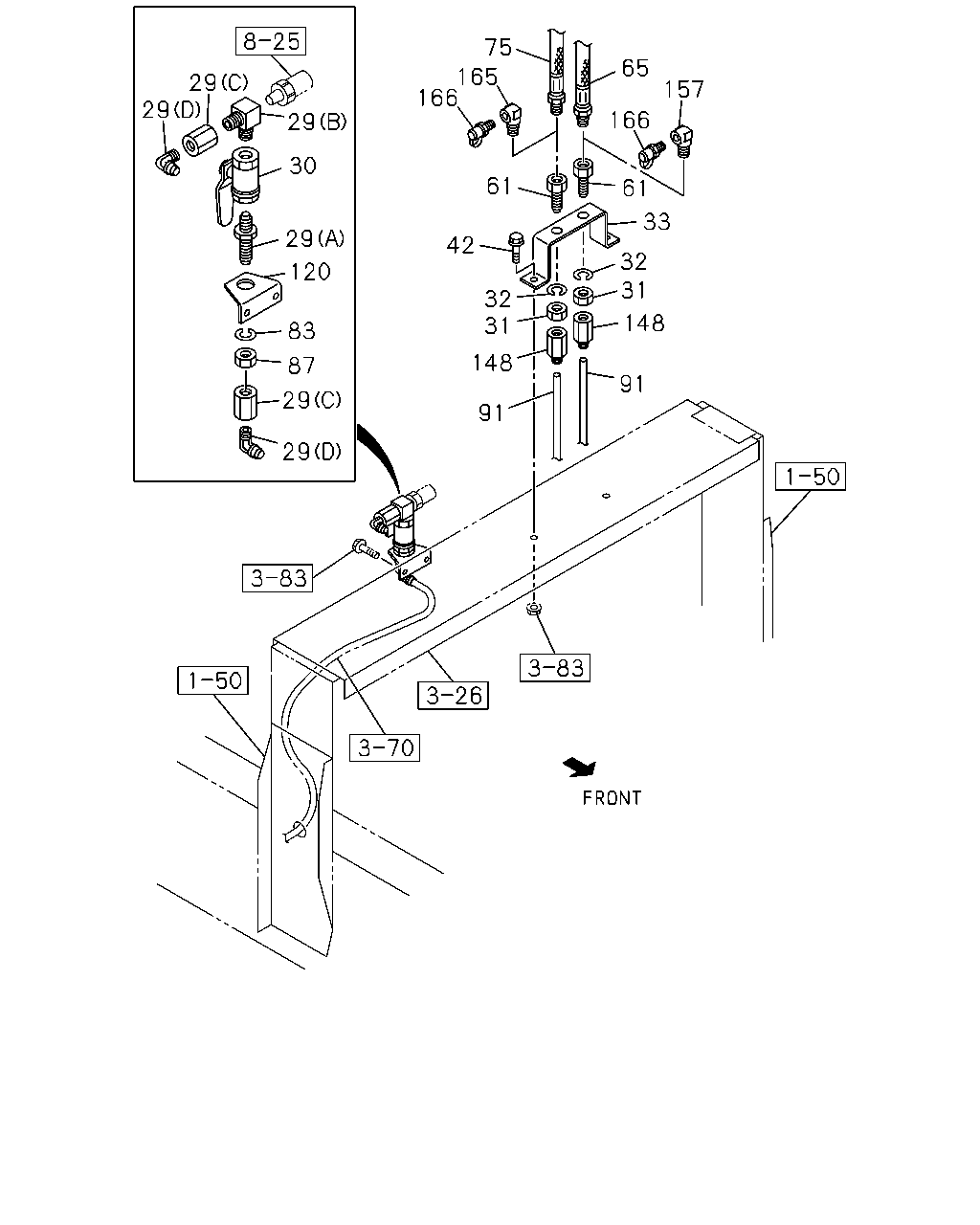

çizim 80602
75 65 165 166 29 29 157 166 29 30 61 61 33 29 42 32 31 120 32 31 148 83 148 87 91 29 91 29
BalonParca AdiParca NoAdetTipApplied Date
29 CONNECTOR; COCK
(A) M22 & PT1/2 STRAIGHT 		1-09650-220-1 01 1 0105-
29 CONNECTOR; COCK
(B) 		1-09656-332-1 01 1 0105-
29 CONNECTOR; COCK
(C) 		1-09660-884-0 02 1 0105-
29 CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
30 COCK; AIR HOSE
BLUE 		1-09680-092-0 01 1 0105-
31 NUT; UNION
M16 		9-99111-416-0 02 1 0105-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0105-
33 BRACKET 1-47475-388-0 01 1 0105-
42 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0105-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 0105-
65 HOSE; AIR
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5636 		1-09363-163-1 01 1 0105-
75 HOSE; FLEX,TRAILER EMERGENCY
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5640 		1-09363-164-1 01 1 0105-
83 WASHER; LK,CONNECTOR
ID=22.5 		9-09150-522-0 01 1 0105-
87 NUT
M22 		9-09111-422-0 01 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0105-0212
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0301-
120 BRACKET; COCK 1-48499-001-1 01 1 0105-
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0105-
157 ADAPTER
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0105-
165 CONNECTOR; ELBOW
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0105-
166 CONNECTOR; TEST
JUMPER HOSE & CABLE DELETE<SJK> 		1-47459-013-0 02 1 0105-
