◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#118119) — 21 parça
çizim 342859
13 21 11 2 20 19 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47500-250-2 01 1 1302- ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T<Y5K> 		1-47500-357-3 01 1 1302- ● ●
2 REPAIR KIT; CLU M/CYL
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-85576-461-0 01 1 1302- ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T<Y5K> 		1-47550-052-1 01 1 1302- ● ●
11 CAP; OUTER,CLU M/CYL
ZF9S1310 M/T<Y5K> 		1-47519-017-0 01 1 1302- ● ●
13 GASKET; OIL TANK
ZF9S1310 M/T<Y5K> 		1-47519-016-0 01 1 1302- ● ●
19 BOOT; CLU M/CYL
ZF9S1310 M/T<Y5K> 		1-47519-018-0 01 1 1302- ● ●
20 RING; SNAP,BODY
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-013-0 01 1 1302- ●
20 RING; SNAP,BODY
ZF9S1310 M/T<Y5K> 		1-47515-009-0 01 1 1302- ● ●
21 VALVE; CHECK
ZF9S1310 M/T<Y5K> 		1-47565-004-0 01 1 1302- ● ●

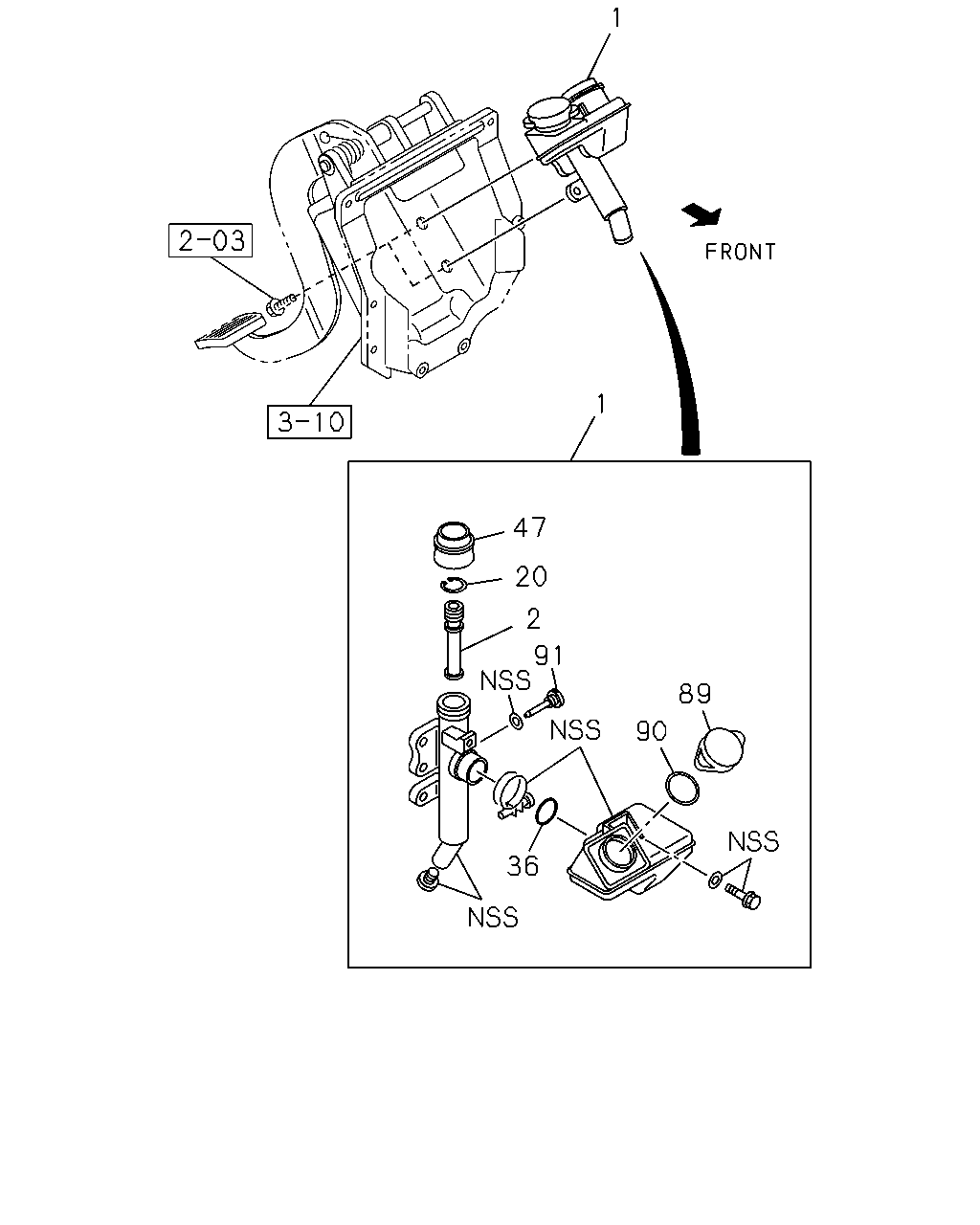

çizim 342909
1 1 47 2 91 20 89 90 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47500-250-2 01 1 1302- ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T<Y5K> 		1-47500-357-3 01 1 1302- ● ●
2 REPAIR KIT; CLU M/CYL
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-85576-461-0 01 1 1302- ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T<Y5K> 		1-47550-052-1 01 1 1302- ● ●
20 RING; SNAP,BODY
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-013-0 01 1 1302- ●
20 RING; SNAP,BODY
ZF9S1310 M/T<Y5K> 		1-47515-009-0 01 1 1302- ● ●
36 GASKET; CLU M/CYL
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-014-0 01 1 1302- ●
47 COVER; DUST,PUSH ROD
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-018-0 01 1 1302- ●
89 CAP; OIL FILLER,CLU M/CYL
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-017-0 01 1 1302- ●
90 GASKET; OIL FILLER,CLU M/CYL
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-016-0 01 1 1302- ●
91 BOLT; STOPPER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		1-47519-015-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
