3-78 — FIXING PARTS; AIR PIPING (#11811) — 185 parça

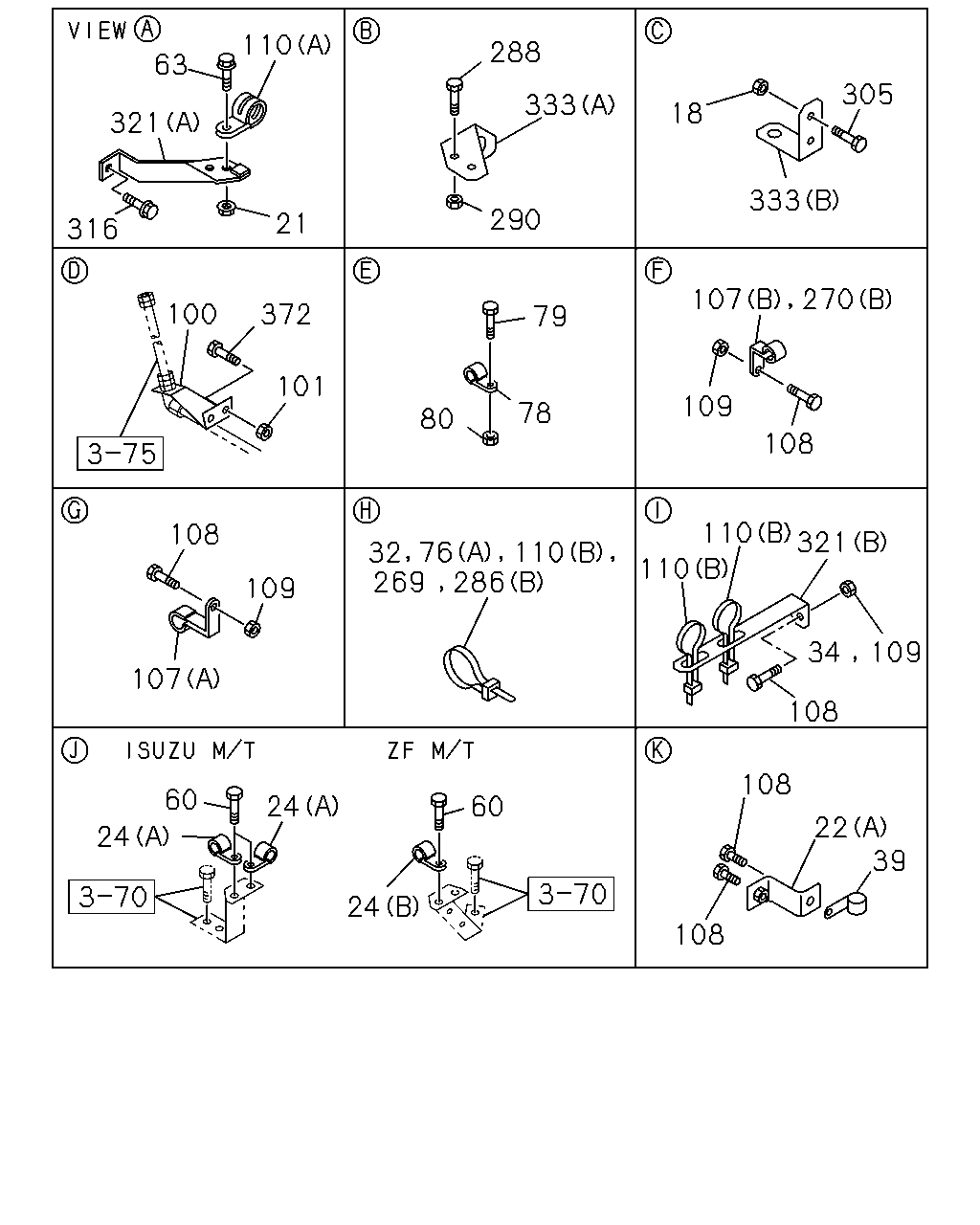

110 288 63 305 333 18 321 333 290 21 316 100 372 79 101 109 78 80 108 110 321 108 110 110 109 34 109 107 108 108 60 24 60 22 39 24 24 108 107 270 32 76 269 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0105-
22	BRACKET; CLIP EXC. ISUZU M/T<X9A> (C) L=100	1-47477-645-2	01	1	0105-0106
22	BRACKET; CLIP (C) L=100	1-47477-645-2	01	1	0107-
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0105-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP EXC. ZF M/T<X9E> (A)	1-47475-689-0	01	1	0105-0106
24	CLIP; PIPE ISUZU M/T<X9A> (A) ID=16 L=20	9-09525-535-0	02	1	0105-
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 L=28	9-09525-556-0	01	1	0105-
32	CLIP; BAND,RUBBER SLEEVE EXC. AIR DRYER<PS7> L=250	1-09707-126-0	01	1	0204-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
39	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	0105-
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	0105-
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	01	1	0105-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	0105-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0105-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0105-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0105-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) ID=35 L=35	1-09700-895-0	01	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0105-0107
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0304
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	02	1	0305-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	0105-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0108-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
108	BOLT; TUBE CLIP EXC. ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
109	NUT; TUBE CLIP EXC. ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09701-261-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	10	1	0105-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	15	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	17	1	0205-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	19	1	0105-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	02	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	17	1	0106-0110
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	19	1	0111-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0105-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0105-0108
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0204
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0205-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0205-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0205-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	14	1	0105-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	0105-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0309-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0105-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	04	1	0105-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
305	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-
321	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0105-0106
321	BRACKET; CLIP (C)	1-47477-088-1	01	1	0107-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0105-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100	1-47477-645-2	01	1	0105-
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	0105-
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	0105-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-

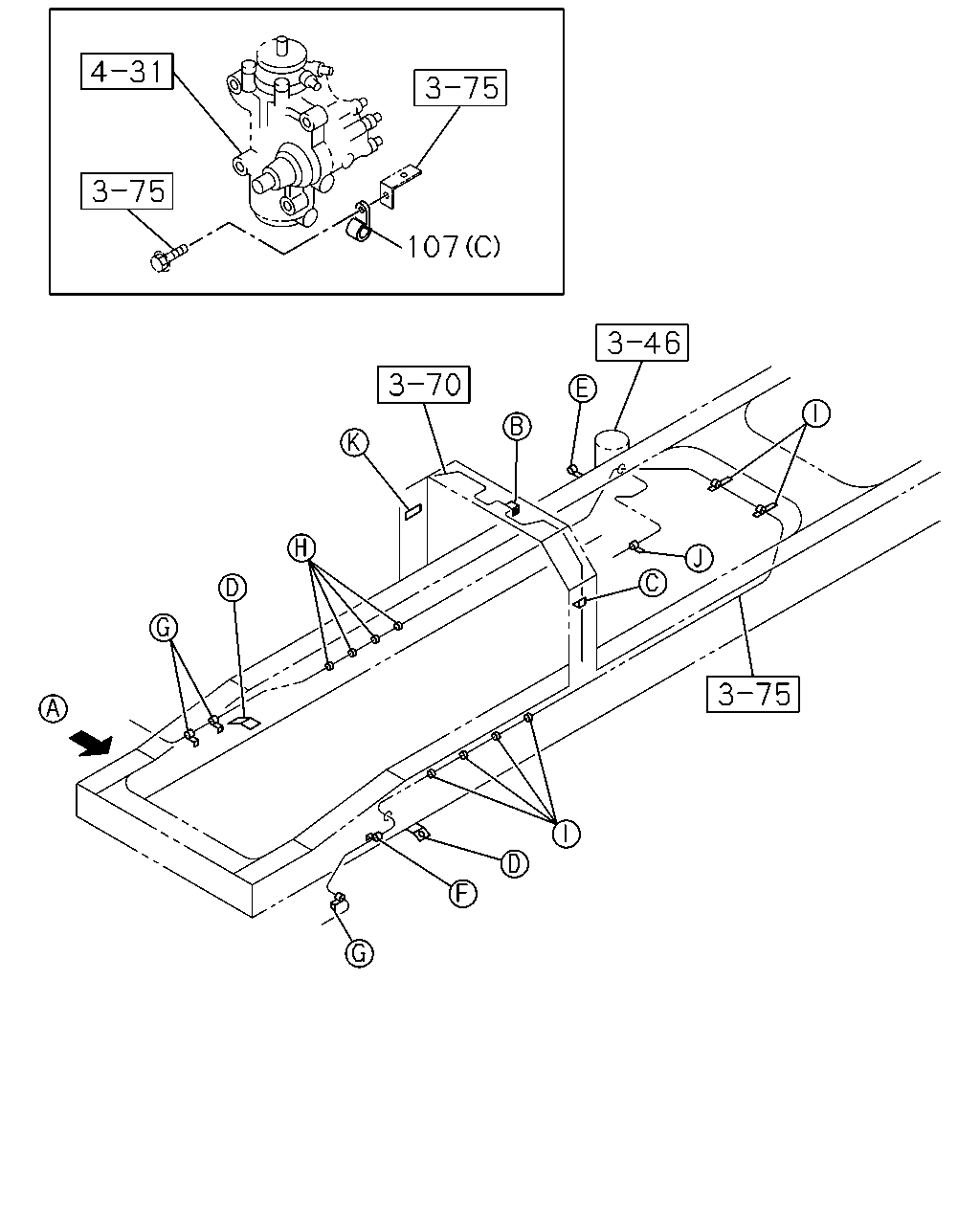

107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) ID=35 L=35	1-09700-895-0	01	1	0108-

22 76 22 293 286 361 279 297 292 20 411 321 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0105-
22	BRACKET; CLIP EXC. ISUZU M/T<X9A> (C) L=100	1-47477-645-2	01	1	0105-0106
22	BRACKET; CLIP (C) L=100	1-47477-645-2	01	1	0107-
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0105-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP EXC. ZF M/T<X9E> (A)	1-47475-689-0	01	1	0105-0106
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0105-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	0105-
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
321	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0105-0106
321	BRACKET; CLIP (C)	1-47477-088-1	01	1	0107-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0105-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100	1-47477-645-2	01	1	0105-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0105-
411	SLEEVE; RUBBER AIR DRYER<PS7> ID=29 OD=39 L=40	1-09337-013-0	01	1	0110-
411	SLEEVE; RUBBER EXC. AIR DRYER<PS7> ID=15 OD=19 L=50	1-09337-014-0	01	1	0204-

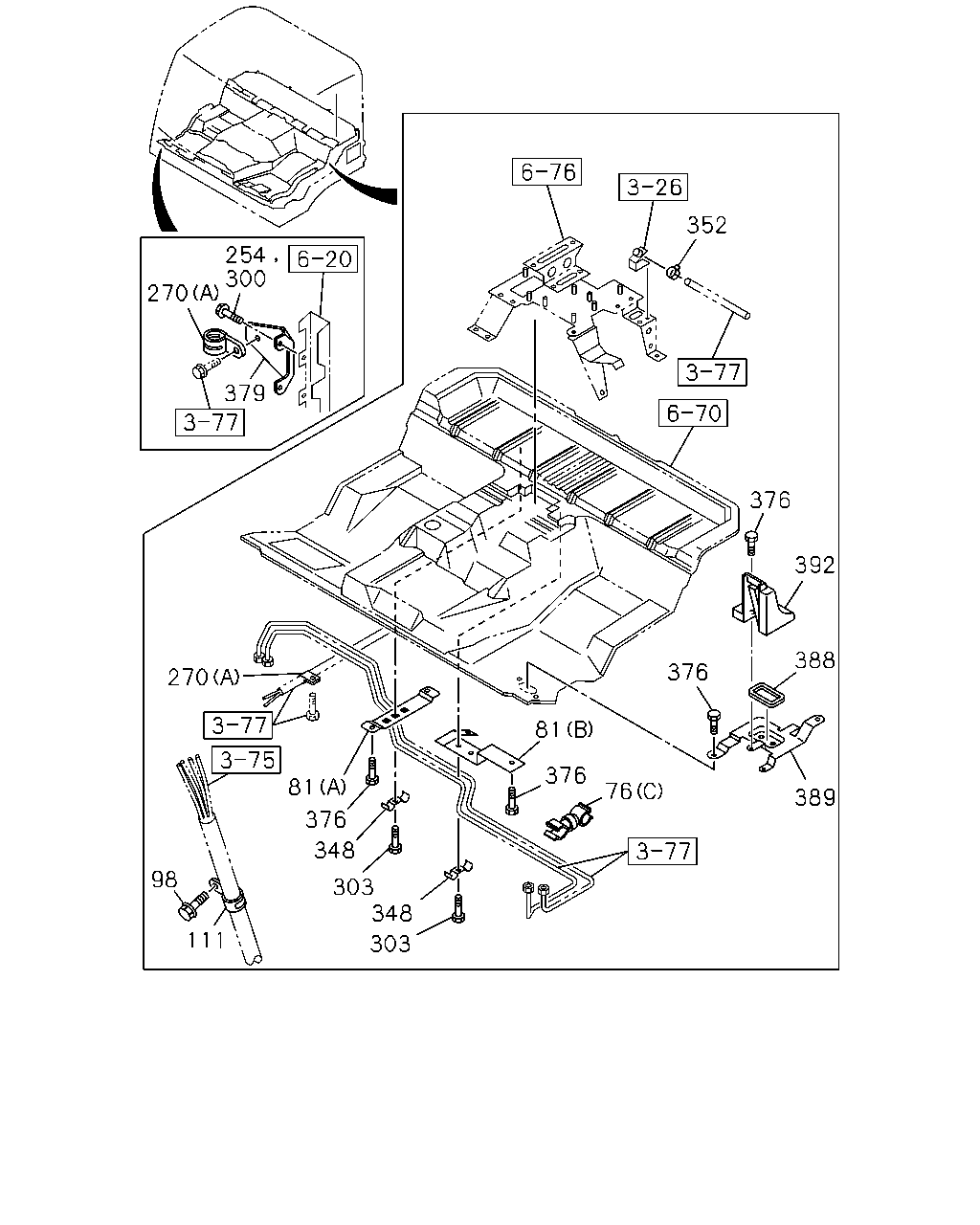

352 254 300 270 379 376 392 388 376 270 81 376 81 76 389 376 348 98 303 348 111 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0105-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0105-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
111	CLIP; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=29 L=35	5-09700-293-1	01	1	0210-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0105-0207
111	CLIP; AIR PIPE ID=28 L=40	1-09700-995-1	01	1	0208-0209
111	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=35 L=35	1-09700-895-0	01	1	0210-
111	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> ID=35 L=35	1-09700-895-0	01	1	0210-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	0105-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0309-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0105-0208
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0209-
348	CLIP; AIR PIPE EXC. TRAILER BRAKE HAND CONTROL<NLG> ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	0209-
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0105-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-0206
352	CLIP; EXH HOSE TRAILER BRAKE HAND CONTROL<NLG> ID=14	8-94238-572-0	02	1	0207-0305
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0306-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0109
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0110-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0105-0109
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0105-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-
388	SEAL L=215	1-79738-794-1	01	1	0105-
389	BRACKET; UNION	1-79738-790-1	01	1	0105-
392	COVER; BRKT	1-73996-264-1	01	1	0105-

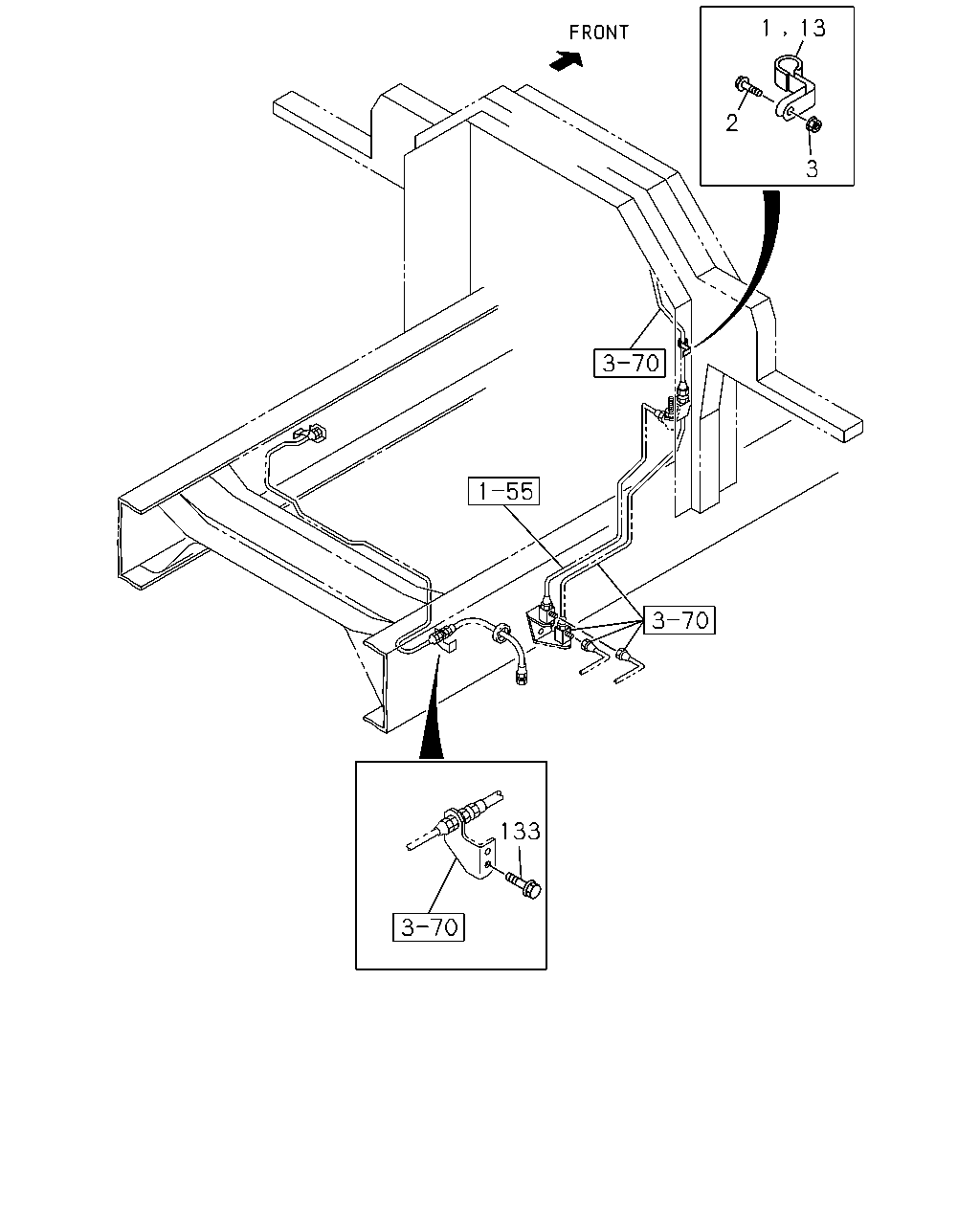

13 1 2 3 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0105-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	0105-

376 367 3 322 375 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
322	BRACKET; CLIP L=50	1-47475-299-2	01	1	0105-
357	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	0105-
367	BRACKET ASM	1-42119-080-0	01	1	0105-
375	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0105-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0109
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0110-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0105-0109
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
