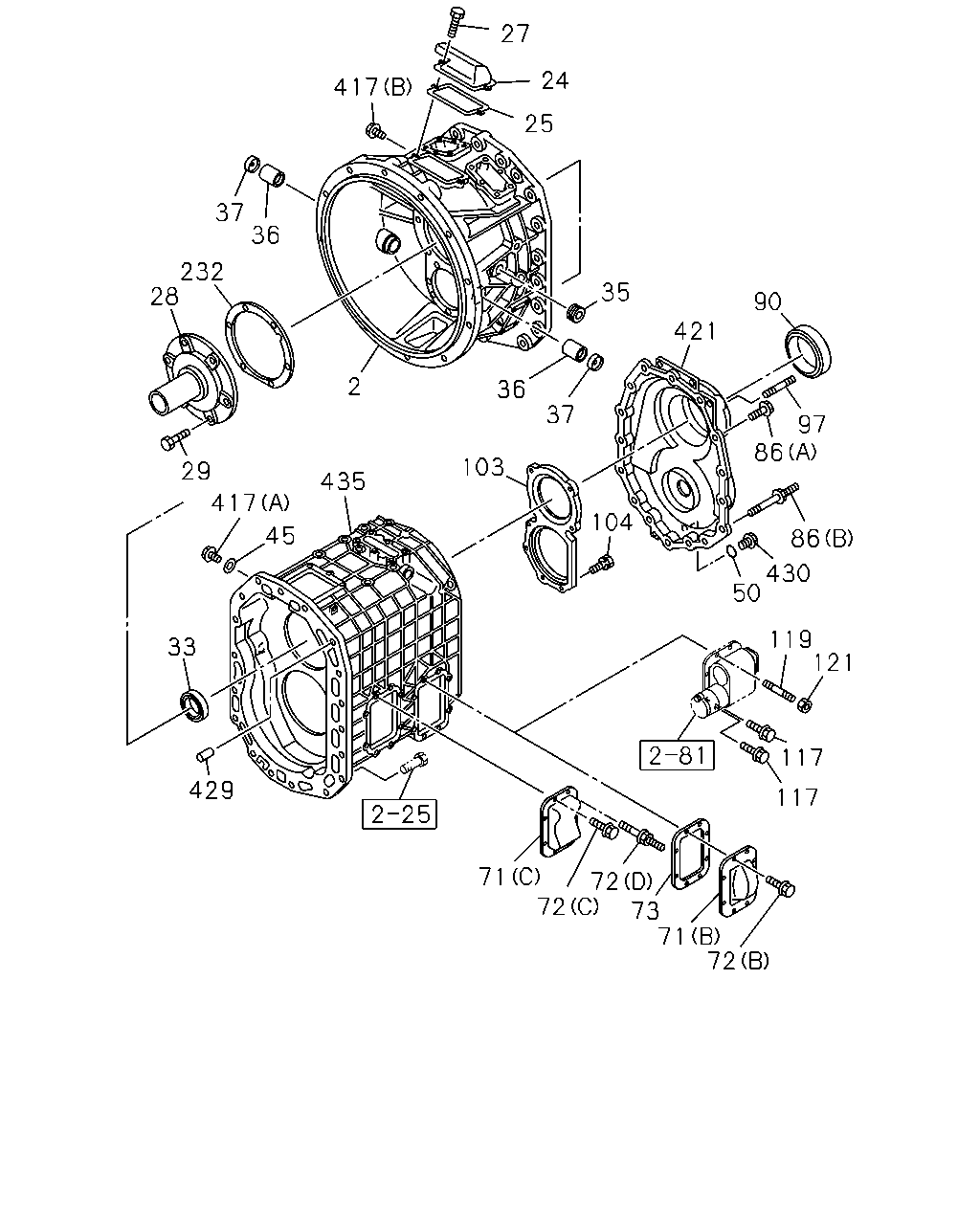

2 |
HOUSING; CLU
|
8-98077-167-1 |
01 |
1 |
1304- |
| |
24 |
COVER; CHECK HOLE,DUST
|
1-31131-037-0 |
01 |
1 |
1304- |
| |
25 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-31139-008-0 |
01 |
1 |
1304-1406 |
| |
25 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
8-98283-291-0 |
01 |
1 |
1407- |
| |
27 |
BOLT; COVER TO CLU HSG
M8X12 FLANGE
|
0-28050-812-0 |
04 |
1 |
1304- |
| |
28 |
COVER; FRT,TRANS CASE
|
1-33121-159-2 |
01 |
1 |
1304- |
| |
29 |
BOLT; FRT COVER
M10X40 FLANGE
|
8-98230-249-0 |
06 |
1 |
1304- |
| |
33 |
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-562-0 |
01 |
1 |
1304- |
| |
35 |
GROMMET; CLU HSG
|
9-09575-796-0 |
01 |
1 |
1304- |
| |
36 |
BEARING; NEEDLE,CLU HSG
|
1-09811-087-0 |
02 |
1 |
1304- |
| |
37 |
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-003-0 |
02 |
1 |
1304- |
| |
45 |
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
1304- |
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
1304- |
| |
71 |
COVER; SIDE,TRANS CASE
(C)
|
1-33141-057-1 |
01 |
1 |
1304- |
| |
71 |
COVER; SIDE,TRANS CASE
(A)
|
1-33141-058-0 |
01 |
1 |
1304- |
| |
71 |
COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
(B)
|
1-33141-044-1 |
01 |
1 |
1304- |
| |
72 |
BOLT; SIDE COVER
(A)
M10X30 FLANGE
|
0-28151-030-0 |
04 |
1 |
1304- |
| |
72 |
BOLT; SIDE COVER
(C)
M12X40 FLANGE
|
0-28151-240-0 |
07 |
1 |
1304- |
| |
72 |
BOLT; SIDE COVER
(D)
M10X16,M12X40 L=67.7
|
1-09029-082-0 |
01 |
1 |
1304- |
| |
72 |
BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
(B)
M12X30 FLANGE
|
0-28751-230-0 |
08 |
1 |
1304- |
| |
73 |
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-33142-041-0 |
01 |
1 |
1304- |
| |
86 |
BOLT; RR COVER
(A)
M12X40 FLANGE
|
0-28151-240-0 |
14 |
1 |
1304- |
| |
86 |
BOLT; RR COVER
(B)
M10X16,M12X40 L=67.7
|
1-09029-082-0 |
02 |
1 |
1304- |
| |
90 |
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-577-1 |
01 |
1 |
1304- |
| |
97 |
STUD; PARKING BRK
M16X41 L=62
|
1-09302-151-0 |
01 |
1 |
1304- |
| |
103 |
RETAINER; BRG
|
1-33151-059-0 |
01 |
1 |
1304- |
| |
104 |
BOLT; BRG RET
M10X38 FLANGE
|
1-09049-029-1 |
08 |
1 |
1304- |
| |
117 |
BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12X35 FLANGE
|
0-28151-235-0 |
02 |
1 |
1304- |
| |
117 |
BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12X130 FLANGE
|
0-28166-213-0 |
02 |
1 |
1304- |
| |
119 |
STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12X25 L=43
|
0-44011-225-0 |
04 |
1 |
1304- |
| |
121 |
NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
1304- |
| |
232 |
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-33142-051-1 |
01 |
1 |
1304- |
| |
417 |
PLUG; OIL FILLER,TRANS
(A)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1304- |
| |
417 |
PLUG; OIL FILLER,TRANS
(B)
M22X12
|
1-09604-035-0 |
01 |
1 |
1304- |
| |
421 |
COVER; RR,TRANS
|
8-98191-936-1 |
01 |
1 |
1304-1502 |
| |
421 |
COVER; RR,TRANS
|
8-98304-558-0 |
01 |
1 |
1503- |
| |
429 |
PIN; STRAIGHT
OD=10 L=18
|
9-08151-018-0 |
06 |
1 |
1304- |
| |
430 |
PLUG; OIL DRAIN
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1304- |
| |
435 |
CASE; TRANS
|
8-98132-970-0 |
01 |
1 |
1304- |
