Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#118098) — 48 parça
◀
[110A] NO.1 (21 parça)
[110A] NO.2 (10 parça)
[110A] NO.3 (13 parça)
[110A] NO.4 (4 parça)
▶

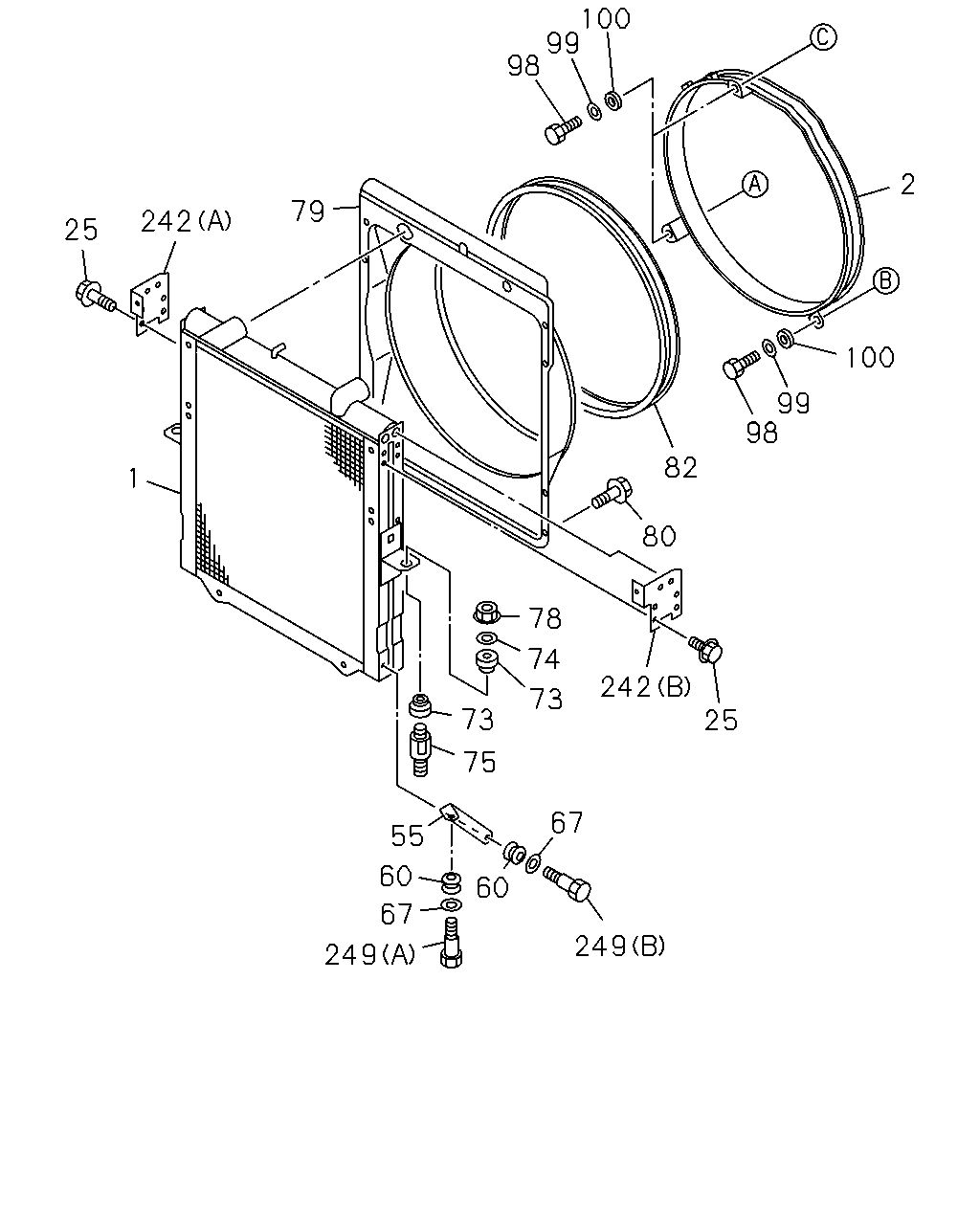

25
242
79
98
99
100
2
100
99
98
82
80
242
25
78
74
73
73
75
67
249
249
55
60
67
1
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1304-
2
GUIDE; FAN
8-97615-753-1
01
1
1304-
25
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1304-
55
STAY; RAD TO UPR MBR
8-98055-802-0
01
1
1304-
55
STAY; RAD TO UPR MBR
8-98055-805-0
01
1
1304-
60
GROMMET
1-09332-117-0
04
1
1304-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1304-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1304-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1304-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1304-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1304-
79
GUIDE; FAN,RAD
1-21551-545-1
01
1
1304-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1304-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1304-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
1304-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1304-
100
RUBBER; MTG
1-09337-017-0
06
1
1304-
242
BRACKET; RAD
(A)
8-98089-511-1
01
1
1304-
242
BRACKET; RAD
(B)
8-98089-512-1
01
1
1304-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1304-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1304-

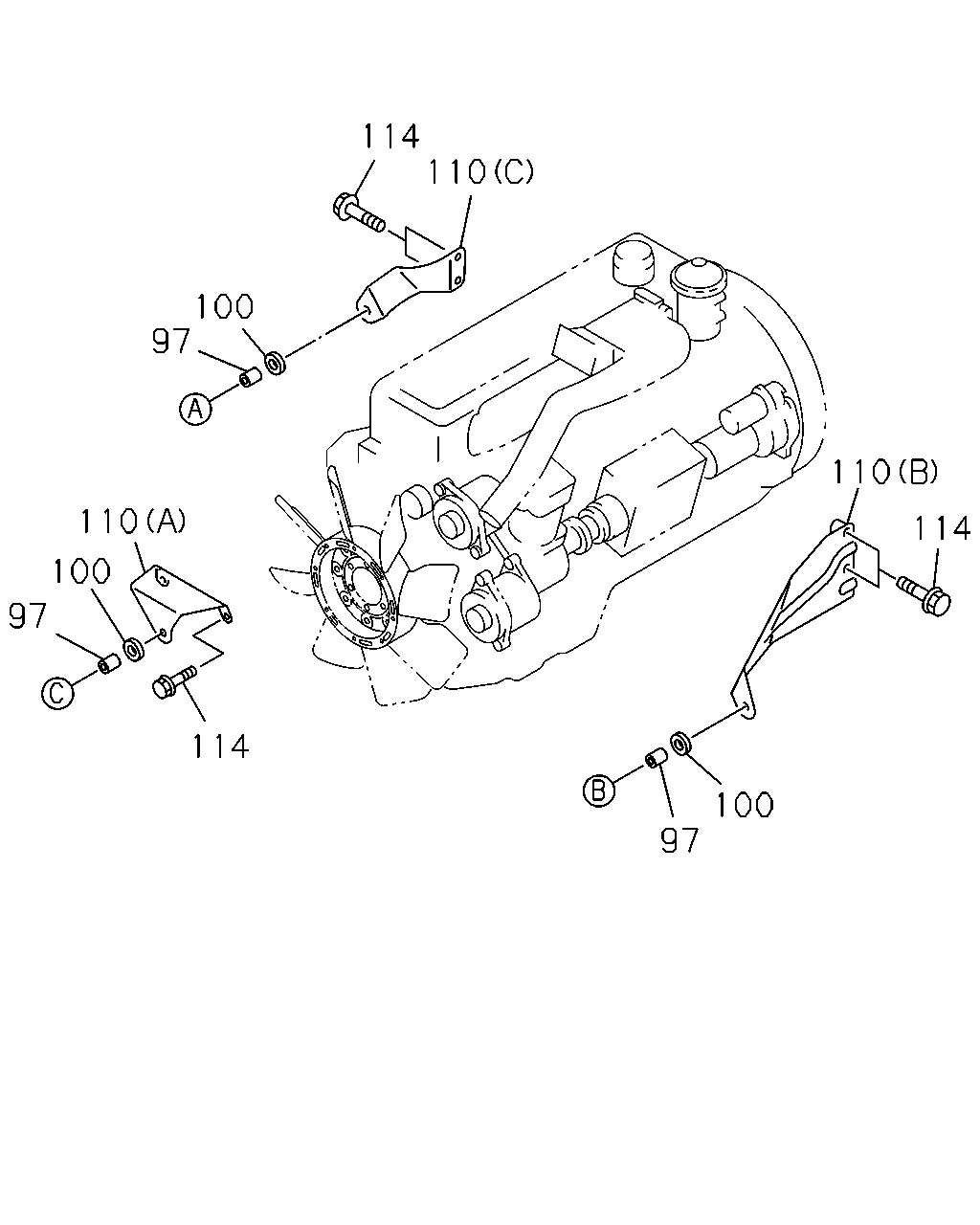

114
100
97
110
110
100
97
114
97
114
110
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1304-
100
RUBBER; MTG
1-09337-017-0
06
1
1304-
110
STAY; FAN GUIDE
(A)
8-97604-861-1
01
1
1304-
110
STAY; FAN GUIDE
(B)
8-97607-503-0
01
1
1304-
110
STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-97607-501-0
01
1
1304-
110
STAY; FAN GUIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)
8-97607-500-0
01
1
1304-
114
BOLT; STAY
M10X20 FLANGE
0-28151-020-0
02
1
1304-
114
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE
0-28151-020-0
02
1
1304-
114
BOLT; STAY
M10X40 FLANGE
0-28151-040-0
02
1
1304-
114
BOLT; STAY
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M10X40 FLANGE
0-28151-040-0
02
1
1304-
1
528
526
232
529
267
89
529
267
235
89
51
527
529
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1304-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1304-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1304-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1304-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1304-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1304-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1304-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1304-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1304-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98060-765-2
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98060-766-2
01
1
1304-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1304-

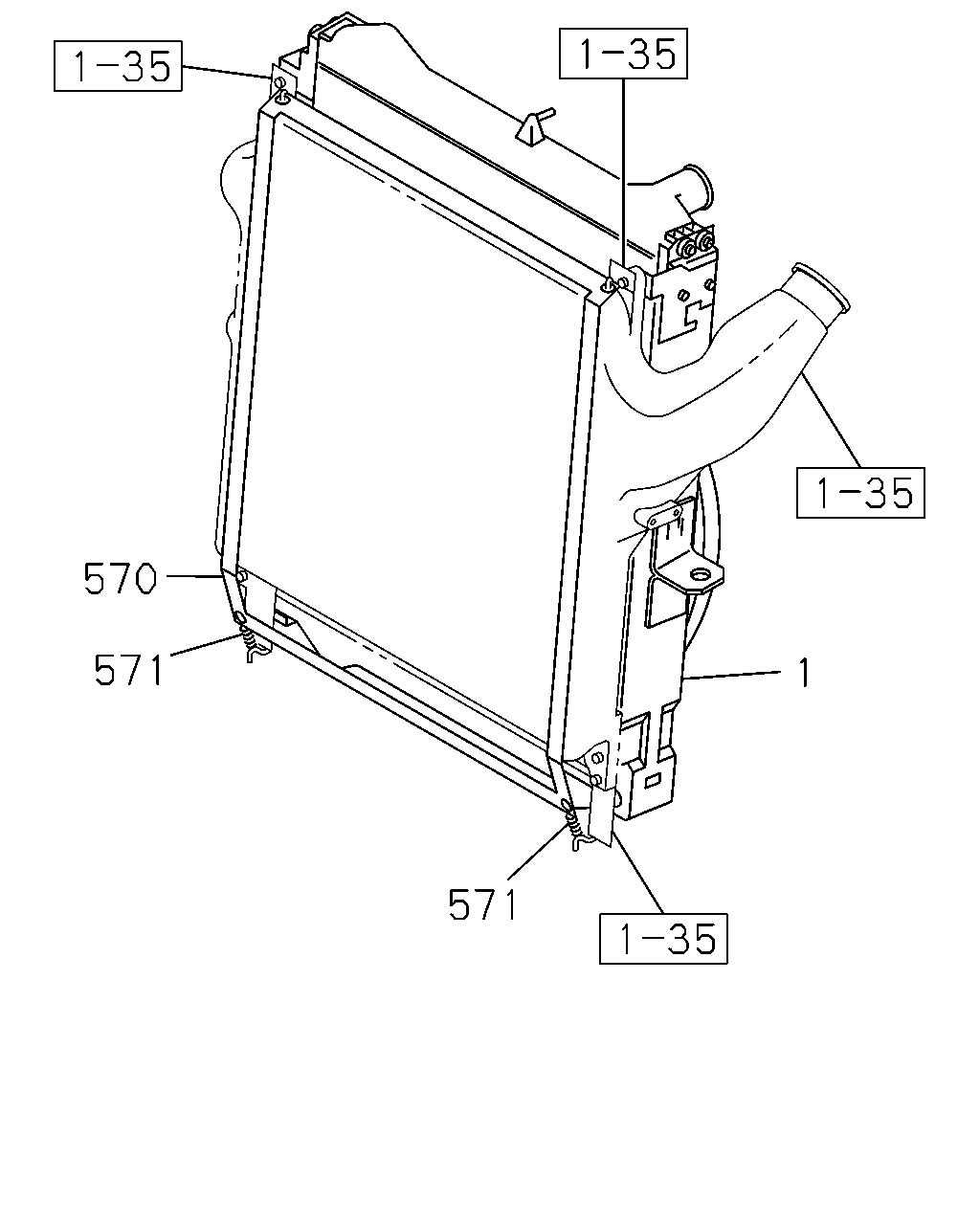

570
571
571
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1304-
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98202-048-1
01
1
1304-1501
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98287-800-0
01
1
1502-
571
SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6>
8-98211-362-0
02
1
1304-
