◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#118084) — 376 parça

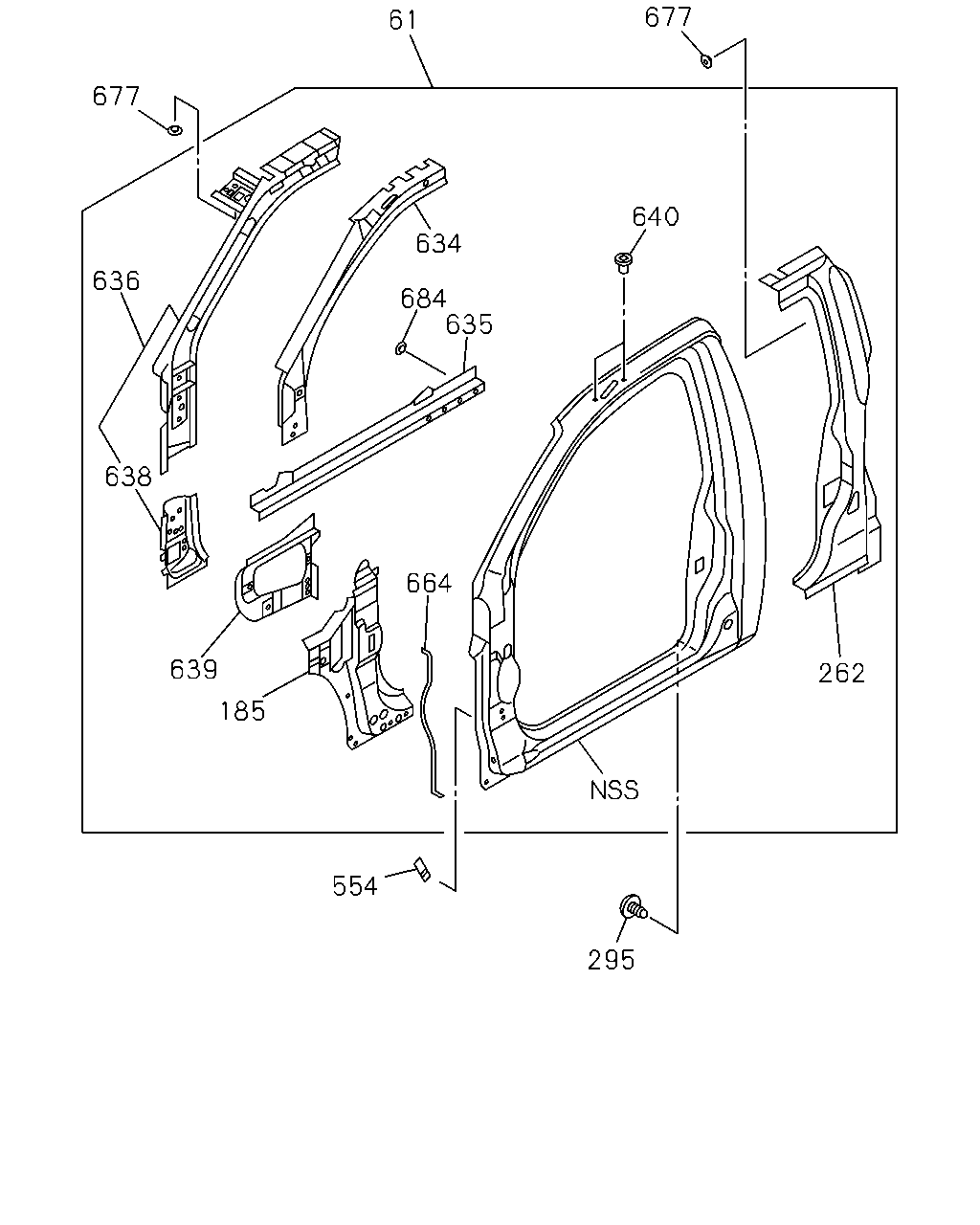

çizim 343684
677 61 677 640 634 636 684 635 664 262 185 639 638 554 295
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98103-239-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-6 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-169-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-820-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-828-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-760-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-767-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98103-241-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98103-241-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-168-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-829-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-829-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-768-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-762-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98139-847-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98139-847-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98139-846-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-827-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-827-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-834-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-834-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98156-775-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ROOF RADIO ANTENNA<U71> 		8-98156-766-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-833-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 		8-98160-826-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ROOF RADIO ANTENNA<U71> 		8-98160-821-3 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
262 16.575 PANEL; PILLAR 8-98104-375-9 01 1 1304-1408 ● ●
262 16.575 PANEL; PILLAR 8-98269-897-0 01 1 1409- ● ●
262 16.575 PANEL; PILLAR 8-98192-993-1 01 1 1304- ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1304- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1304- ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
ISRAEL EQUIPMENT(2G1) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-050-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-050-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-051-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-051-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-793-4 01 1 1401- ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-091-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-504-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-961-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-503-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-960-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-088-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

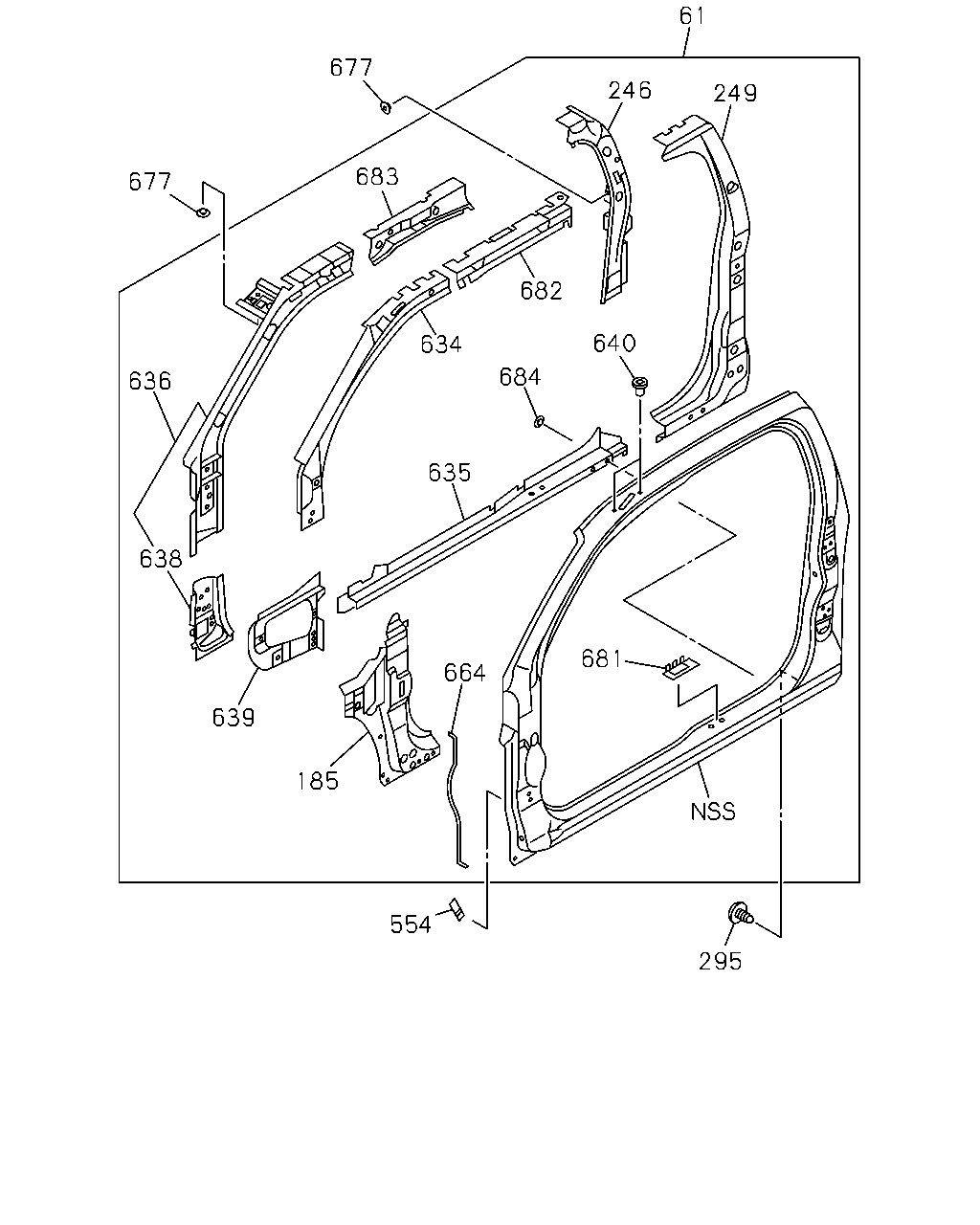

çizim 343700
61 249 246 677 677 683 682 640 684 635 634 636 638 639 185 664 681 295 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98103-239-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-6 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-169-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-820-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-828-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-760-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-767-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98103-241-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98103-241-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-168-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-829-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-829-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-768-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-762-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98139-847-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98139-847-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98139-846-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-827-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-827-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-834-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-834-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98156-775-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ROOF RADIO ANTENNA<U71> 		8-98156-766-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-833-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 		8-98160-826-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ROOF RADIO ANTENNA<U71> 		8-98160-821-3 01 1 1304- ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
246 16.575 PANEL; RR PILLAR,INNER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-450-5 01 1 1304- ●
246 16.575 PANEL; RR PILLAR,INNER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-452-5 01 1 1304- ●
249 16.674 REINFORCEMENT; RR PILLAR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98129-584-5 01 1 1304- ●
249 16.674 REINFORCEMENT; RR PILLAR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98129-593-5 01 1 1304- ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1304- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1304- ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
ISRAEL EQUIPMENT(2G1) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-050-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-050-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-051-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-051-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-793-4 01 1 1401- ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-091-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-504-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-961-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-503-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-960-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-088-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ●
681 16.588 REINFORCEMENT; STRIKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-040-0 01 1 1304- ●
681 16.588 REINFORCEMENT; STRIKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-041-0 01 1 1304- ●
682 16.575 REINFORCEMENT; ROOF SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-559-2 01 1 1304- ●
682 16.575 REINFORCEMENT; ROOF SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98104-563-2 01 1 1304- ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98119-107-4 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98119-107-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-4 01 1 1304-1309 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. ROOF RADIO ANTENNA<U71> 		8-98119-106-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EXC. ROOF RADIO ANTENNA<U71> 		8-98119-106-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98161-122-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98161-122-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-126-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-126-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98161-128-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98161-124-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-816-4 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-816-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-815-4 01 1 1304-1309 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) ROOF RADIO ANTENNA<U71> 		8-98104-815-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98104-815-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) ROOF RADIO ANTENNA<U71> 		8-98104-815-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98104-815-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-123-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-123-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-127-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-127-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98161-129-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ROOF RADIO ANTENNA<U71> 		8-98161-125-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-106-2 01 1 1304- ●
683 16.585 PANEL; HEADER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-108-2 01 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

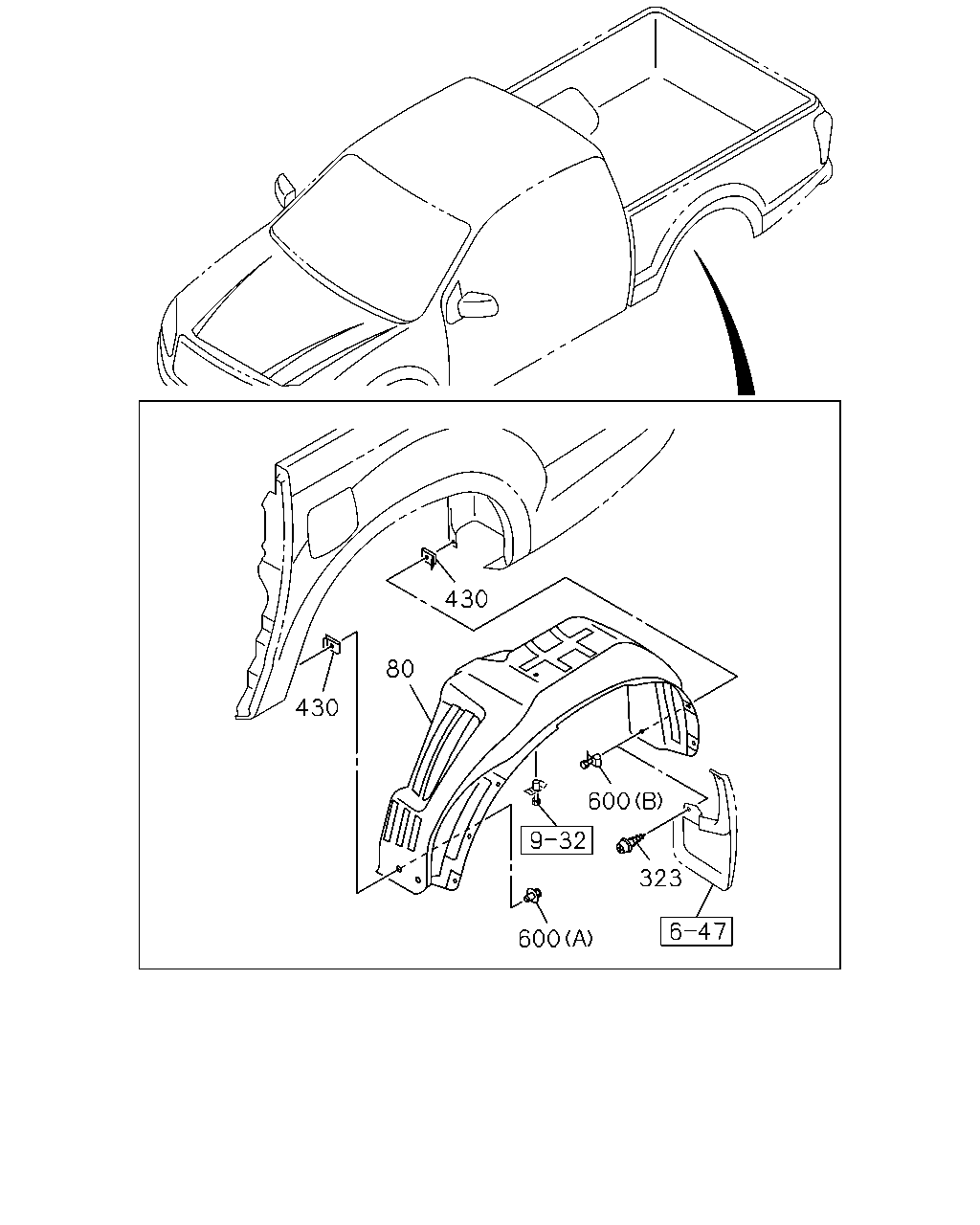

çizim 343704
430 80 430 600 323 600
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-945-5 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-945-5 01 1 1304- ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-946-5 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-946-5 01 1 1304- ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-943-4 01 1 1304- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-944-4 01 1 1304- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1304- ● ● ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1304- ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1304- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1304- ● ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 08.155 		8-97125-519-0 06 1 1304- ● ● ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 08.155 		8-97125-519-0 06 1 1304- ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 08.155 		8-97125-519-0 02 1 1304- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 02 1 1304- ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98186-355-0 04 1 1304- ● ● ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H>, FORMED MUD FLAP EXTEND FRT & RR<Q8J> 08.154 (B) 		8-94221-150-0 06 1 1304- ● ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 (B) 		8-94221-150-0 06 1 1304- ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 08.154 (B) 		8-94221-150-0 02 1 1304- ● ●

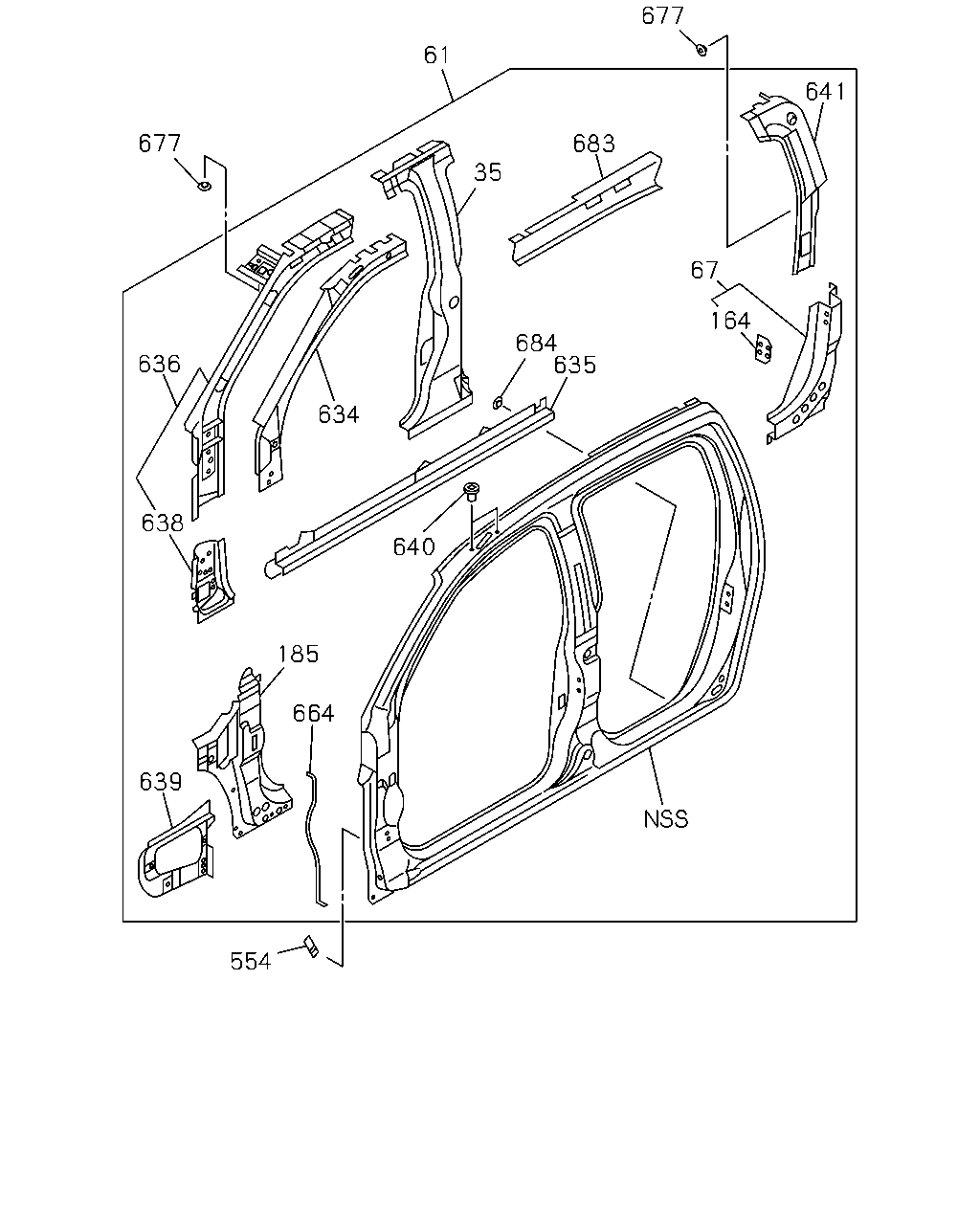

çizim 343724
677 61 677 641 683 35 67 164 684 634 640 635 636 638 185 664 639 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1304- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-250-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98103-239-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98103-248-6 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-169-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-820-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98160-828-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-760-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-767-5 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98103-241-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98103-241-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98206-168-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98160-822-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-829-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-829-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98156-768-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98156-762-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98139-847-5 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98139-847-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98139-846-2 01 1 1304-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-5 01 1 1310-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98139-846-7 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-827-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-827-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98160-834-4 01 1 1304-1312 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98160-834-6 01 1 1401- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98156-775-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ROOF RADIO ANTENNA<U71> 		8-98156-766-6 01 1 1304- ● ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-833-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 		8-98160-826-3 01 1 1304- ●
61 16.570 PANEL; SIDE OUTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ROOF RADIO ANTENNA<U71> 		8-98160-821-3 01 1 1304- ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1304- ● ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1304- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1304- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1304- ● ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1304- ● ● ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1304- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1304- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
ISRAEL EQUIPMENT(2G1) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-503-2 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-503-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL E QUIPMENT(2G1) 		8-98104-504-2 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-043-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98161-047-1 01 1 1304- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-794-4 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-794-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-050-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-050-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98161-051-2 01 1 1304-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-051-2 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-098-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-099-1 01 1 1304- ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-793-4 01 1 1304-1309 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-793-4 01 1 1310-1312 ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98104-793-4 01 1 1401- ● ●
635 16.570 REINFORCEMENT; ROCKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-793-4 01 1 1401- ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-091-7 01 1 1304- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-504-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-961-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98137-503-9 01 1 1304-1505 ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98297-960-0 01 1 1506- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-088-7 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1304- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1304- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1304- ● ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ●
640 16.570 POP NUT
EXC. ROOF RADIO ANTENNA<U71> 09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1304- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1304- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1304- ● ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1304- ● ● ● ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98119-107-4 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98119-107-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-4 01 1 1304-1309 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. ROOF RADIO ANTENNA<U71> 		8-98119-106-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EXC. ROOF RADIO ANTENNA<U71> 		8-98119-106-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98119-106-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98161-122-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98161-122-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-126-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUA DOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-126-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) 		8-98161-128-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EXC. ROOF RADIO ANTENNA<U71> 		8-98161-124-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) 		8-98104-816-4 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) 		8-98104-816-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 		8-98104-815-4 01 1 1304-1309 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) ROOF RADIO ANTENNA<U71> 		8-98104-815-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98104-815-4 01 1 1310-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1) ROOF RADIO ANTENNA<U71> 		8-98104-815-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) EXC. ROOF RADIO ANTENNA<U71> 		8-98104-815-5 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-123-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-123-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98161-127-1 01 1 1304-1312 ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),COST A RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-127-2 01 1 1401- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98161-129-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ROOF RADIO ANTENNA<U71> 		8-98161-125-3 01 1 1304- ● ●
683 16.585 PANEL; HEADER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-106-2 01 1 1304- ●
683 16.585 PANEL; HEADER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98161-108-2 01 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1304- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 11 1 1304- ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1304- ● ●

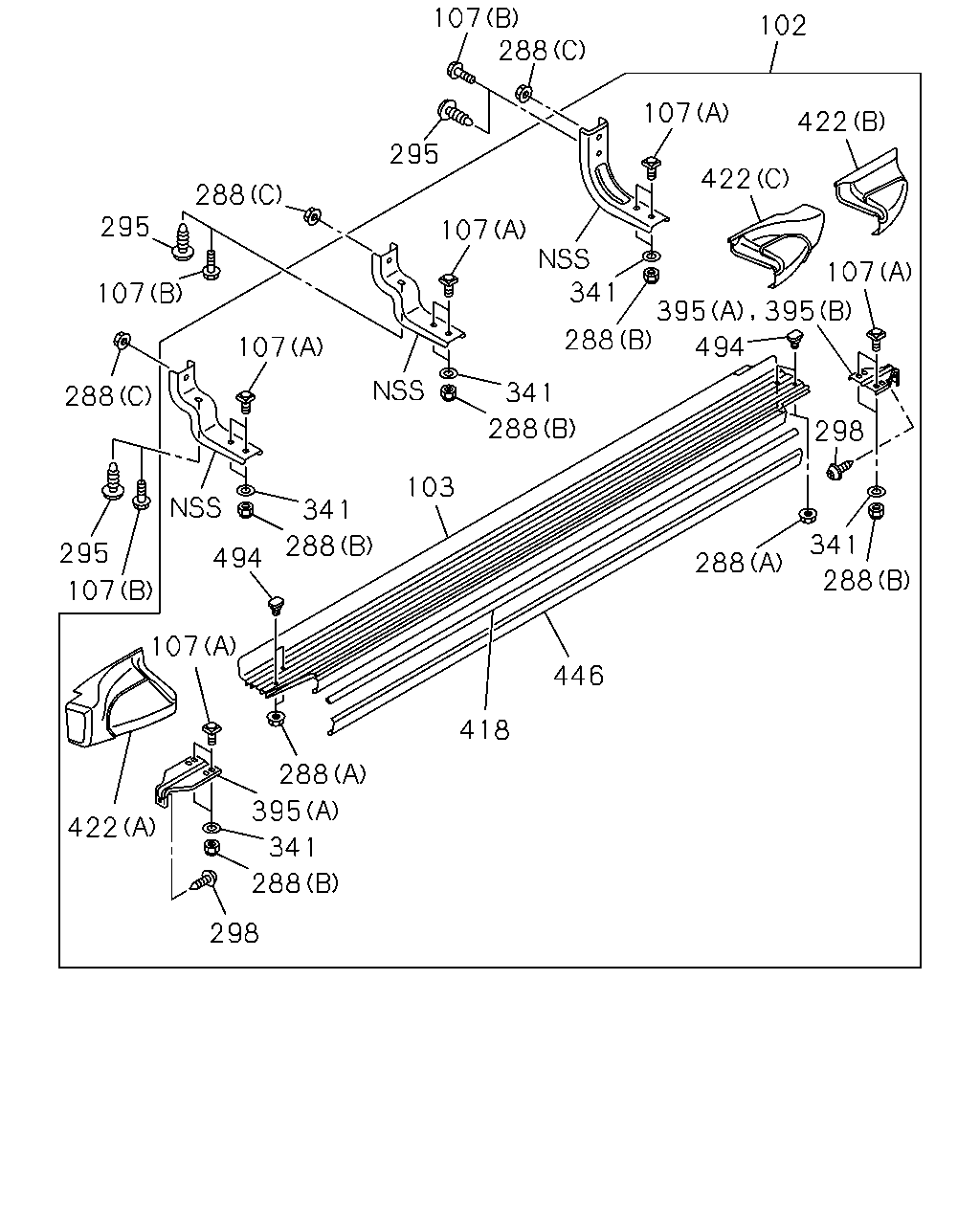

çizim 344979
288 295 107 107 295 288 107 107 422 288 395 341 288 298 418 446 103 341 288 494 107 341 288 341 288 288 341 288 298 395 107 422 107 295 107 422 395 494 288 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-5 01 1 1304- ● ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-5 01 1 1304- ● ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-301-5 01 1 1304- ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-302-5 01 1 1304- ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1409- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1409- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-970-0 01 1 1409- ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-971-0 01 1 1409- ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1409- ● ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1304- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (A) M6 FLANGE 		0-91180-106-0 08 1 1409- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1409- ● ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.540 (C) M8 FLANGE 		0-91180-208-0 06 1 1304- ● ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1304- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1304- ● ● ●
298 08.309 SCREW; SIDE STEP
SIDE STEP<6TC> 01.269 M5X16 		8-98073-081-0 04 1 1409- ● ● ●
341 08.309 WASHER; PL,STEP
SIDE STEP<6TC> 02.559 ID=8.4 OD=18 		0-91614-608-0 20 1 1409- ● ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) 		8-98292-978-0 04 1 1409- ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) 		8-98292-978-0 02 1 1409- ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) 		8-98292-980-0 02 1 1409- ●
418 08.304 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1409- ● ●
418 08.304 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-009-0 02 1 1409- ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1409- ● ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1409- ● ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (C) REAR SILVER 		8-97466-046-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (C) REAR SILVER 		8-97466-050-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-038-1 01 1 1409- ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-044-1 01 1 1409- ●
446 08.228 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1409- ● ●
446 08.228 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-040-0 02 1 1409- ●
494 08.228 STUD; BRKT
SIDE STEP<6TC> 08.077 		8-98056-035-0 08 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
