0-66 — GENERATOR (#118083) — 59 parça

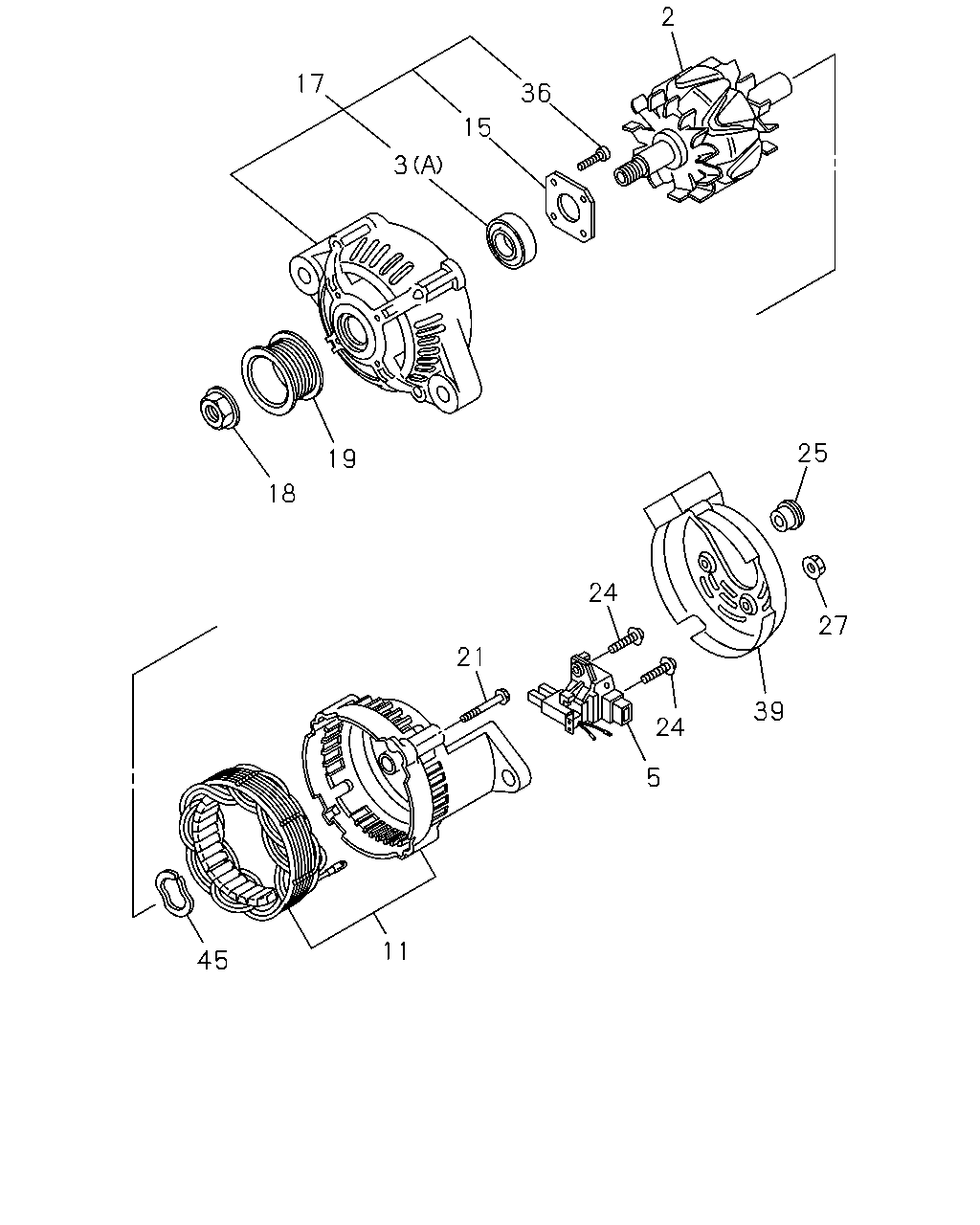

2 36 15 3 17 19 18 21 24 25 27 39 24 5 11 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: B = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97245-850-2, 97245850	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97378-926-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-98229-071-1, 98229071	8-98159-086-0	01	1	-1403
11	02.305 COVER; RR,GEN ASM PART: B = 8-98229-071-1, 98229071	8-98242-367-0	01	1	1404-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-98229-071-1, 98229071	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: B = 8-98229-071-1, 98229071	8-98196-584-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97319-772-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: B = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97378-928-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97142-570-0	01	1	-1403

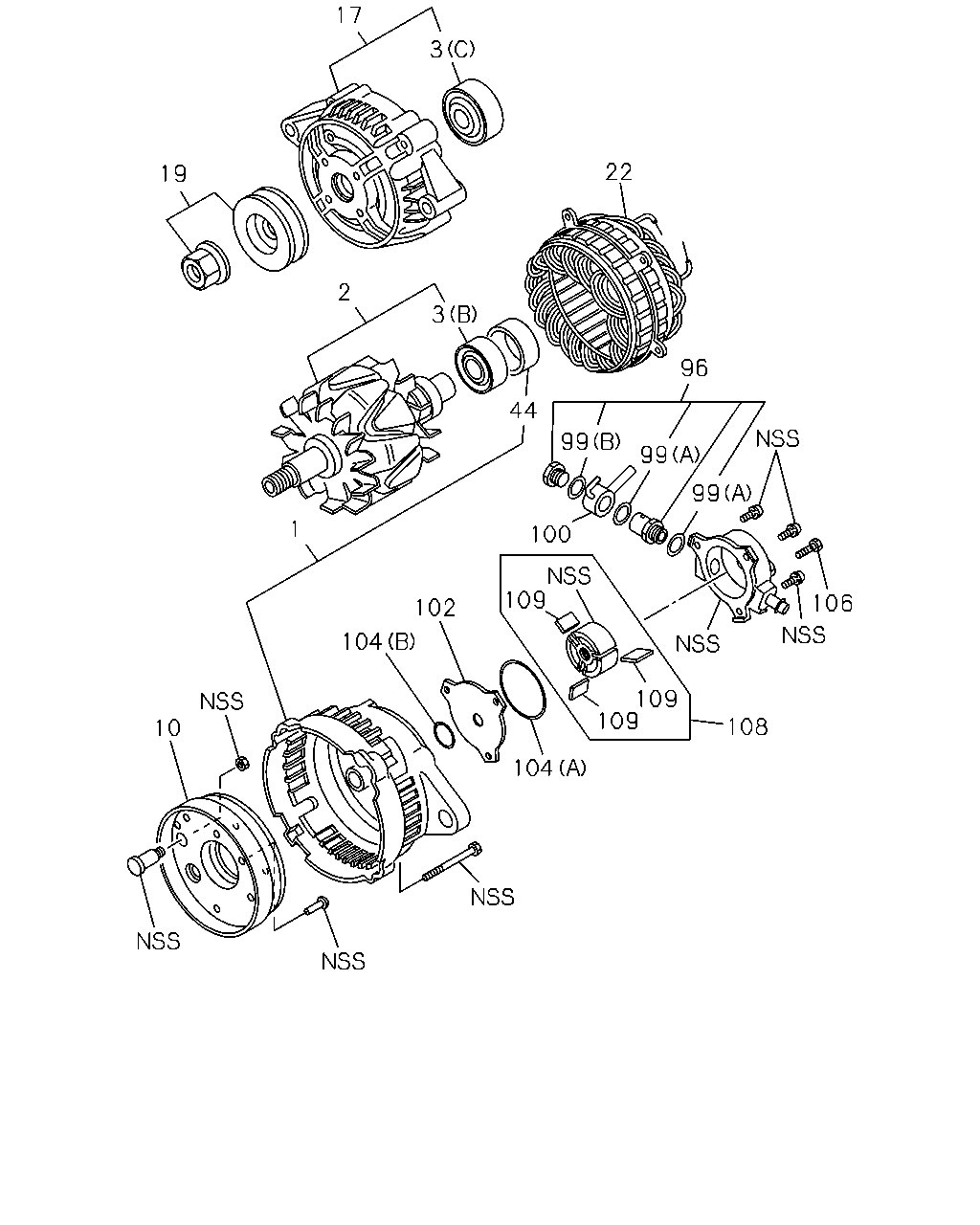

100 108 109 109 104 10 104 109 99 96 99 106 99 44 3 2 1 19 17 22 102 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97245-850-2, 97245850	8-98232-047-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97245-850-2, 97245850	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97245-850-2, 97245850	8-98232-051-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-674-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-

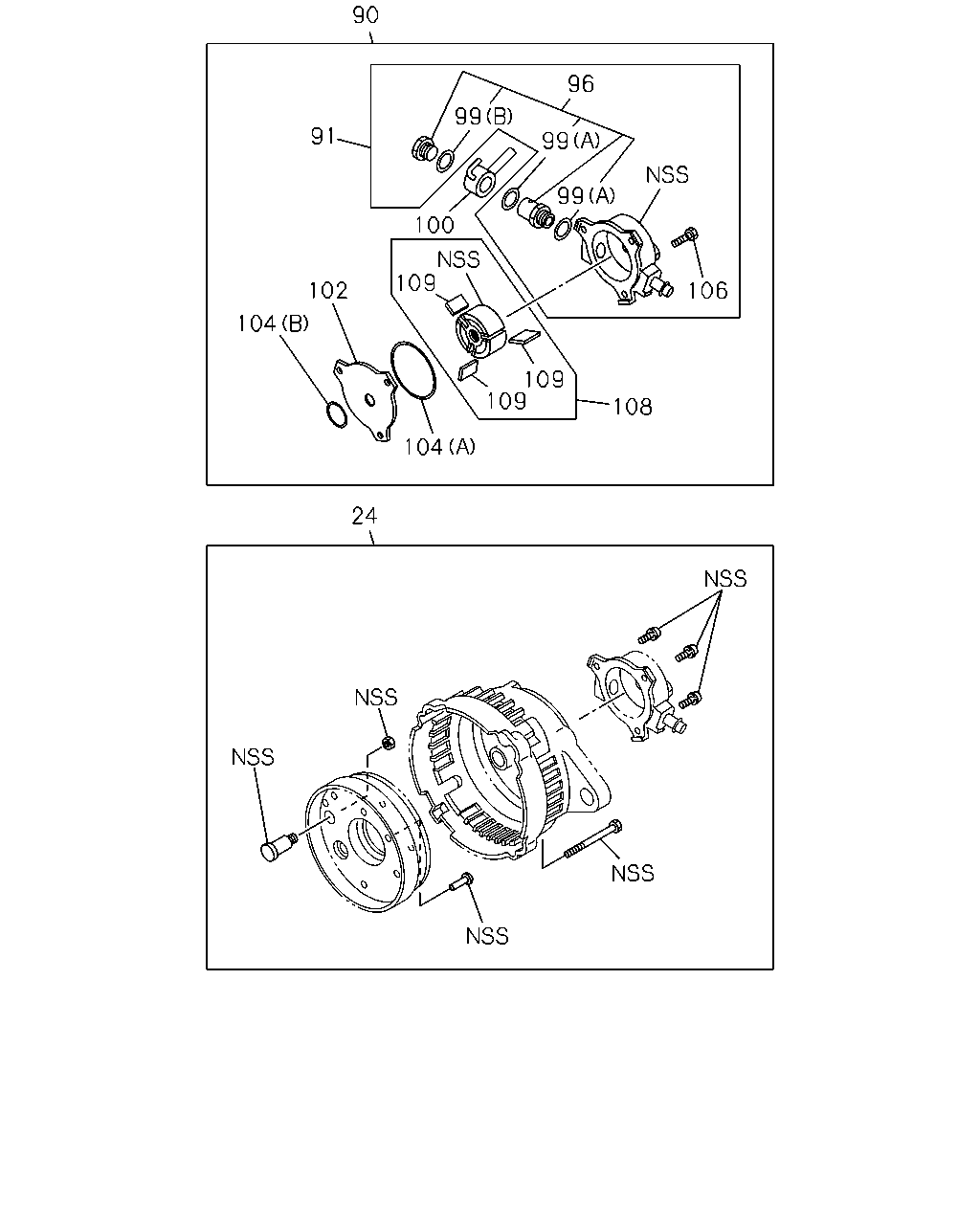

24 109 102 104 91 90 96 99 99 99 100 106 108 109 109 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-613-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-937-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-
