Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#11808) — 34 parça
◀

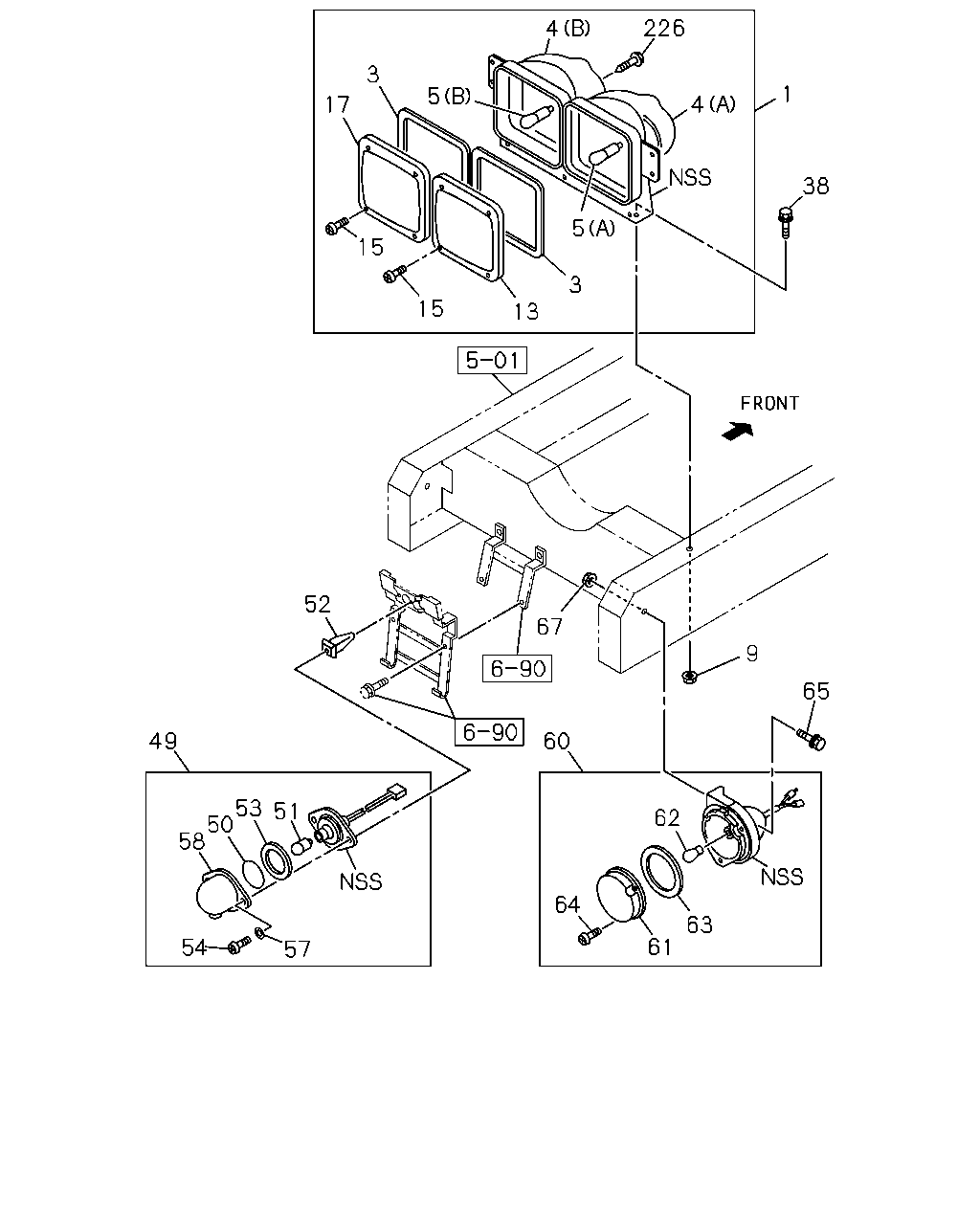

[803A] COMB,BACKUP AND LICENSE PLATE LAMP (32 parça)

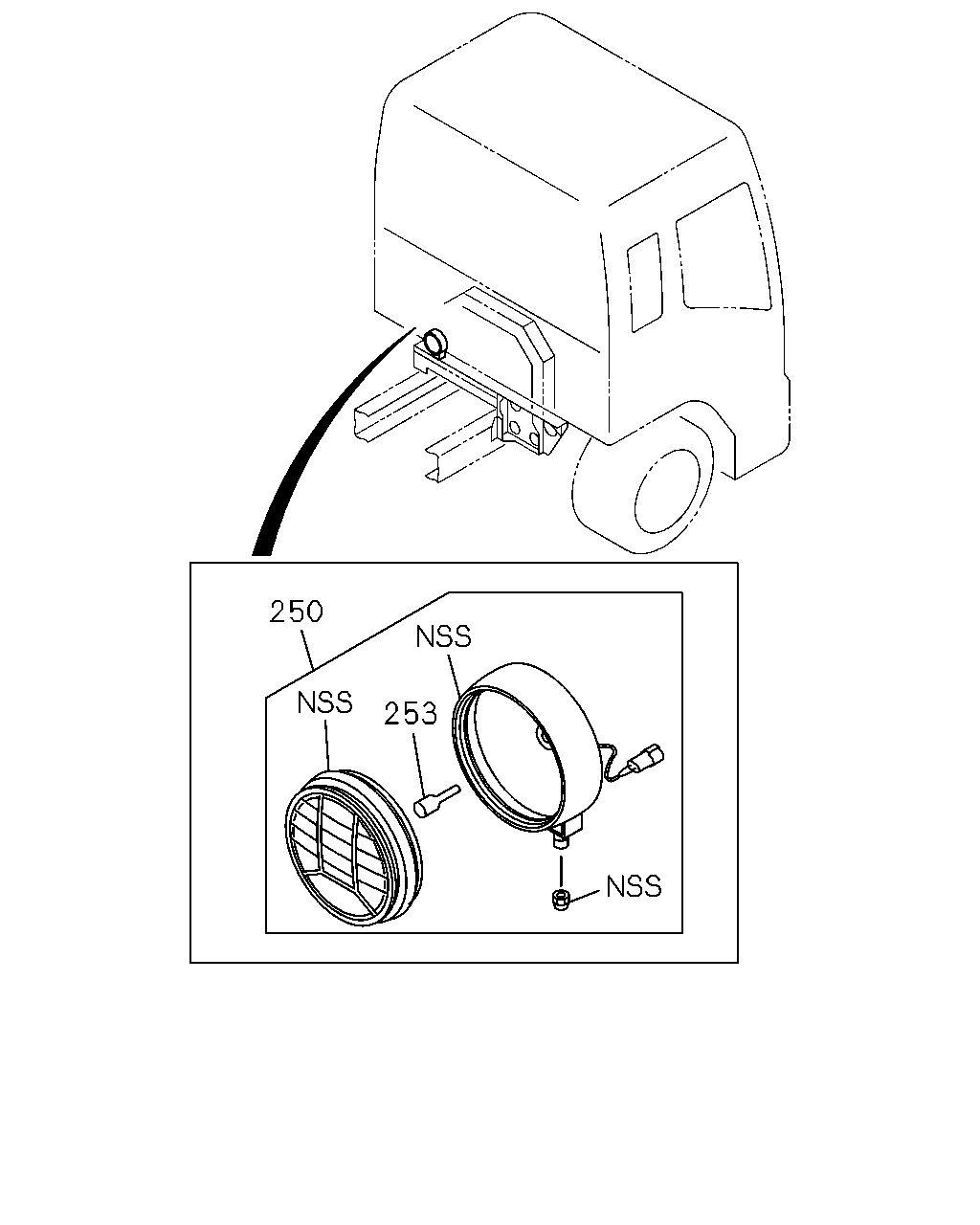

[803A] SEARCH LIGHT (2 parça)
▶
226
4
3
1
5
17
4
38
5
15
3
15
13
52
67
9
65
49
60
53
51
50
58
62
64
63
61
54
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-160-2
01
1
0106-
1
LAMP ASM; RR COMB
1-82230-159-2
01
1
0106-
3
GASKET; RR COMB LAMP
1-82236-003-0
04
1
0106-
4
COVER; RR,RR COMB LAMP
(A)
1-82239-033-0
02
1
0106-
4
COVER; RR,RR COMB LAMP
(B)
1-82239-034-0
02
1
0106-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0106-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
0106-
9
NUT; LAMP,RR COMB
M8 FLANGE
0-91150-108-0
02
1
0106-0602
9
NUT; LAMP,RR COMB
M8 FLANGE
0-91180-108-0
02
1
0603-
13
LENS; TURN SIGNAL
1-82235-016-0
02
1
0106-
15
SCREW; RR COMB LAMP
1-82239-019-0
16
1
0106-
17
LENS; STOP,RR COMB LAMP
1-82235-002-0
02
1
0106-
38
BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER
0-50140-840-0
02
1
0106-0512
38
BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER
0-50640-840-0
02
1
0601-
49
LAMP; LICENSE PLATE
1-82120-024-0
01
1
0106-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0106-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0106-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0106-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0106-
54
SCREW; LICENSE PLATE LAMP
1-82129-007-0
02
1
0106-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0106-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0106-
60
LAMP; BACKUP
1-82130-016-1
01
1
0106-
61
LENS; BACKUP LAMP
1-82135-003-0
01
1
0106-
62
BULB; BACKUP LAMP
24V 25W
9-82691-347-0
01
1
0106-
63
GASKET; BACKUP LAMP
1-82136-002-0
01
1
0106-
64
SCREW; BACKUP LAMP
1-82139-002-0
03
1
0106-
65
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
0-50141-035-0
02
1
0106-0512
65
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0601-
67
NUT; FLANGE
M10 FLANGE
0-91150-210-0
02
1
0106-0602
67
NUT; FLANGE
M10 FLANGE
0-91180-210-0
02
1
0603-
226
SCREW; PROTECTOR
1-82239-032-0
08
1
0106-
250
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82180-014-0
01
1
0106-
253
BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 24V 70W
1-82194-087-0
01
1
0106-
