3-55 — BRAKE PIPING; OIL,REAR
(#118079) — 29 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
D - TFS5CF
E - TFS5SF
F - TFS5WF
◀

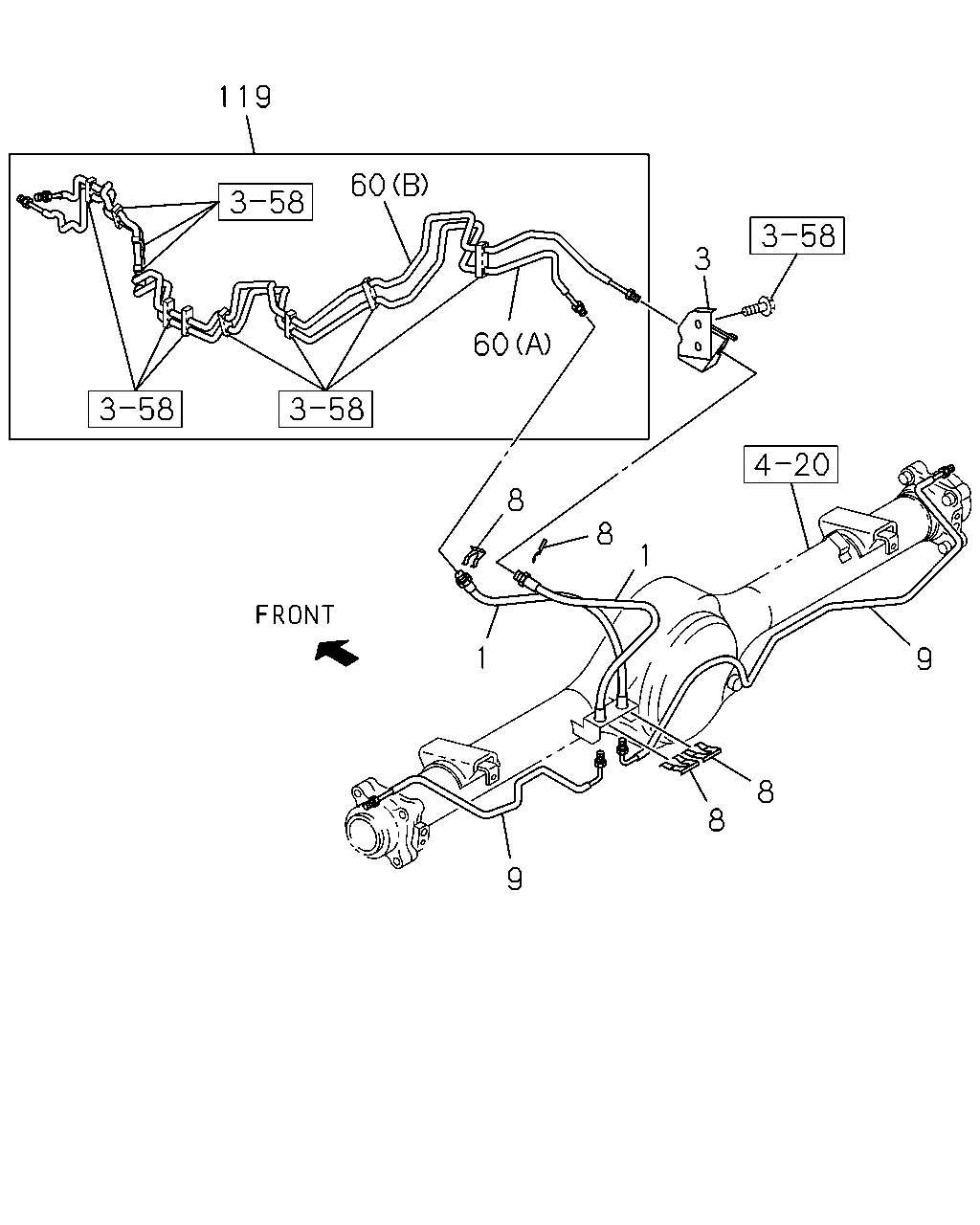

[355A] PIPING (24 parça)

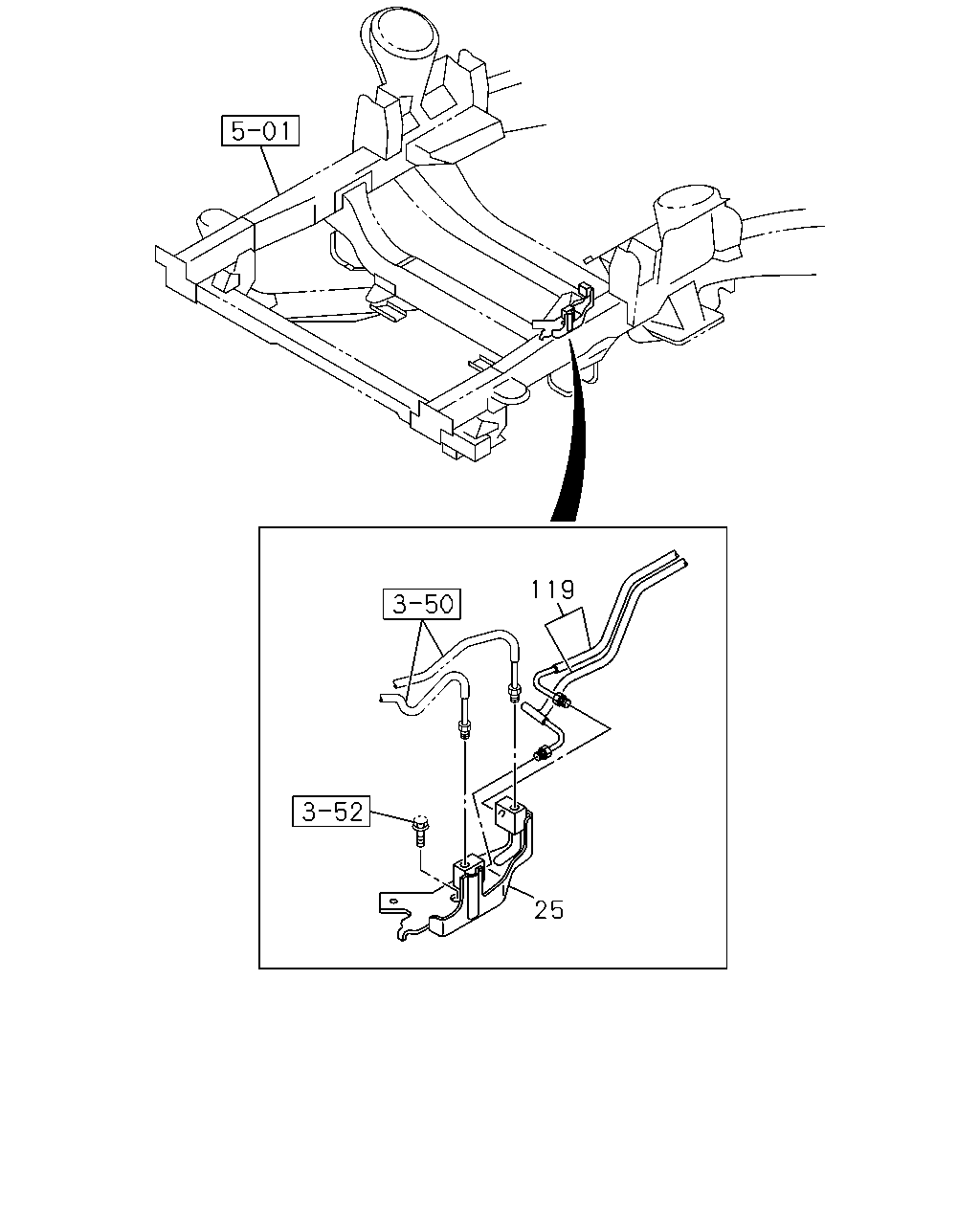

[355A] CONNECTOR (5 parça)
▶
119
60
60
3
8
8
1
9
8
8
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.680 HOSE; FLEX,RR BRK
8-97947-133-1
01
1
1304-
●
●
●
●
●
●
1
04.680 HOSE; FLEX,RR BRK
8-98067-085-1
01
1
1304-
●
●
●
●
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
8-98102-358-1
01
1
1304-
●
●
●
●
●
●
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
1304-
●
●
●
●
●
●
9
04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC)
8-98103-455-1
01
1
1304-
●
●
9
04.685 PIPE; BRK,RR AXLE
8-98103-455-1
01
1
1304-
●
●
●
9
04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC)
8-98103-456-1
01
1
1304-
●
●
9
04.685 PIPE; BRK,RR AXLE
8-98103-456-1
01
1
1304-
●
●
●
9
04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC)
8-98151-580-0
01
1
1304-
●
●
9
04.685 PIPE; BRK,RR AXLE
8-98151-580-0
01
1
1304-
●
9
04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC)
8-98151-581-0
01
1
1304-
●
●
9
04.685 PIPE; BRK,RR AXLE
8-98151-581-0
01
1
1304-
●
60
04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (A)
8-98099-741-4
01
1
1304-
●
●
60
04.685 PIPE ASM; BRK
(A)
8-98099-741-4
01
1
1304-
●
●
●
60
04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (B)
8-98099-742-4
01
1
1304-
●
●
60
04.685 PIPE ASM; BRK
(B)
8-98099-742-4
01
1
1304-
●
●
●
60
04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98155-587-2
01
1
1304-
●
●
60
04.685 PIPE ASM; BRK
(B)
8-98155-587-2
01
1
1304-
●
60
04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A)
8-98155-588-2
01
1
1304-
●
●
60
04.685 PIPE ASM; BRK
(A)
8-98155-588-2
01
1
1304-
●
119
04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC)
8-98099-740-4
01
1
1304-
●
●
119
04.685 PIPE; BRK,2WAY TO RR
8-98099-740-4
01
1
1304-
●
●
●
119
04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC)
8-98155-586-2
01
1
1304-
●
●
119
04.685 PIPE; BRK,2WAY TO RR
8-98155-586-2
01
1
1304-
●
119
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
25
04.686 CONNECTOR
8-98099-785-1
01
1
1304-
●
●
●
●
●
●
119
04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC)
8-98099-740-4
01
1
1304-
●
●
119
04.685 PIPE; BRK,2WAY TO RR
8-98099-740-4
01
1
1304-
●
●
●
119
04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC)
8-98155-586-2
01
1
1304-
●
●
119
04.685 PIPE; BRK,2WAY TO RR
8-98155-586-2
01
1
1304-
●
