8-01 — LAMP; FRONT AND FRONT SIDE (#11807) — 120 parça

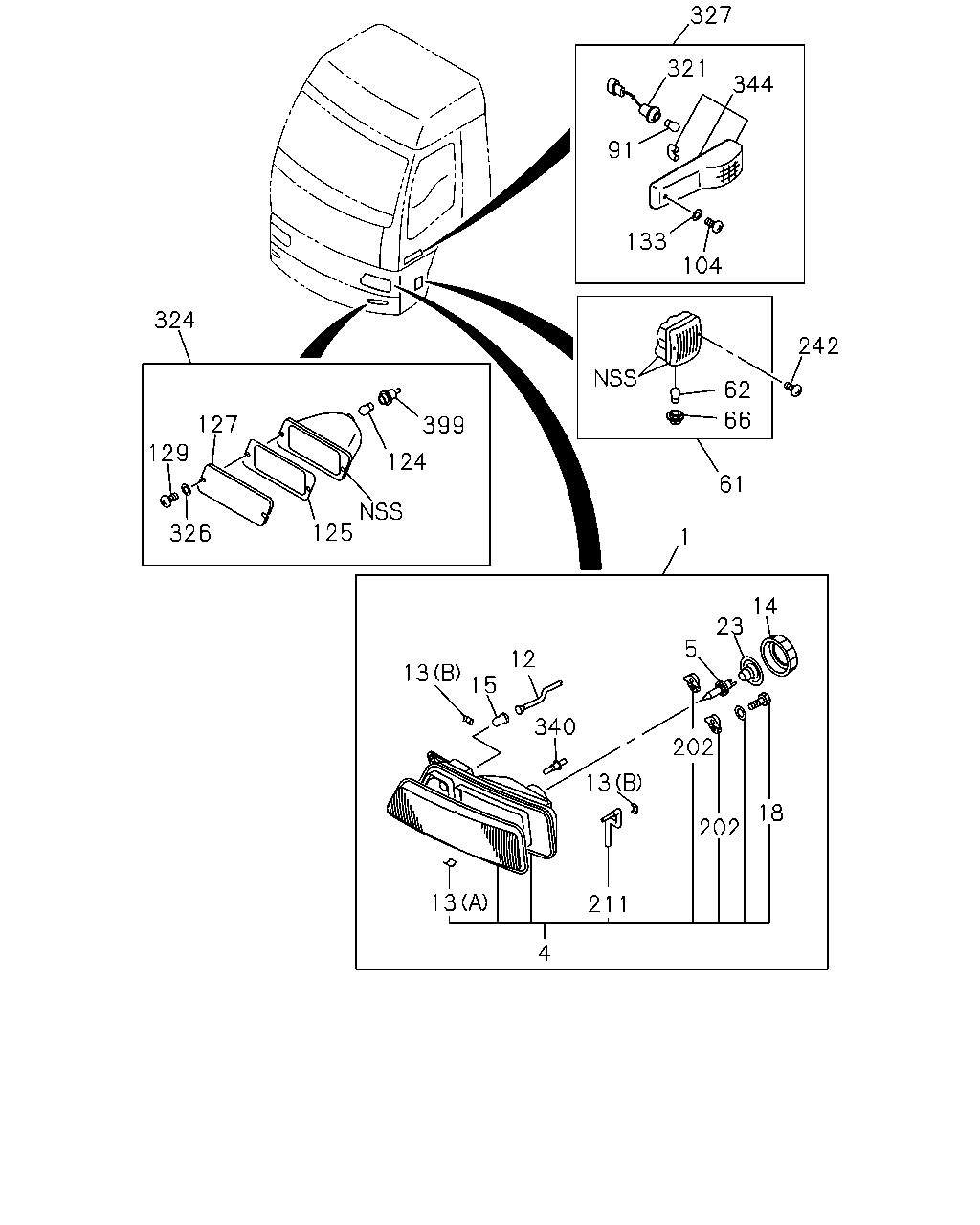

327 321 344 91 133 104 324 242 62 66 127 399 129 124 61 125 326 1 14 23 5 12 13 15 340 202 13 18 202 13 211 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-396-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-414-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-395-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-413-0	01	1	0510-
4	HEADLAMP UNIT 24V 75/70W	1-82119-129-0	01	1	0106-
4	HEADLAMP UNIT 24V 75/70W	1-82119-128-0	01	1	0106-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0106-
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	0106-
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0106-
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0106-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0106-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0106-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0106-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0106-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-188-2	01	1	0106-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0106-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0106-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0106-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0106-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0106-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0106-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0106-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0106-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0106-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0106-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0106-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0106-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0106-0206
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0106-
211	TUBE; HEADLAMP	1-86830-331-0	01	1	0106-
211	TUBE; HEADLAMP	1-86830-330-0	01	1	0106-
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0106-0207
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0208-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0106-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0106-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0106-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0106-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0106-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0106-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0106-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0106-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0106-
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0106-

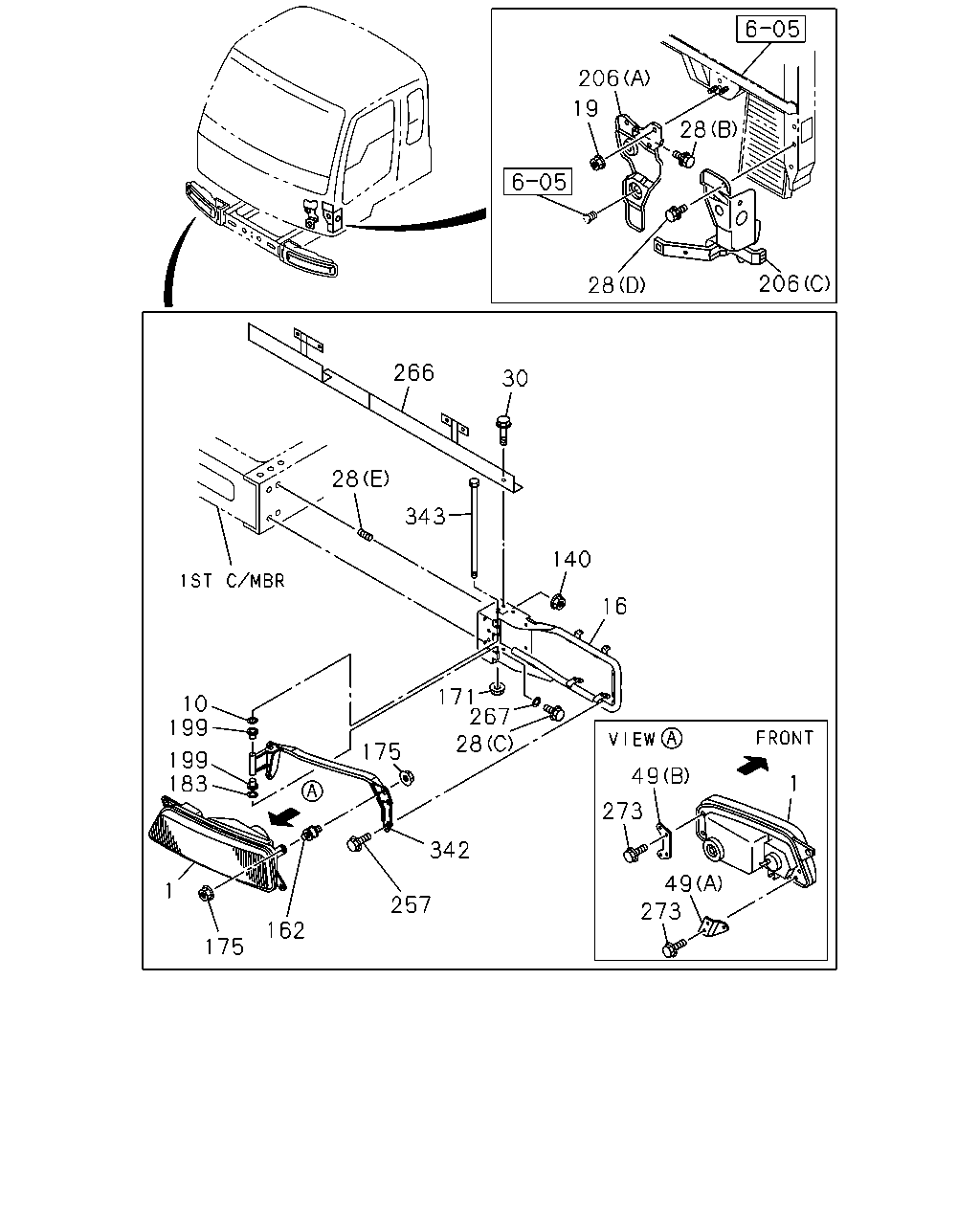

206 19 28 206 28 266 30 28 343 140 16 171 267 28 10 199 175 199 183 49 1 273 342 49 273 1 257 162 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-396-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-414-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-395-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-413-0	01	1	0510-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	0106-0605
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-120-2	01	1	0106-0206
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-119-2	01	1	0106-0206
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-155-2	02	1	0207-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-0512
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28651-030-0	06	1	0601-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X35 L=50	5-09300-050-0	02	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0106-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0106-
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	0106-0512
30	BOLT; STAY M10X25 FLANGE	0-28651-025-0	04	1	0601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0106-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0106-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0106-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0106-0602
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	02	1	0603-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0106-
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	0106-0602
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	0603-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0106-0602
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	0603-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	0106-
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	0106-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0106-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0106-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0106-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0106-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	0106-0512
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28050-820-0	04	1	0601-
266	STAY; BRKT,HEADLAMP	1-82117-137-1	01	1	0106-0510
266	STAY; BRKT,HEADLAMP	1-82117-187-0	01	1	0511-
267	WASHER; PL,STAY BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22	9-09164-610-0	04	1	0207-0605
267	WASHER; PL,STAY BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22	0-91614-610-0	04	1	0606-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	0106-0512
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28650-616-0	08	1	0601-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	0106-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	0106-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	0106-

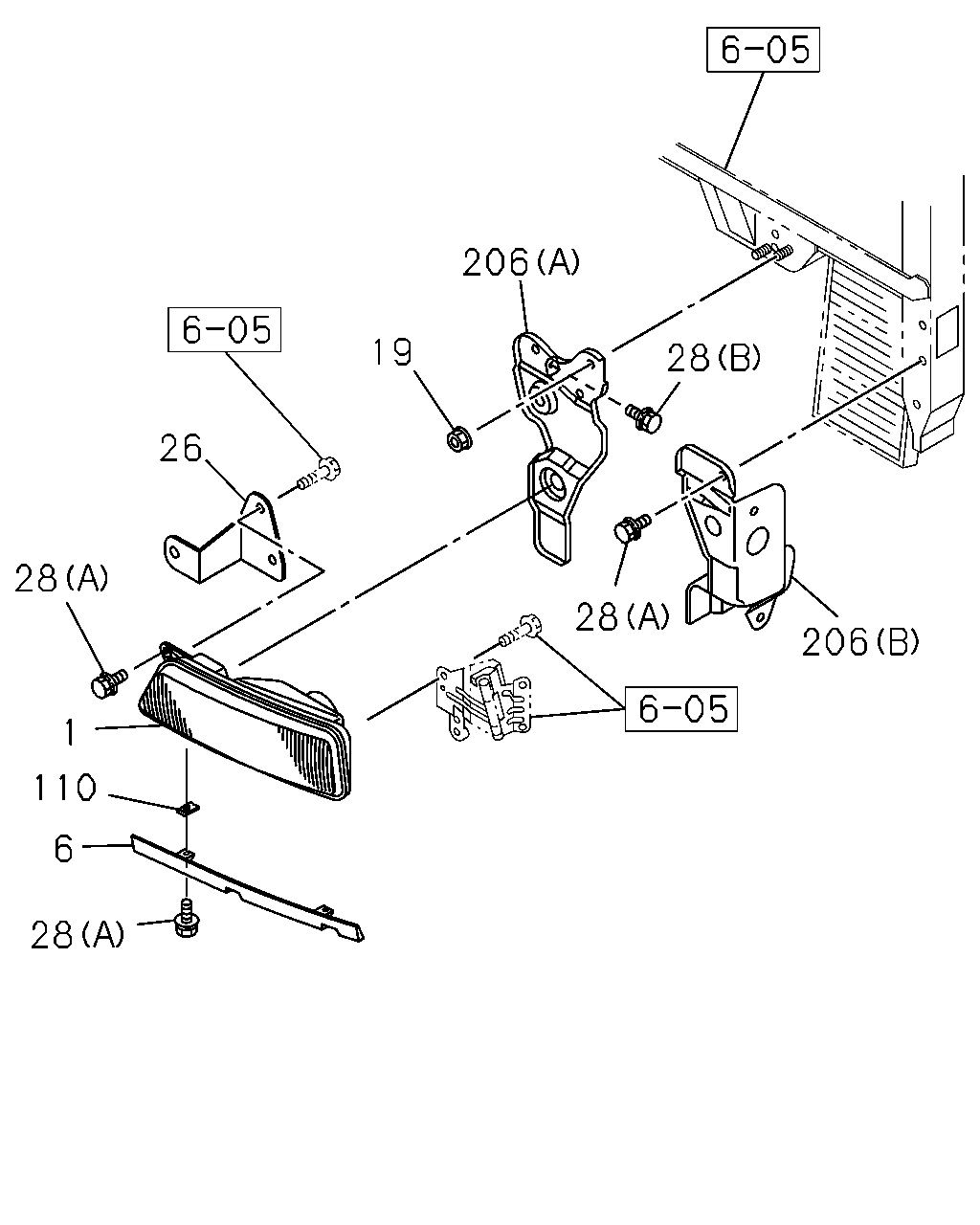

206 19 28 26 28 28 206 1 110 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-396-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-414-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-395-2	01	1	0106-0509
1	LAMP ASM; HEAD	8-97609-413-0	01	1	0510-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	0106-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	0106-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0106-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-0512
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28651-030-0	06	1	0601-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X35 L=50	5-09300-050-0	02	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0106-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0106-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	0106-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0106-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0106-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0106-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0106-

256 84 83 325 325 185 328 325 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
83	LENS; MARKER LAMP HIGH ROOF<S2F>	1-86830-321-0	03	1	0106-
84	GASKET; MARKER LAMP HIGH ROOF<S2F>	1-86830-153-0	03	1	0106-
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	0106-
256	LAMP; MARKER HIGH ROOF<S2F>	1-82210-230-0	03	1	0106-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	0106-
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	0106-0603
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	0-71040-514-0	12	1	0604-
328	COVER; LAMP EXC. HIGH ROOF<S2F>	1-76217-122-1	03	1	0106-
