Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#118063) — 44 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

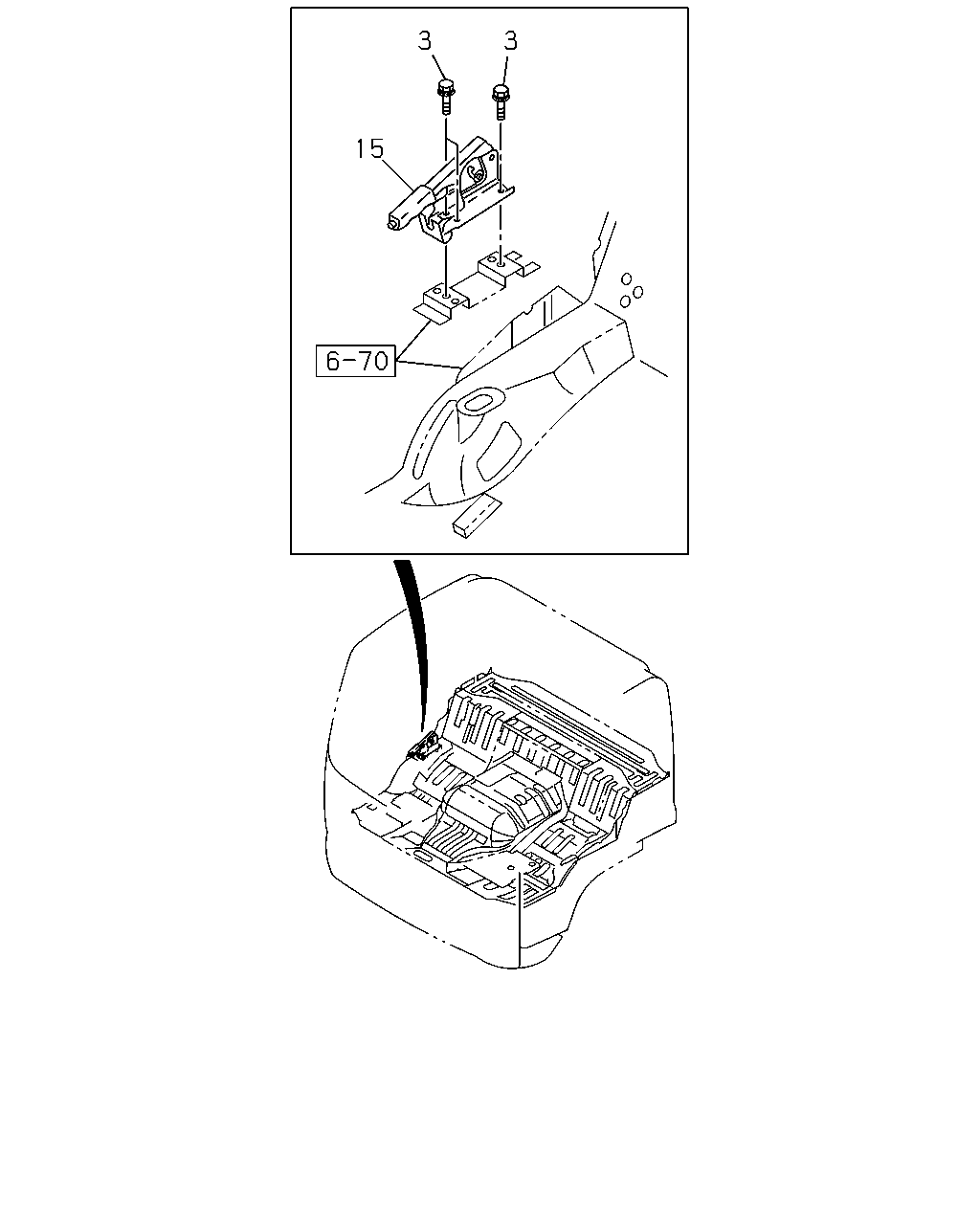

[285A] PTO LEVER (2 parça)

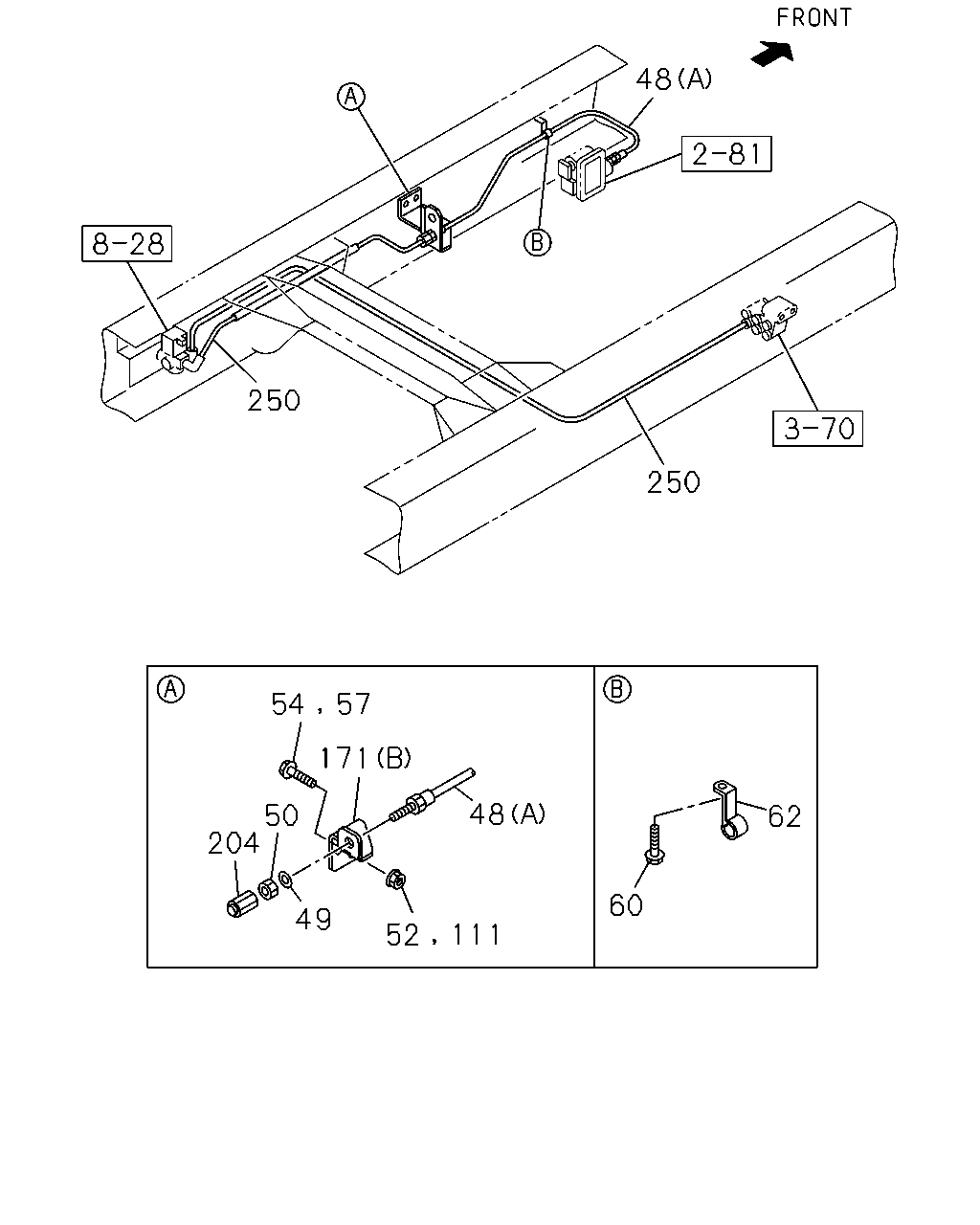

[285A] FIXING;TRANSMISSION SIDE PTO (20 parça)

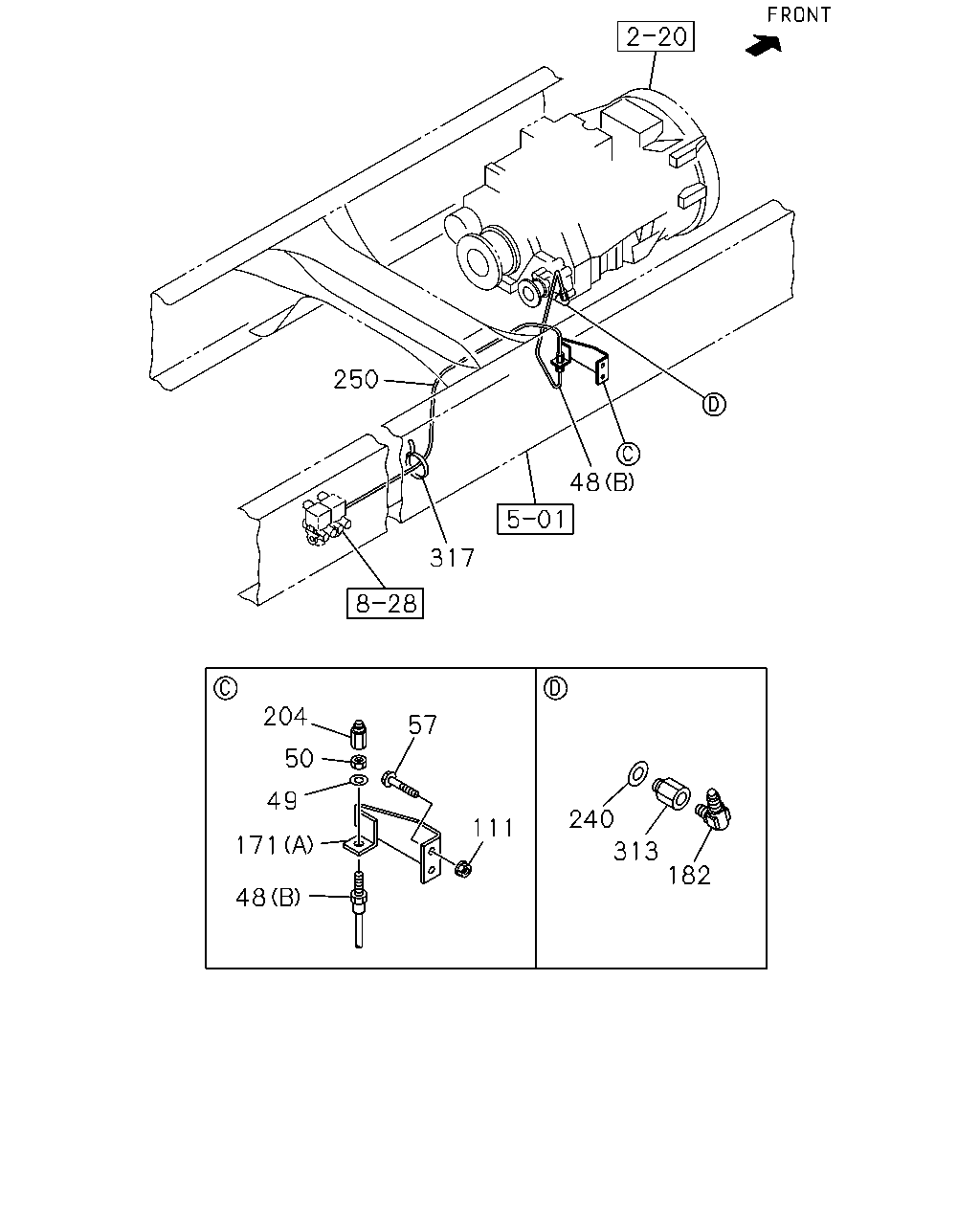

[285A] FIXING;PTO ZF TRANS RR (22 parça)
▶
15
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1304-
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1304-
●
250
250
48
62
60
52
111
204
54
57
171
50
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=840
8-98240-439-0
01
1
1304-
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) (B) L=400
1-09363-606-0
01
1
1304-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2
0-91510-512-0
01
1
1304-
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
0-91510-512-0
01
1
1304-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12
9-09840-280-0
01
1
1304-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1304-
●
52
NUT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
02
1
1304-
●
54
BOLT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28650-835-0
02
1
1304-
●
57
BOLT; BRKT
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28650-835-0
02
1
1304-
●
●
60
BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
02
1
1304-
●
62
CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=13
1-09701-030-1
02
1
1304-
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
02
1
1304-
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
02
1
1304-
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A)
8-98086-261-0
01
1
1304-
●
●
171
BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
8-98240-933-0
01
1
1304-
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
●
250
TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6
1-87411-002-0
01
1
1304-
●
250
TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1304-
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1304-
●
250
317
48
204
50
49
171
48
57
111
240
313
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=840
8-98240-439-0
01
1
1304-
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) (B) L=400
1-09363-606-0
01
1
1304-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2
0-91510-512-0
01
1
1304-
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
0-91510-512-0
01
1
1304-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12
9-09840-280-0
01
1
1304-
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1304-
●
57
BOLT; BRKT
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE
0-28650-835-0
02
1
1304-
●
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
02
1
1304-
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
02
1
1304-
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A)
8-98086-261-0
01
1
1304-
●
●
171
BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
8-98240-933-0
01
1
1304-
●
182
CONNECTOR; FLARE
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1304-
●
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
●
240
GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1304-1312
●
●
240
GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
●
●
250
TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6
1-87411-002-0
01
1
1304-
●
250
TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1304-
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1304-
●
313
ADAPTER
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) PT1/4
1-09654-396-0
01
1
1304-
●
●
317
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350
1-09707-183-0
02
1
1304-
●
317
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350
1-09707-183-0
01
1
1304-
●
