Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#118051) — 45 parça
◀

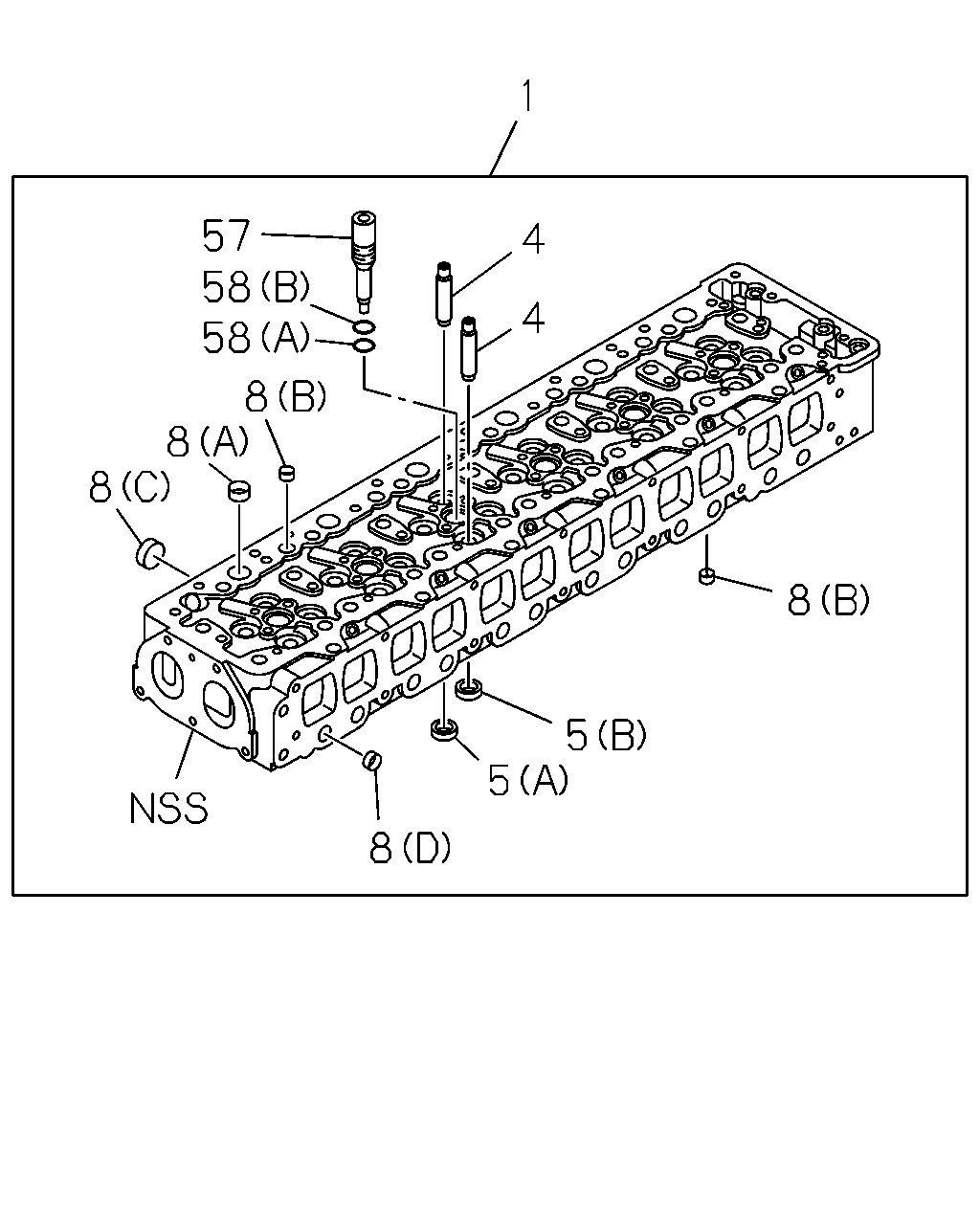

[011A] COMPONENT (11 parça)

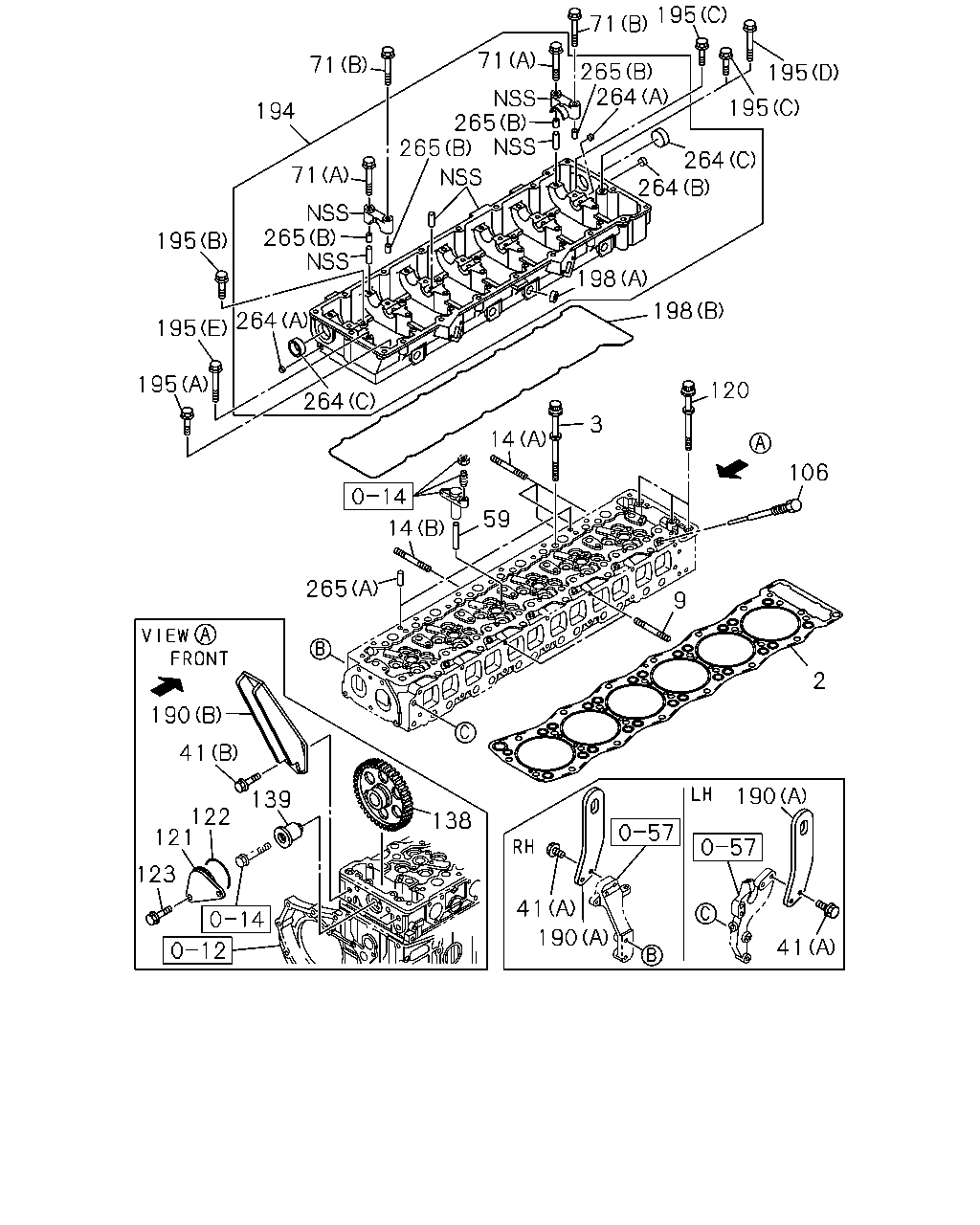

[011A] CYLINDER HEAD AND GASKET (34 parça)
▶
1
8
4
4
5
5
8
8
8
8
58
58
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98236-753-1
01
1
1304-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
1304-
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-087-0
12
1
1304-
5
SEAT; VLV INSERT
(B) INLET
1-11715-124-0
12
1
1304-
8
CUP; SEALING,WATER JACKET
(A) OD=25
1-09600-016-0
06
1
1304-
8
CUP; SEALING,WATER JACKET
(B) OD=18
5-11219-008-0
12
1
1304-
8
CUP; SEALING,WATER JACKET
(C) OD=36
5-11219-018-0
06
1
1304-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
12
1
1304-
57
SLEEVE; NOZZLE HOLDER
1-11129-064-1
06
1
1304-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) LOWER ID=30.9 BLACK
8-97233-126-0
06
1
1304-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) UPPER ID=30.9 WHITE
8-98041-585-0
06
1
1304-
71
194
195
195
195
264
264
265
71
265
265
71
71
195
265
195
264
264
195
264
198
14
14
265
190
41
139
122
121
123
138
190
41
59
3
120
106
9
2
198
41
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-292-2
01
1
1304-
3
BOLT; CYL HD TO BLOCK
M15X161
1-09070-160-1
26
1
1304-
9
STUD; INL MANIF
M10X110 L=125
1-09302-001-0
02
1
1304-
14
STUD; EXH MANIF
(A) M10X135 L=150
1-09302-159-0
03
1
1304-
14
STUD; EXH MANIF
(B) M10X77 L=92
1-09302-176-0
15
1
1304-
41
BOLT; ENG HANGER
(A) M12X30 FLANGE
0-28151-230-0
04
1
1304-
41
BOLT; ENG HANGER
(B) M12X40 FLANGE
0-28751-240-0
04
1
1304-
59
GUIDE; BRIDGE
8-97603-036-0
12
1
1304-
71
BOLT; CAM BRKT
(A) M10X60 FLANGE
0-28151-060-0
07
1
1304-
71
BOLT; CAM BRKT
(B) M10X120 FLANGE
0-28156-012-0
07
1
1304-
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
1304-
120
BOLT; CYL HD TO HSG
M10X122 FLANGE W/PL WASHER
1-09070-060-0
03
1
1304-
121
COVER; IDLE GEAR,CYL HD
8-97603-803-0
01
1
1304-
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98020-344-0
01
1
1304-
123
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
1304-
138
GEAR; IDLE
Z=64
8-97603-256-2
01
1
1304-
139
SHAFT; IDLE GEAR
8-97603-054-0
01
1
1304-
190
HANGER; ENG
(A)
8-97603-797-2
02
1
1304-
190
HANGER; ENG
(B)
8-97606-737-0
02
1
1304-
194
CARRIER; CAM SHAFT
8-97613-257-2
01
1
1304-1307
194
CARRIER; CAM SHAFT
OR
8-98192-430-1
01
1
1308-
195
BOLT; CARRIER
(D) M10X110 FLANGE
0-28156-011-0
02
1
1304-1307
195
BOLT; CARRIER
(A) M8X45 FLANGE
0-28050-845-0
07
1
1304-
195
BOLT; CARRIER
(B) M10X35 FLANGE
0-28151-035-0
06
1
1304-
195
BOLT; CARRIER
(E) M10X85 FLANGE
8-94397-359-1
07
1
1304-
195
BOLT; CARRIER
(C) M10X50 FLANGE
0-28151-050-0
01
1
1304-1307
195
BOLT; CARRIER
(C) M10X50 FLANGE
0-28151-050-0
03
1
1308-
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=30
1-09639-034-0
06
1
1304-
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-97609-580-0
01
1
1304-
264
CUP; SEALING
(A) OD=12.3
5-09600-013-0
02
1
1304-
264
CUP; SEALING
(B) OD=18
5-11219-008-0
01
1
1304-
264
CUP; SEALING
(C) OD=45
8-97351-451-0
02
1
1304-
265
PIN; CAM CARRIER SET
(B) OD=4 L=12
1-09740-032-0
14
1
1304-
265
PIN; CAM CARRIER SET
(A) OD=8 L=16
9-08150-816-0
02
1
1304-
