◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#118045) — 52 parça

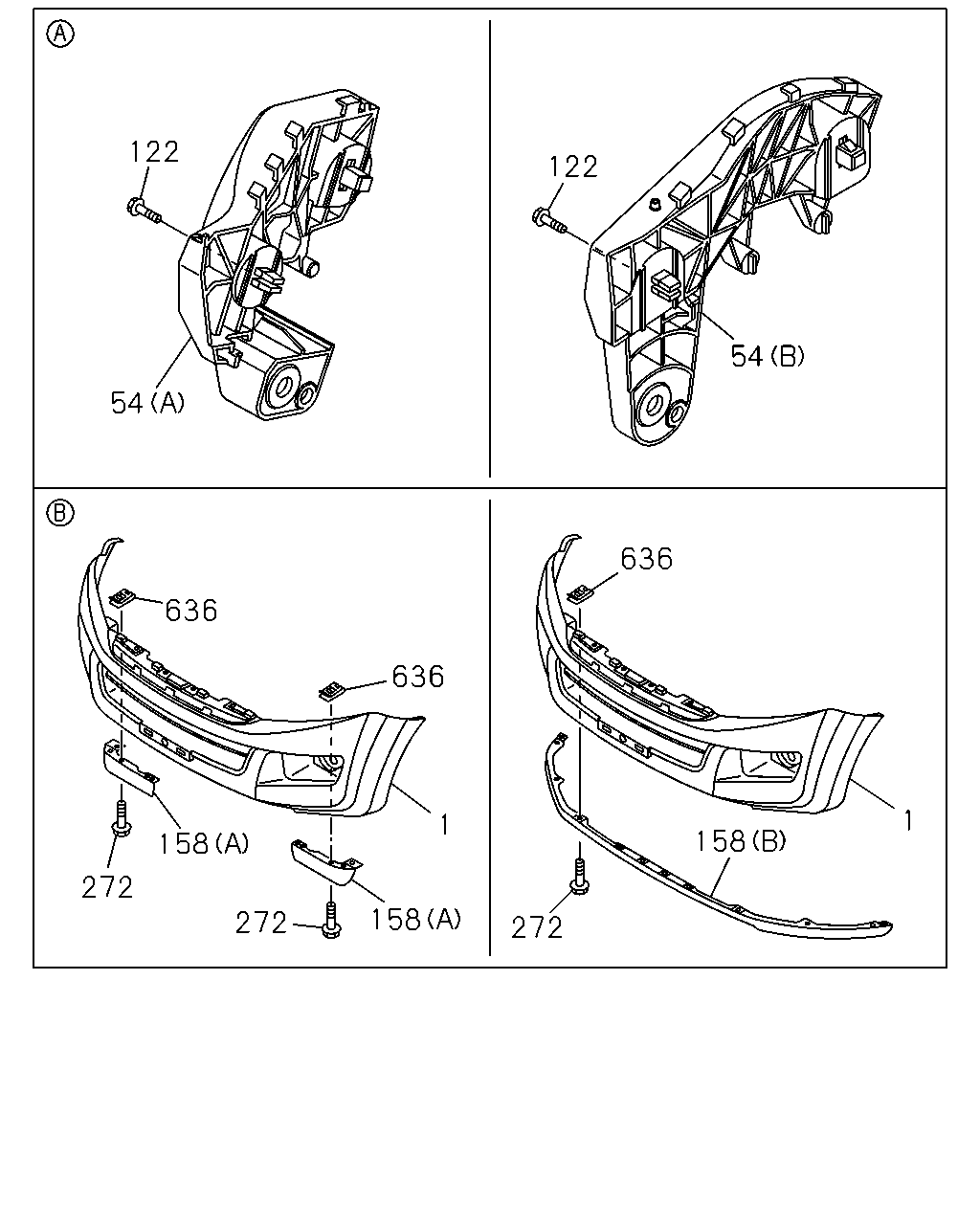

çizim 343736
122 122 54 54 636 636 636 1 158 272 272 158 272 158 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.831 BUMPER ASM; FRT
HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4) 		8-98193-448-2 01 1 1304- ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4) 		8-98193-448-2 01 1 1304- ● ●
1 07.831 BUMPER ASM; FRT 8-98193-448-2 01 1 1304- ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),HIGH RIDE SUSPENSION(7YC) 		8-98193-445-2 01 1 1304- ● ●
1 07.831 BUMPER ASM; FRT 8-98193-445-2 01 1 1304- ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-574-2 01 1 1304- ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) PRIMER 		8-98196-574-2 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1304- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1304- ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1304- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1304- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1304- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1304- ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1304- ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1304- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1304- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1304- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1304- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1304- ● ●
158 07.833 EXTENSION; FRT BUMPER
(B) 		8-98099-823-1 01 1 1304- ●
272 07.874 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1304- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1304- ● ● ●
272 07.874 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1304- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1304- ●
636 07.833 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1304- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1304- ● ● ●
636 07.833 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1304- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 10 1 1304- ●

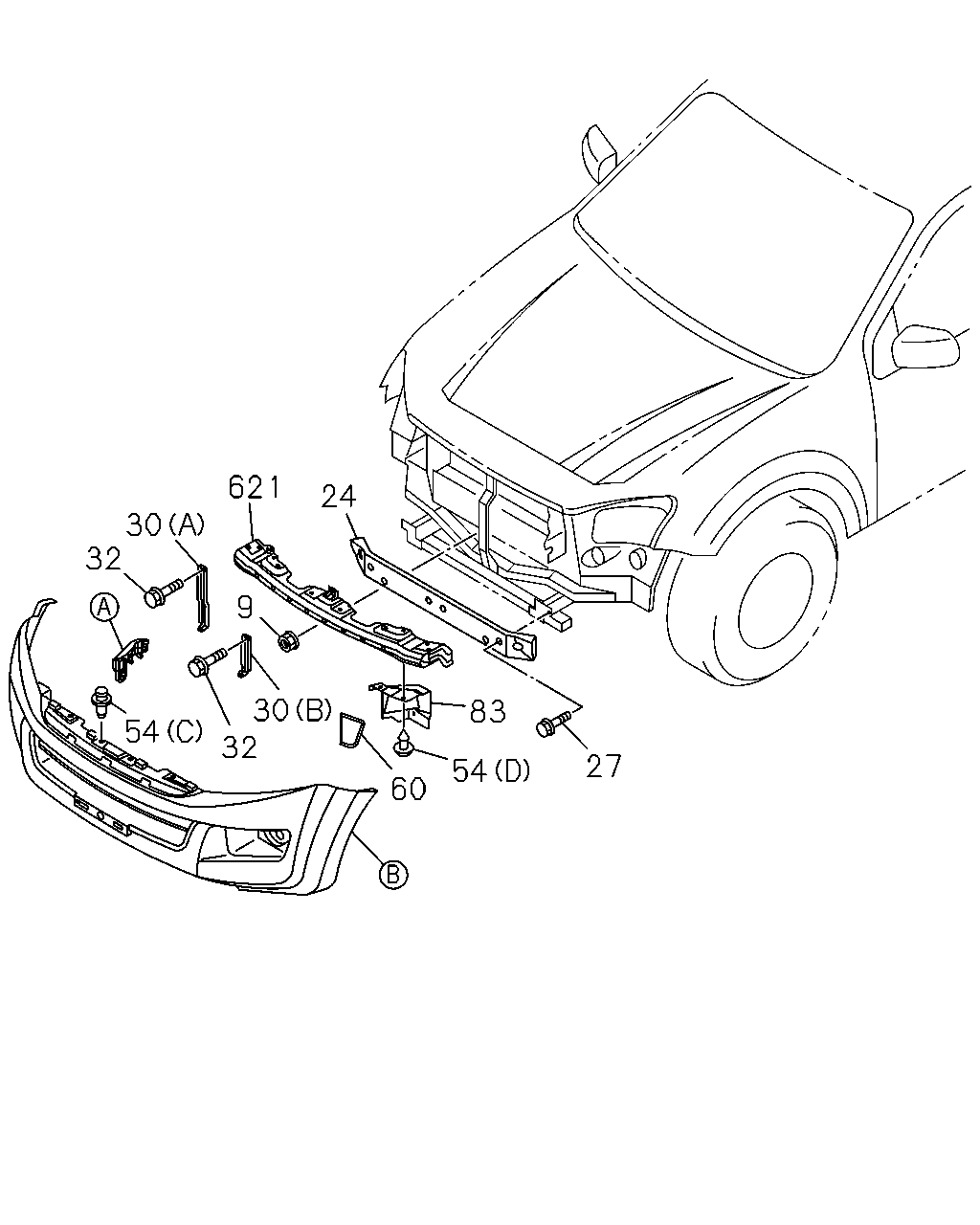

çizim 345473
24 621 30 32 9 30 83 54 27 60 32 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1304- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER 8-98165-113-1 01 1 1304- ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1304- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1304- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1304- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1304- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1304- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1304- ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1304- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1304- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1304- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1304- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1304- ●
60 07.831 SPACER; FRT BUMPER 8-98140-340-1 01 1 1304- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1304- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1304- ● ● ● ● ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1304- ● ● ● ● ● ●
