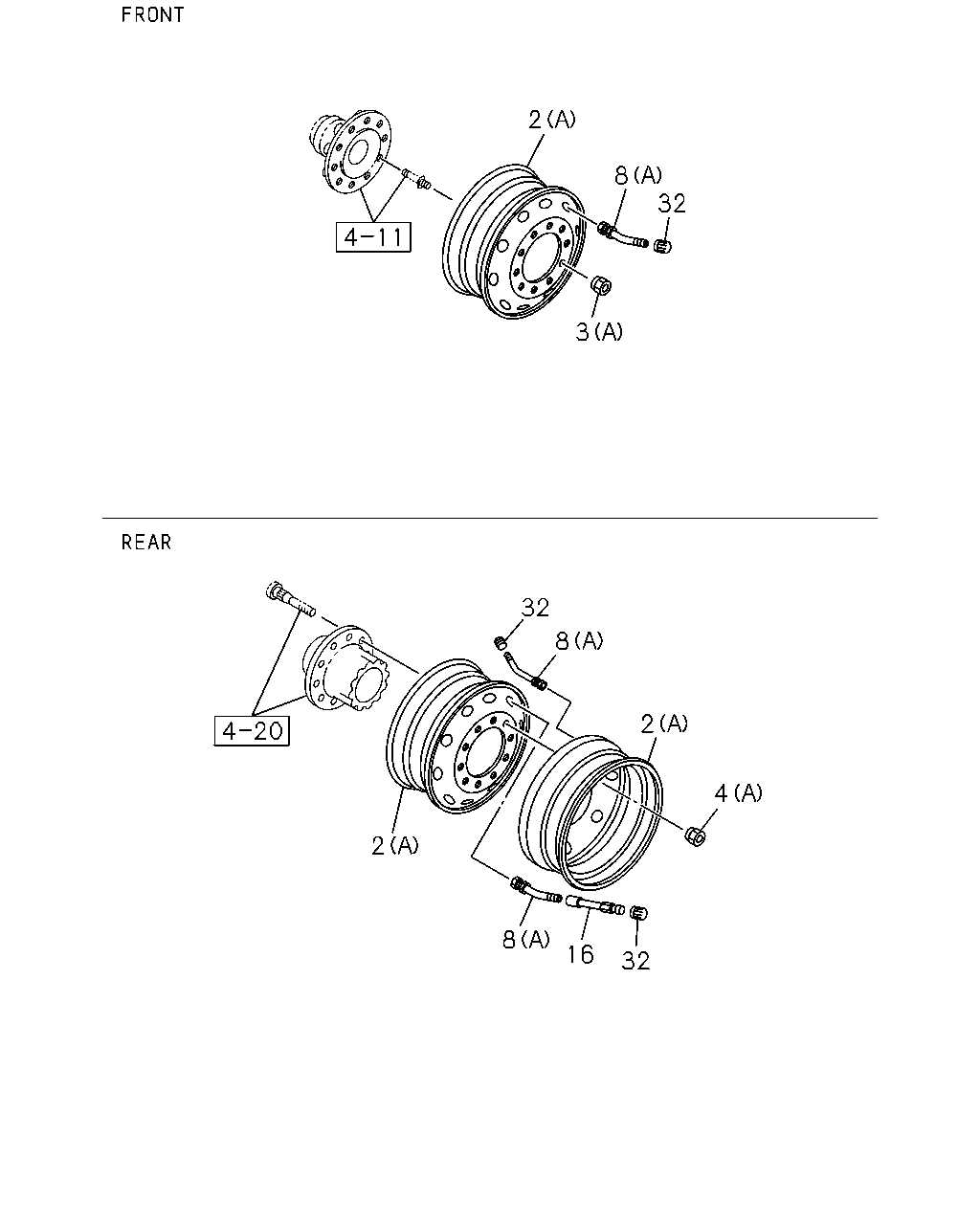

4-80 — ROAD WHEEL (#118041) — 71 parça

3 32 8 2 32 2 4 8 8 16 32 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98281-497-0	02	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	08	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98281-497-0	08	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1408-1408	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT	1-42350-667-0	02	1	1304-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR	1-42350-667-0	08	1	1304-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-667-0	01	1	1304-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-667-0	01	1	1408-	●
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24	1-42333-022-3	08	1	1304-	●	●
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD	1-42334-022-3	08	1	1304-	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5	1-42333-055-0	20	1	1304-	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5	1-42333-055-0	40	1	1304-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 RH THREAD	8-97359-809-0	16	1	1304-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 LH THREAD	8-97359-810-0	16	1	1304-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	1-42370-048-0	02	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	1-42370-019-3	02	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	1-42370-048-0	08	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	1-42370-019-3	08	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1408-1408	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT	1-42370-020-3	02	1	1304-	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR	1-42370-020-3	08	1	1304-	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-020-3	01	1	1304-1407	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-020-3	01	1	1408-	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170	8-98167-052-0	04	1	1304-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	02	1	1304-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	08	1	1304-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1304-1407	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1408-	●
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1304-1407	●	●
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1408-	●

2 8 3 32 2 32 8 2 4 32 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98281-497-0	02	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	08	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98281-497-0	08	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1304-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1408-1408	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT	1-42350-667-0	02	1	1304-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR	1-42350-667-0	08	1	1304-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-667-0	01	1	1304-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-667-0	01	1	1408-	●
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24	1-42333-022-3	08	1	1304-	●	●
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD	1-42334-022-3	08	1	1304-	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5	1-42333-055-0	20	1	1304-	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5	1-42333-055-0	40	1	1304-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 RH THREAD	8-97359-809-0	16	1	1304-	●	●
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 LH THREAD	8-97359-810-0	16	1	1304-	●	●
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1304-	●	●
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1304-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	1-42370-048-0	02	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	1-42370-019-3	02	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	1-42370-048-0	08	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	1-42370-019-3	08	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1304-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1408-1408	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT	1-42370-020-3	02	1	1304-	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR	1-42370-020-3	08	1	1304-	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-020-3	01	1	1304-1407	●	●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-020-3	01	1	1408-	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	02	1	1304-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	08	1	1304-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1304-1407	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1408-	●
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1304-1407	●	●
32	CAP; VALVE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	1408-	●
