Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#11804) — 281 parça

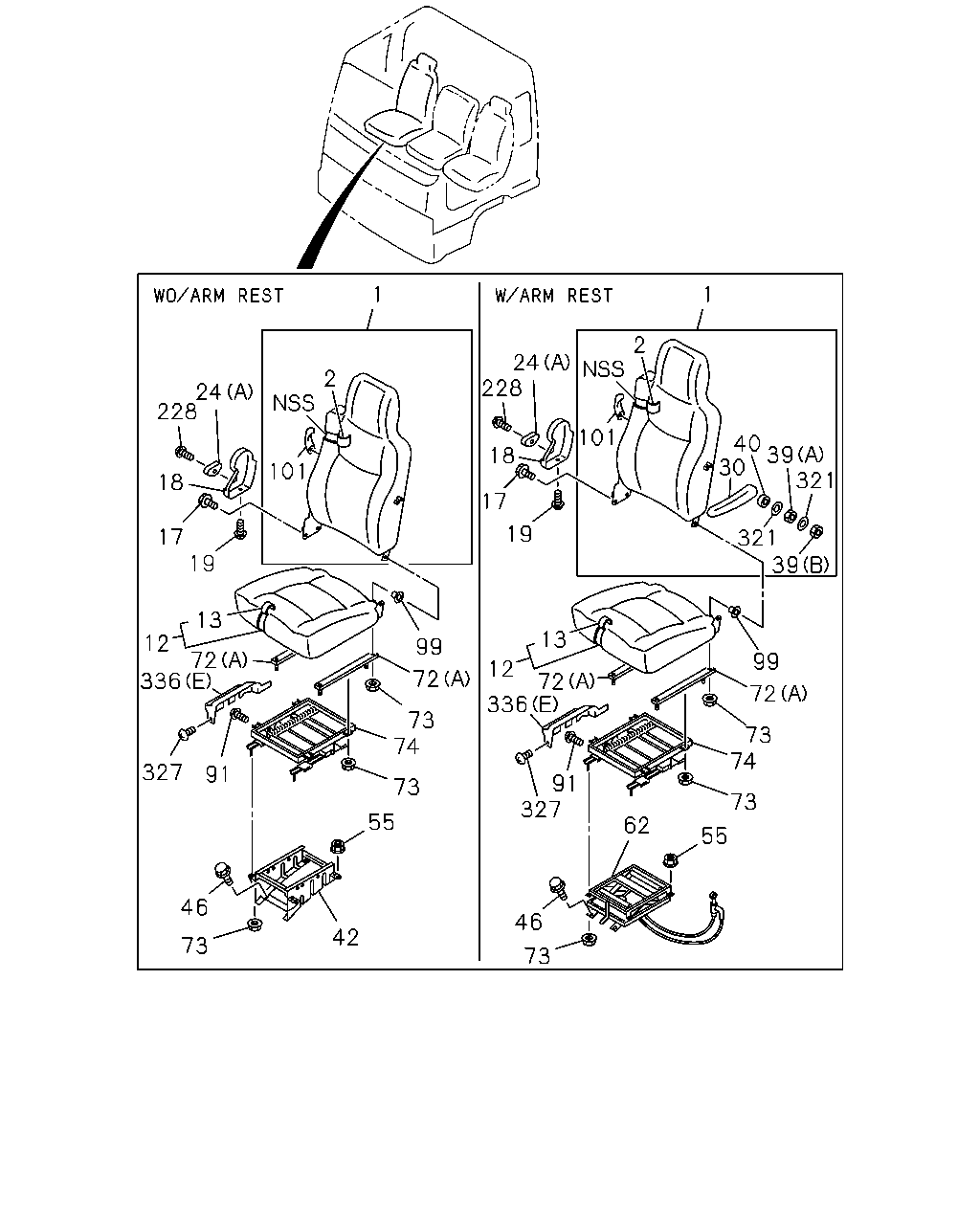

1 1 2 24 228 2 24 228 101 18 40 39 30 321 101 18 17 19 17 19 321 39 13 13 12 99 72 336 99 12 72 72 336 72 73 74 73 74 327 91 91 327 73 73 55 62 55 46 46 42 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75027-941-0	01	1	0106-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75117-965-0	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0106-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75027-939-0	01	1	0106-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0106-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-153-2	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75117-964-0	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-101-1	01	1	0106-
17	BOLT; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8X20	8-97255-906-0	02	1	0106-
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) DARK GRAY	8-97867-020-0	01	1	0106-
19	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-0106
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-0106
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0106-0106
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-121-1	01	1	0106-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0106-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0106-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0106-
42	STAND; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0106-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0106-

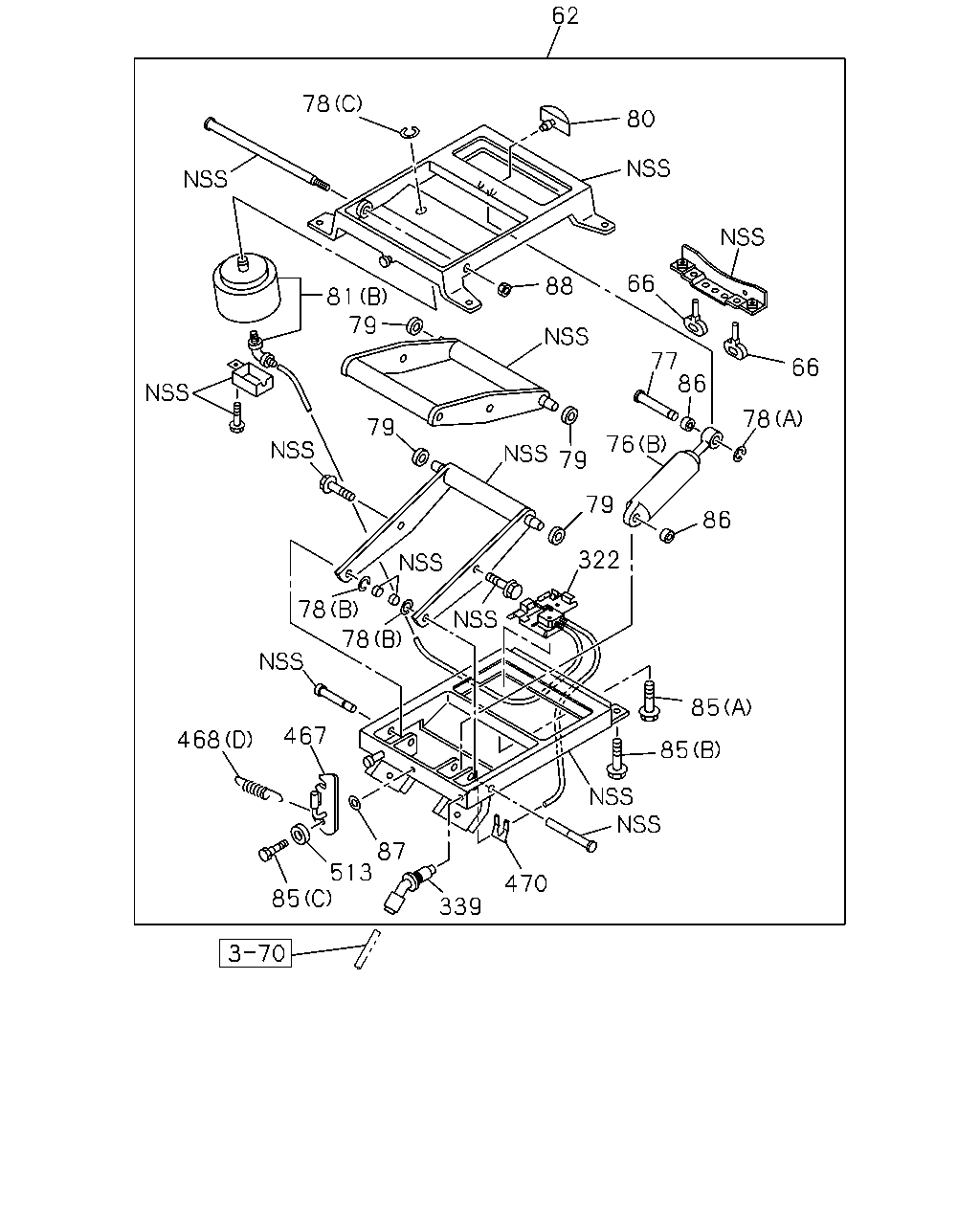

62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0106-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-334-1	02	1	0106-
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-0106
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-0106
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75517-911-0	02	1	0107-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0106-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8 FLANGE	1-75538-207-0	12	1	0106-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8 FLANGE	1-75538-207-0	08	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75517-959-1	01	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-330-1	01	1	0106-
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0106-
99	BUSHING; SEAT BACK EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	8-97854-087-0	01	1	0106-
101	LEVER ASM; LUMBAR EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	5-75190-138-0	01	1	0106-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0106-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0106-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0106-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	01	1	0106-
327	CLIP; COVER	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	02	1	0303-

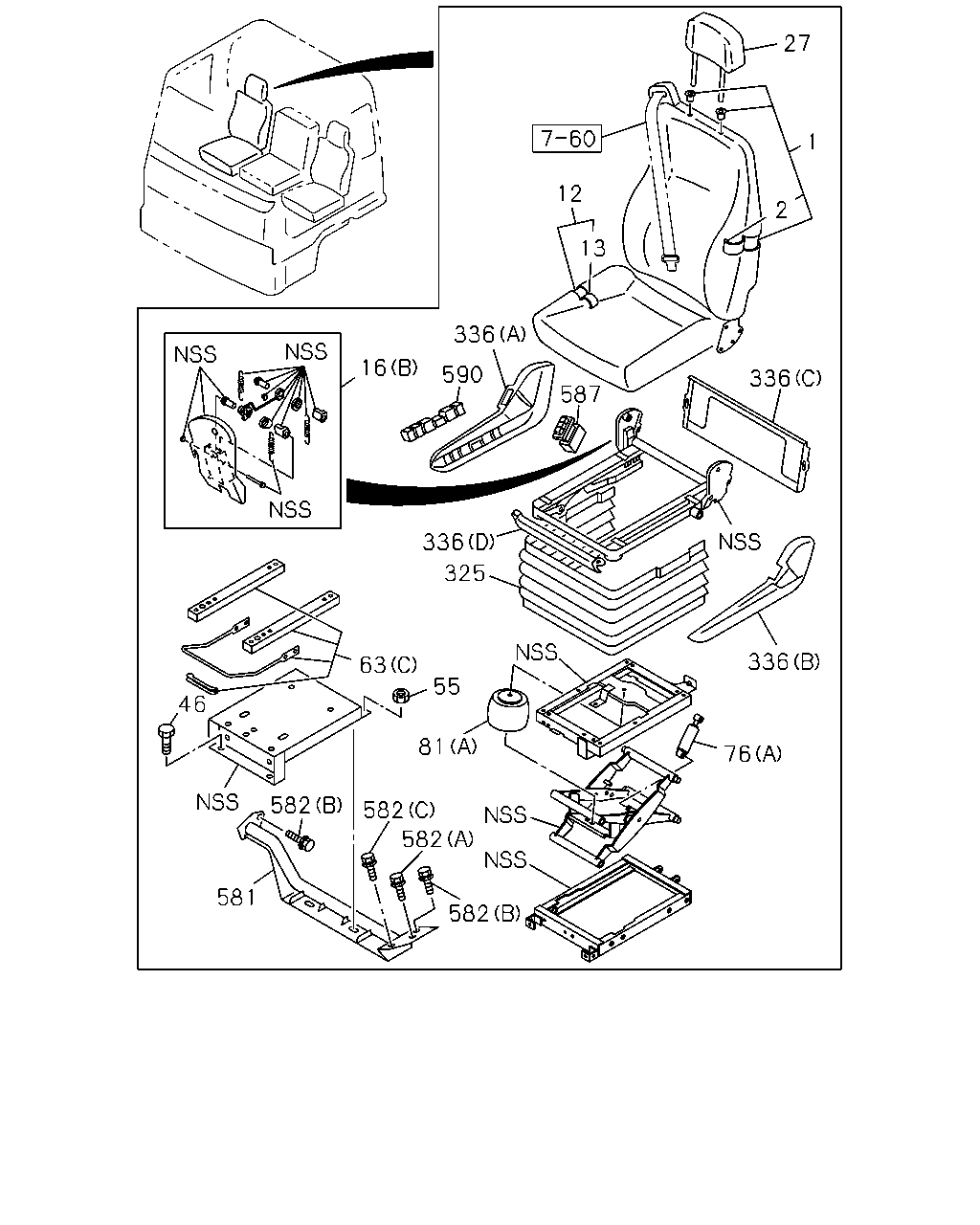

336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-72537-208-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-72537-210-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-72537-212-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (D)	1-72537-213-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (E)	1-75518-316-0	01	1	0106-
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (E)	1-75518-303-0	01	1	0106-

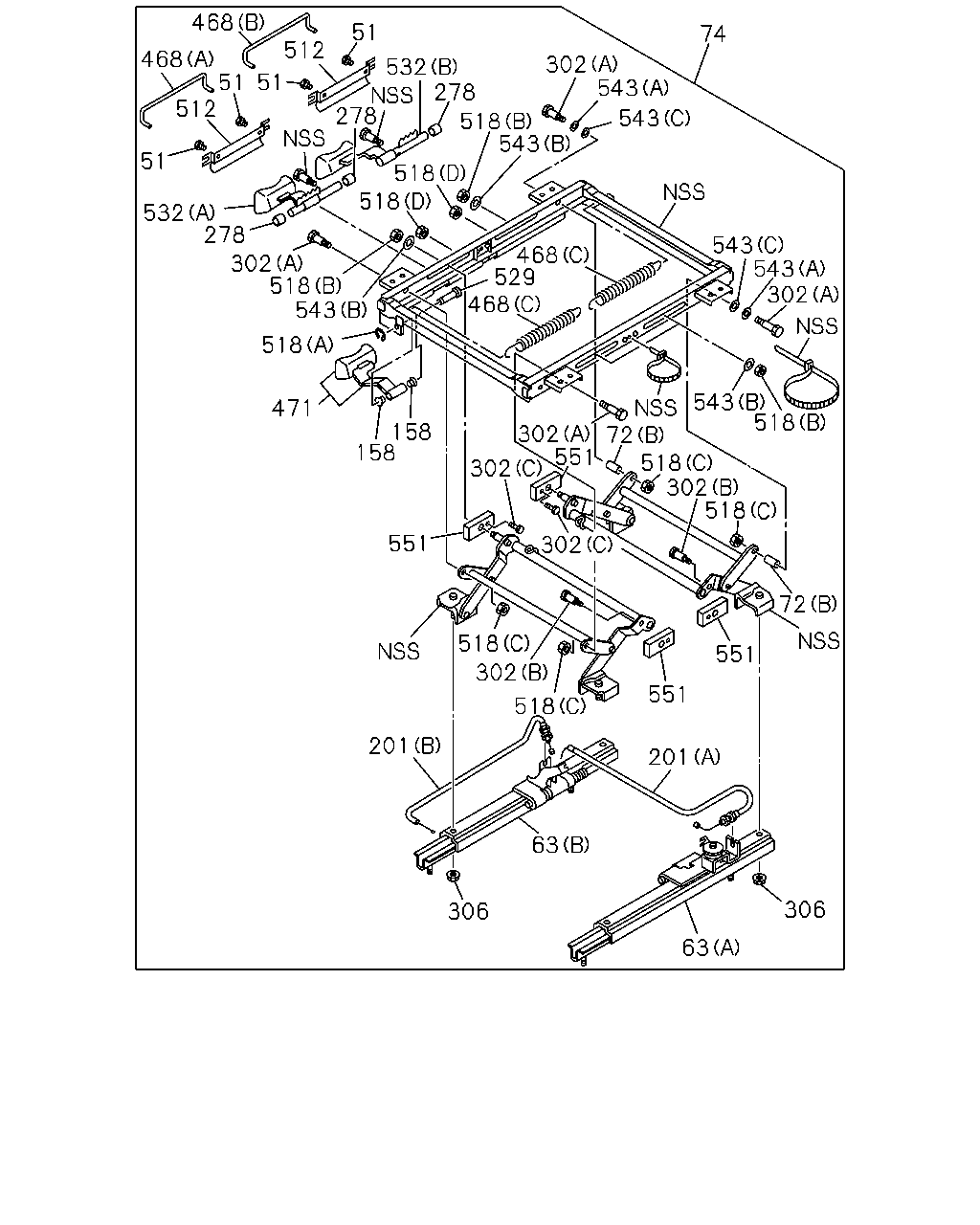

468 51 74 512 468 51 512 302 543 532 278 51 278 543 518 543 51 518 518 532 278 543 543 302 468 529 468 302 518 543 518 543 518 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-325-1	04	1	0106-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75517-953-0	01	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-199-1	01	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-323-0	01	1	0106-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-334-1	02	1	0106-
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-0106
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-0106
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75517-911-0	02	1	0107-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75517-959-1	01	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-330-1	01	1	0106-
158	BUSHING; LINK ARM EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-209-0	02	1	0106-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A) L=667	1-75518-288-0	01	1	0106-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) L=605	1-75518-289-1	01	1	0106-
278	COLLAR; FRT SEAT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-244-0	03	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75518-266-2	02	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-270-1	04	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-336-1	02	1	0106-
306	NUT; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8 FLANGE	1-75538-207-0	06	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75518-208-0	02	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0106-
471	LEVER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-291-0	01	1	0106-
512	COVER; LEVER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-243-1	02	1	0106-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-263-0	01	1	0106-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-264-0	04	1	0106-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (D)	5-09984-020-0	02	1	0106-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C) M8 FLANGE	8-94152-886-0	04	1	0106-
529	PIN; LINK EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-262-0	01	1	0106-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-203-0	01	1	0106-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-204-1	01	1	0106-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75518-335-0	02	1	0106-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-337-0	02	1	0106-0406
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) ID=6.4	9-09160-506-0	04	1	0106-
551	SLIDER; HEIGHT ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75518-265-0	04	1	0106-

506 360 175 176 188 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0106-
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75417-602-0	01	1	0106-
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-3	01	1	0106-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75026-855-0	01	1	0106-0406
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75026-856-2	01	1	0407-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9)	1-75207-258-2	01	1	0106-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0106-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75116-651-0	01	1	0106-0406
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75116-710-1	01	1	0407-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9)	1-75127-078-1	01	1	0106-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0106-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75116-696-1	01	1	0106-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9)	1-75127-128-1	01	1	0106-
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-3	01	1	0106-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9)	1-75026-845-2	01	1	0106-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9)	1-75207-306-2	01	1	0106-
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0106-
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0106-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0106-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0106-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B)	0-70080-416-0	06	1	0106-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0106-0211
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0106-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-504-1	04	1	0106-0206
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0207-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0106-

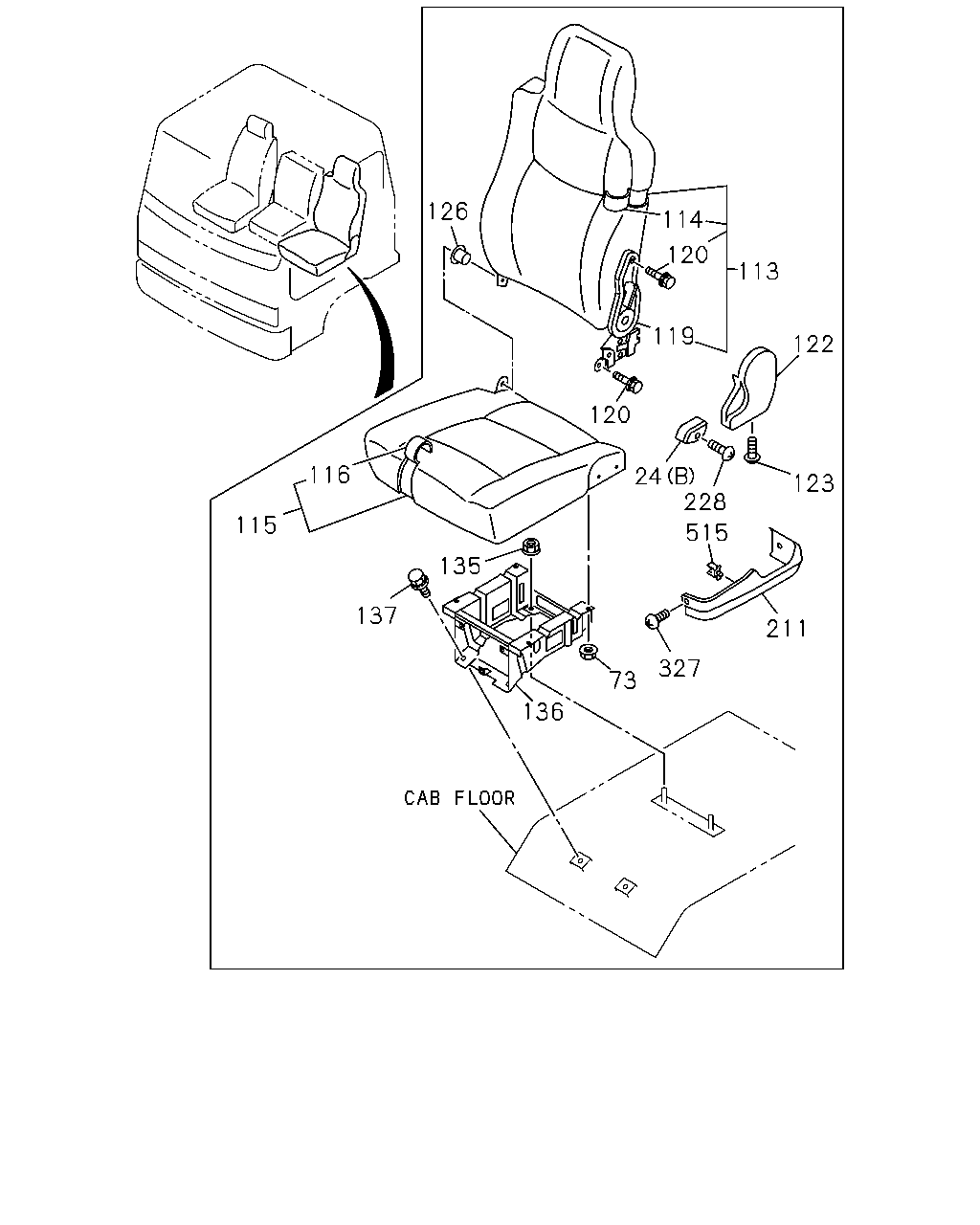

126 114 120 113 119 122 120 116 24 228 123 115 515 135 137 211 327 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-0106
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-0106
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0106-0106
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0106-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8 FLANGE	1-75538-207-0	12	1	0106-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8 FLANGE	1-75538-207-0	08	1	0106-
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75026-796-0	01	1	0106-0106
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75208-191-4	01	1	0107-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-302-4	01	1	0106-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75026-735-0	01	1	0106-0106
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75208-074-3	01	1	0107-
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-228-0	01	1	0106-0106
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-549-1	01	1	0107-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75116-592-1	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75116-709-2	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-126-1	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-059-1	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75026-784-2	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-299-1	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-1	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-215-2	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75116-691-2	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-123-1	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-1	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-093-1	01	1	0106-
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75417-597-0	01	1	0106-
120	BOLT; RECLINING ADJ DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8X20	8-97255-906-0	02	1	0106-
120	BOLT; RECLINING ADJ EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0106-
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M8X20	8-97255-906-0	04	1	0106-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) DARK GRAY	8-97859-018-0	01	1	0106-0106
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) DARK GRAY	8-97859-018-0	01	1	0106-0106
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0107-
122	COVER; ADJ,RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75418-050-0	01	1	0106-0106
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75417-598-0	01	1	0107-
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
123	SCREW; COVER,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) M6X12	9-03490-612-0	01	1	0106-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0106-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0106-
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75558-550-4	01	1	0106-0106
136	STAND; PASSENGER SEAT EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75558-602-0	01	1	0106-0106
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0107-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
211	COVER; FRT SEAT	1-72538-274-0	01	1	0106-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0106-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	01	1	0106-
327	CLIP; COVER	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	02	1	0106-0212
327	CLIP; COVER	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0303-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-09987-273-0	02	1	0303-
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0106-

62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0106-
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0106-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75537-276-0	01	1	0106-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0106-
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0106-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0106-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0106-0406
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0106-
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0106-
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0106-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75537-275-0	01	1	0106-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0106-
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0106-
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0106-
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0106-
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0106-
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0106-
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75518-208-0	02	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0106-
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0106-
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0106-

27 1 12 2 13 336 16 590 336 587 336 325 336 63 55 46 81 76 582 582 582 581 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75027-941-0	01	1	0106-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75117-965-0	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0106-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75027-939-0	01	1	0106-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0106-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75207-153-2	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75117-964-0	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75127-101-1	01	1	0106-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0106-
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75417-602-0	01	1	0106-
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75657-029-0	01	1	0106-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0106-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-75517-953-0	01	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75518-199-1	01	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-75518-323-0	01	1	0106-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75537-276-0	01	1	0106-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0106-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-75537-275-0	01	1	0106-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0106-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75537-274-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A)	1-72537-208-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-72537-210-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C)	1-72537-212-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (D)	1-72537-213-0	01	1	0106-
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (E)	1-75518-316-0	01	1	0106-
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (E)	1-75518-303-0	01	1	0106-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-73907-605-2	01	1	0106-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (B)	1-09980-619-1	02	1	0106-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (A) M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0106-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75197-007-0	01	1	0106-
590	KNOB KIT; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)	1-75417-600-0	01	1	0106-

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0106-0211
98	WASHER; HINGE EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310
98	WASHER; HINGE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0106-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),CENTER SEAT DELETE(SP9), PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0106-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B)	0-70080-416-0	06	1	0106-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0106-0211
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0106-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0106-
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0106-
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0106-
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0106-
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0106-
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0106-
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
