1-10 — RADIATOR (#118033) — 18 parça

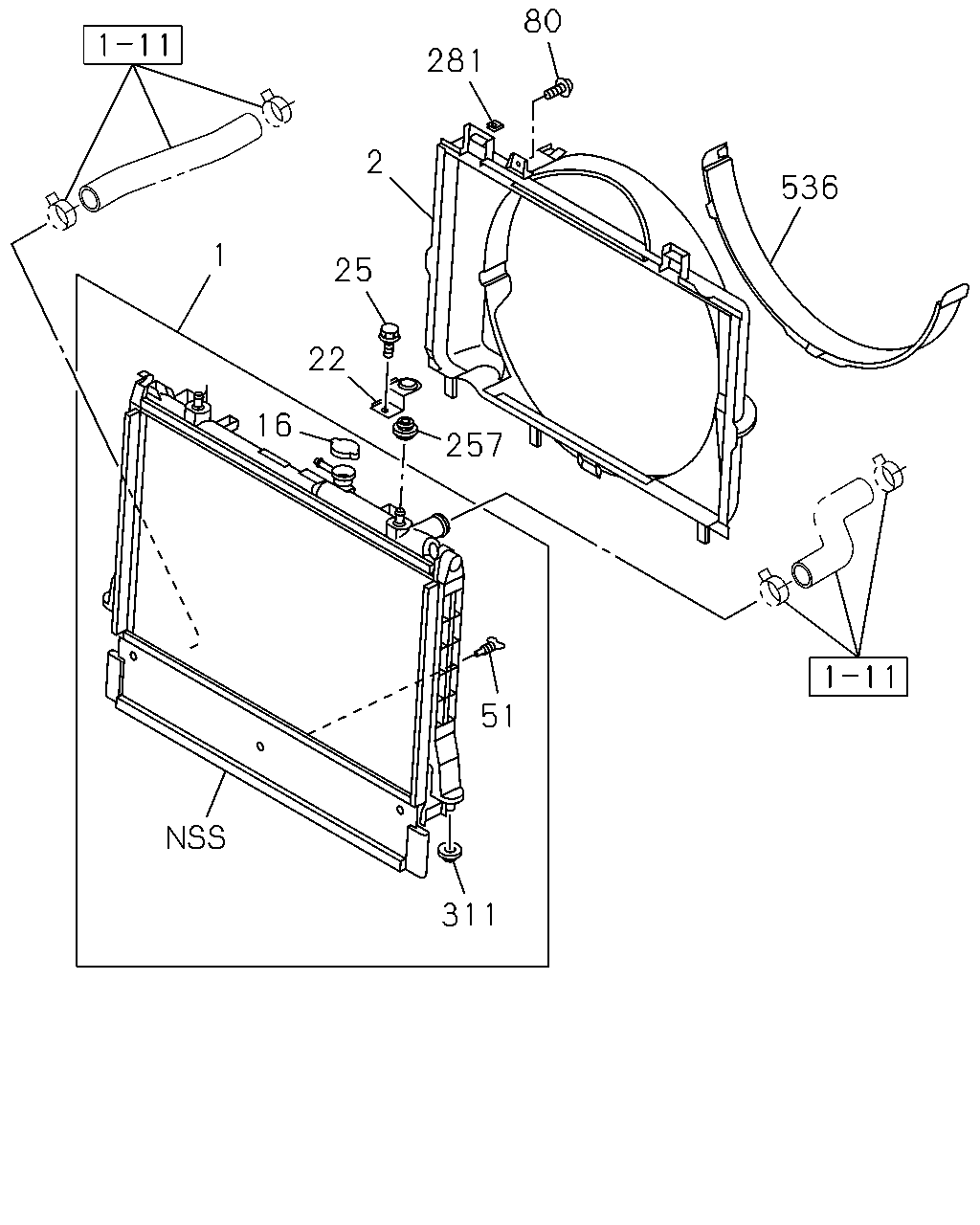

çizim 342599
1 22 16 51 311 536 80 281 2 25 257
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98137-277-5 01 1 1304- ● ●
1 01.219 RADIATOR ASM 8-98137-278-3 01 1 1304- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-276-4 01 1 1304-1306 ● ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-276-5 01 1 1307- ●
2 01.277 GUIDE; FAN 8-98189-876-0 01 1 1304- ● ●
2 01.277 GUIDE; FAN 8-98189-878-0 01 1 1304- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1304- ● ● ●
22 01.270 BRACKET; RAD MTG 8-98102-383-2 02 1 1304- ● ● ●
25 01.271 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1304- ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1304- ● ● ●
80 01.277 BOLT; FAN GUIDE 8-98189-890-0 01 1 1304- ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 02 1 1304- ● ● ●
281 01.277 NUT; FAN GUIDE 8-98189-891-0 02 1 1304- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1304- ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1304- ● ● ●

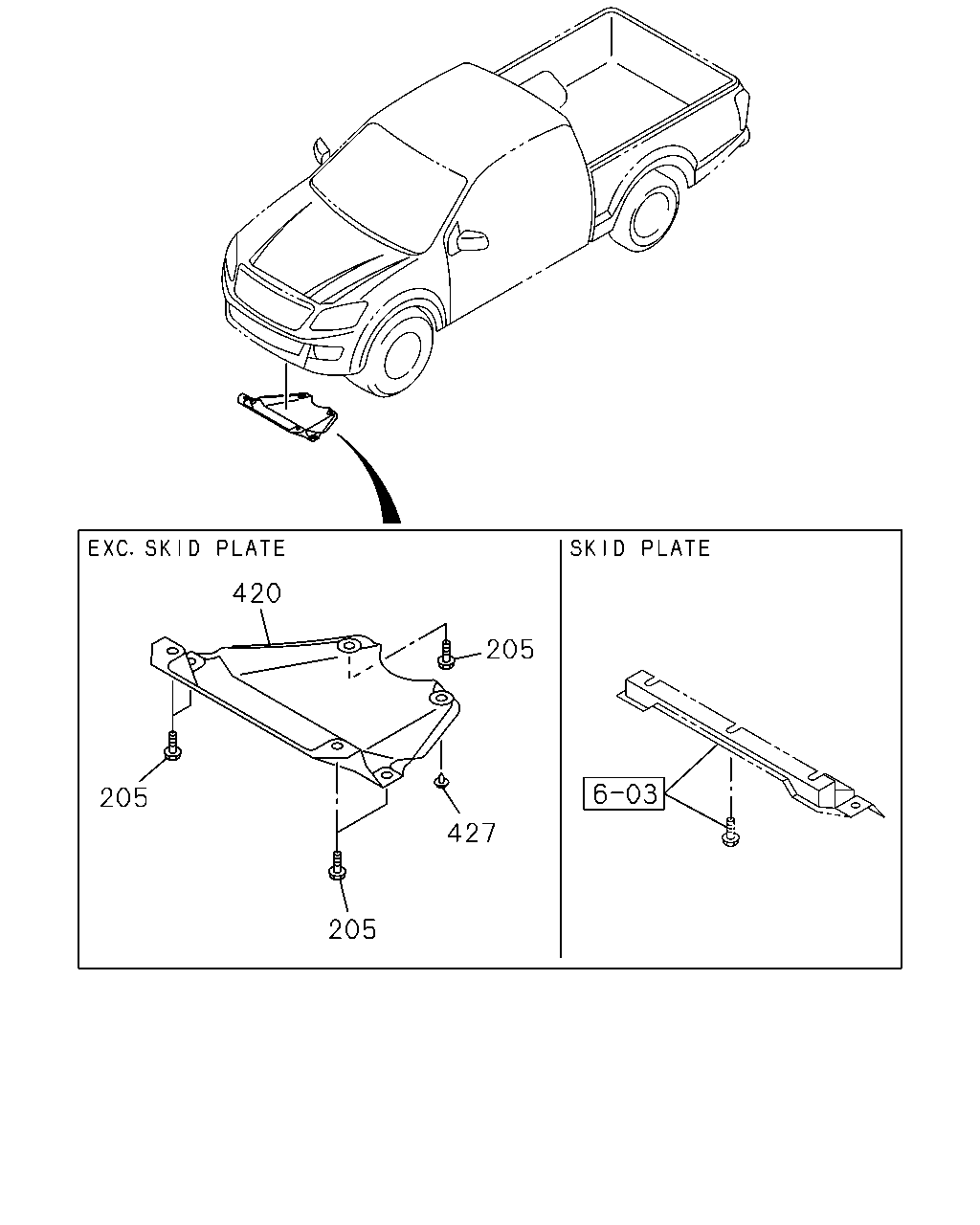

çizim 342607
205 427 205 205 420
BalonParca AdiParca NoAdetTipApplied Date A B C
205 01.267 BOLT; AIR GUIDE
EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1304- ● ●
420 01.267 GUIDE; AIR,RAD
EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1304- ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1304- ● ●
