7-45 — CONSOLE BOX (#11803) — 93 parça

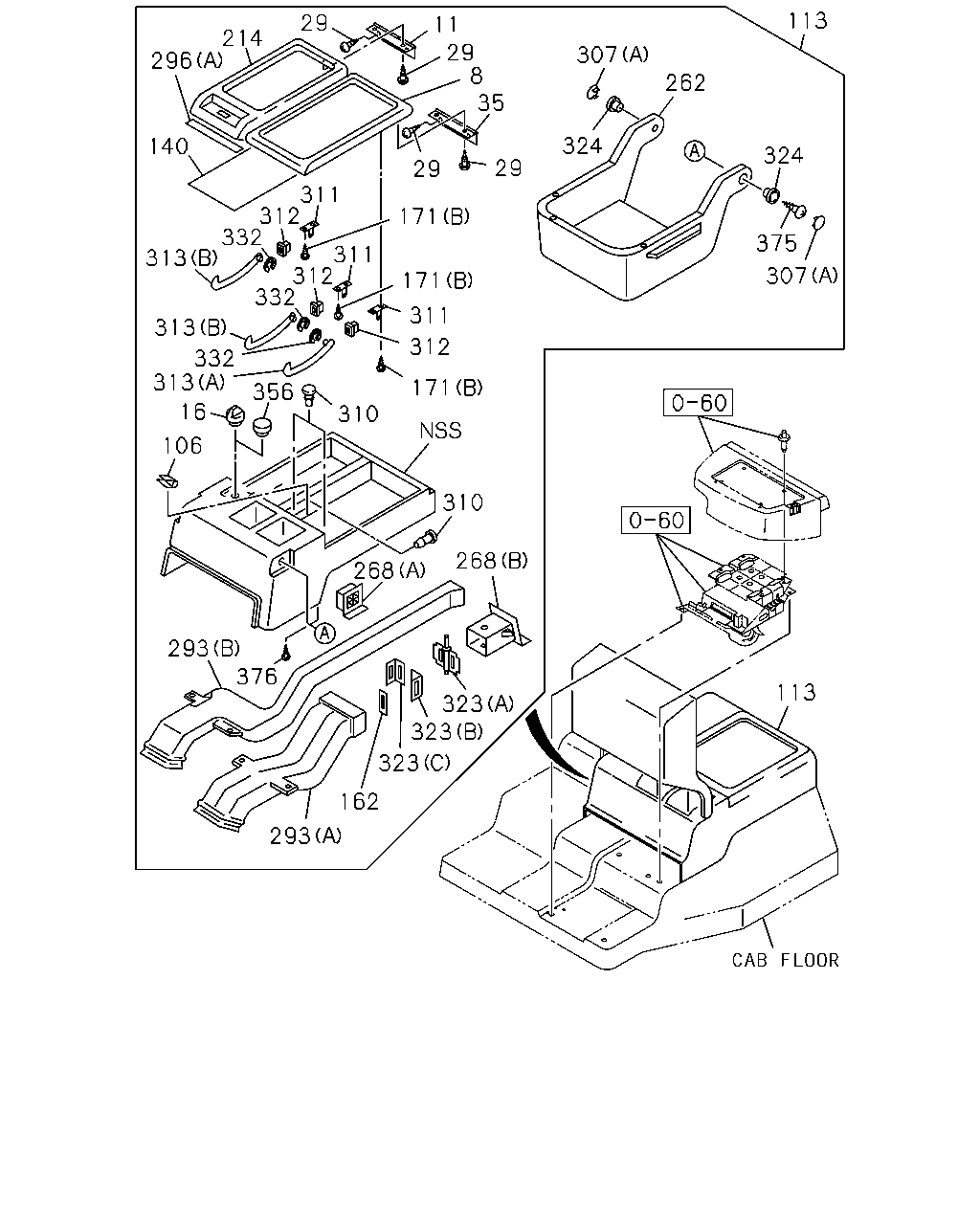

113 29 11 214 29 8 35 307 296 262 324 140 324 29 29 311 312 332 313 171 375 311 312 332 307 171 311 313 312 332 313 171 356 16 310 106 310 268 268 293 376 113 323 323 323 162 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-185-0	01	1	0106-
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-185-0	01	1	0106-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0106-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-070-2	01	1	0106-
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-189-0	01	1	0106-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	0106-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M5X14 BINDING HEAD	1-72537-168-0	08	1	0106-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD	1-72537-169-0	06	1	0106-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72538-182-1	01	1	0106-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72538-182-1	01	1	0106-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-079-0	02	1	0106-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-079-0	02	1	0106-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-323-0	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-321-0	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-330-0	01	1	0610-
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-093-1	01	1	0106-
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	0106-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0106-
214	LID; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-186-0	01	1	0106-
214	LID; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-186-0	01	1	0106-
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-187-1	01	1	0106-
268	COVER; DUCT CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B)	1-72537-183-0	01	1	0106-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B)	1-72537-183-0	01	1	0106-
268	COVER; DUCT CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A)	1-72537-184-0	01	1	0106-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-184-0	01	1	0106-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	0106-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	0106-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	0106-0303
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0304-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-094-1	01	1	0106-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0106-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0106-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72538-187-0	02	1	0106-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72538-187-0	02	1	0106-
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0106-
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72538-188-2	03	1	0106-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72538-186-1	03	1	0106-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72538-186-1	03	1	0106-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	0106-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72538-184-3	01	1	0106-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	0106-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B)	1-72538-185-3	02	1	0106-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B)	1-72537-126-0	01	1	0106-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	0106-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	0106-
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-116-0	02	1	0106-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-170-0	03	1	0106-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-170-0	03	1	0106-
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0106-
375	SCREW; TAP BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M6X20	1-72537-319-0	02	1	0610-
376	SCREW; TAP DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14	1-72537-320-0	03	1	0610-

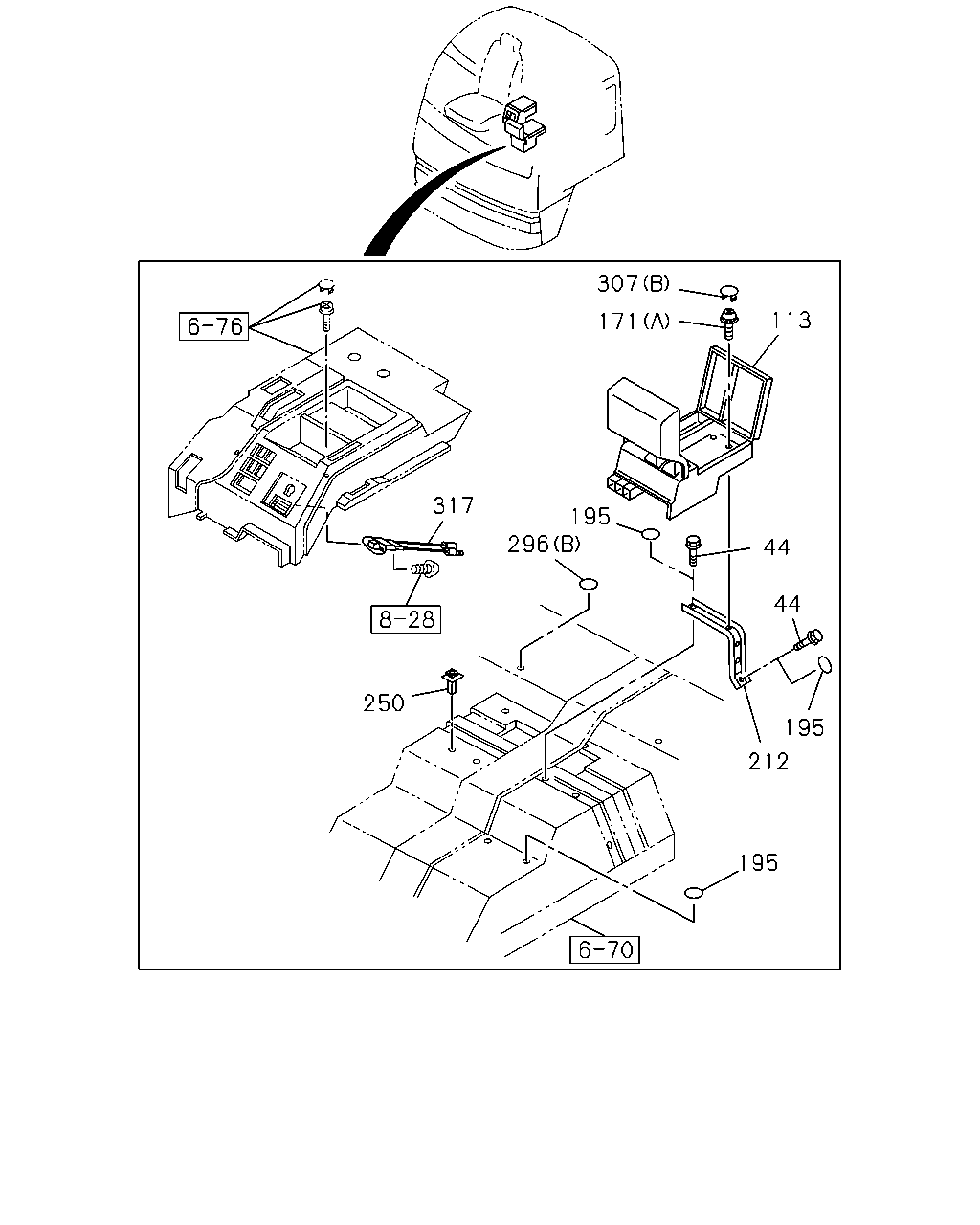

307 113 171 317 195 296 44 44 250 195 212 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-323-0	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-321-0	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0106-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-330-0	01	1	0610-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0106-
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	0106-
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	0106-
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	0106-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	0106-0303
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0304-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-094-1	01	1	0106-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0106-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0106-
317	CONSENT	1-82523-020-2	01	1	0106-

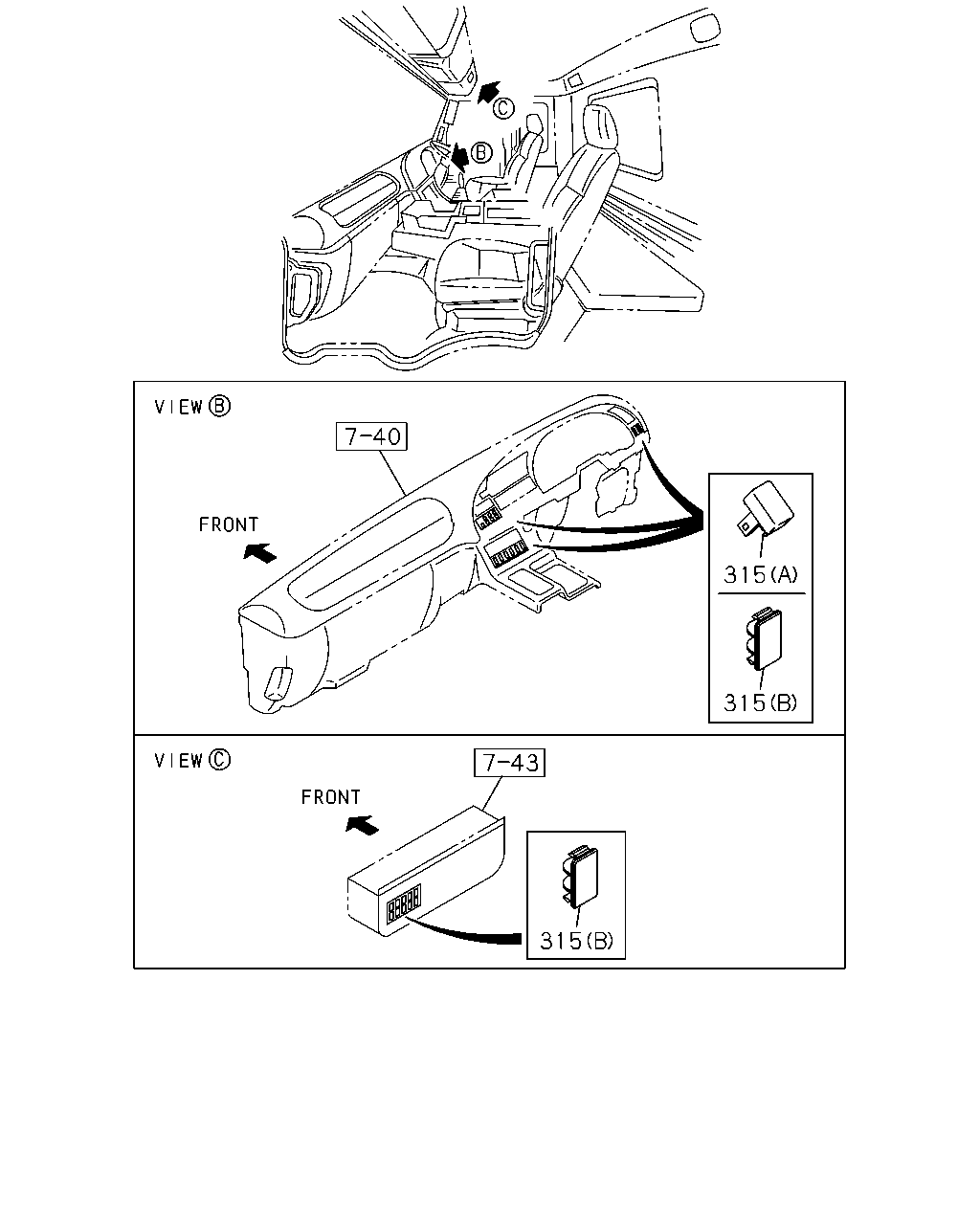

315 315 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
315	COVER; HOLE,SW (A)	1-82359-069-2	18	1	0106-
315	COVER; HOLE,SW (B)	8-97043-732-1	04	1	0106-
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	0106-
315	COVER; HOLE,SW (A)	1-82359-069-2	01	1	0106-
315	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM),PTO CONTROL OPERATION CABBACK<TBZ> (A)	1-82359-069-2	01	1	0106-
315	COVER; HOLE,SW (A)	1-82359-069-2	01	1	0106-
315	COVER; HOLE,SW (A)	1-82359-069-2	01	1	0106-
315	COVER; HOLE,SW (A)	1-82359-069-2	01	1	0106-
