1-11 — RADIATOR HOSE AND SUB TANK (#118029) — 22 parça

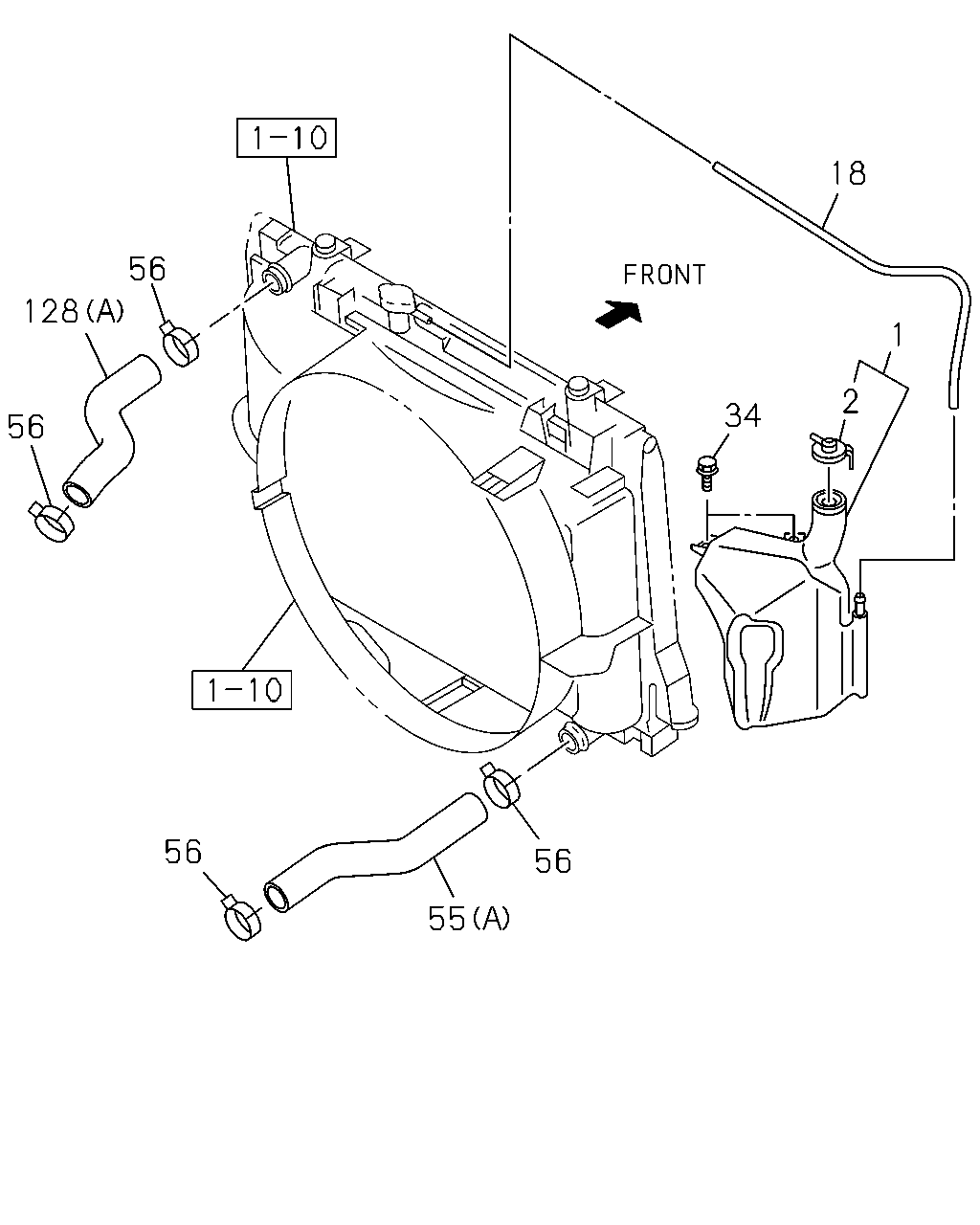

çizim 342618
18 1 2 34 56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1304- ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1304- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1304- ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1304- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1304- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98093-327-1 01 1 1304- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1304-1306 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307- ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1304- ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1304- ●

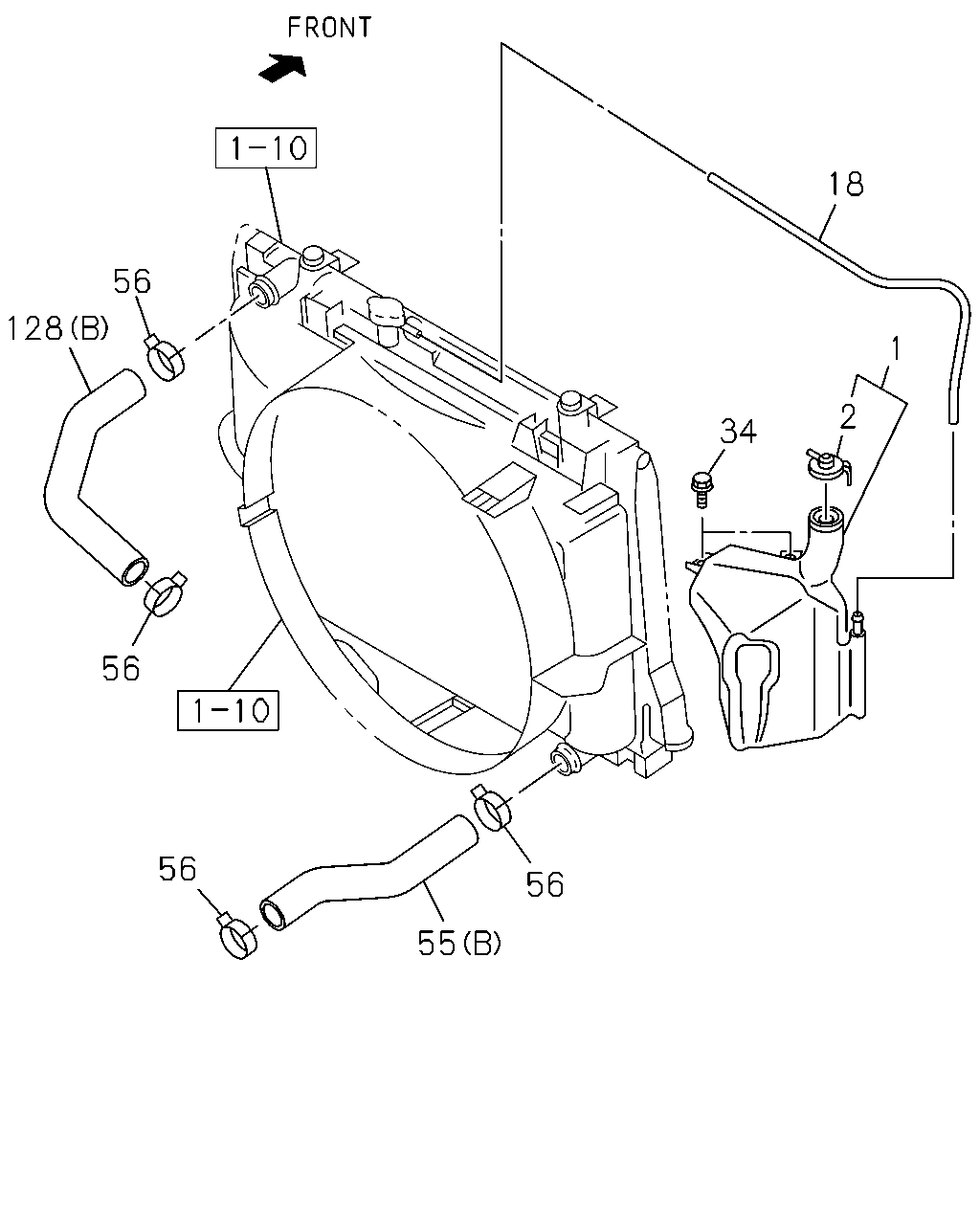

çizim 342622
128 56 18 1 2 34 56 55 56 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1304- ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1304- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1304- ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1304- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-325-1 01 1 1304- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98093-327-1 01 1 1304- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1304-1306 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1307- ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1304- ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1304- ●
