◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#118028) — 11 parça

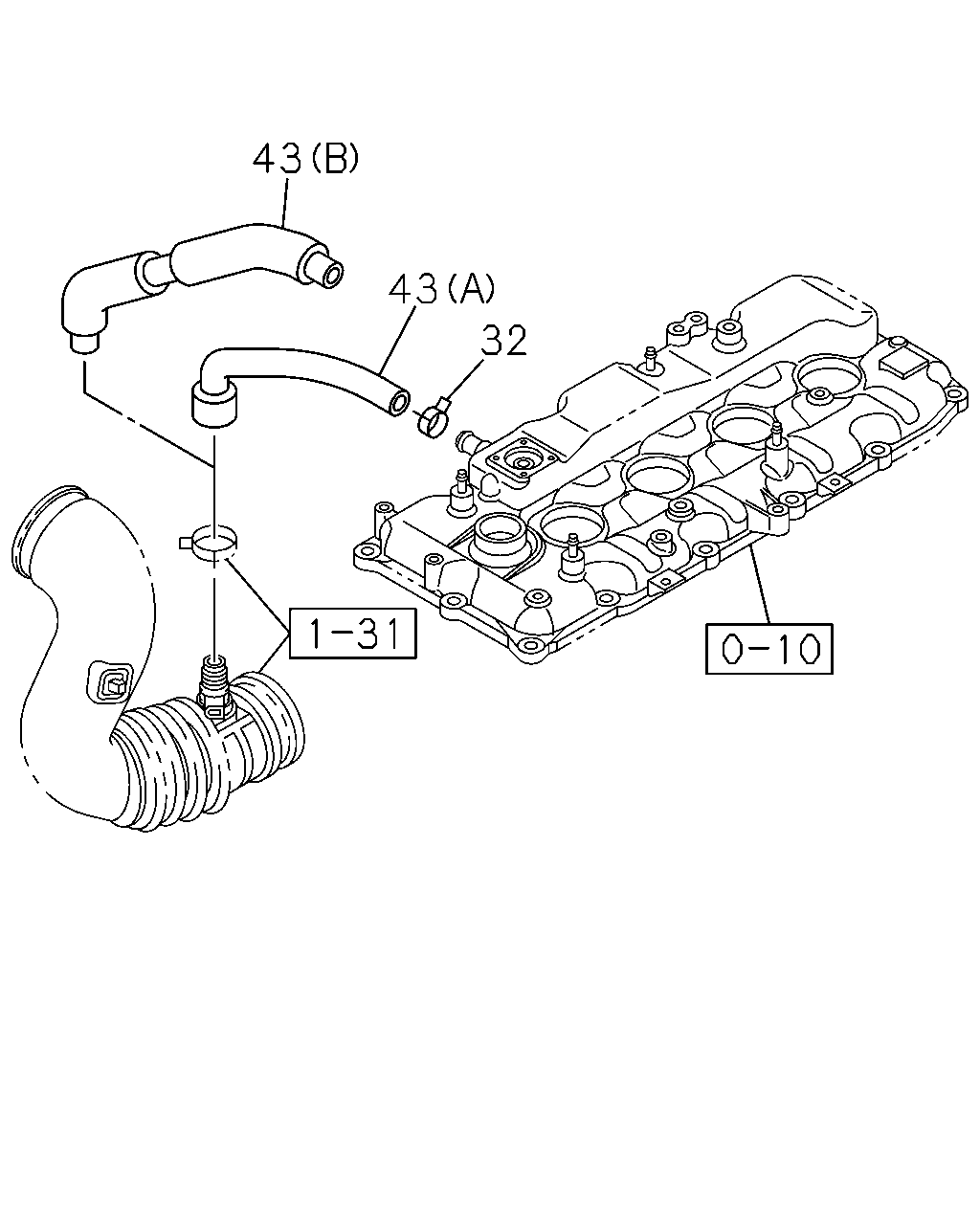

çizim 342222
43 43 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 03.417 CLIP; VENT HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1304- ●
32 03.417 CLIP; VENT HOSE
ID=20.8 		8-98133-607-0 01 1 1304- ●
43 03.278 HOSE; PCV
FRIGID ZONE<YL3> (B) 		8-98203-332-0 01 1 1401- ●
43 03.278 HOSE; PCV
(A) 		8-98152-307-2 01 1 1304-1312 ●
43 03.278 HOSE; PCV
EXC. FRIGID ZONE<YL3> (A) 		8-98152-307-2 01 1 1401- ●

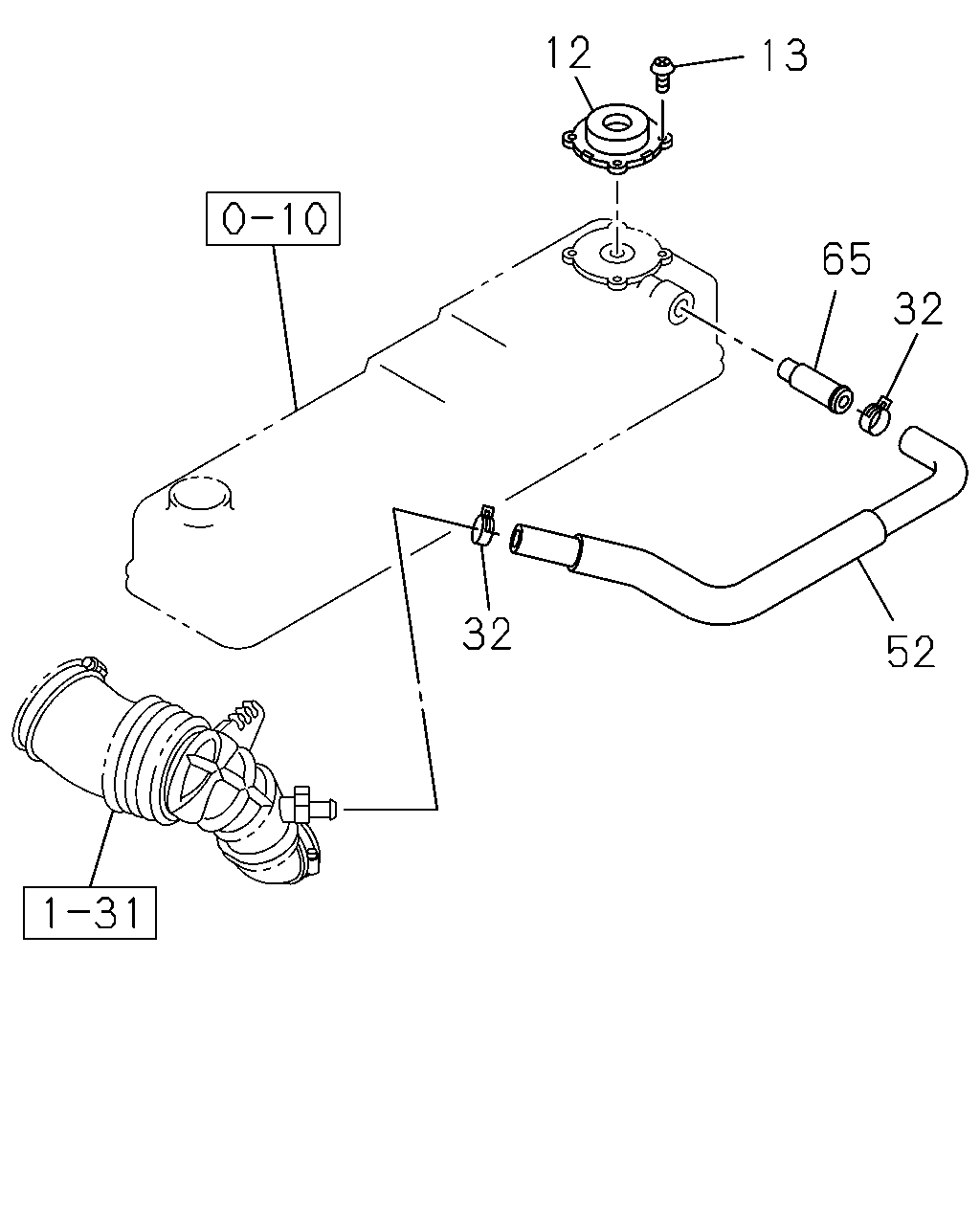

çizim 344834
13 12 65 32 52 32
BalonParca AdiParca NoAdetTipApplied Date A B
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 1304- ●
13 00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1304- ●
32 03.417 CLIP; VENT HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1304- ●
32 03.417 CLIP; VENT HOSE
ID=20.8 		8-98133-607-0 01 1 1304- ●
52 03.278 HOSE; PCV 8-97306-435-2 01 1 1304- ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 1304- ●
