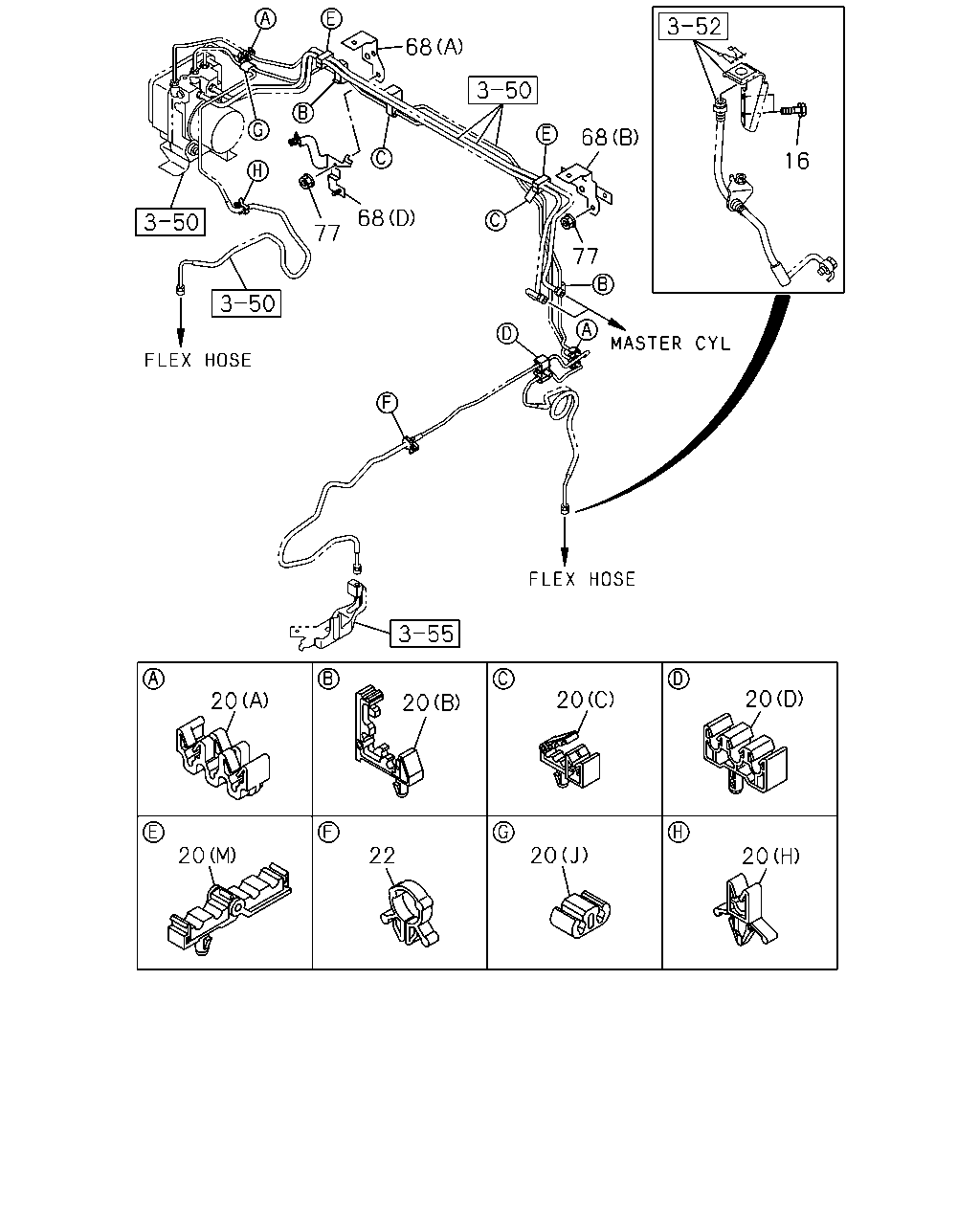

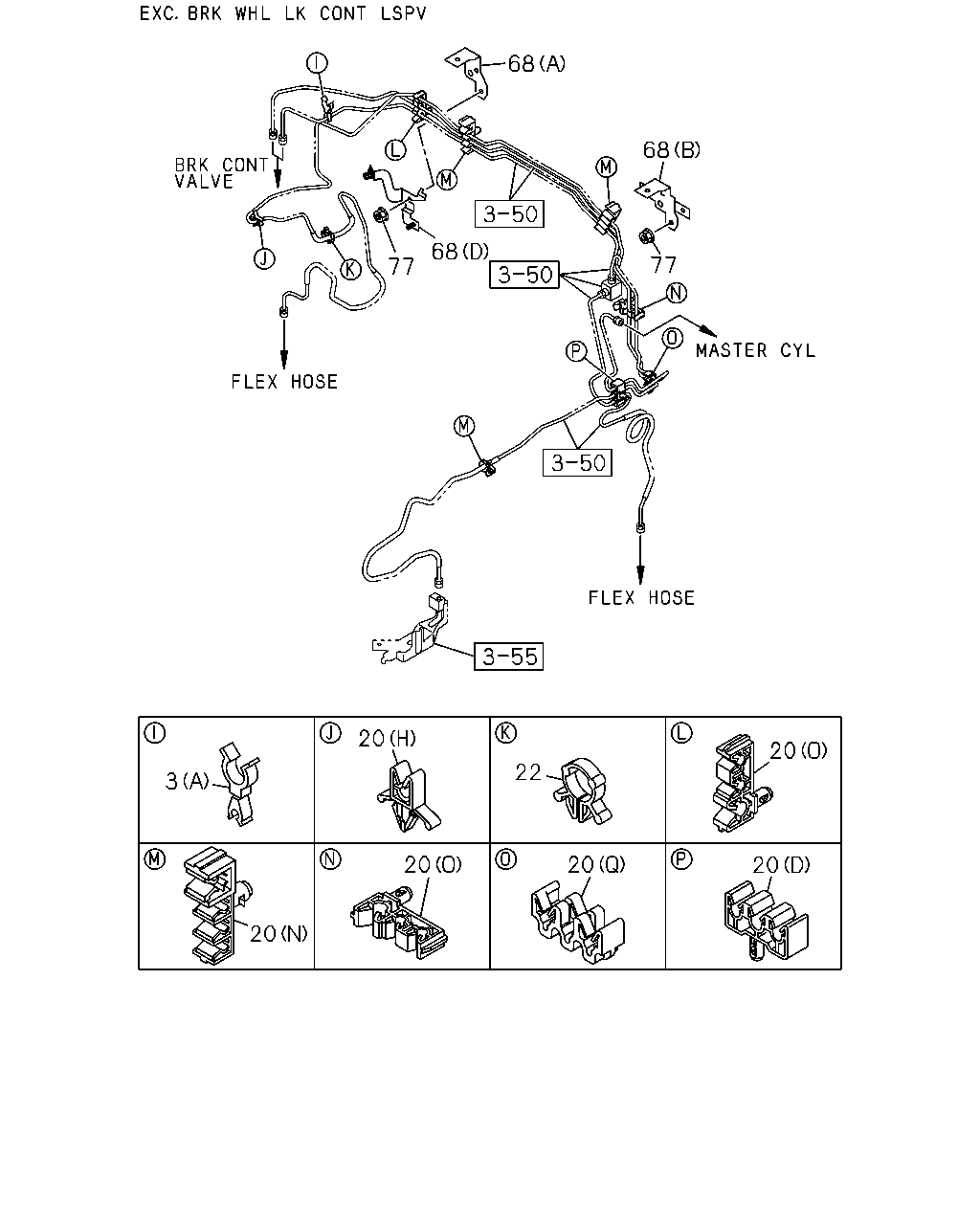

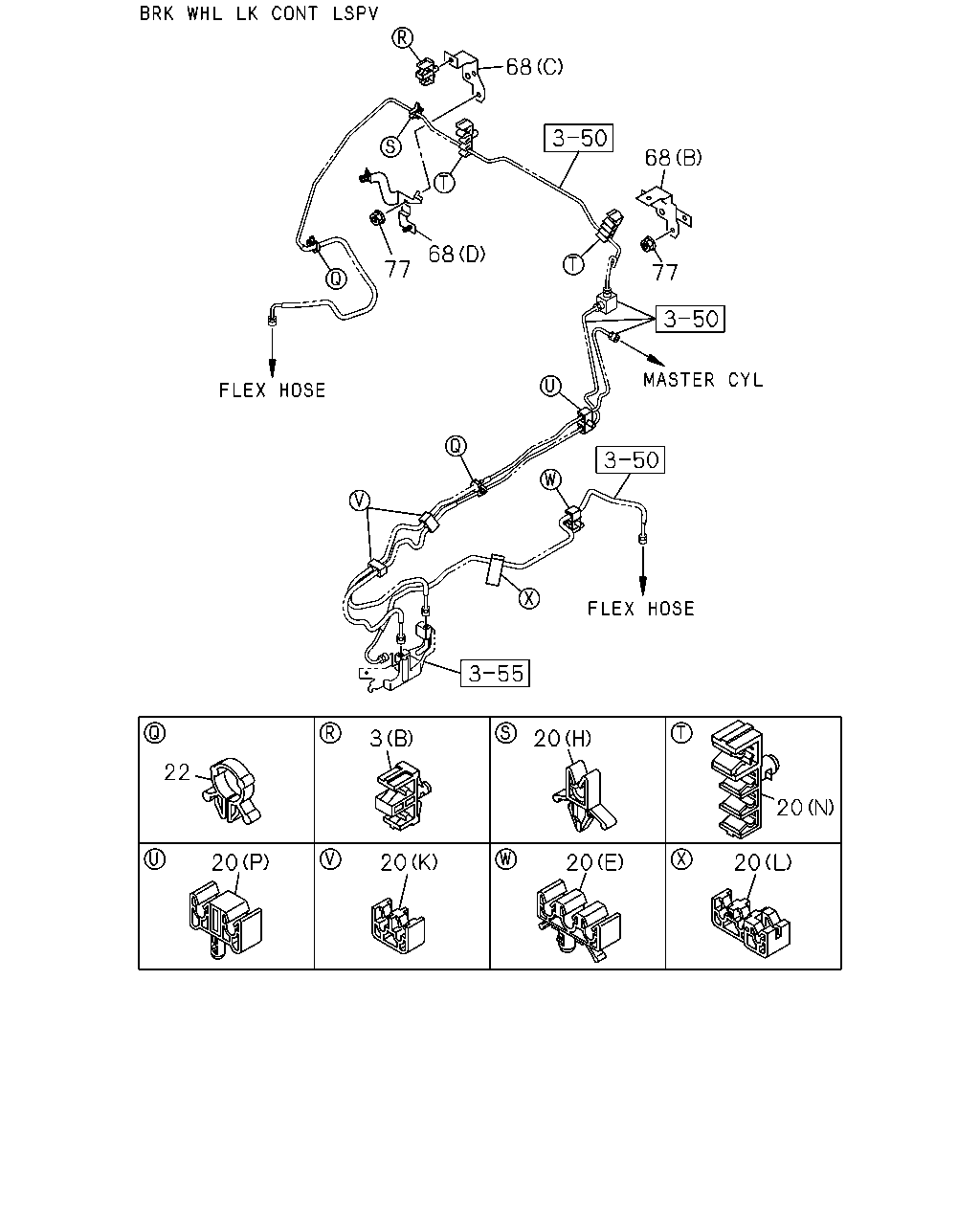

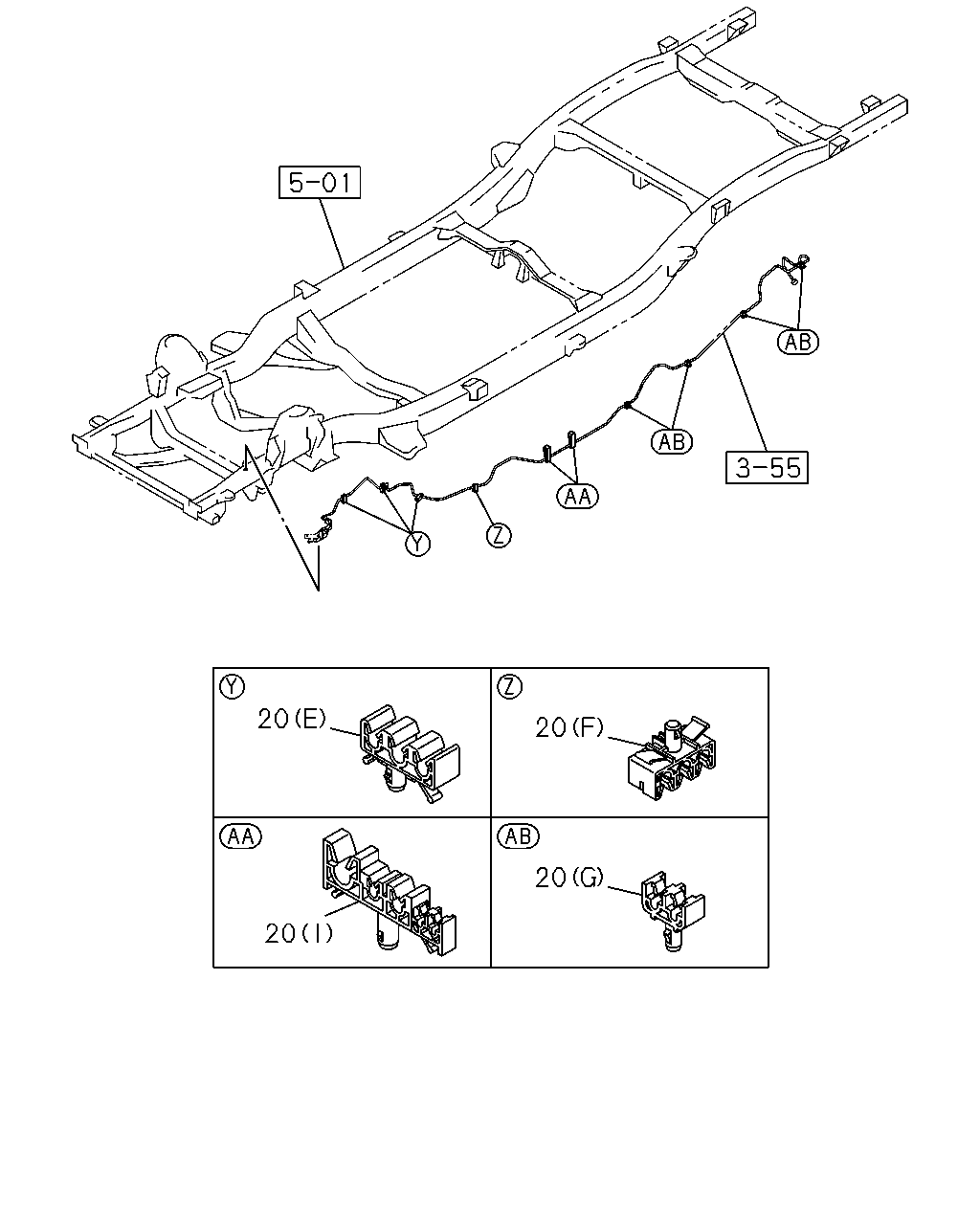

3-58 — FIXING PARTS; OIL PIPING (#118024) — 108 parça

68 77 68 68 77 16 20 20 20 22 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	04.686 BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1304-	●
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1304-		●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (H) ID=4.76	8-97300-443-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98113-392-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (L) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2	8-97251-122-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=4.76X2	8-98113-395-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.76	8-97300-443-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-				●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (Q) ID=4.8X3	8-94487-369-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-		●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 06.522 (D)	8-98187-830-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-790-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-792-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP (B)	8-98099-791-0	01	1	1304-	●	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●

77 68 68 68 77 3 20 22 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.685 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> 04.686 (B) ID=10 & 6.4	8-97074-832-0	01	1	1304-	●			●
3	04.685 CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 03.483 (A) ID=6 & 10	8-94154-844-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (H) ID=4.76	8-97300-443-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98113-392-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (L) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2	8-97251-122-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=4.76X2	8-98113-395-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.76	8-97300-443-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-				●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (Q) ID=4.8X3	8-94487-369-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-		●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 06.522 (D)	8-98187-830-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-790-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-792-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP (B)	8-98099-791-0	01	1	1304-	●	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●

20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (H) ID=4.76	8-97300-443-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98113-392-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (L) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2	8-97251-122-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=4.76X2	8-98113-395-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.76	8-97300-443-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-				●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (Q) ID=4.8X3	8-94487-369-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-		●	●

77 68 68 68 77 20 20 3 22 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.685 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> 04.686 (B) ID=10 & 6.4	8-97074-832-0	01	1	1304-	●			●
3	04.685 CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 03.483 (A) ID=6 & 10	8-94154-844-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> (H) ID=4.76	8-97300-443-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98113-392-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (L) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1304-	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.8X2	8-97251-122-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=4.76X2	8-98113-395-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.76	8-97300-443-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-				●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1304-	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (Q) ID=4.8X3	8-94487-369-0	01	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1304-	●	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1304-		●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 06.522 (D)	8-98187-830-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP EXC. BRK WHL LK CONT LSPV<JR9> (A)	8-98099-790-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-792-0	01	1	1304-	●	●	●	●
68	04.686 BRACKET; CLIP (B)	8-98099-791-0	01	1	1304-	●	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●
