7-43 — SUN VISOR AND ASSIST GRIP (#11802) — 129 parça

18 12 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0106-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0106-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0106-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0106-

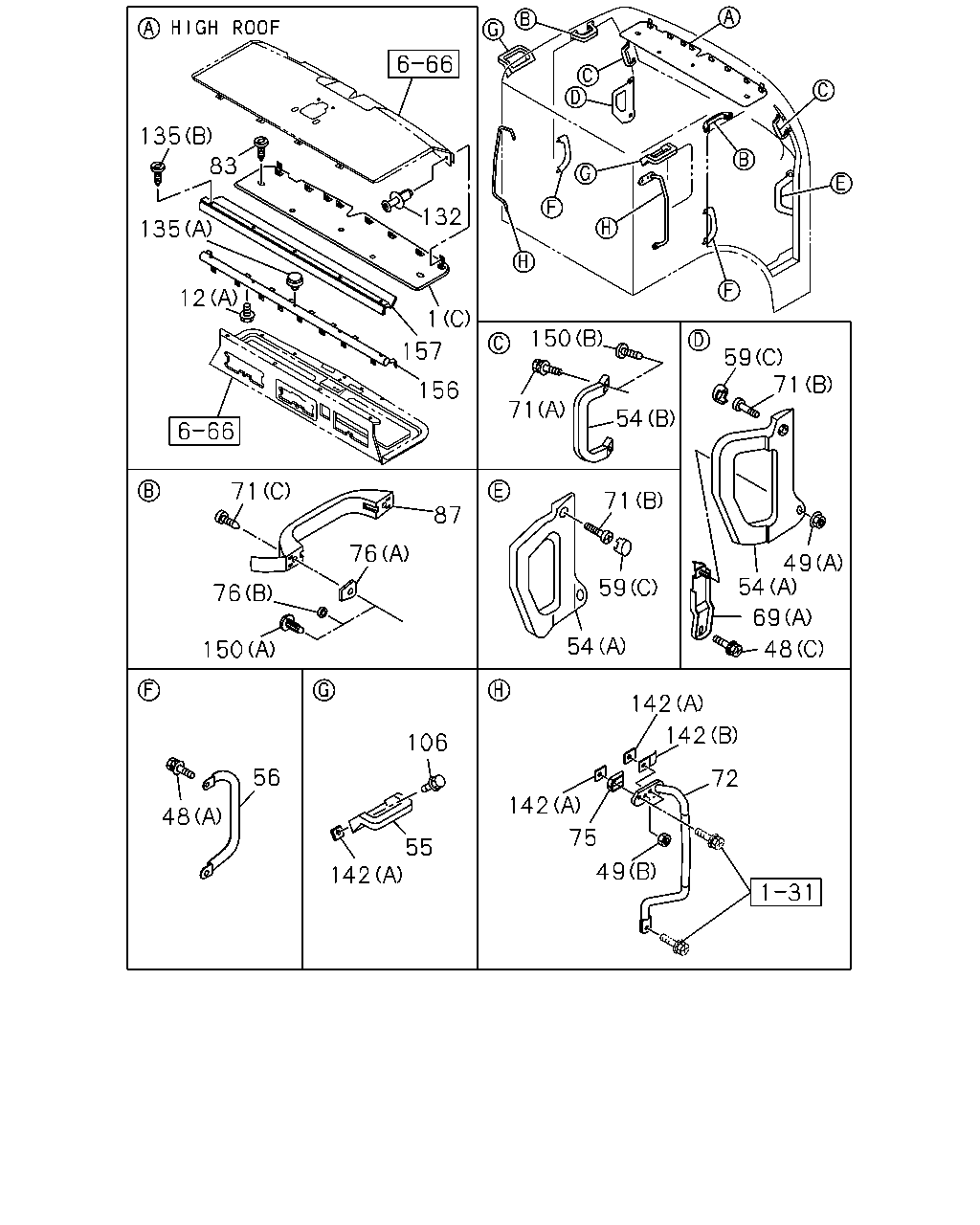

135 83 132 135 12 1 150 157 59 71 156 71 54 71 71 87 76 49 54 59 76 69 54 48 150 142 142 106 56 72 142 48 75 55 49 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0106-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
48	BOLT; ASSIST GRIP (C) M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0106-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0106-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0106-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0106-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0106-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0106-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0106-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0106-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0106-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0106-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0106-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0106-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0106-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0106-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0106-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0106-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0106-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0106-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0106-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0106-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0106-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0106-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0106-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0106-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0106-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0106-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0106-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0106-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0106-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0106-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0106-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-4	01	1	0106-

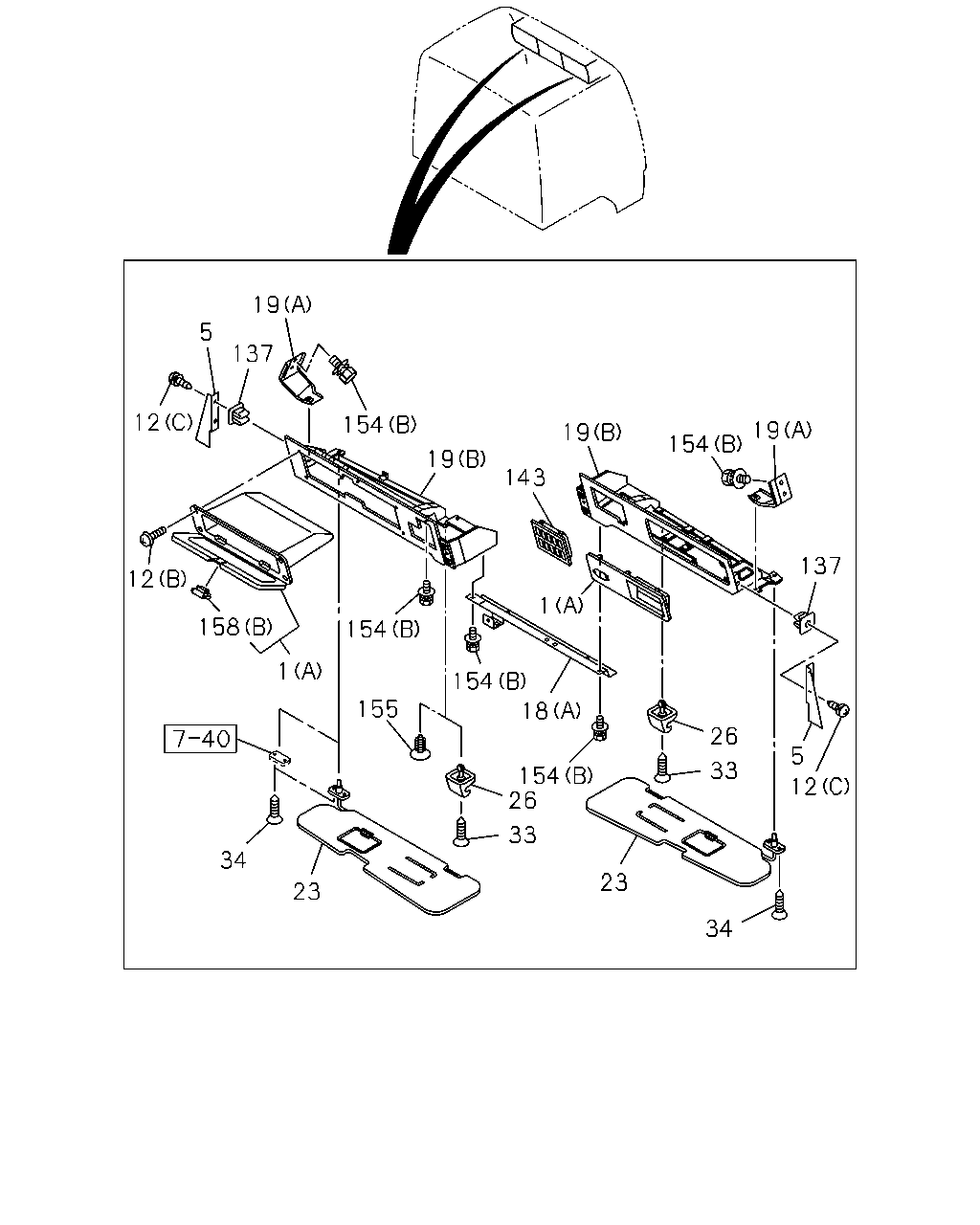

19 5 137 12 154 19 19 154 19 143 137 12 1 158 154 1 154 155 18 26 5 33 154 26 12 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0106-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0106-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0106-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0106-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0106-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0106-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0106-
23	SUN VISOR	1-73138-156-1	01	1	0106-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0106-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0106-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0106-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0106-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0106-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0106-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8X8 L=7.5 M5	8-94279-078-0	04	1	0106-
143	BEZEL	1-72447-768-2	01	1	0106-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0106-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0106-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0106-

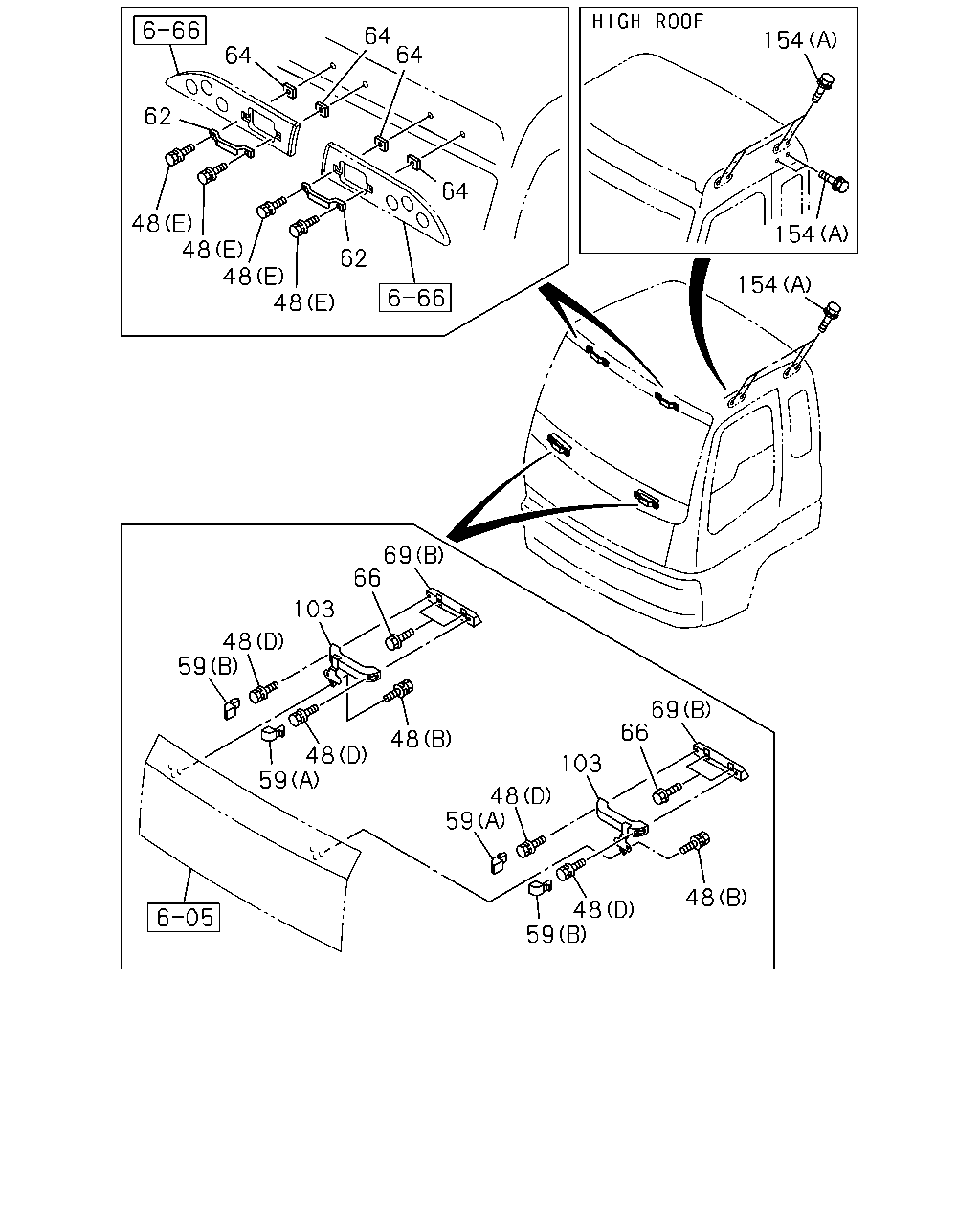

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-
48	BOLT; ASSIST GRIP (C) M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0106-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0106-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0106-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0106-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0106-0411
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0412-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0106-0411
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0412-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0106-
