◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#118013) — 206 parça
çizim 343342
95 56 9 1 128 225 104 9 8 8 106 106 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=975 		1-37125-338-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1210 		1-37125-381-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1010 		1-37125-339-0 01 1 1304- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1304- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1304- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1304- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1304- ● ● ●

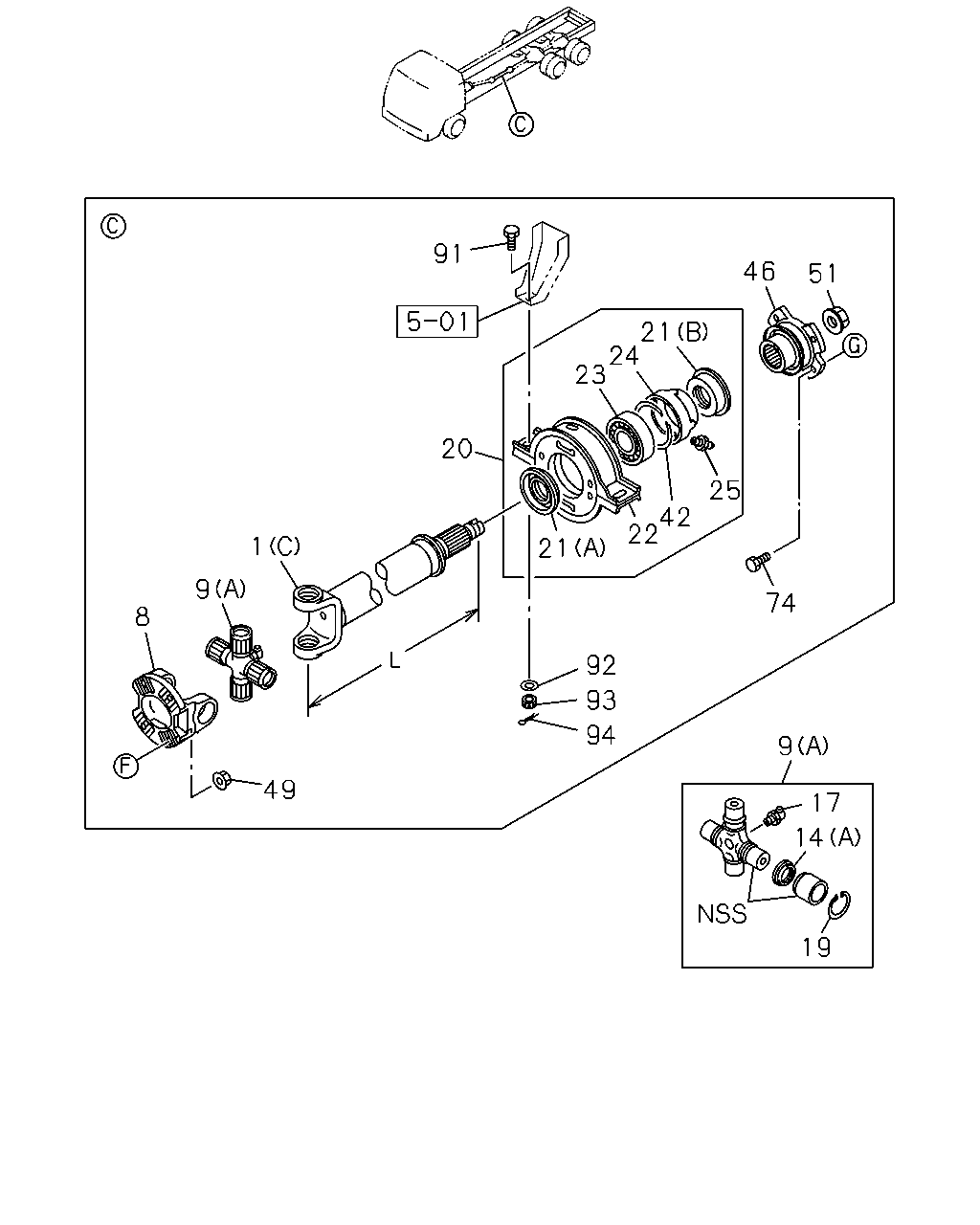

çizim 343347
91 8 49 9 1 20 21 23 22 24 42 21 25 92 93 94 74 46 51 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=975 		1-37125-338-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1210 		1-37125-381-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1010 		1-37125-339-0 01 1 1304- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1304- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1304- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1304- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1304- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1304- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1304- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1304- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1304- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1304- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1304- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1304- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1304- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1304- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1304- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1304- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1304- ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1304- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1304- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1304- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1304- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1304- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1304- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1304- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1304- ●
çizim 343353
95 56 9 8 1 128 225 104 9 8 106 106 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=975 		1-37125-338-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1210 		1-37125-381-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1010 		1-37125-339-0 01 1 1304- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1304- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1304- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1304- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1304- ● ● ●

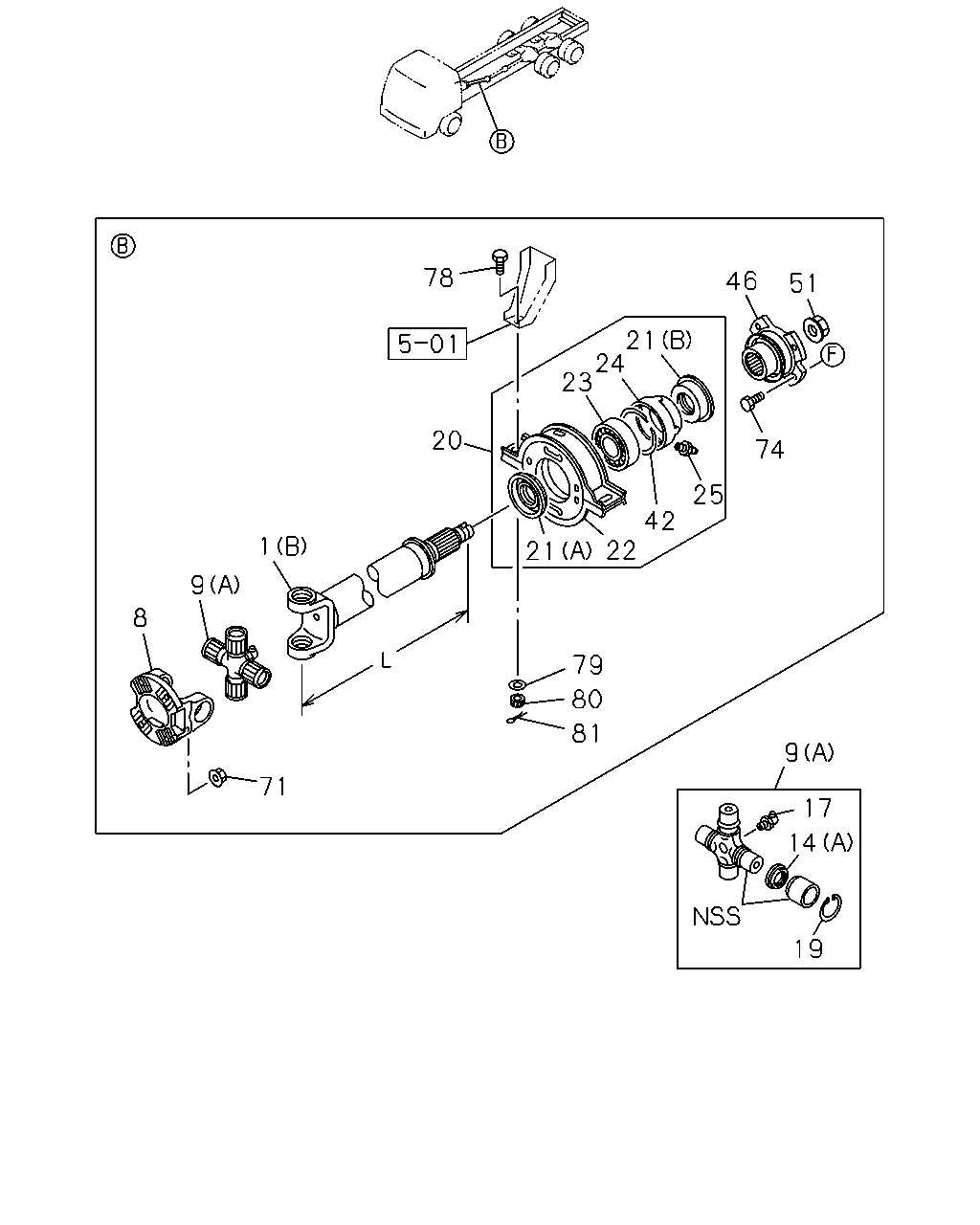

çizim 343364
8 71 9 1 78 20 79 80 81 23 21 22 24 42 21 25 46 74 51 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=975 		1-37125-338-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1210 		1-37125-381-0 01 1 1304- ●
1 SHAFT; PROP
(A) L=1010 		1-37125-339-0 01 1 1304- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1304- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1304- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1304- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1304- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1304- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1304- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1304- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1304- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1304- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1304- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1304- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1304- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1304- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1304- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1304- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1304- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1304- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1304- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1304- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1304- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1304- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1304- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1304- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1304- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1304- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1304- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1304- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1304- ●

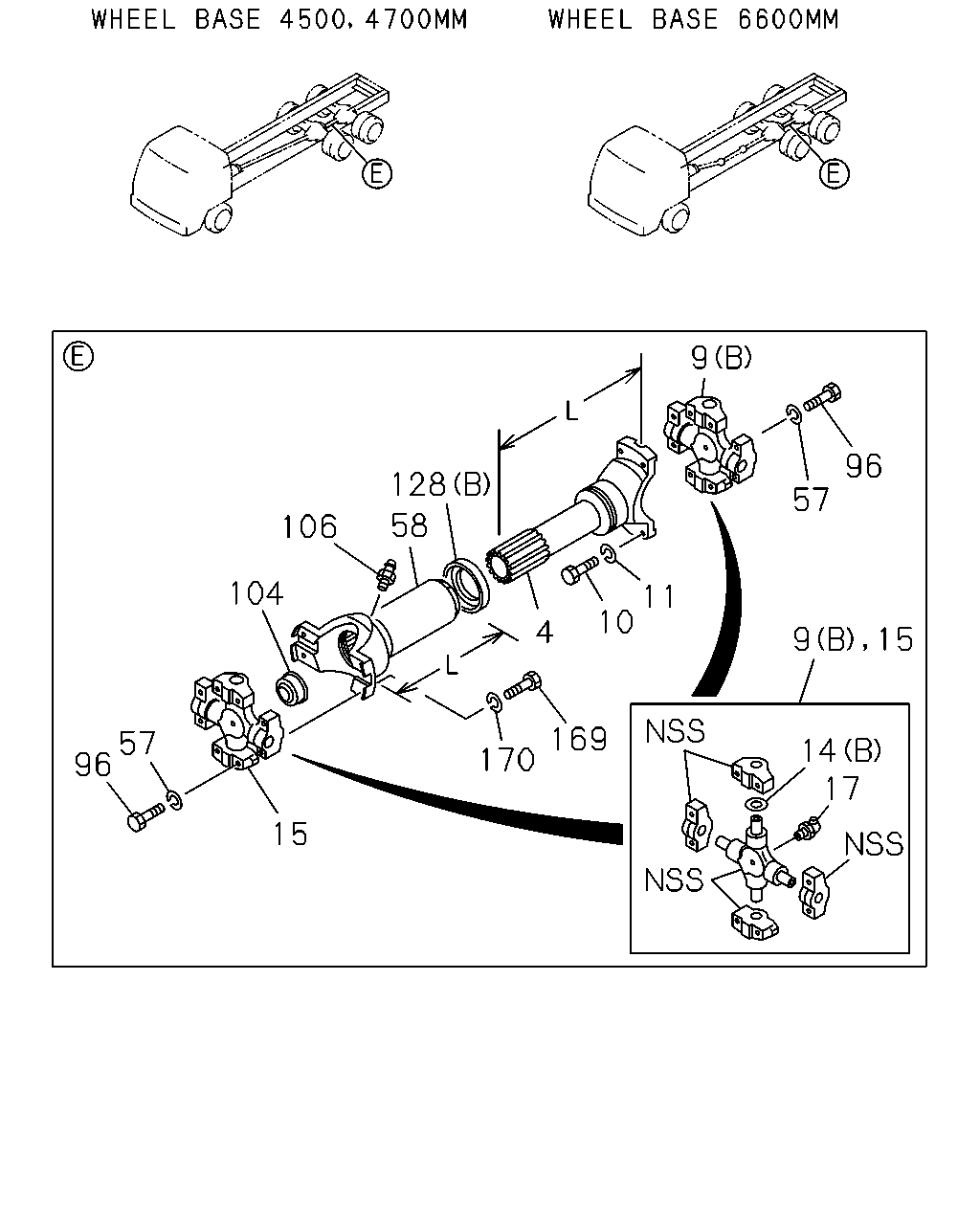

çizim 343428
9 128 58 106 104 57 96 96 57 11 10 4 169 170 15 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1304- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1304- ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1304- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1304- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1304- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1304- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1304- ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1304- ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1304- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1304- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1304- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1304- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1304- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
