7-40 — INSTRUMENT PANEL AND BOX (#11800) — 125 parça

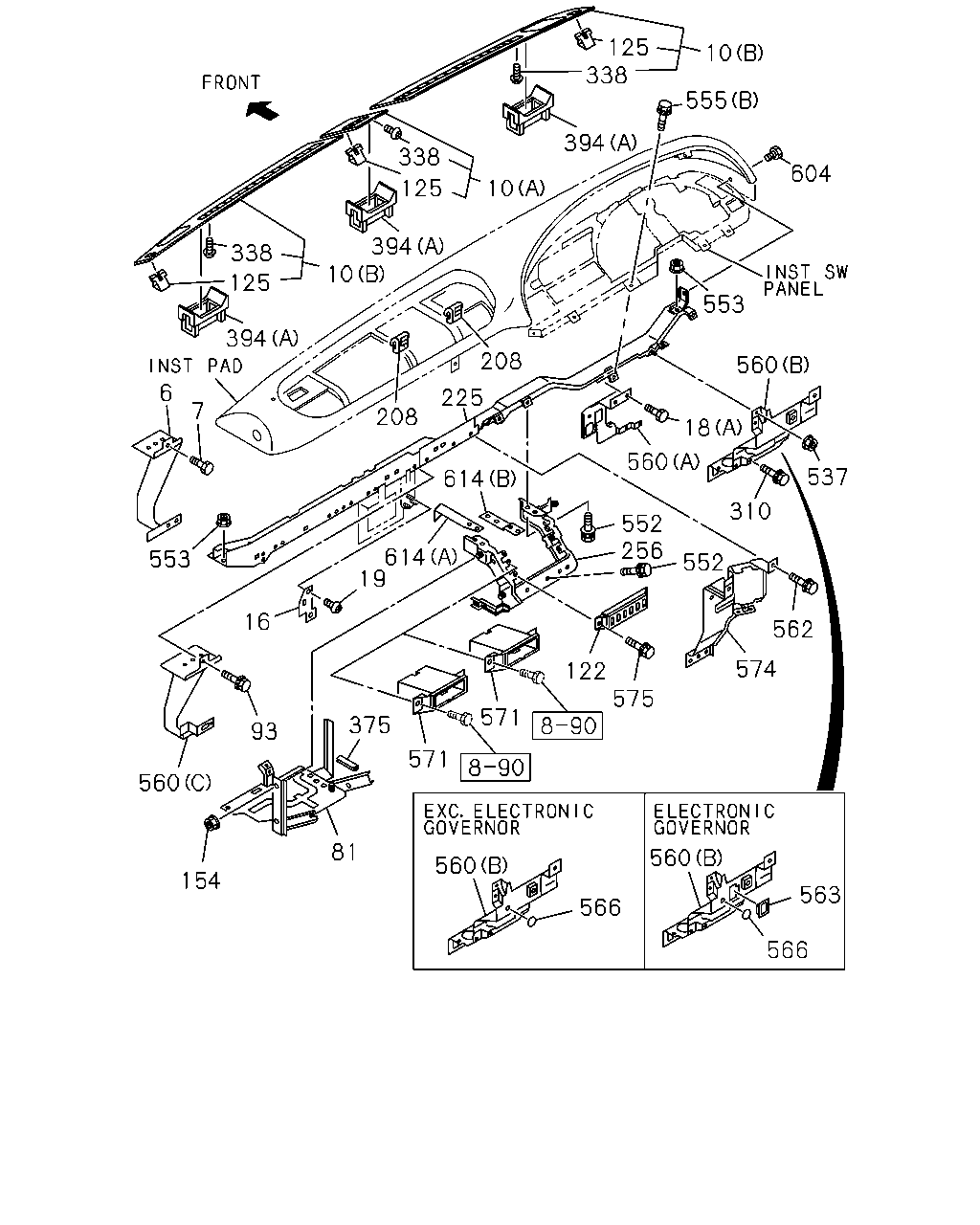

çizim 21222
125 338 10 555 394 338 604 125 10 338 394 10 125 553 394 208 560 6 225 7 208 18 614 560 537 310 552 256 614 19 553 552 16 562 574 122 575 571 375 93 571 560 81 560 560 154 563 566 566
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0106-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0106-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72437-600-6 01 1 0106-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0106-
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0106-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0106-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0106-
225 FRAME; FACIA 1-65671-725-8 01 1 0106-
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0106-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0106-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) TAPPING M5X14 		8-94279-325-0 12 1 0106-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0106-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0106-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
560 BRACKET
(A) 		1-65680-976-3 01 1 0106-
560 BRACKET
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-772-4 01 1 0106-
560 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-760-4 01 1 0106-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 0106-0302
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-786-2 01 1 0303-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0106-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 0106-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106-
571 BEZEL; POCKET 1-72438-151-3 01 1 0106-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0106-
574 PANEL; RELAY BOX 1-73907-365-9 01 1 0106-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
604 CLIP; INST PAD 1-09983-123-0 01 1 0106-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0106-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0106-

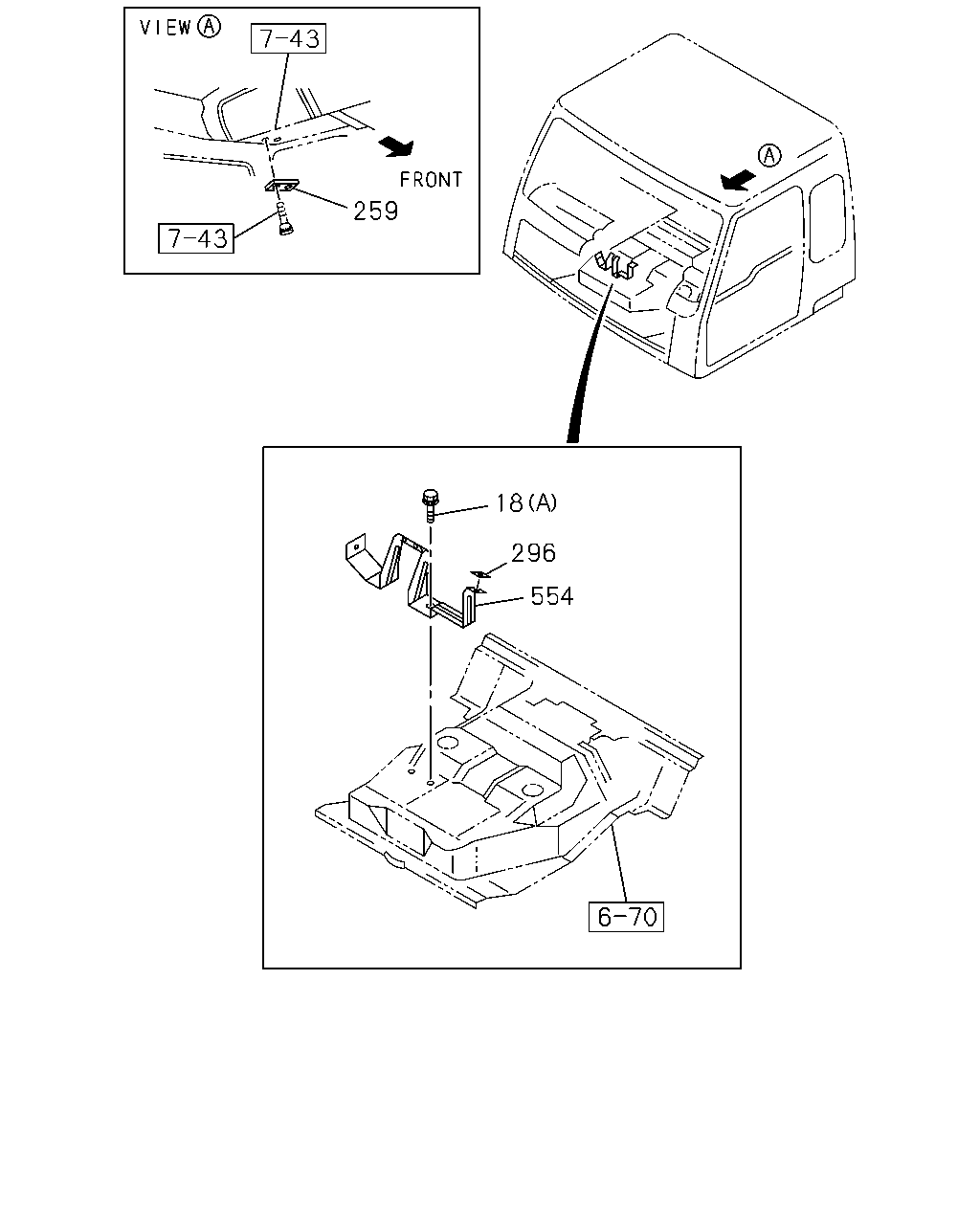

çizim 21223
259 18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0106-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0106-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0106-

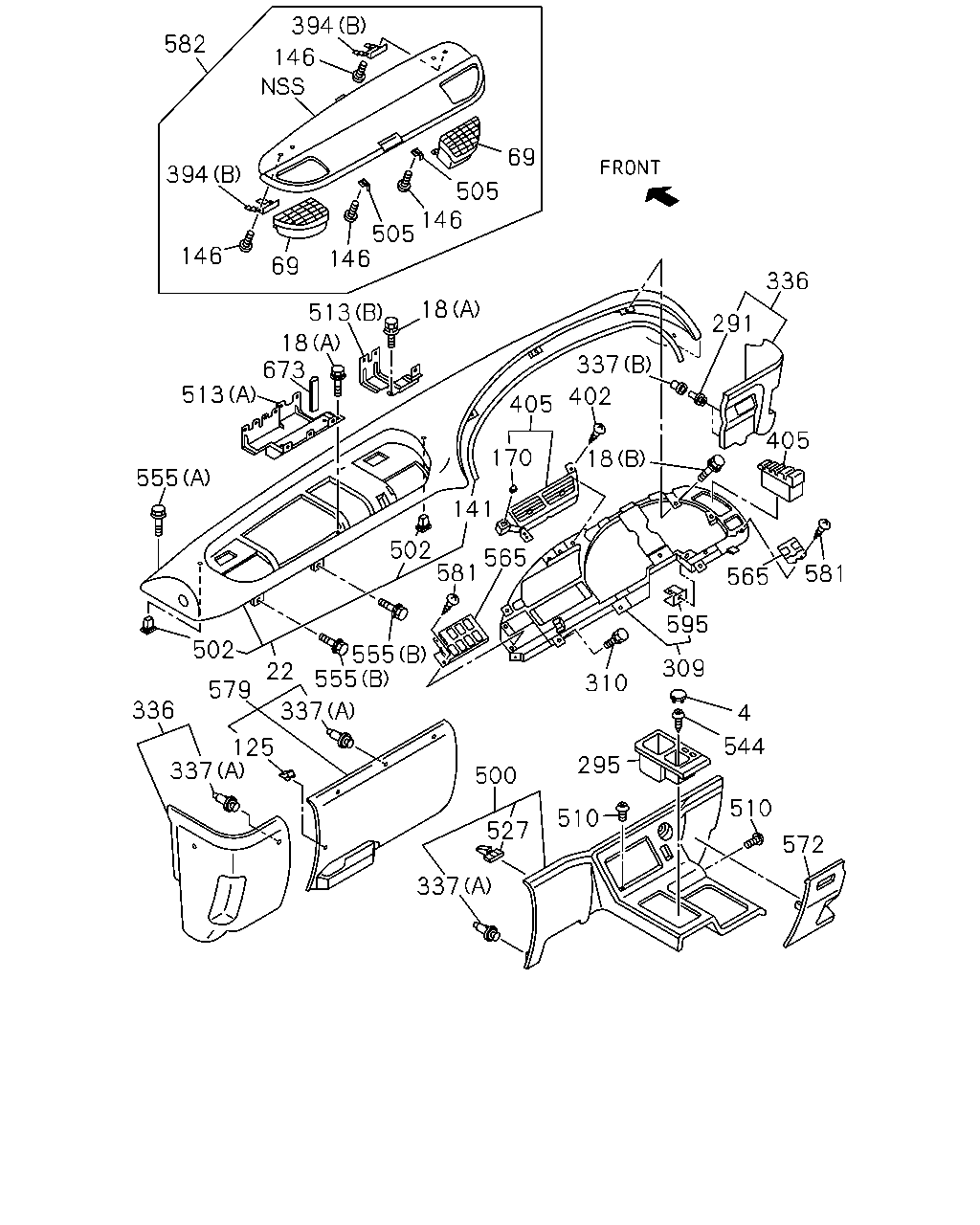

çizim 21919
394 582 146 69 394 505 146 505 146 146 69 336 18 513 291 18 673 337 513 402 405 405 18 170 555 141 565 581 502 581 565 595 555 555 502 309 22 310 579 336 337 4 544 125 295 337 500 510 510 527 572 337
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
22 PAD; INST 1-72317-347-2 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0106-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0106-
170 COVER; HOLE 1-76367-068-0 01 1 0106-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0106-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0106-
309 PANEL; SW,INST 1-72418-009-6 01 1 0106-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0106-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0106-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0106-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 0106-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0106-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0106-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0106-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0106-
505 LOCK; LID 1-72558-024-2 02 1 0106-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0106-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0106-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0106-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0106-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0106-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0106-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0106-
572 COVER; INSPECTION 1-72437-634-0 01 1 0106-
579 COVER; INST PNL 1-72437-626-0 01 1 0106-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0106-
595 NUT; HOOK 1-72418-013-0 11 1 0106-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0106-
