8-40 — HEATER SYSTEM (#118) — 62 parça

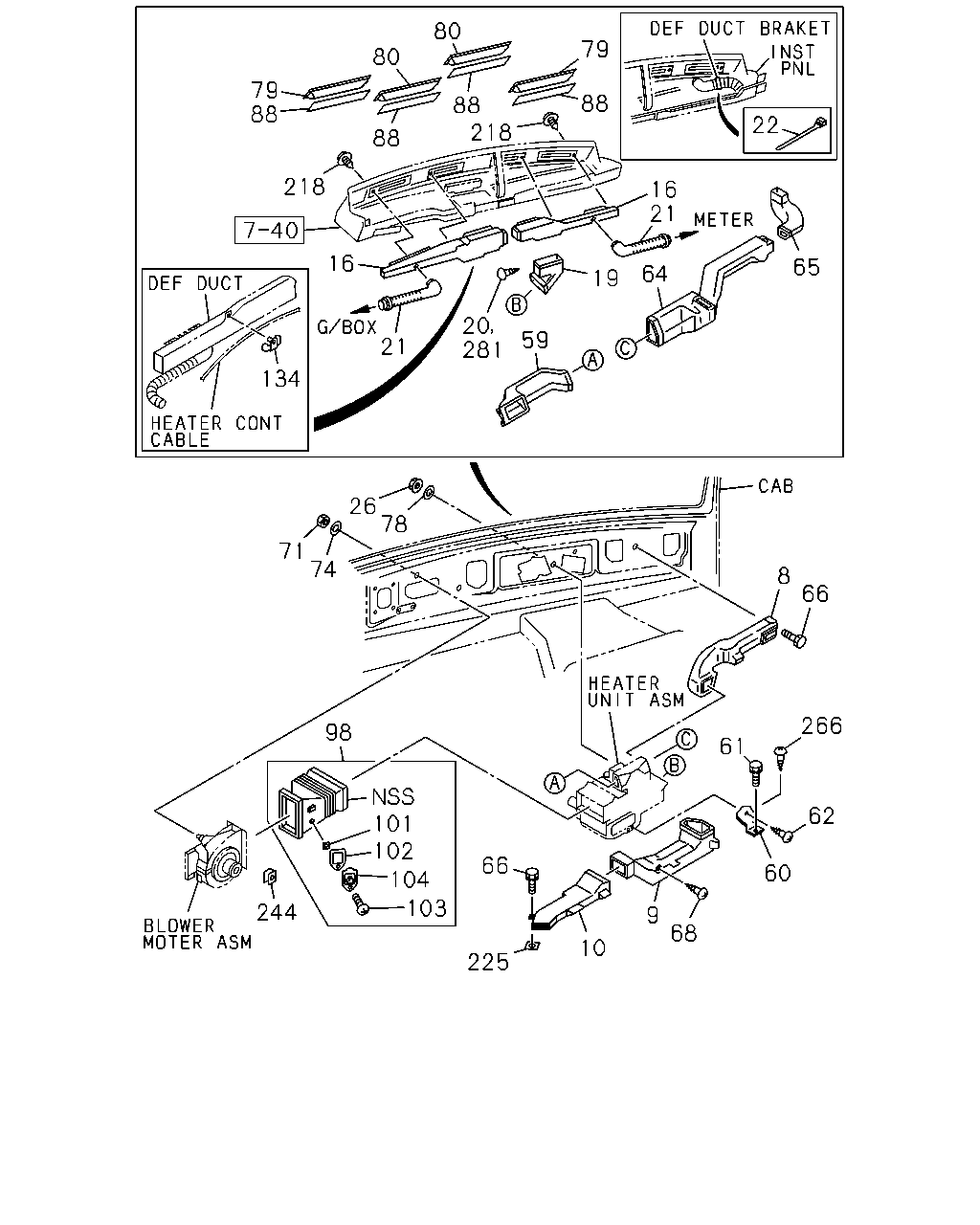

80 79 80 79 88 88 88 218 22 88 218 16 21 16 65 64 19 20 281 21 59 134 26 78 71 74 8 66 266 98 61 101 102 62 66 60 104 103 244 9 68 10 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-068-2	01	1	9202-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-069-1	01	1	9202-	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-070-0	01	1	9202-	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-203-2	01	1	9202-	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-189-3	01	1	9202-	●	●
19	DUCT; DEFROSTER,HTR JOINT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-191-1	01	1	9202-	●	●
20	FASTENER; DEFROSTER DUCT,HTR JOINT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLACK	8-94104-935-0	01	1	9407-	●	●
21	HOSE; DEFROSTER,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) WO/URETHANE	1-76377-085-4	02	1	9202-	●	●
22	CLIP; BAND,SIDE DEFROSTER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=250	5-09707-030-0	01	1	9202-	●	●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
59	DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-195-5	01	1	9202-	●	●
60	SUPPORT; HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-73998-449-4	01	1	9202-	●	●
61	BOLT; SUPPORT,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9202-	●	●
62	SCREW; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74110-514-0	03	1	9202-	●	●
64	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-193-1	01	1	9202-	●	●
65	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-220-1	01	1	9202-	●	●
66	BOLT; DUCT	1-09980-538-0	03	1	9202-	●	●
68	SCREW; HTR DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74110-514-0	01	1	9202-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-9210	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	02	1	9211-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-	●	●
78	WASHER; PL,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	01	1	9202-	●	●
79	GRILLE; DEFROSTER,INST OUTSIDE	1-76368-022-0	02	1	9202-	●	●
80	GRILLE; DEFROSTER,INSIDE	1-76368-023-0	02	1	9202-	●	●
88	SEAL; DEFROSTER,GRILLE SIDE	1-76778-012-1	04	1	9202-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-066-2	01	1	9202-	●	●
101	NUT; RESISTOR FIX HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-365-0	01	1	9202-	●	●
102	LINING; HTR DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-363-0	01	1	9202-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-364-0	01	1	9202-	●	●
104	RESISTOR; HTR DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-028-1	01	1	9202-	●	●
134	CLIP; CONT CABLE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-09987-147-0	01	1	9202-	●	●
218	SCREW; DEFROSTER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
225	SEAL; WATER 25X25	8-94272-533-0	01	1	9202-	●	●
244	NUT; BLOWER BRKT,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09466-001-0	02	1	9202-	●	●
266	PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D4.7X11	1-76378-154-0	01	1	9202-	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLACK	8-94104-935-0	02	1	9407-	●	●

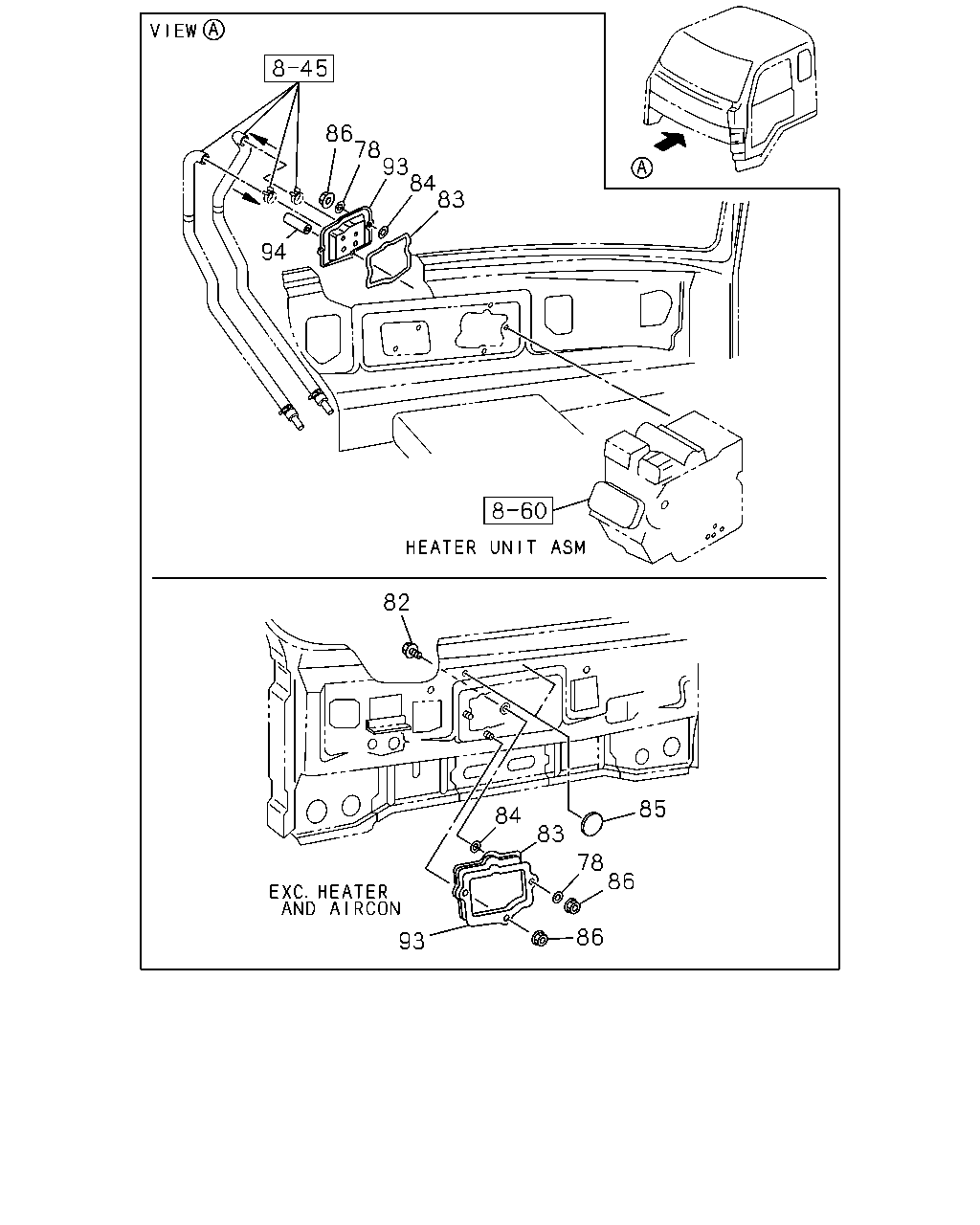

94 86 78 93 84 83 82 84 85 83 78 86 86 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-	●	●
78	WASHER; PL,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	01	1	9202-	●	●
82	BOLT; COVER,HTR CORE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-09980-538-0	01	1	9202-	●	●
83	SEAL; COVER,HTR HOLE	1-71998-222-0	01	1	9202-	●	●
84	SHEET; COVER,HTR CORE	1-71998-224-0	01	1	9202-	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9202-	●	●
86	NUT; COVER,HTR HOLE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	02	1	9202-	●	●
86	NUT; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
93	COVER; HTR CORE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-71998-177-1	01	1	9202-	●	●
93	COVER; HTR CORE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-71998-180-1	01	1	9202-	●	●
94	CAP; HTR CORE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-71998-399-0	01	1	9202-	●	●

253 249 248 249 91 92 247 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
91	GRILLE ASM; AIR OUTLET,METER CLUSTER	1-76367-050-1	02	1	9202-	●	●
92	BUSHING; AIR OUTLET GRILLE,METER CLUST	1-72547-048-1	02	1	9202-	●	●
246	COVER; BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71997-533-3	01	1	9202-	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71997-549-0	01	1	9202-	●	●
248	NUT; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-9210	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	02	1	9211-	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-9210	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	01	1	9211-	●	●
253	KNOB; CONT LEVER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-82346-072-0	03	1	9202-	●	●
253	KNOB; CONT LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82346-072-0	02	1	9202-	●	●
